CVW Crystal Video Beamlink Duo Plus
Redevelopment of the Beamlink Duo. Improvements are highlighted in bold

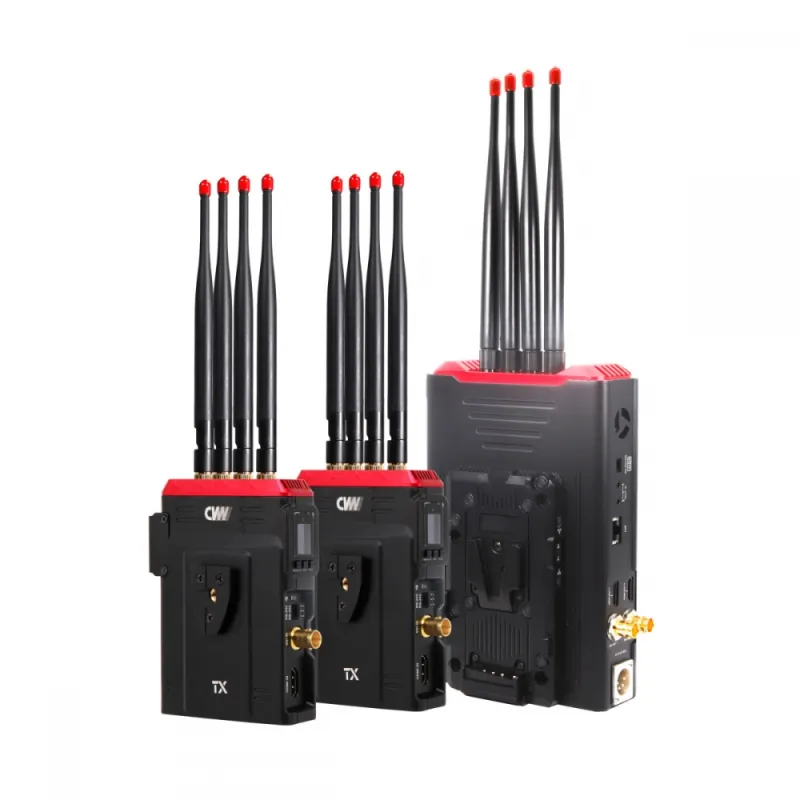

BeamLink-Duo, the 2 Transmitters-to-1 Receiver wireless HD video transmission system.
Features:
• Wireless HD, long distance transmission up to 1000m range
• Channel Scanning
• Display shows signal strength
• Combination interface for PTZ control
• 2TX-to-1RX, Tally function, support 2 channels HDvideo transmission
• In 1 RF channel provide a seamless connection between RX and video switcher
• Support both SDI and HDMI input
• Simple installation, convenient operation
• Flexible application
• Eliminate the hassle of running wires for multi-position.
Antenna Mode | 4×4 MIMO and Beamforming, 5dBi External antenna |
Frequency | 5.1~5.8GHz |
Transmission power | 17dBm |
Audio Format | PCM, MP2 |
Receiving Sensitivity | -70dBm |
Bandwidth | 40MHz |
Power consumption | 10W |
Transmission range | 700m(video code rate: 8Mbps per channel) |
Temperature | -10~50 C(Working);-20~80 C(Storage) |
Overvoltage Protection | 7V~17V |
Product Size | 96(L)×46(W)×127(H) |
RX:BEAMLINK-Duo Plus | |
Antenna Mode | 4×4 MIMO and Beamforming, 5dBi External antenna |
Frequency | 5.1~5.8GHz |
Receiving Sensitivity | -70dBm |
Bandwidth | 40MHz |
Audio Format | PCM,MP2 |
SDI Protocol | SMPTE 424M 3G-SDI |
Power consumption | 13W |
Transmission range | 700m(video code rate: 8Mbps per channel) |
Product Size | 176(L)×81(W)×235(H) |
Operating voltage | 7-17V |
Вид продукта | Системы беспроводной передачи видео |
