Sachtler System aktiv14T flowtech100 MS

Weighing only 7,5 kg the aktiv14T flowtech100 system is both lightweight and durable, designed to be a long-serving and high-performing part of your kit. This system is the perfect choice for professional medium-sized camcorders and digital Cine camera set ups of up to 16 kg. 15 counterbalance steps allow for fast and precise balancing of your camera. Its sideload mechanism with a long sliding range of 70 mm make loading and positioning the camera quick and easy. Seven drag settings provide smooth and fast to adjust drag performance without jolts or vibrations. The illuminated PrismBubble with top or side view makes levelling easy from any height.

Fluid Head

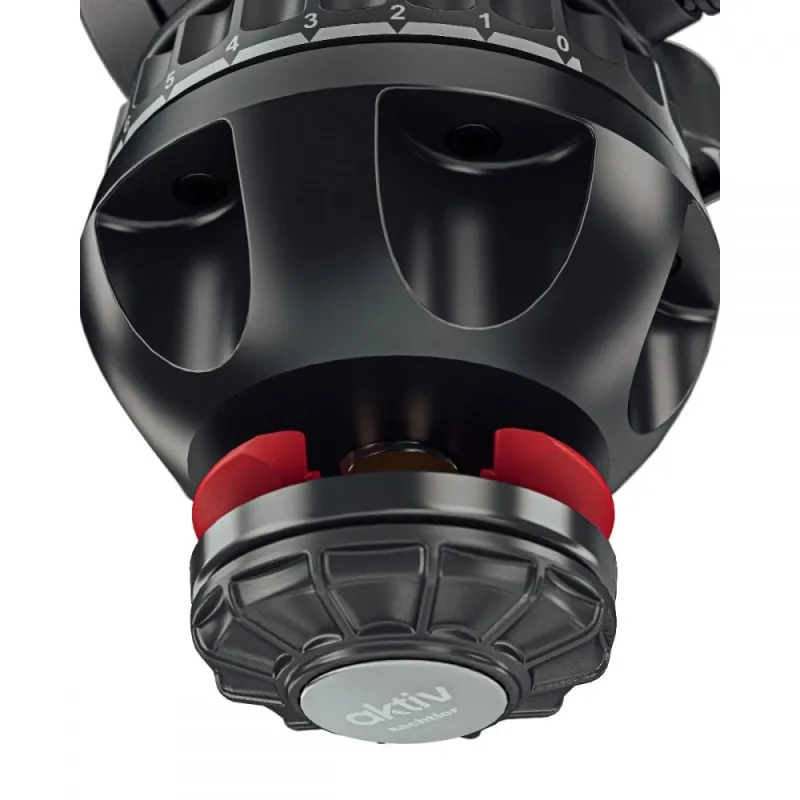

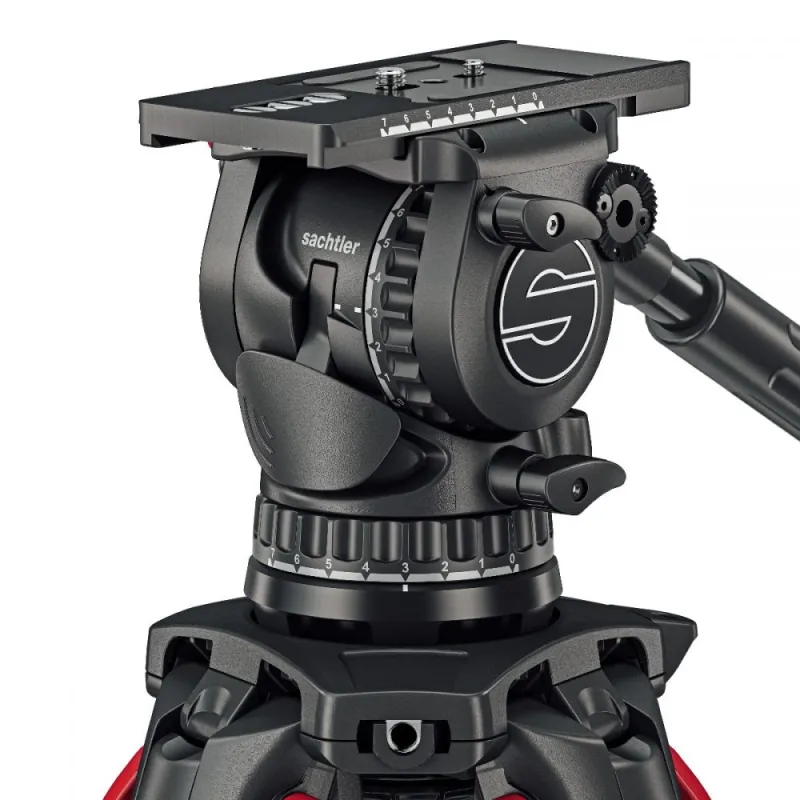

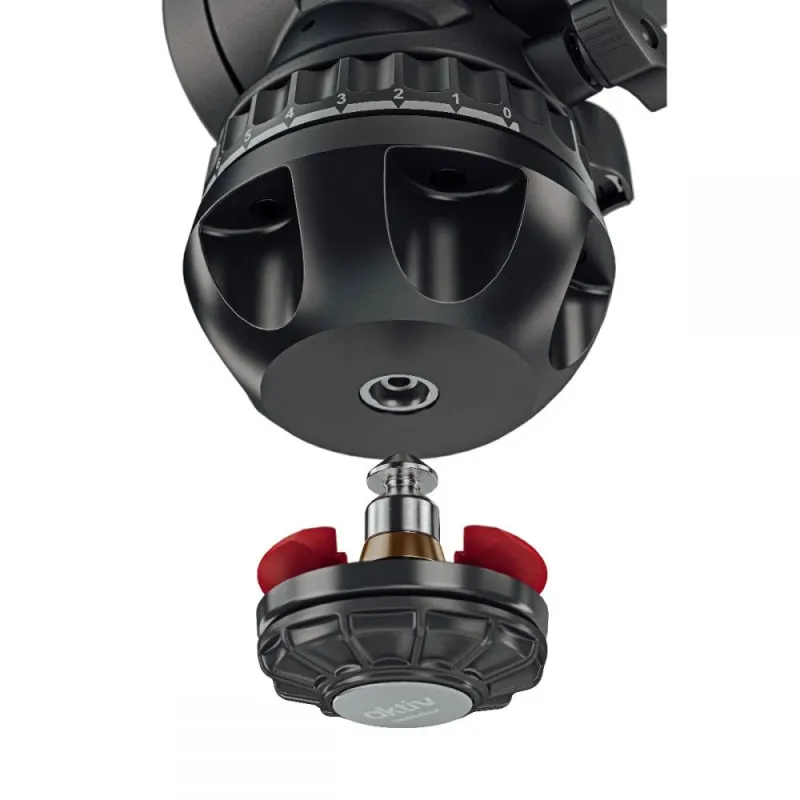

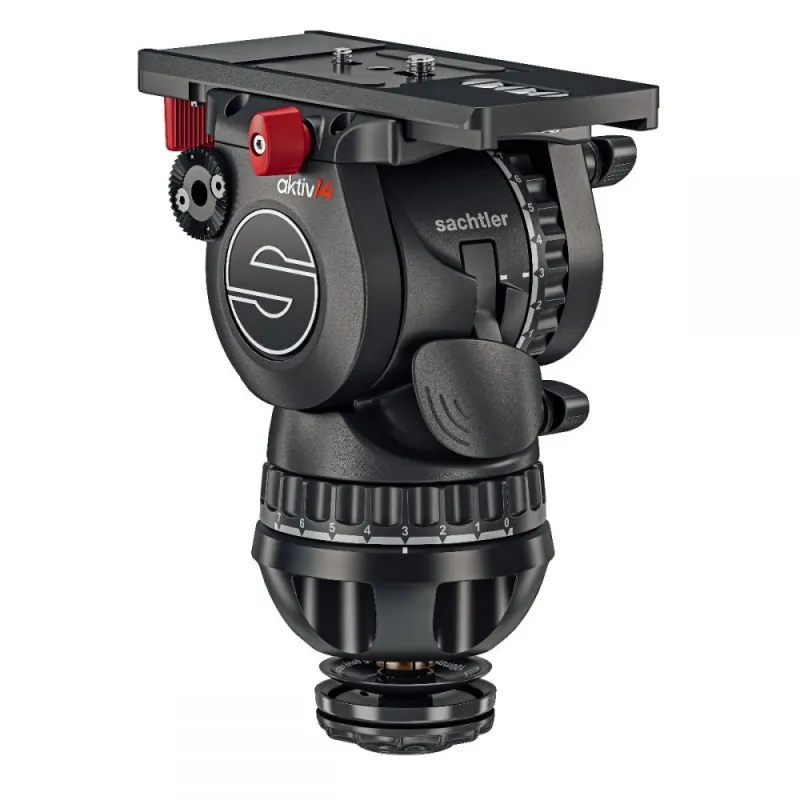

The aktiv14T fluid head with unique SpeedLevel™ technology can be levelled in seconds giving you time to get the perfect shot in documentary, corporate, news or wildlife applications. The SpeedSwap™ system delivers the fastest way to switch between tripod and slider in seconds giving you ultimate flexibility.

Tripod

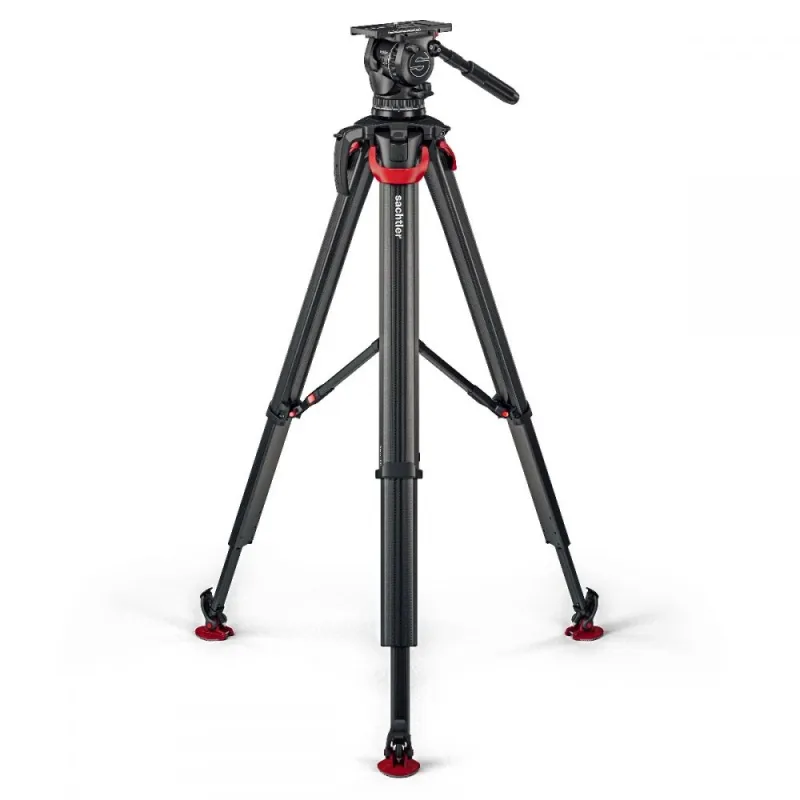

Capture the widest range of shots in the shortest time with aktiv14T combined with flowtech100. With no bowl clamp required, flowtech can go flat to the ground for extreme low-angle shots – using the versatile hinge lock mechanism of flowtech. The system delivers the widest height range. The 2-stage carbon fibre flowtech tripod with high torsional stiffness has unique quick release brakes which can be deployed and adjusted in an instant. Its ergonomic design makes the tripod comfortable to carry, on shoulder or carry handle, no matter where your creativity takes you. flowtech comes with a quick attach rubber foot mechanism and an adjustable mid-level spreader. When you are ready to move on, the legs are hold together by a magnetic lock for transportation.

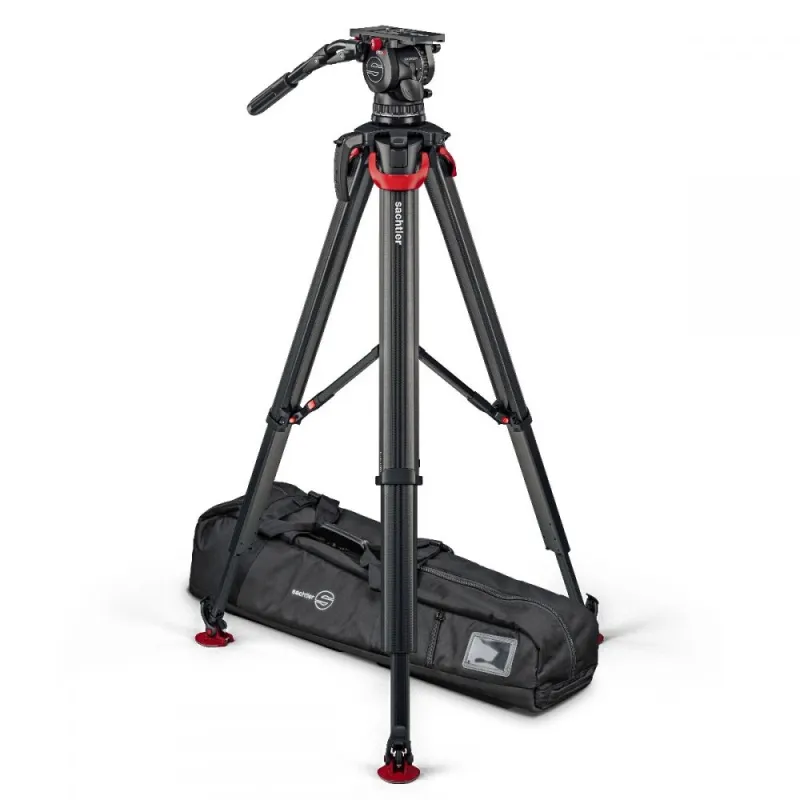

Delivery Content
• aktiv™14T fluid head with Touch & Go plate 16 (#1064)
• telescopic pan bar DV 75 (#3470)
• flowtech®100 tripod #5585 with mid-level spreader (#S2056-0001)
• rubber feet (#S2058-1073)
• carry handle (S2051-1062)
• attachment mount (#S2051-1900)
• padded bag ENG (#9104)

Specifications

Payload

0 to 16 kg

Bowl size

100 mm

Weight

7,5 kg

Transport length

870 mm

Height without spreader

0.23 to 1.70 m

Height With Mid Spreader

0.71 to 1.72 m

Temperature range

-40 to 60 °C

Tilt range

90° to -70°

Sliding range

70 mm

Counterbalance

15 + 0 counterbalance steps

Drag

7 + 0 drag settings
