Sachtler System Cine 30 tripod kit with ground spreader

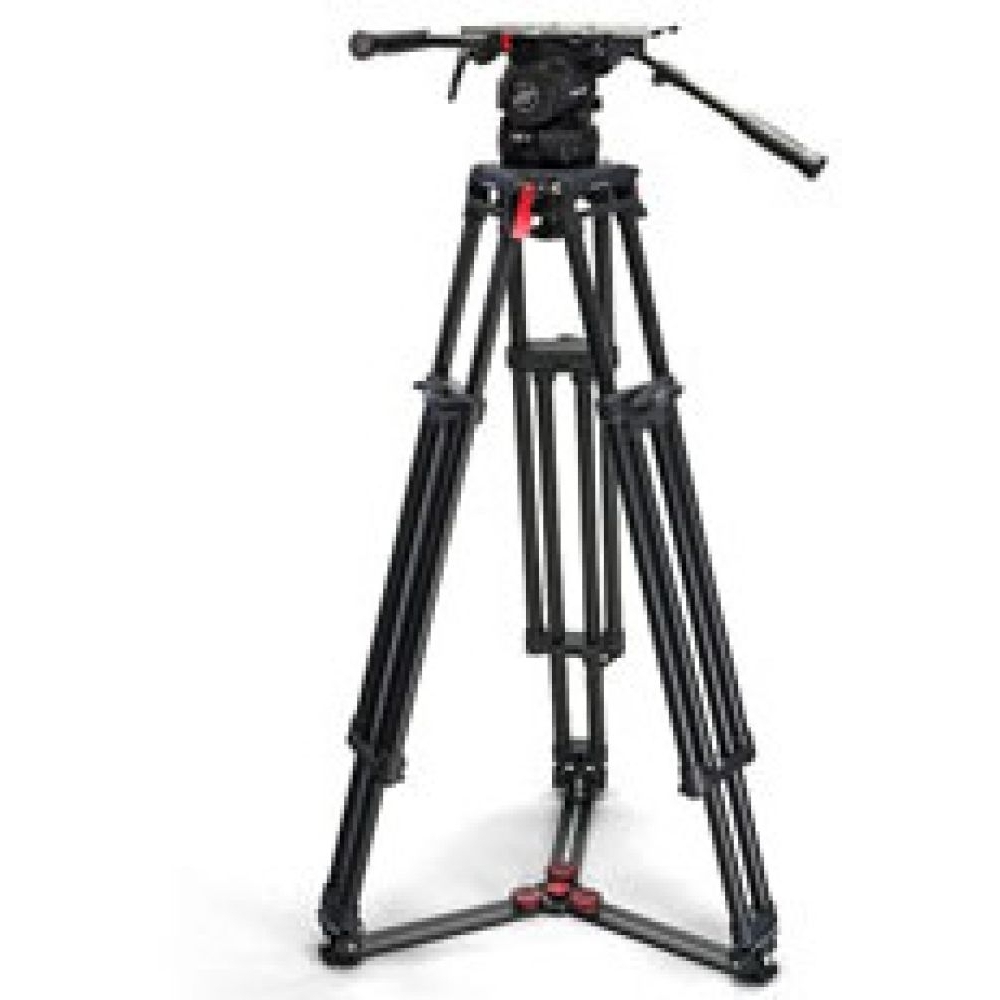

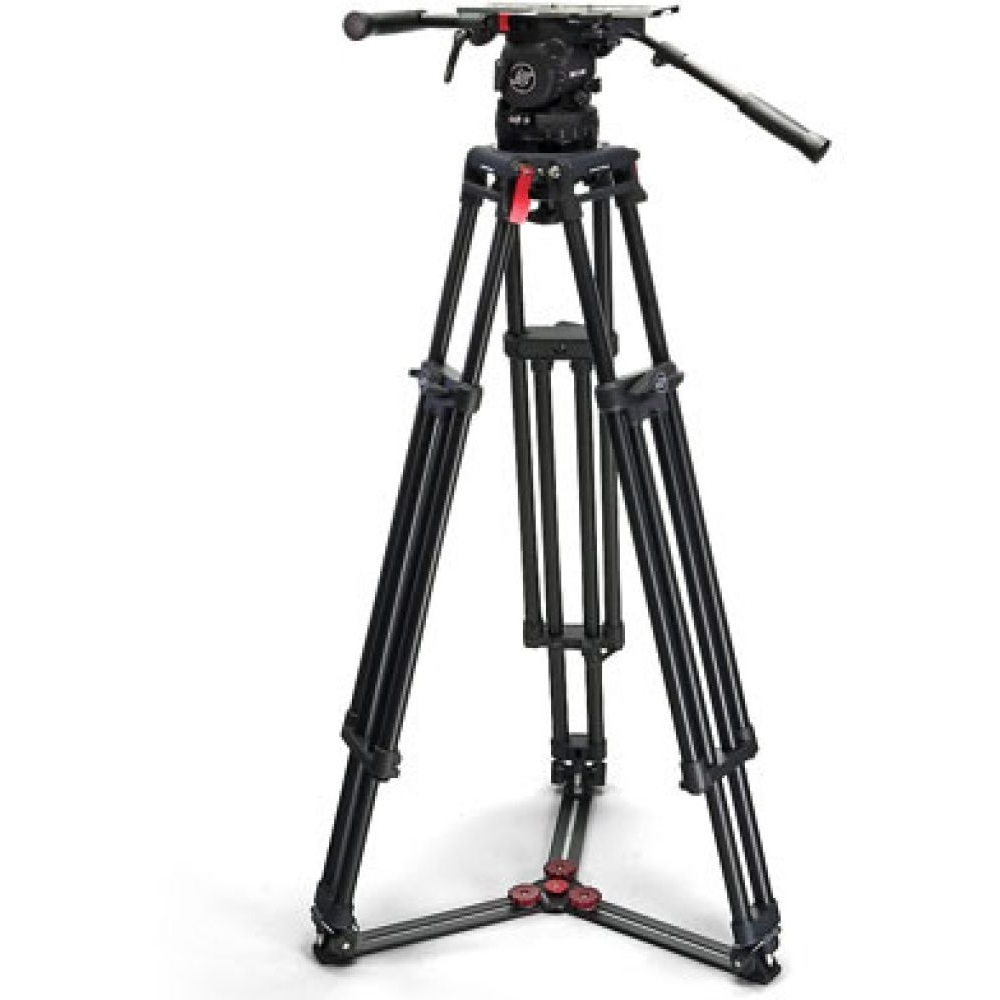

This tripod set includes a Sachtler Cine 30 HD Fluid Head, the front pan bar HD, the tripod Cine 150 (long) and the spreader Cine .

The information collected by us, of course, sets can be changed depending on the customer.

description of the individual products:

Cine 30 HD Fluid head
Sachtler?s fluid head Cine 30 HD features a sideload mechanism for the camera plate. A key advantage of this technology is that the fluid head can be side-loaded together with its camera set-up ? quickly and easily. The mechanism is compatible with camera plates from OConnor and ARRI. The operating elements, manufactured according to 2K processes, are especially convenient. If you need a front box for all sorts of utensils or tools, it is simple to mount an adapter which is exceptionally practical for film and HD shooting.


Cine 150 long tripod
The new tripods Cine long and Cine medium are high achievers in the demanding world of film and HD production. Extremely stable, their robust aluminium legs and large-sized spikes ensure that the tripod stands firm ? no matter what surface you?re working on. The large tripod clamps even allow you to keep your gloves on while opening and closing the tripods in icy temperatures. The height ranges of
the different versions ideally complement each other, allowing them to be used in a wide variety of applications. In addition, the Cine 2000 short offers a minimum height of 17 cm / 6.7, making it ideal to keep the tripod footprint to a minimum.

Spreader Cine
Weight<=> 1.4 kg / 3.1 lbs
Payload<=> 50 kg / 110 lbs
Height<=> 45 mm / 1.8 in
Build up radius<=> 22.5 - 33.5 cm / 8.9 - 13.2 in

This tripod set consists of the following products:

- Cine 30 HD Fluid Head (#3006)

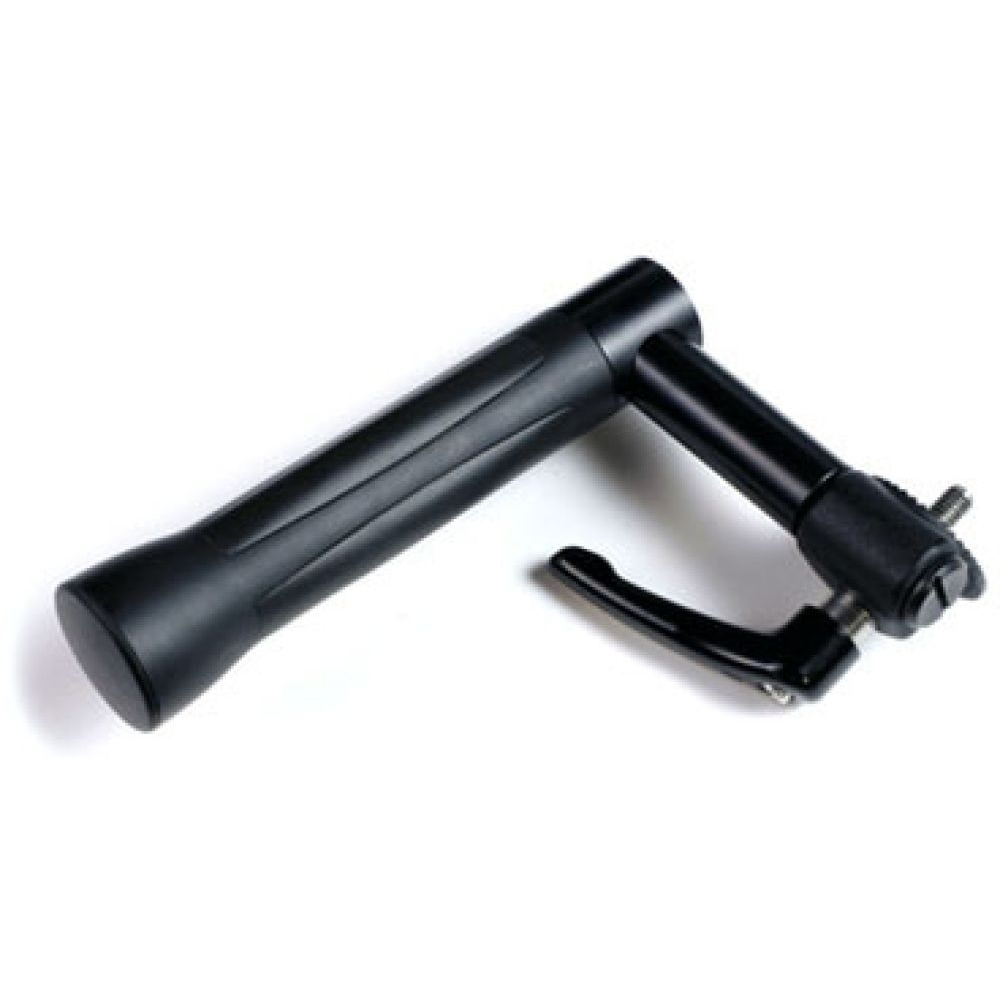

- Front pan bar HD (#3372)
- Tripod Cine 150 long (#6290)
- Spreader Cine (#7023)

More information about the respective products, please refer directly to the individual product pages!

Cine 30 HD Fluid head

Weight

5.6 kg / 12.3 lbs

Payload

3 - 35 kg / 7 - 77 lbs

Sliding range - plate

150 mm / 5.9 in

Counterbalance

in 18 steps + Boost Button

Grades of drag

7 each horizontal and vertical + 0

Tilt range

+90/-75

Temperature range

-40 to +60 C / -40 to +140 F

Camera fitting

Sideload plate 30 HD

Tripod/Pedestal fitting

150 mm bowl, integrated flat base fitting

Pan bar(s)

1, telescopic, Type HD

Level

self-illuminating Touch Bubble

Batteries Level

3 × 625U or LR9

Cine 150 long tripod

Weight

10.7 kg / 23.6 lbs

Payload

140 kg / 309 lbs

Height with spreader

85 - 176 cm / 33.5 - 69.3 in

Height with mid-level spreader

93 - 176 cm / 36.6 - 69.3 in

Head fitting

150 mm

Transport length

103 cm / 40.5 in

Extension

single

Spreader Cine

Weight

1.4 kg / 3.1 lbs

Payload

50 kg / 110 lbs

Height

45 mm / 1.8 in

Build up radius

22.5 - 33.5 cm / 8.9 - 13.2 in
