Blackmagic Design UltraStudio 4K Extreme 3 (BM-BDLKULSR4KEXTR3)

Blackmagic UltraStudio 4K Extreme 3 (BM-BDLKULSR4KEXTR3)

UltraStudio 4K Extreme 3 is the world’s most advanced capture and playback solution for PCIe and Thunderbolt computers! It features incredibly fast 40Gb/s Thunderbolt 3, advanced 12G-SDI and HDMI 2.0 connections for working at up to 60 frames per second with deep color, 12-bit RGB, support for HDR workflows via HDMI 2.0a and extremely large 4K frame sizes, even in 3D! Featuring the widest range of analog and digital connections, UltraStudio 4K Extreme is compatible with virtually any camera, deck, router or display. There’s even an extremely powerful hardware encoder built-in that supports realtime H.265 encoding!

In The Box
- UltraStudio 4K Extreme 3
- SD card with software and manual
- DaVinci Resolve SD card

Featuring the latest 40Gb/s Thunderbolt 3 technology, UltraStudio 4K Extreme 3 has a wide range of digital and analog connections and is designed to work with virtually all formats ranging from SD and HD all the way up to Ultra HD and digital cinema.

Thunderbolt 3 performance allows customers to work with the highest quality 12-bit RGB and highest frame rate video, including stereoscopic 3D and DCI 4K, making it perfect for high end feature film, television and commercial work. UltraStudio 4K Extreme features a hardware codec that can encode in real time into the new H.265 format.

UltraStudio 4K Extreme 3 uses the new Thunderbolt 3 connection for transferring data to the host computer at up to 40Gb/s. That means customers using the latest desktop workstations and laptop computers can now work with extremely high end video from anywhere using a single, thin Thunderbolt 3 cable.

Featuring advanced 12G-SDI technology, UltraStudio 4K Extreme 3 can capture and playback video from the latest high frame rate Ultra HD and 4K devices up to 2160p60 over a single, standard BNC cable. UltraStudio 4K Extreme 3 supports virtually every SD, HD, Ultra HD and 4K format and frame rate, in both YUV and RGB color, making it the ultimate capture and playback device for editing and color correction.

UltraStudio 4K Extreme 3 also includes a built in multi format hardware codec that allows capturing video directly to H.265 files, which is the new compression standard for distributing Ultra HD content online. The demand for content encoded in the H.265 format will become higher as customers demand high quality Ultra HD content for the latest televisions they are purchasing today. This means UltraStudio 4K Extreme 3 is the perfect solution for real time encoding of Ultra HD for online distribution of content.

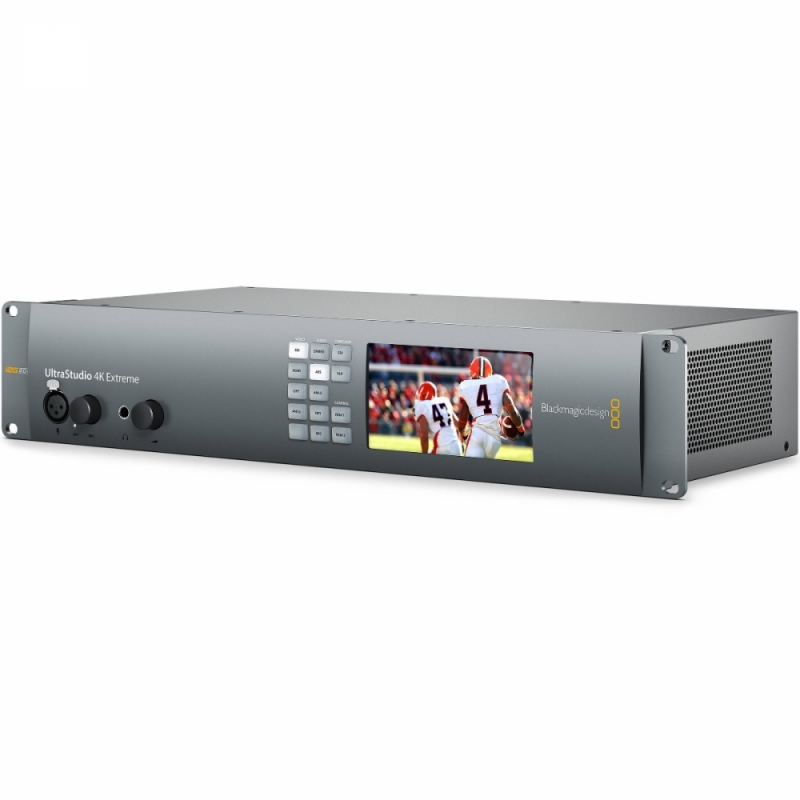

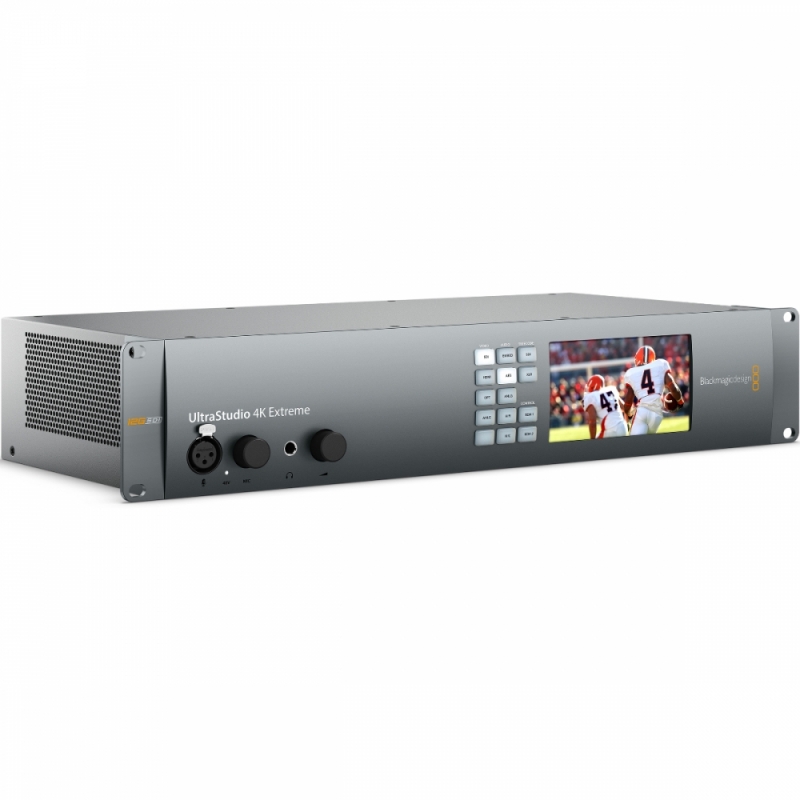

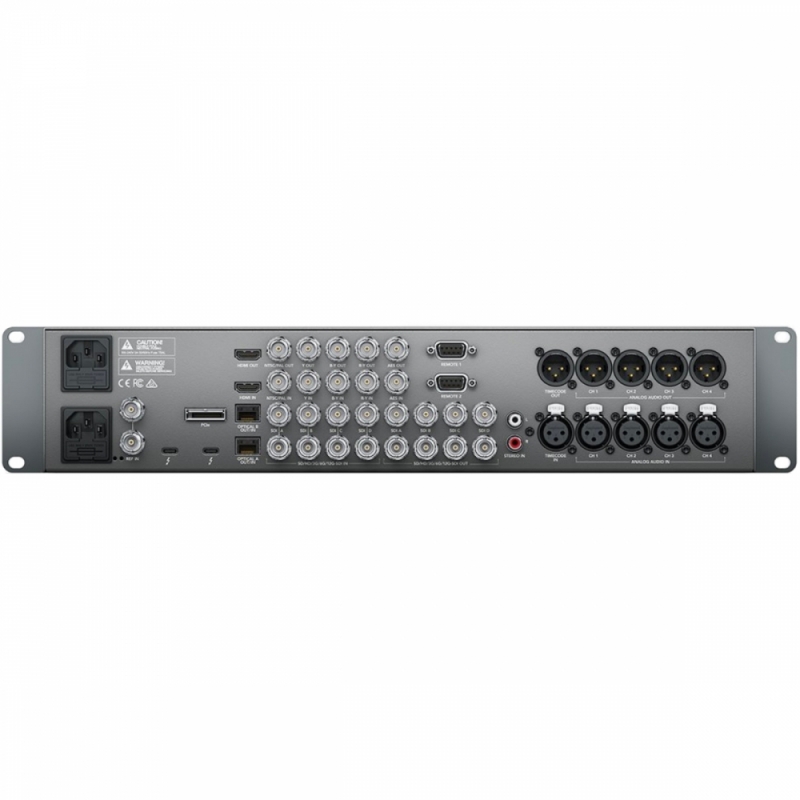

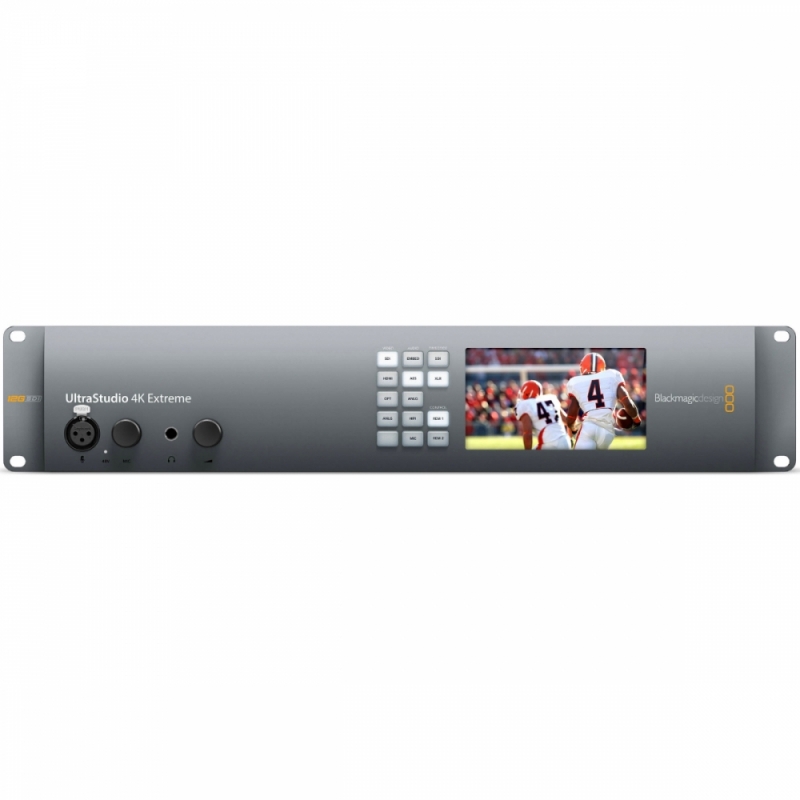

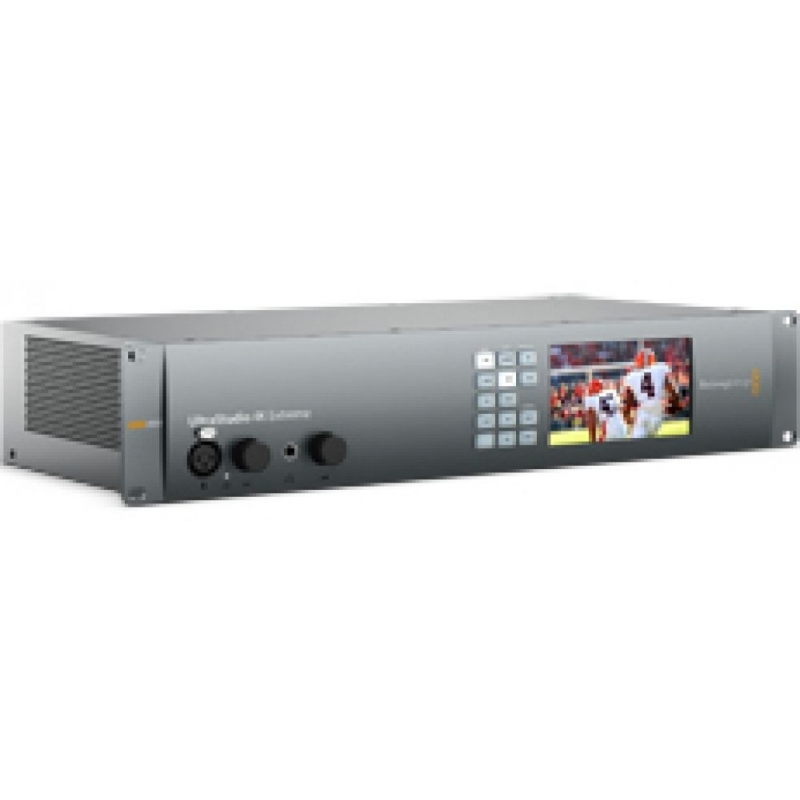

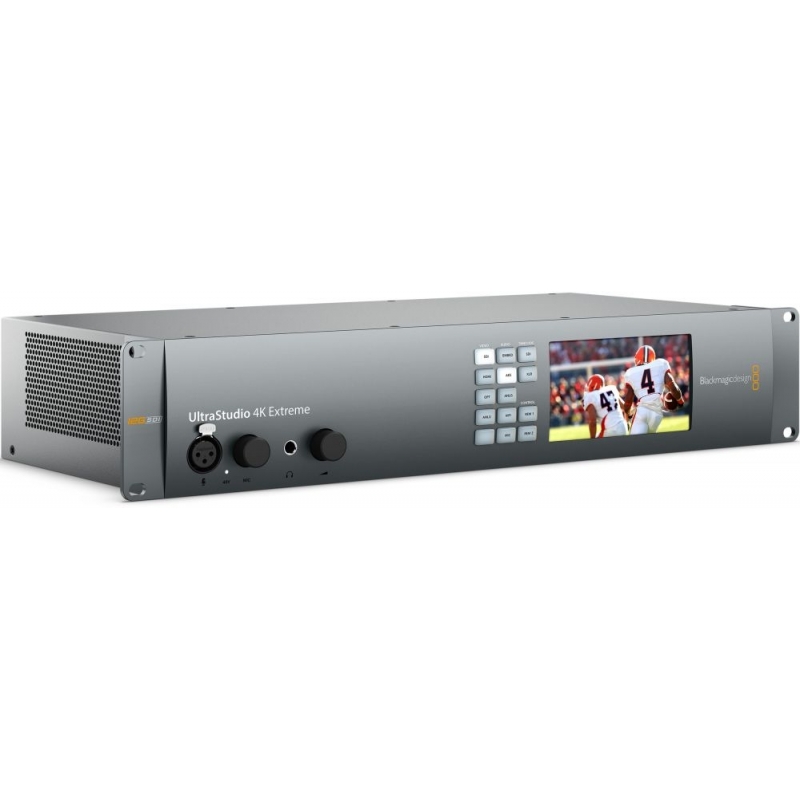

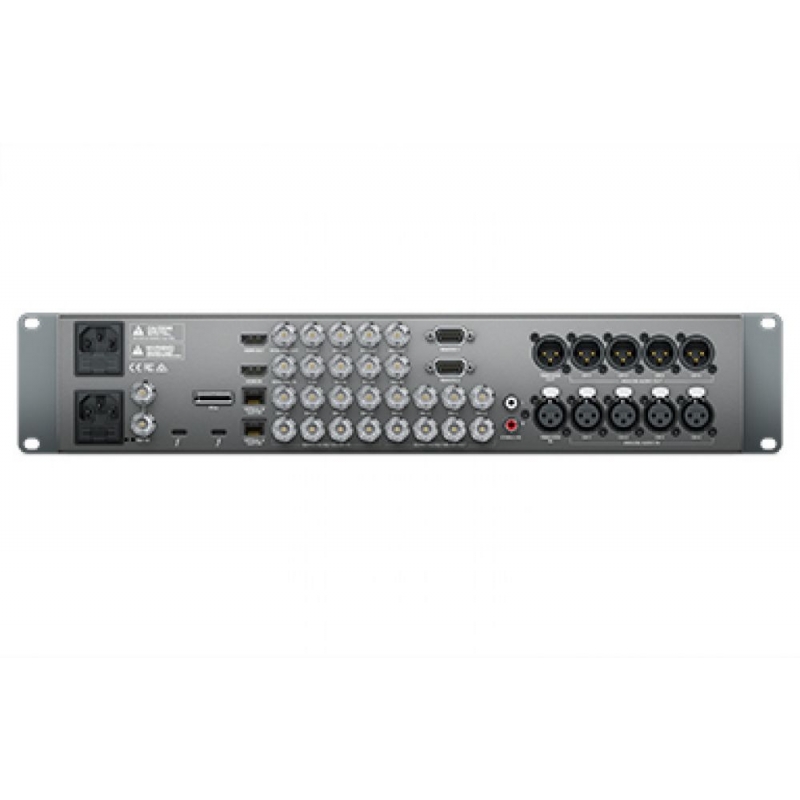

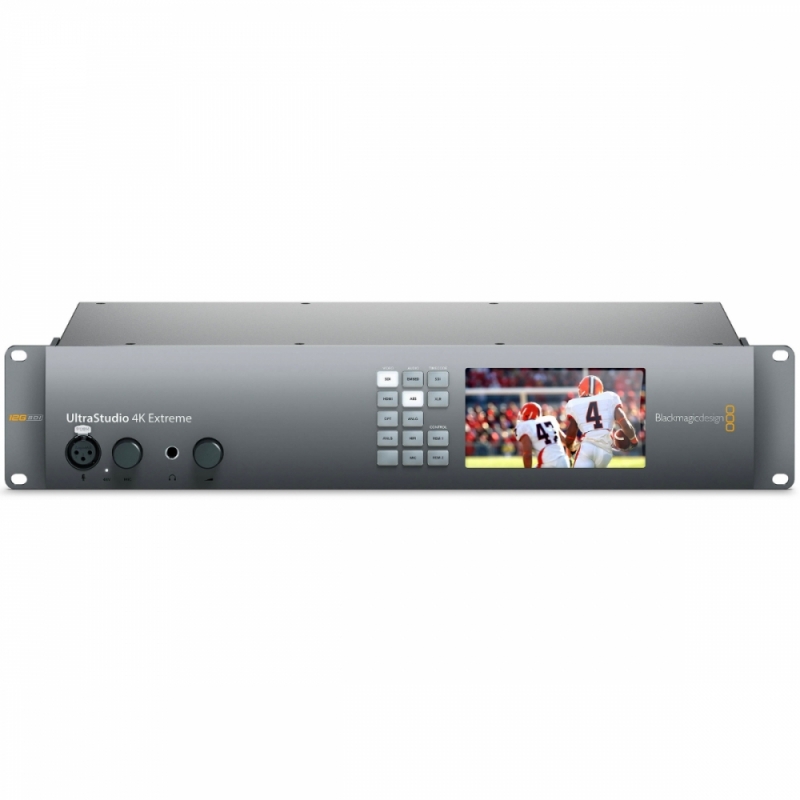

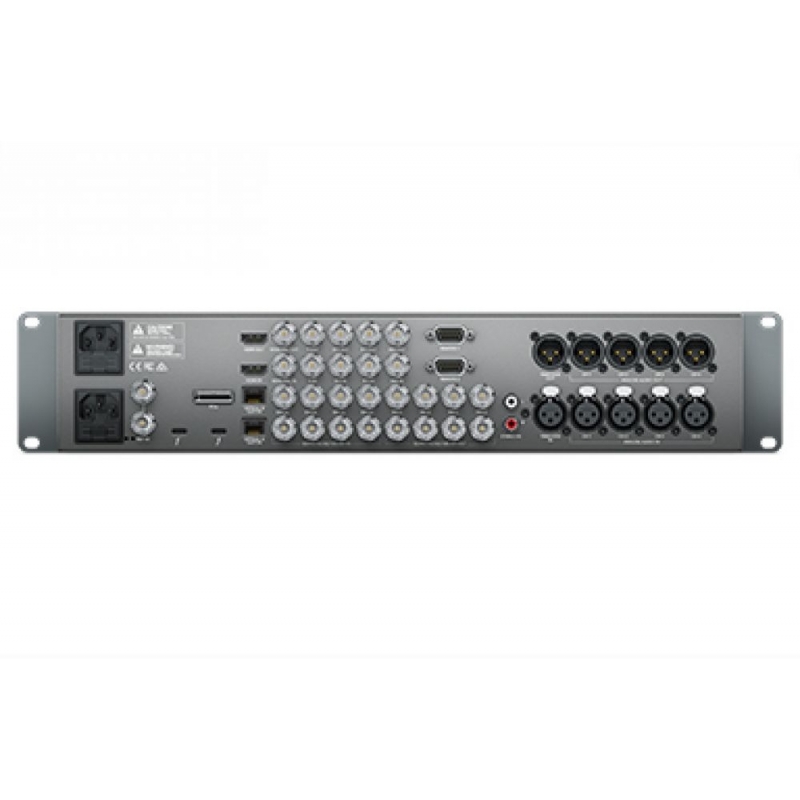

Designed to be used on a desktop, or installed into equipment racks, UltraStudio 4K Extreme 3 features an attractive, machined aluminum front panel with an integrated color display and buttons for quickly selecting input sources for video, audio, timecode and deck control. The rear panel includes virtually every type of video and audio connection that exists, including 12G-SDI, HDMI 2.0, analog component and composite video, balanced XLR and AES/EBU digital audio, as well as expansion cages for optical fiber SDI connections, RS-422 deck control inputs, dual power supplies and more.

Customers will be able to capture and playback Ultra HD in YUV at 60 frames per second as well as Ultra HD and 4K RGB video at 60 frames per second via the advanced 12G-SDI video connections. The Thunderbolt loop thru allows connection of up to 6 devices, so customers can connect fast disk arrays for massive amounts of video storage with a single Thunderbolt connection to their computer.



UltraStudio 4K Extreme 3 handles virtually every television format, making it the ideal solution for all post production and broadcast users working on high end design, editing, paint, color correction and visual effects projects. UltraStudio 4K Extreme 3 is also perfect for 3D workflows because it features both interleaved/side by side and dual stream capture and playback. Interleaved 3D allows the left and right eye to be interleaved as fields into a single video connection and file, so customers can use edit and finishing software such as DaVinci Resolve.

UltraStudio 4K Extreme 3 Key Features

• Supports 4K 60p capture and playback using 12G-SDI and HDMI 2.0 connections.
• Built in high performance hardware codec for H.265 encoding.
• Supports 12-bit 4:4:4 RGB 4K for high end color correction and VFX.
• 3D capture and playback via SDI and HDMI.
• Analog Component and dedicated NTSC/PAL in and out.
• 4 channel balanced analog audio in and out. Additional RCA HiFi audio in.
• 2 channel AES/EBU unbalanced audio in and out.
• Professional Mic input with phantom power selector and full input gain control.
• Timecode in and out on XLR connectors.
• Genlock/tri-sync input & output.
• 2 x Sony compatible RS-422 deck control.
• Includes hardware down conversion of Ultra HD to HD on playback.
• Includes hardware SD and HD keying.
• Connects with both Thunderbolt 3 and PCIe
• Includes free DaVinci Resolve software.
• Includes free developer SDK

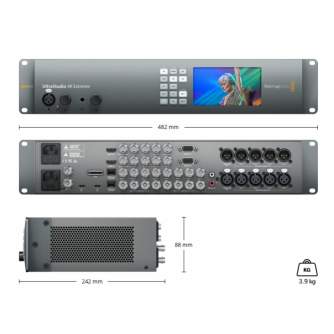

• Elegant 2 rack unit design, with removable ears so it can be used in a rack or sit on a desk.
