Blackmagic Design ATEM 1 M/E Production Studio 4K (BM-SWATEM1ME4K)

Blackmagic ATEM 1 M/E Production Studio 4K (BM-SWATEM1ME4K)

Create stunning multi camera live production with the world's most advanced production switchers! ATEM switches between SD, HD or Ultra HD video standards so you can connect a wide range of video sources such as cameras, disk recorders and computers. You get powerful features such as chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view and more! The advanced ATEM 1 M/E Production Studio 4K features extra inputs, full motion DVE, stinger transitions, larger media pool with full motion clips and 3 auxiliary outputs!

Advanced Live Production
Take your live production beyond broadcast quality! ATEM Production Studio 4K has all the features you need for the most innovative live concerts, sporting events, theater productions, conferences and more! When you're doing live events with super large high resolution screens, then simply switch your ATEM Production Studio 4K to Ultra HD for incredible quality. Many live events now use massive high resolution LED screens and projectors and now you can drive those screens in full resolution!

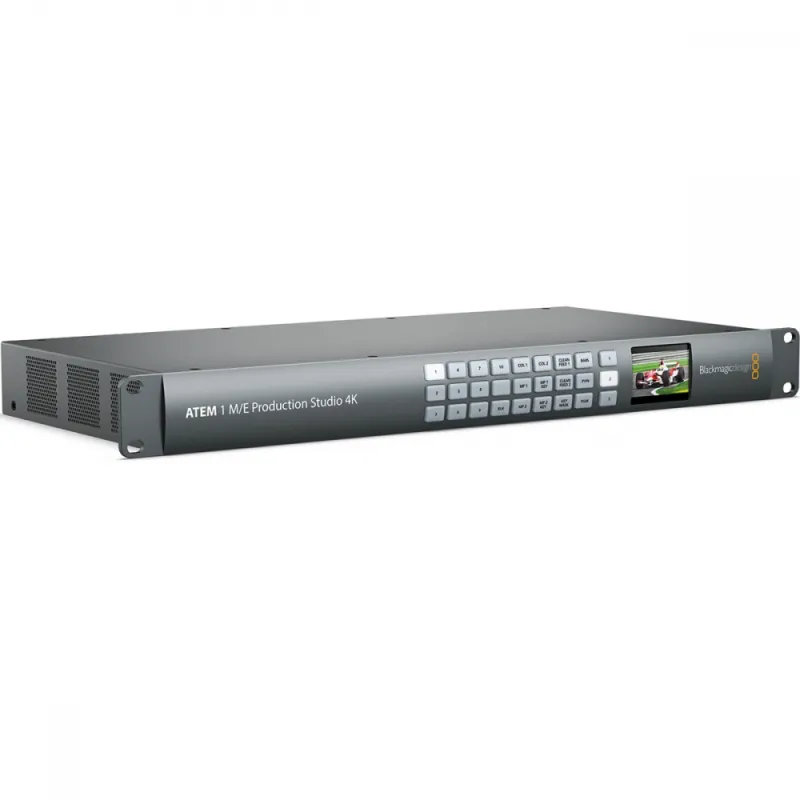

Innovative Design

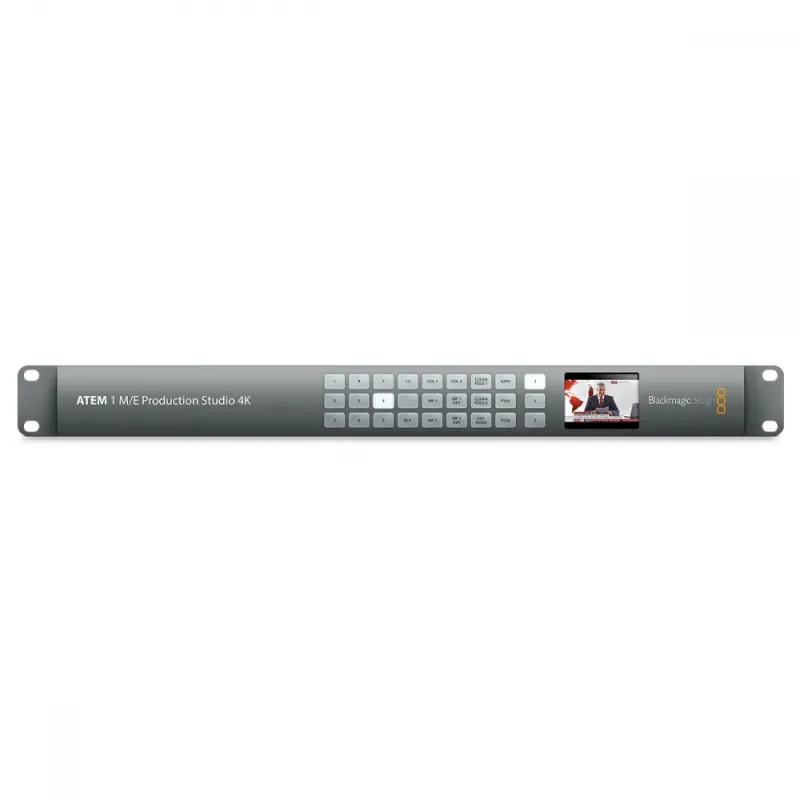

ATEM Production Studio 4K switchers feature an elegant machined aluminum front panel with dedicated buttons to let you switch auxiliary outputs. You can use the built in video screen to monitor auxiliary outputs or as technical monitoring to help during set up! You get the highest quality video and audio connections that switch virtually all SD, 720p HD, 1080i HD, 1080p HD and Ultra HD formats, plus built in multi voltage power supply so you can take your switcher anywhere in the world!

Powerful Software and Hardware Control
ATEM live production switchers have the widest range of control options! You get full switcher control from any laptop or desktop computer with the included ATEM software control panel for both Mac and Windows. For demanding live production environments you can add a hardware based ATEM 1 M/E or 2 M/E Broadcast Panel featuring the highest quality buttons, knobs and faders for even faster switching! You also get an SDK for custom control. Only ATEM gives you such a wide range of control options!

Inputs
ATEM Production Studio includes advanced 6G-SDI and HDMI 4K inputs that are SD, HD or Ultra HD switchable so you can connect to virtually anything! Every input supports embedded audio mixing and features a frame resynchronizer so you can use sources without genlock such as consumer HDMI cameras or even computers for live PowerPoint™ presentations! You also get 2 balanced XLR audio inputs for connecting professional mixers and a HiFi audio input for consumer equipment like an iPod®.

Outputs
Get all the outputs you need to record your video master and to broadcast your program to the audience at the event! ATEM includes program and down converted program outputs plus auxiliary outputs allowing clean feeds, perfect for connecting to giant outdoor LED screens, projectors, disk recorders, monitors and broadcast decks! The multi view outputs are 1080i HD so you can use any TV or monitor. You also get a balanced XLR output of your audio mix, which is also embedded into all video outputs.

Multi View Monitoring
ATEM's built in multi view lets you monitor the switcher’s video inputs on a single SDI monitor or regular HDMI TV! Multi view outputs in regular 1080i HD, so even if your broadcast is in SD or Ultra HD you can still use a standard TV for monitoring! You can customize the multi view layout and also add custom labels. Multi view makes it easy to watch your program, preview, and 8 live sources all simultaneously on a single monitor. Multi view means you get a true portable solution.

Creative Transitions
ATEM includes a huge range of real time high quality transitions that are available in all SD, HD or Ultra HD resolutions! Use mixes, dips, wipes and more for amazing broadcast quality live switching! Every transition is instantly available and you get full control of the transition type, pattern, length and other attributes. Create a customized ‘on air’ looks using the large choice of wipe patterns. The ATEM 1 M/E Production Studio 4K also includes animated stingers and DVE transitions!

Digital Video Effects
The advanced 1 M/E Production Studio 4K model includes a powerful digital video effects processor. Use this amazing high quality DVE to position, resize, rotate and scale live video all in real time. Create professional picture-in-picture effects with customizable 3D borders, shadows and lighting. Add dynamic DVE transitions to your production with squeeze, push, swoosh and spin effects that displace your live video revealing the next source. You can even use the DVE for graphic wipe transitions!

Dual Media Players
ATEM production switchers include media pool memory that lets you download still frames and graphics for keying using the two built in media players. All popular image formats are supported, or you can direct download from Adobe Photoshop with the included plug-in. The ATEM Production Studio 4K supports 20 Ultra HD RGBA still frame graphics and the ATEM 1 M/E Production Studio 4K supports 32 Ultra HD RGBA still frame graphics and 180 frames of real time Ultra HD video or 720 frames of real time 1080 HD video.

Powerful Keyers
ATEM includes amazing quality keying! Get powerful upstream keyers with luminance, linear, pattern and chroma keying that can handle everything from green screen shots to graphics and multi layer special effects. You also get 2 independent downstream keyers for logos, titles and other ‘on air’ graphics. The advanced ATEM 1M/E Production Studio 4K model includes 4 upstream keyers for a massive 6 total independent keyers, allowing you to build exciting effects of up to 8 real time layers.

Amazing Ultra HD
The ATEM Production Studio 4K is the world’s first Ultra HD live production switcher! Ultra HD operates at 4 times the resolution of 1080 HD video with a massive 3840 x 2160 frame size! The entire switcher can be set to Ultra HD and all media players, downstream keyers, upstream keyers, transitions, DVE and color generators operate in native Ultra HD. Even if you’re working in SD or HD now, your ATEM Production Studio 4K switcher is always ready for Ultra HD whenever you need it!

Advanced 6G-SDI
Take advantage of super fast 6G-SDI and HDMI 4K technology with video connections that effortlessly handle Ultra HD using a single cable! 6G-SDI connections are multi rate, and switch between 270 Mb/s, 1.5 Gb/s, 3 Gb/s and 6 Gb/s data rates for compatibility with SD, HD or Ultra HD equipment all on a single BNC connection. That means you can connect to virtually any SDI and HDMI cameras, routers, decks, monitors and more! 6G-SDI gives you a future proof design.

Professional Audio Mixer
All ATEM switchers feature a powerful built in multi channel audio mixer! You can mix your camera audio and other video sources from both HDMI and SDI inputs, as well as external audio from the analog XLR and HiFi audio inputs. You can use the ATEM audio mixer for direct input mixing or use audio follow video mixing where the audio automatically crossfades when switching from one input to another. The analog audio inputs are great for microphones, audio mixers, music players and more!

Independent Aux Output
ATEM switchers have independent auxiliary outputs that are perfect for feeding big video screens on stage or can also be used to send "clean feeds" without on air graphics to recorders for program mastering. The front panel buttons and screen make it easy to select sources such that you want to send to the aux output. Auxiliary outputs can be selected to any video input, media players, the preview bus, test signals and more! Aux outputs are fantastic for tech monitoring with SmartScope Duo.

Software Control Panel
Included free with every ATEM Production Studio 4K Switcher is the beautifully designed ATEM software control panel for both Mac and Windows. With a full visual switcher control panel and parameter pallets for quick switcher adjustments, you can load graphics into the media pool, adjust the audio mixer, update switcher settings and more! For the ultimate in portability you can use the ATEM software on a laptop, so you can work easily in small spaces with full control of all the switcher’s features!

- Supports NTSC/PAL/HD/UltraHD 4K @ 10-bit
- Supports 4K Resolution Over SDI or HDMI
- 10 × 6G-SDI & 1 × HDMI Inputs (SD/HD/4K)
- Tri-Sync/Blackburst Ref. Sync Input
- 10 × Built-In Frame Synchronizers
- Multiview Monitoring in HD
- Program Outputs in SD/HD/4K HD
- 4 × Keyers Total: 3 × Luma, 1 × Chroma
- 12 × Channel Audio Mixer
- Hardware or Software Mac/PC Control

The advanced ATEM 1 M/E Production Studio 4K model switches between SD, HD or Ultra HD video standards so you can connect a wide range of video sources such as cameras, disk recorders and computers. Featuring 10 inputs, chroma keys, transitions, media pool, 4 upstream keyers, downstream keyers, audio mixer, multi view, full motion DVE, stinger transitions, large media pool with full motion clips and 3 auxiliary outputs!

What's New in ATEM live production Switchers!

New ATEM 4 M/E Broadcast Studio 4K

Get the extreme power of a 4 M/E 20 input 12G-SDI switcher combined with 16 ATEM AdvancedChroma Keyers for high frame rate Ultra HD

NEW

Get one of the world’s most compact and advanced switchers with the new ATEM 4 M/E Broadcast Studio 4K. You get an incredibly high performance live production switcher designed to work with the latest formats and high frame rates, all the way up to Ultra HD 2160p59.94! You get 16 next generation ATEM Advanced Chroma Keyers with 4 per M/E, perfect for advanced work and virtual sets. As the most advanced ATEM switcher, this model also includes the latest technology and features such as 2 Ultra HD multi viewers, full 2D DVE, built in SuperSource compositing engine with 4 picture in picture DVEs, full re-synchronization on each 12G-SDI input and much more! The multi rate 12G-SDI connections automatically switch between all HD and Ultra HD formats up to 2160p59.94 with a single BNC cable! Even if you're not working in Ultra HD now, the ATEM 4 M/E Broadcast Studio 4K has all the power and features for the highest end live production work, while being Ultra HD ready the instant you need it!

New ATEM 1 M/E Advanced Panel

Combine the elegance of modern design with the power of broadcast production

NEW

The new ATEM 1 M/E Advanced Panel is an elegantly designed professional hardware control panel for all ATEM switchers. It combines modern design with the latest broadcast technology for faster workflows. The new design features a built in LCD and high quality curved buttons that help reduce incorrect key presses. The buttons also have color backlighting to help you quickly recognize important keys. You also get a professional joystick for DVE and camera adjustments, smooth weighted t‑bar fader and much more. The buttons feature dynamic displays that allow full customization of the labels as well as custom colors. The shift buttons allow you to double up the number of inputs by selecting a second set of shifted source buttons so you can control up to 20 inputs. The compact size and durable design of the ATEM 1 M/E Advanced Panel fits in a standard equipment rack, making it perfect for shelf mounting in broadcast trucks, mobile racks and fly away kits.

Advanced Live Production

Creative features with advanced technology

Take your live production beyond broadcast quality! ATEM live production switchers have all the features you need for the most innovative live concerts, sporting events, theater productions, conferences and more! When you're doing live events with super large high resolution screens, then simply switch your ATEM live production switcher to Ultra HD for incredible quality. Many live events now use massive high resolution LED screens and projectors and now you can drive those screens in full resolution!

Innovative Design

Elegant machined metal design in a super compact size!

ATEM live production switchers feature an elegant machined aluminum front panel with dedicated buttons to let you switch auxiliary outputs. You can use the built in video screen to monitor auxiliary outputs or as technical monitoring to help during set up! You get the highest quality video and audio connections that switch virtually all SD, 720p HD, 1080i HD, 1080p HD and Ultra HD formats, plus built in multi voltage power supplies so you can take your switcher anywhere in the world!

Powerful Software and Hardware Control

Get innovative software control or choose a hardware panel

ATEM live production switchers have the widest range of control options! You get full switcher control from any laptop or desktop computer with the included ATEM software control panel for both Mac and Windows. For demanding live production environments you can add a hardware based panel such as the ATEM 1 M/E Advanced Panel, the new ATEM 2 M/E Advanced Panel or even the ATEM 4 M/E Advanced Panel. ATEM Advanced Panels all feature the highest quality buttons, knobs and faders for even faster switching! You also get an SDK for custom control. Only ATEM gives you such a wide range of control options!

Develop your own custom control with the included SDK for Mac and Windows.

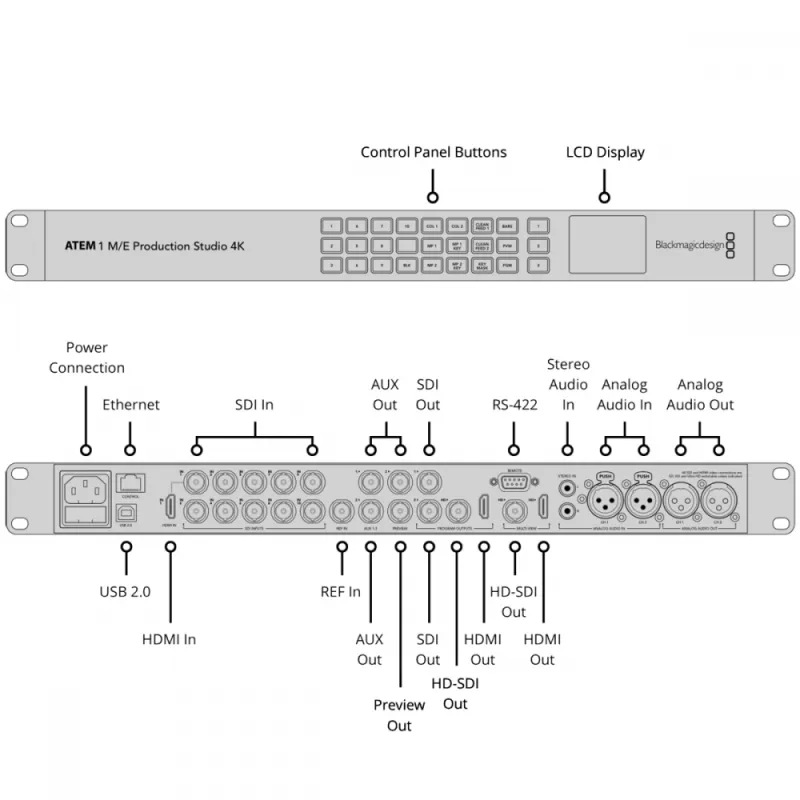

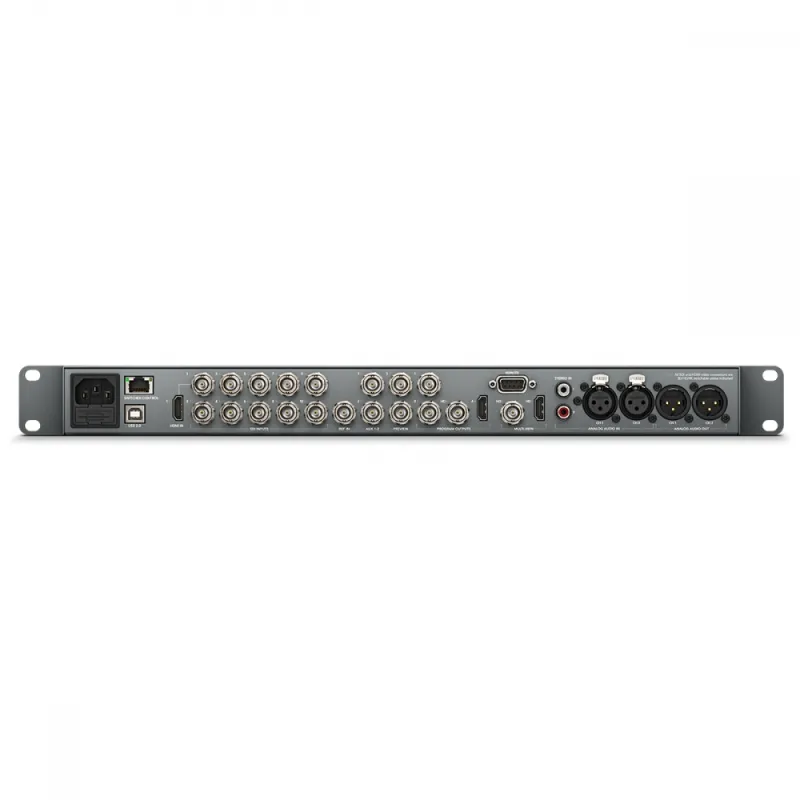

Highest Quality Connections

Connect to SDI and HDMI equipment in SD, HD and Ultra HD!

1.

Built in power supply compatible with 110V to 240V sources.

2.

6G-SDI inputs for cameras or decks in SD, HD and Ultra HD.

3.

3x 6G-SDI Auxiliary outputs for clean feeds and monitoring.

4.

HDMI and 6G-SDI program outputs and down converted HD output.

5.

Connect XLR and HiFi audio equipment to built in audio mixer.

Inputs

ATEM switchers include advanced 6G-SDI and HDMI inputs that are SD, HD or Ultra HD switchable up to 2160p30 while the advanced ATEM Broadcast Studio 4K model features 20 12G-SDI inputs for working in HD and Ultra HD up to 2160p60. Every input supports embedded audio mixing and features a frame resynchronizer so you can use sources without genlock such as laptop computers for live PowerPoint™ presentations! You also get 2 balanced XLR audio inputs for connecting professional mixers and a HiFi audio input for consumer equipment like an iPod®.

Outputs

Get all the outputs you need to record your video master and to broadcast your program to the audience at the event! ATEM includes program and down converted program outputs plus auxiliary outputs allowing clean feeds, perfect for connecting to giant outdoor LED screens, projectors, disk recorders, monitors and broadcast decks! The multi view outputs are 1080i HD so you can use any TV or monitor. You also get a balanced XLR output of your audio mix, which is also embedded into all video outputs.

Multi View Monitoring

Use a single screen for all your monitoring!

ATEM's built in multi view lets you monitor the switcher’s video inputs on a single SDI monitor or regular HDMI TV! Multi view outputs in regular 1080i HD, so even if your broadcast is in SD or Ultra HD you can still use a standard TV for monitoring! You can customize the multi view layout and also add custom labels. Multi view makes it easy to watch your program, preview, and live sources all simultaneously on a single monitor and you can even choose from 4 different screen layouts!

16 Cameras ATEM 2 M/E

The advanced ATEM 2 M/E Production Studio 4K model features 2 independent multi view outputs so that you can monitor up to 16 cameras simultaneously across 2 screens!

Other Configurations

Digital Video Effects

Position, resize, rotate and scale in real time!

The advanced ATEM 1 M/E and 2 M/E Production Studio 4K, and 4 M/E Broadcast Studio 4K models include a powerful digital video effects processor. Use this amazing high quality DVE to position, resize, rotate and scale live video all in real time. Create professional picture-in-picture effects with customizable 3D borders, shadows and lighting. Add dynamic DVE transitions to your production with squeeze, push, swoosh and spin effects that displace your live video revealing the next source. You can even use the DVE for graphic wipe transitions!

Use the DVE in ATEM 1 M/E Production Studio 4K to position, resize, rotate and scale live video, creating professional picture-in-picture effects.

SuperSource

Add multi box compositions quickly and easily with ATEM SuperSource! Available on the ATEM 2 M/E Production Studio 4K and ATEM 4 M/E Broadcast Studio 4K, you get a completely separate 5 layer switcher with the power of 4 picture in picture DVEs and 4 keyers that you can assign to any ATEM video input! Imagine using SuperSource for multi camera interviews or picture in picture production while leaving all your M/Es, keyers and DVE completely free for other tasks. SuperSource compositions can also be quickly saved and recalled in an instant!

Dual Media Players

Large graphics memory!

ATEM production switchers include media pool memory that lets you download still frames and graphics for keying using the two built in media players. All popular image formats are supported, or you can direct download from Photoshop CC with the included plug-in. ATEM Production Studio 4K models support up to 32 Ultra HD RGBA still frame graphics, while ATEM 4 M/E Broadcast Studio 4K supports 64 Ultra HD RGBA still frame graphics and 180 frames of real time Ultra HD video or 720 frames of real time 1080 HD video.

All popular image formats, such as PNG, TGA, BMP, GIF, JPEG and TIFF are supported.

Advanced Chroma Keyer

Introducing the new ATEM Advanced Chroma Keyer!

All ATEM switchers feature built in chroma, luminance, linear and pattern keyers, however the new advanced ATEM 4 M/E Broadcast Studio 4K model now features a new next generation advanced chroma keyer that lets you pull incredibly clean keys for truly professional, broadcast quality live compositing. The advanced keyer features adjustable on-screen controls for selecting and sampling a region of color from the image. This new keyer also features foreground, background and edge adjustment controls, and chroma correction tools for spill and flare suppression so you can fine tune the key. Best of all, on the new ATEM 4 M/E Broadcast Studio 4K model you now get 4 advanced chroma keyers on each of the 4 mix effects rows so you can create massive multi layer effects! Plus all ATEM switcher models included an extra 2 independent downstream keyers for logos, titles and other ‘on air’ graphics. That’s a massive number of keyers, all built in as standard!

HyperDeck Control

Use pre-recorded HyperDeck clips in live programs!

ATEM Switchers work seamlessly with Blackmagic HyperDeck SSD recorders. You can connect up to 4 HyperDecks as sources, just like cameras, to playback pre-recorded clips during live program production! You can see the clips on each HyperDeck, select any clip, cue it, pre-roll, and play it back at any time. You can even create macros to record from an incoming camera source and play it back in slow motion! That’s perfect for adding pre-recorded spots or promos, credit rolls, or even slow motion instant re-plays to your live program production!
