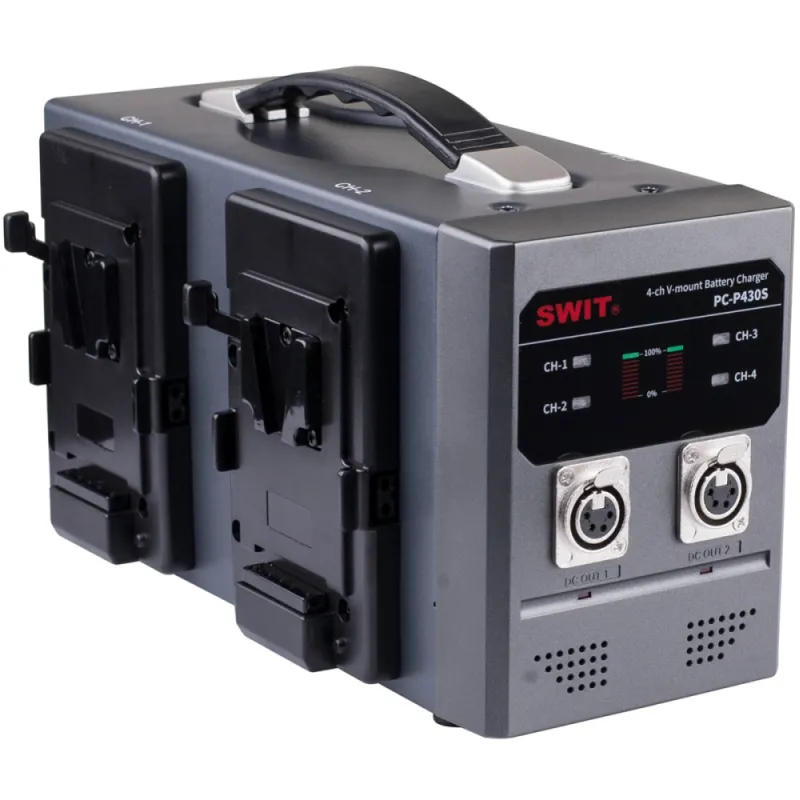

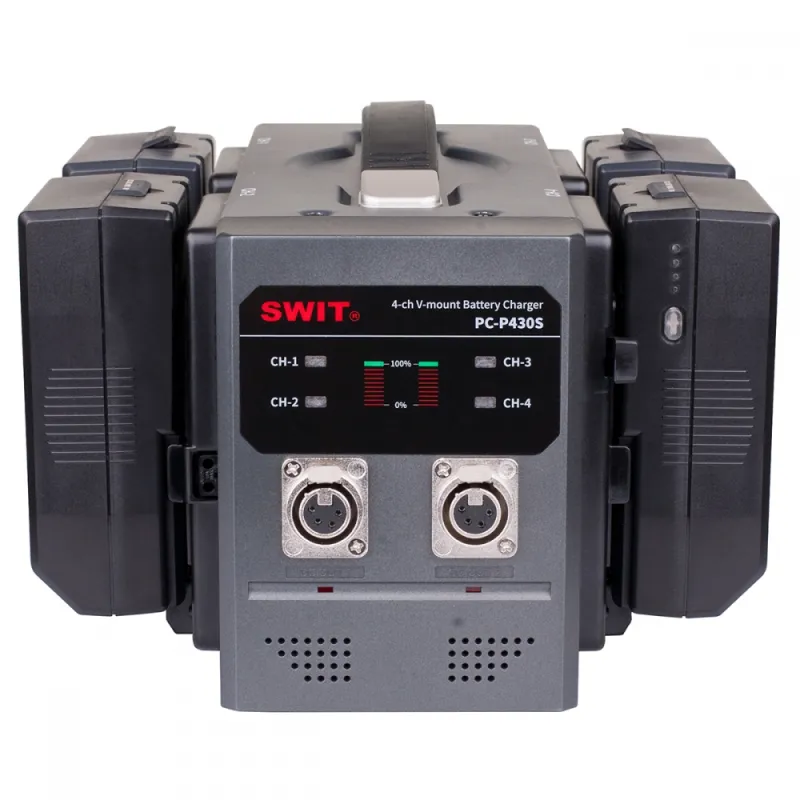

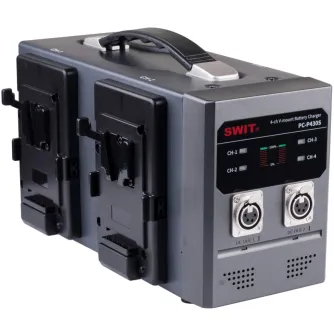

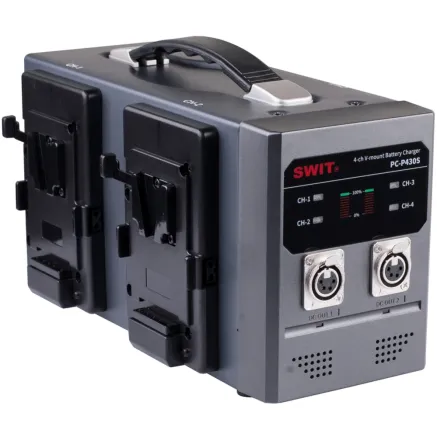

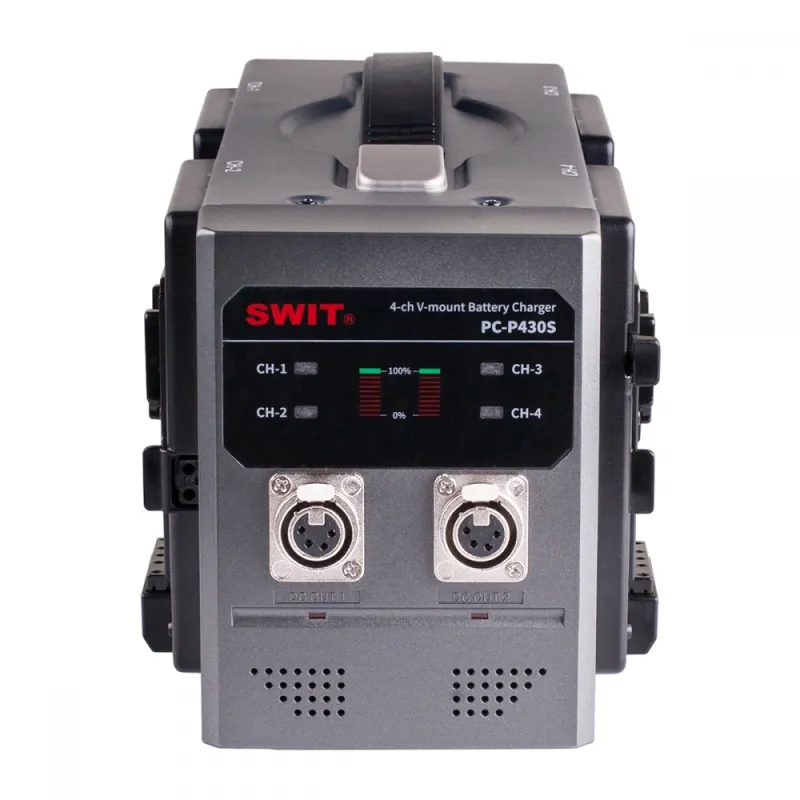

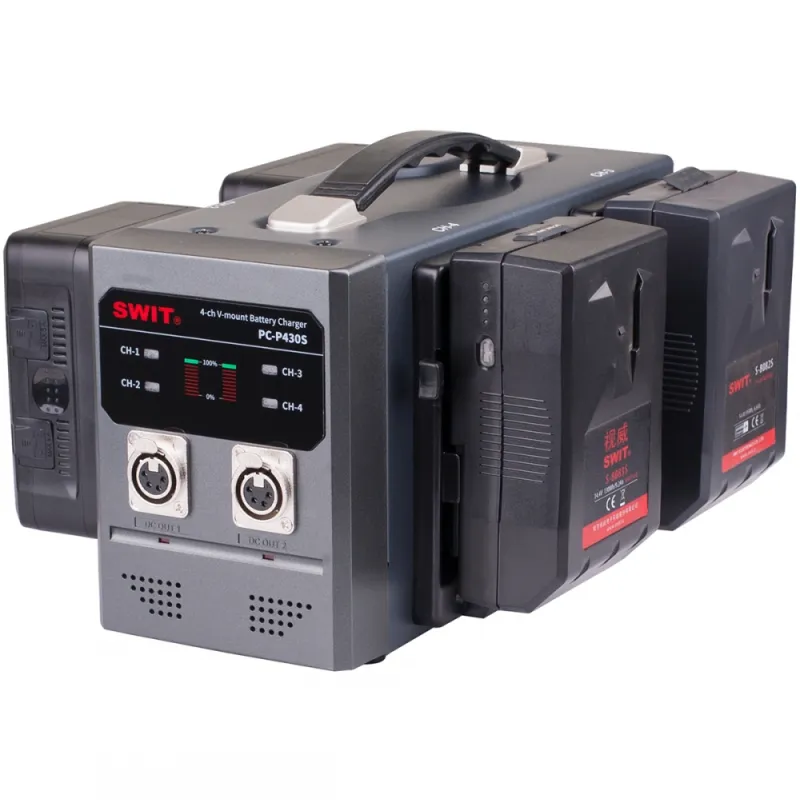

SWIT PC-P430S, 4ch Charger, V-Mount
4-ch Simultaneous Quick Charger
For V-mount batteries
PC-P430S can charge 4pcs V-mount camera batteries simultaneously. The charging output is DC16.8V, 3A each channel.
LED Charging Indicators
for Each Channel
The PC-P430S has LED charging indicators on the front panel,
indicates the real time capacity of each channel by different colors:
Display Red: Battery is charging, capacity below 80%;
Display Yellow: Battery is charging, capacity above 80%;
Display Green: Charging finished..
AC-DC Adapting Output
PC-P430S has 2x 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 XLR female to male cable (optional purchase), the PC-P430S can be used as AC-DC adaptor of 2-ch DC 15V, 6A, 90W simultaneous output.
Please note the AC-DC adapting output will not work when battery is charging.
Key Features:
◆ V-mount battery charger
◆ 4-ch simultaneous charging
◆ 3A per channel quick charging
◆ 2x 4-pin XLR DC output
◆ LED charging indicators for
each channel
Power | Max276W |
Input | AC100V-240V 50/60Hz |
Output | DC 16.8V,3A×4 |
Applicable battery | V-mount battery |
Dimension | 285×144×173mm |
Weight | 3.27kg |
Вид продукта | AC Адаптер |
Тип батареек | Зарядное устройство |
