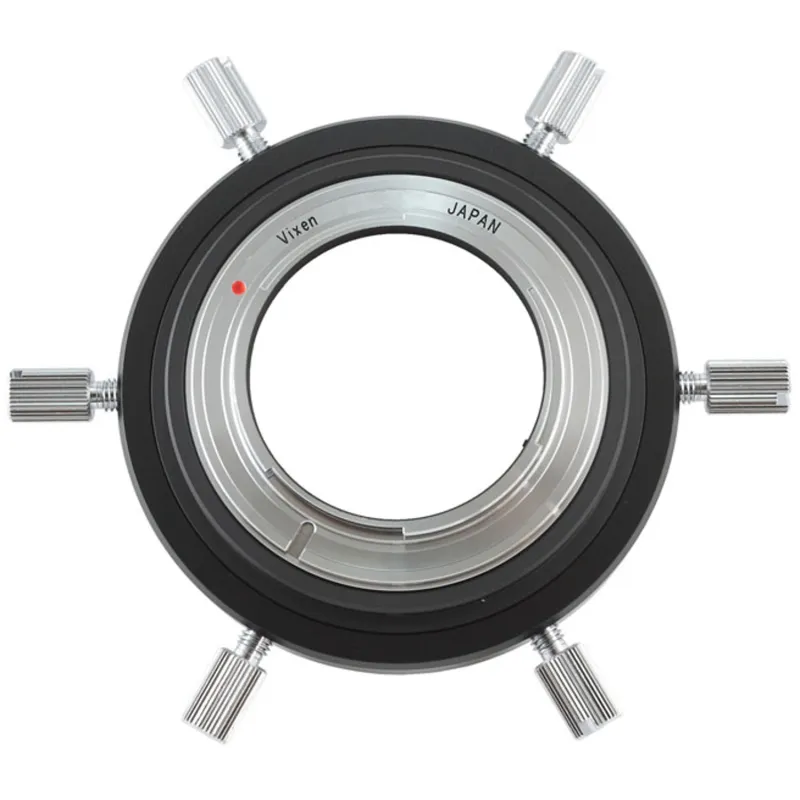

Vixen 60DX Focal adaptor for Canon EOS Cameras This Vixen 60DX is a photographic adaptor for Canon EOS cameras, for use with telescopes with a 60 mm focuser drawtube connection thread. A redesign by Vixen uses new tougher materials for a more solid connection and also offers an accurate, well-machined camera rotator ring, in order to help frame your images perfectly. Camera-Adaptor for Canon EOS with 60mm Focuser connection thread Large inner diameter for full-format cameras, helping to minimise vignetting 6 locking 60° spaced bolts to hold the camera’s rotation in position Dimensions: 81mm x 30 mm / weight: 190g The option of using 6 long or 6 short fixing screws for the rotator The
Vixen 60DA Focal adaptor connects your Canon
EOS DSLR Camera to a
telescope with an appropriate
60 mm Focuser Drawtube Thread . Thanks to the use of new
materials and an
improved design Vixen was able to considerably uprate both
precision and
durability , when compared to conventional rotational camera adaptors.
Two sets of rotational locking bolts (Long and Short) are supplied. The longer ones are knurled and easy to turn by hand. The shorter options help to prevent marring of the camera casing, when using certain designs of camera and are also much less easy to turn by hand, increasing security if you need the camera locked in a particular rotational position for longer periods.
The
large inner dimension of this adaptor prevents vignetting at the edges of the image when using
full frame DSLR cameras .
Canon EOS-Bayonet fastener made of hardwearing brass, for years of hassle-free use.
Increased material quality over conventional adapters provides more stability in use.
6 fixing bolts hold the camera in rotational position for increased sturdiness (standard rotators often only use 4, or less).
FEATURES - Screw tips with Delrin-tips prevent tilting of the camera and subsequent image distortion.
- Large inner diameter prevents vignetting.
- Inner blackening suppresses scattered light.

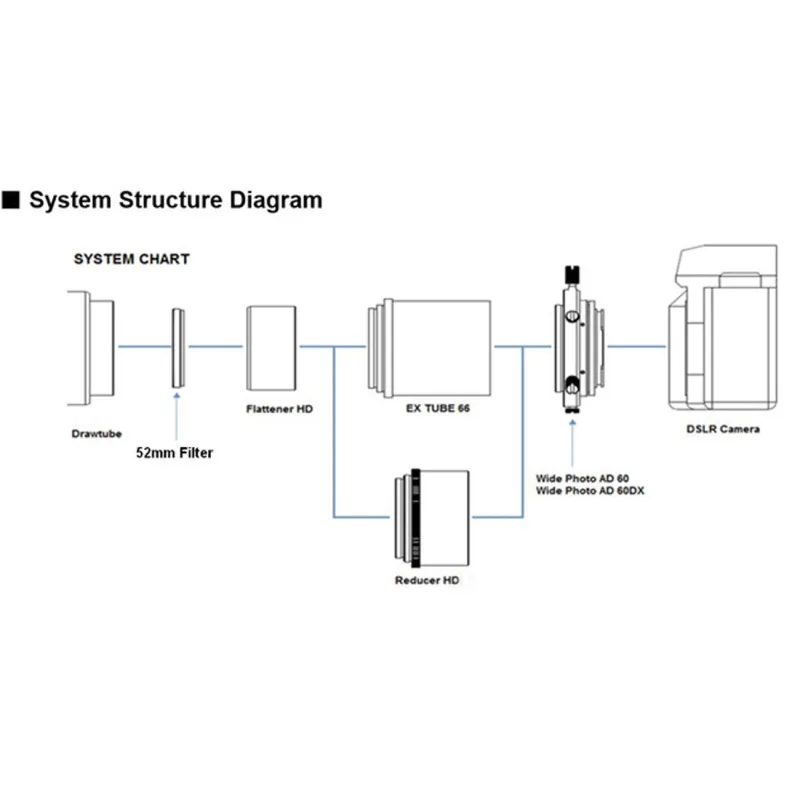

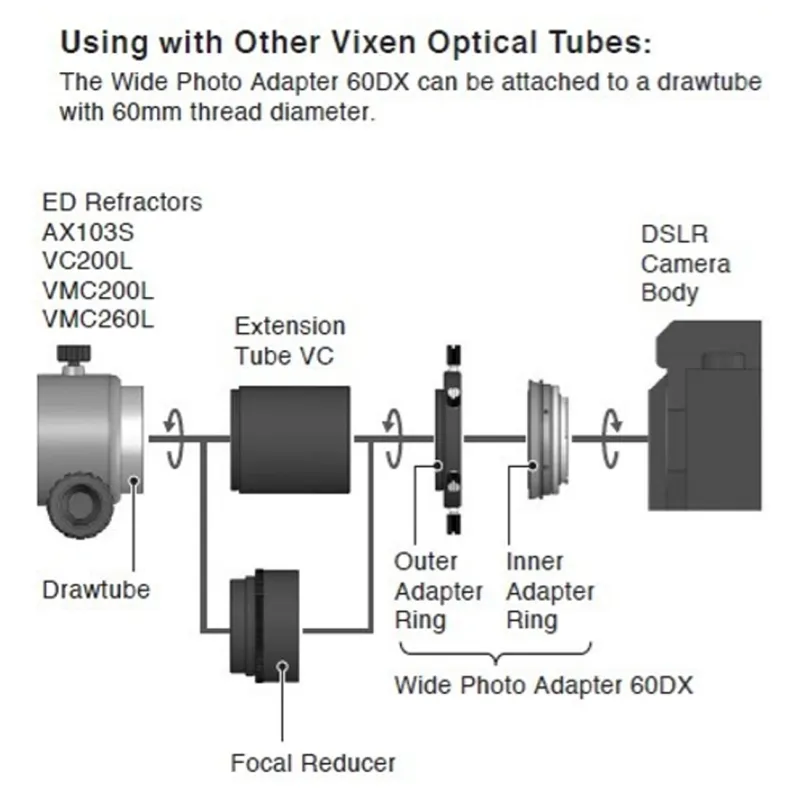

- Compatible with 60 mm accessories, when the camera adaptor is taken off.
- Two rotational bolt sets (Long and Short) are supplied.

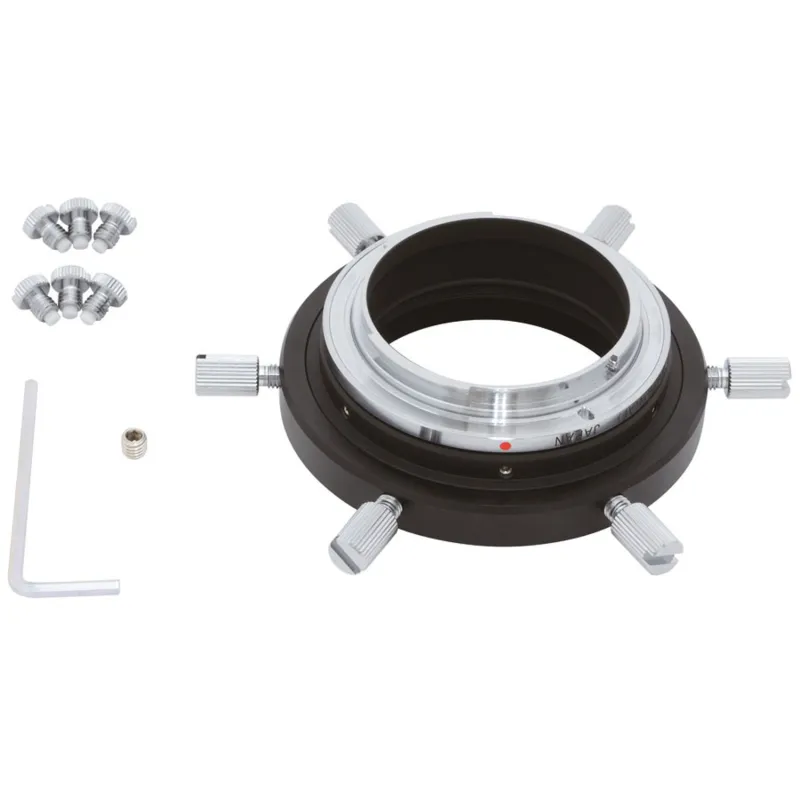

SCOPE OF DELIVERY - 60DA Focal adaptor
- 6 long and 6 short fixing screws
