Total Video Inputs
4
Новое

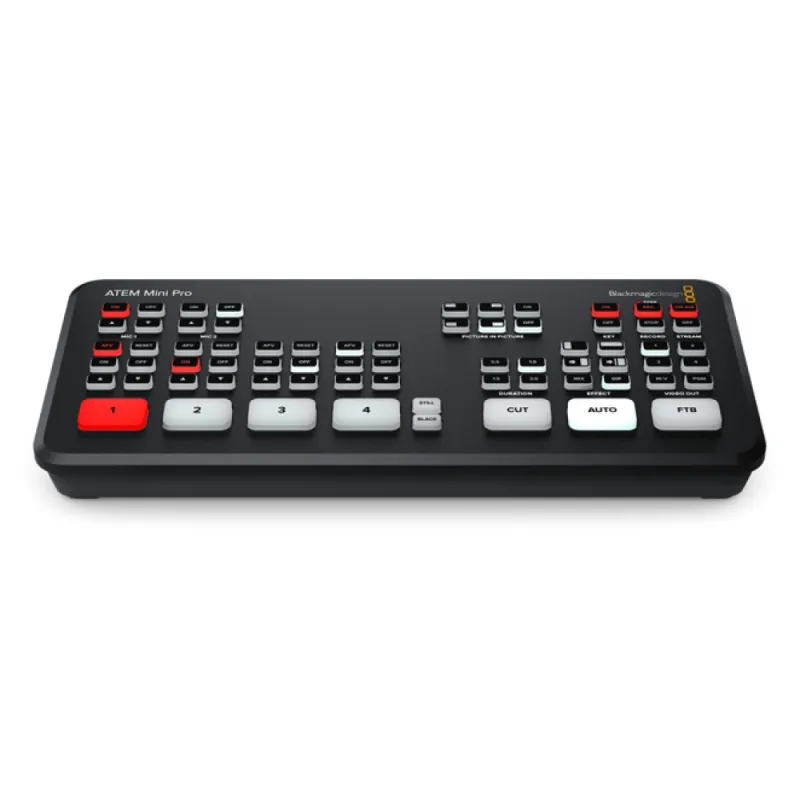

Как и его предшественник, ATEM Mini, ATEM Mini Pro от Blackmagic Design – это видеомикшер с четырьмя входами и встроенной панелью управления, предназначенный для многокамерных прямых трансляций. потоковая передача HD-видео в Интернет или широковещательные приложения с игровых консолей, потоки корпоративных компьютеров или HD-камер. Наряду с обновлением управления программным обеспечением, Mini Pro основывается на Mini с такими функциями, как скорость передачи данных в реальном времени и информация о состоянии, встроенный аппаратный кодировщик, одновременная запись на USB-накопители, горячая замена дисков с помощью Blackmagic MultiDock, добавленная запись и кнопки потоковой передачи, кэширование потоковой передачи, генератор тайм-кода, предварительный просмотр программ, поддержка подсчета и поддержка Blackmagic Design Pocket Cinema Camera 6K и 4K для использования в качестве источников вещания.

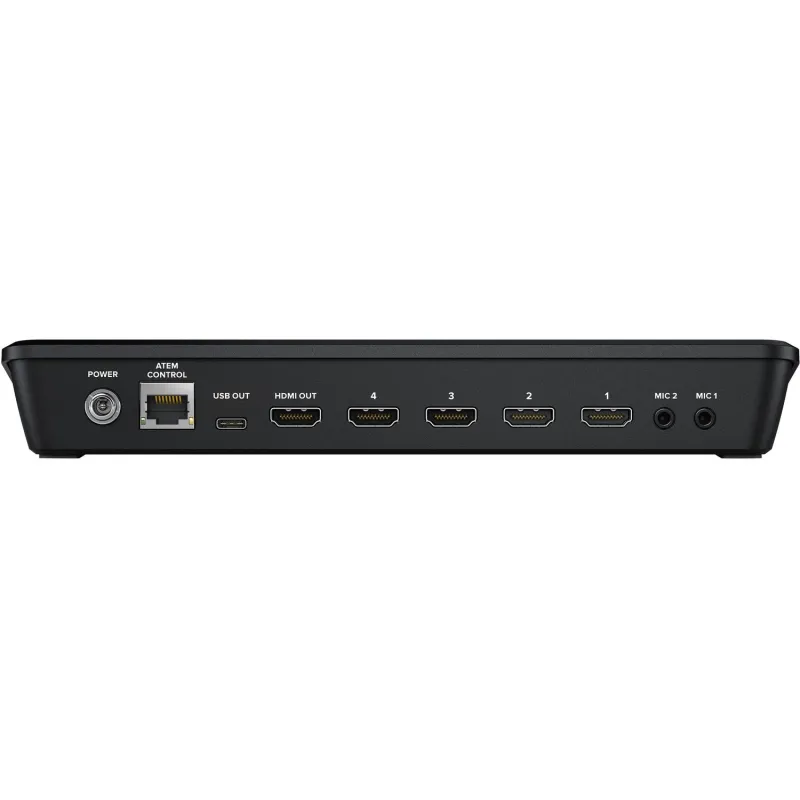

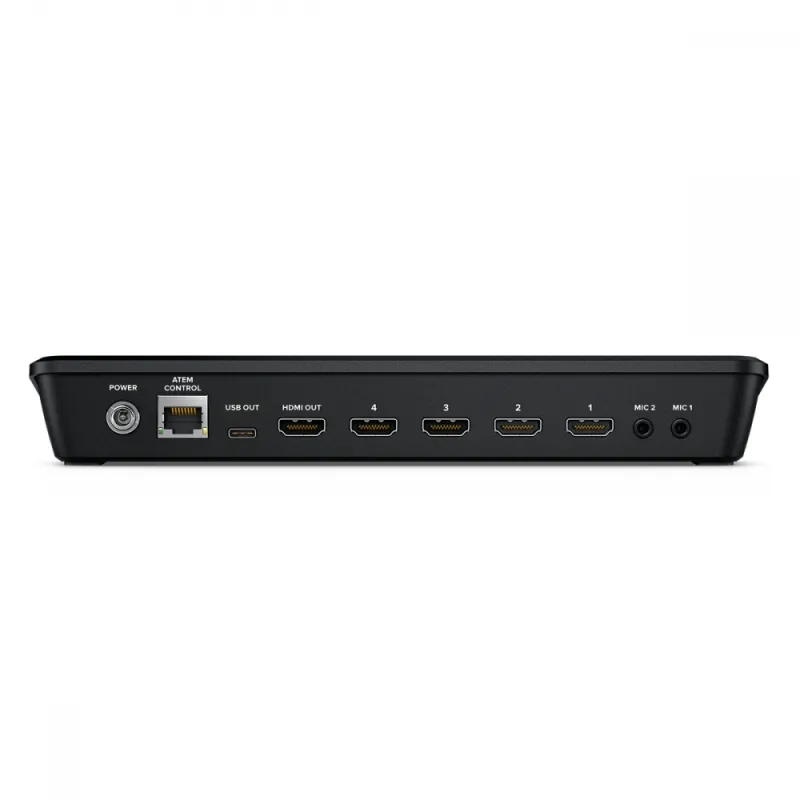

ATEM Mini Pro сохраняет то же самое. на задней панели, на которой четыре входа HDMI доступны на задней панели корпуса, и они вводят HD-видео до 1080p. Также имеется выход HDMI для проектора или многоэкранного мониторинга, выход USB Type-C для записи HD-видео на компьютер и порт Ethernet RJ45 10/100/1000 для прямого потокового вещания, а также для управления системой и дистанционного управления. и обновления. Вы можете настроить частоту кадров в зависимости от качества вашего потока, и нет необходимости в дополнительном программном обеспечении для потоковой передачи, поскольку Pro включает в себя встроенный аппаратный кодировщик.
Обновленная панель управления программным обеспечением ATEM используется для управление и настройка ATEM Mini Pro через USB Type-C или Ethernet, а также позволяет отслеживать скорость передачи данных, аудиометры, конфигурацию и статус вашей прямой трансляции. Встроенная панель управления цветом имеет ту же конфигурацию, что и DaVinci Resolve, что устраняет необходимость обучения. Расширенные функции включают в себя возможность для инженеров загружать XML-файл конфигурации, чтобы упростить одновременное изменение всех параметров.

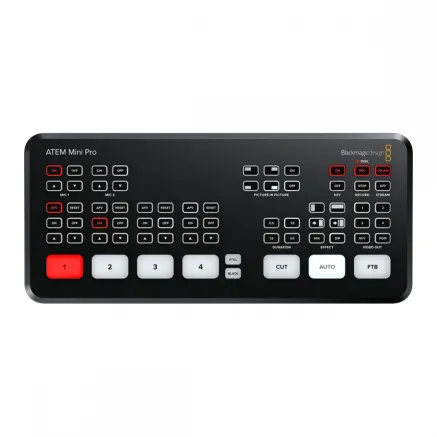

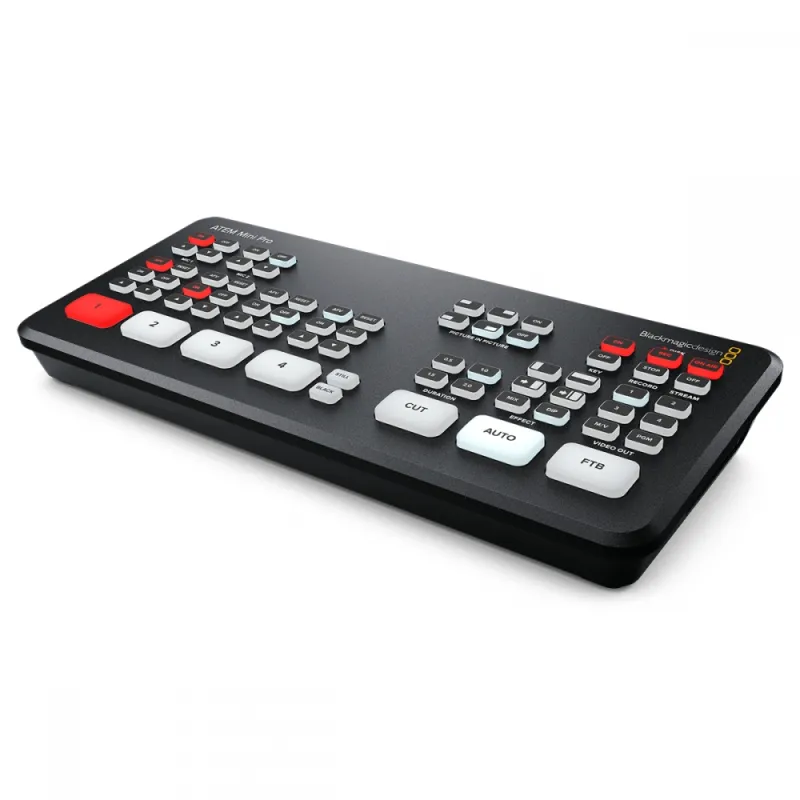

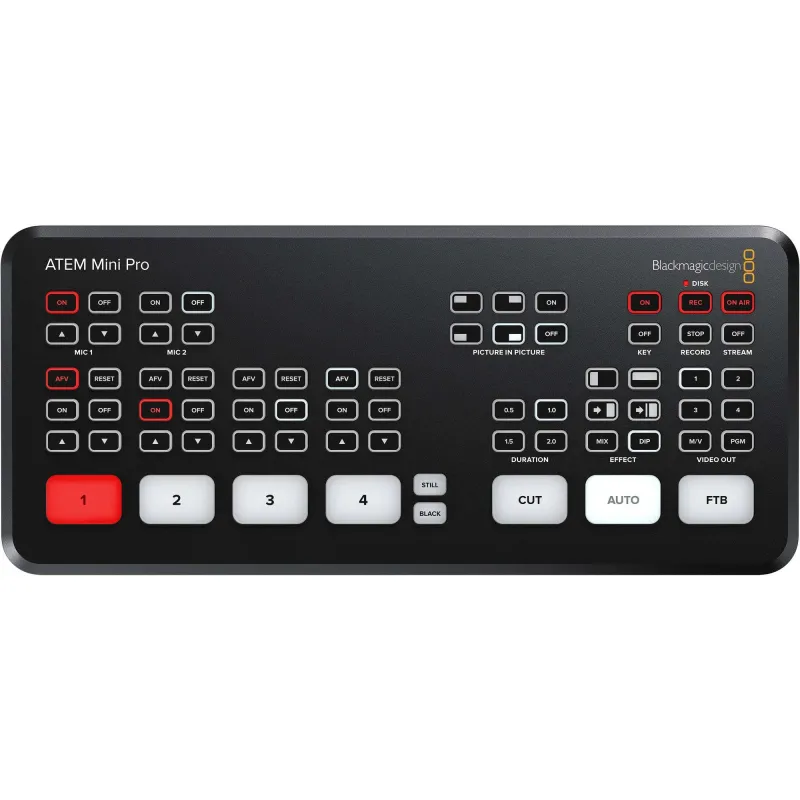

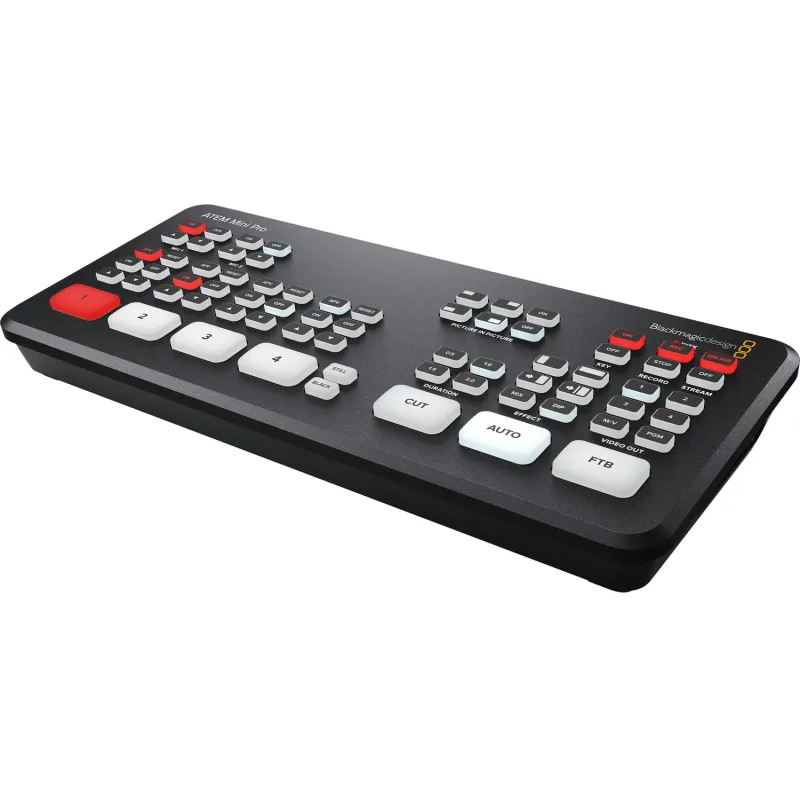

На панели управления есть те же удобные для просмотра кнопки управления с подсветкой, выбор входов камеры, управление переходами, ключи, настройки и DVE. ATEM Mini Pro добавляет несколько кнопок с правой стороны, таких как кнопка быстрой записи, которая позволяет мгновенно записывать прямую трансляцию на подключенный источник USB, или, удерживая ее нажатой, вы можете выполнять горячую замену дисков при использовании Blackmagic MultiDock. если вам нужно быстро приступить к редактированию. Также были добавлены кнопки «В эфире» и «Потоковая передача», чтобы мгновенно запускать и останавливать трансляцию после ее настройки в программном управлении. Добавленные кнопки Video Out на правой стороне позволяют вам выбрать предварительный просмотр программы для каждого источника, чтобы вы могли убедиться, что каждый источник готов к эфиру.
ATEM Mini Pro имеет тот же восходящий поток и нисходящие кееры, усовершенствованный хромакей, два линейных/яркостных ключа, ключ перехода DVE, генератор паттернов и генераторы цвета. Существует также поддержка медиаплеера для заполняющих и ключевых изображений, который поддерживает до 20 фотографий в форматах PNG, TGA, BMP, JPEG и TIFF.
ATEM Mini Pro is fast to set up and easy to use. It includes 4 standards converted HDMI inputs, USB webcam out, HDMI out, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control. ATEM Mini Pro also includes direct recording to USB flash disks in H.264 and direct streaming via Ethernet to YouTube Live and more. There's also a multiview with 4 cameras, media, preview and program plus status of recording, streaming and audio.
The new ATEM Mini makes it easy to create professional multi camera productions for live streaming to YouTube or innovative business presentations using Skype. Simply connect ATEM Mini and customers can switch live between 4 high quality video camera inputs in dramatically better quality images. Customers can even connect to a computer to present PowerPoint slides or add a gaming console. The built in DVE allows exciting picture in picture effects, perfect for live commentary. There's loads of video effects too. To live stream, ATEM Mini has a USB output that works like a webcam, so customers can connect to any video software. There's also HDMI video out for projectors. Microphone inputs allow high quality desktop and lapel mics for interviews and presentations.

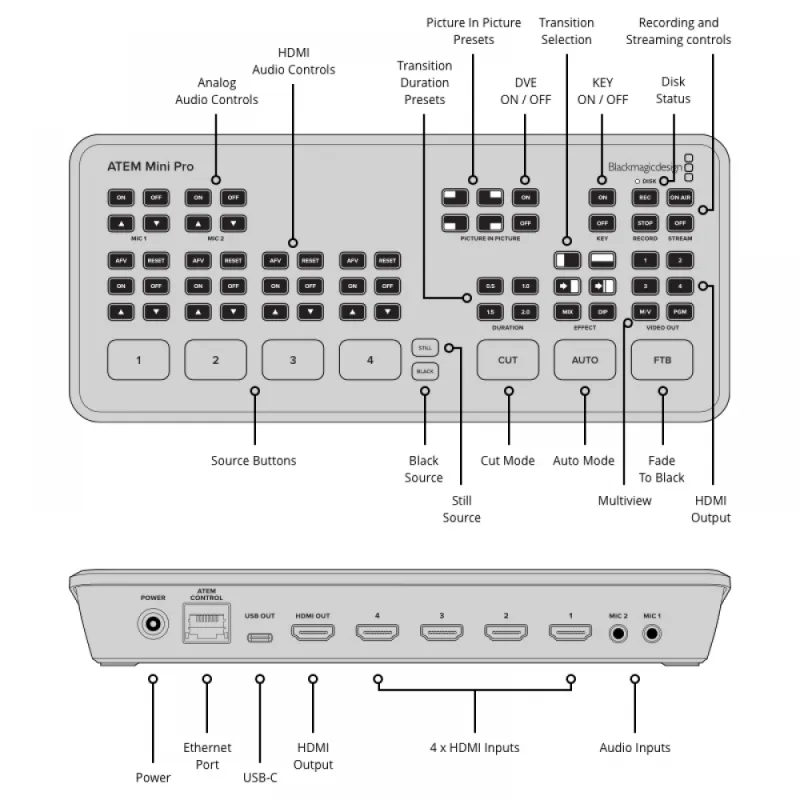

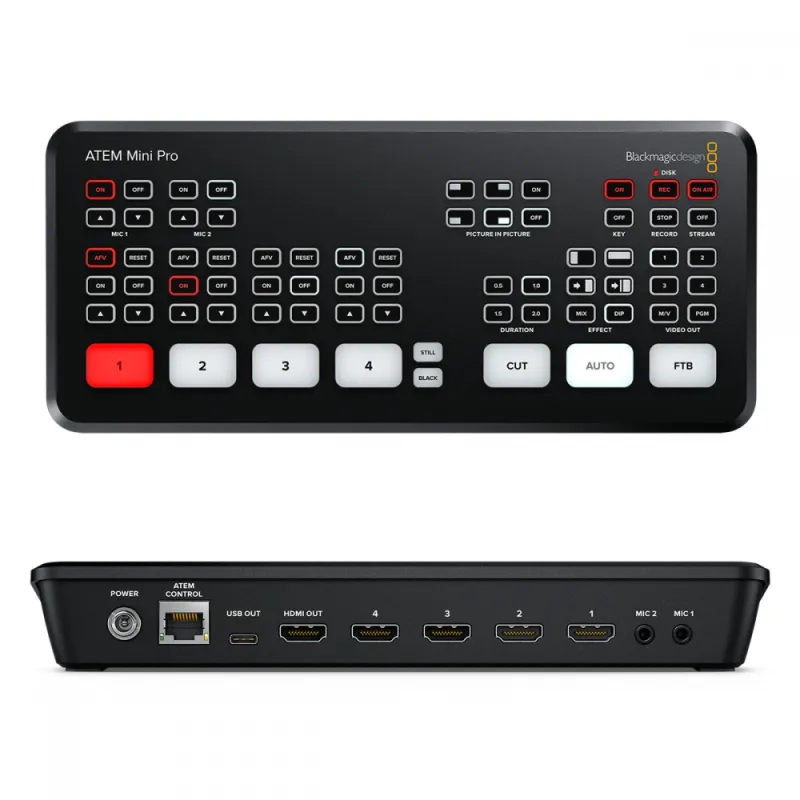

ATEM Mini features a compact control panel based design with all video, audio and control connections on the rear panel. The front panel includes easy to use buttons for selecting sources, adjusting audio inputs, as well as selecting video effects and transitions. The rear panel includes HDMI inputs for connecting cameras or computers, plus additional microphone inputs. The ATEM Mini program is output via an HDMI video out as well as a USB for webcam output. The front panel buttons are large and easy to use by feel, so its even possible to use the switcher while presenting. Customers also get audio mixer buttons for live audio mixing.
ATEM Mini is very easy to use, as customers simply press any of the input buttons labelled 1 to 4 on the front panel to change or cut between video sources. Customers can choose between cut transitions or effects transitions by selecting the cut or auto buttons on the panel. Unlike cut, the auto button tells ATEM Mini to use a selected video effect when switching between inputs. Customers can select from exciting transitions such as a commonly used dissolve, or more dramatic effects such as dip to color, DVE squeeze and DVE push. The DVE is perfect for picture in picture effects and customers can instantly set up different picture positions from the buttons on the control panel. There is even a still store for titles and graphics accessible via external software control.
With 4 independent HDMI inputs, customers can connect up to 4 high quality consumer video cameras. All connected sources will re-sync to the switcher if they operate at different video standards, which means all inputs just work and customers can handle unknown equipment if customers are visiting new venues or locations. Imagine using the low light capability of professional cameras for theater production and music videos.
To ensure the maximum compatibility possible, ATEM Mini features a USB connection that operates as a simple webcam source. That means customers can plug in and instantly get working with any video software. The software is tricked into thinking the ATEM Mini is a common webcam, but it's really a live production switcher. That guarantees full compatibility with all software in full resolution 1080HD quality. Choose any software customers like, such as Open Broadcaster for live streaming, or Skype for point to point presentations. ATEM Mini works with software and platforms such as Open Broadcaster, XSplit Broadcaster, YouTube Live, Facebook Live, Skype, Twitch TV, Periscope, Livestream, Wirecast and more.
The HDMI program output is perfect for connecting ATEM Mini into an external recorder or monitor. ATEM Mini supports recorders such as the HyperDeck Studio Mini and Blackmagic Video Assist. Customers get a high quality output with switcher program video, plus live audio from the internal audio mixer. The HDMI output can even be connected to video projectors in large venues. If customers connect the ATEM Software Panel customers can even change the HDMI output direct from any of the video inputs. There's also a low latency setting allowing output of connected gaming consoles on the HDMI output. If customers enable broadcast style mix effects switching, the HDMI output can be used to preview sources before a transition.
With two independent 3.5mm stereo audio inputs, customers can connect desktop and lapel microphones. With 2 extra stereo audio inputs, customers can ensure a host and guest both have lapel microphones when doing interviews. All audio inputs to ATEM Mini include buttons on the panel for adjusting audio level and enabling inputs into the audio mixer.
The ATEM Software Control app unlocks the hidden power of the ATEM Mini as customers get total control over the switcher features, plus the software is included free for Mac and Windows. ATEM Software Control features a visual switcher user interface with parameter palettes for making quick adjustments. Although customers can normally connect via USB, if customers connect using Ethernet it's possible for multiple users to connect to ATEM Mini using separate copies of ATEM Software Control on different computers. Customers can even save the switcher state as XML files. If customers need clip playback, customers can even control HyperDeck disk recorders via Ethernet.
The built in "media pool" allows loading of up to 20 separate broadcast quality RGBA graphics for titles, opening plates and logos. Customers can even use still frames for complex effects such as graphic wipes. ATEM Mini can even grab stills from the video output and add them to the internal media pool. Customers can easily manage the still store graphic using the included ATEM Software Control app, or customers can download directly from Photoshop software using the ATEM Photoshop plug-in. The Photoshop Plug-in is perfect for graphics that need to change often, such as scoreboards, as customers can update the text and download directly into the switcher, allowing graphics to get on-air fast.
For news or on-set presentation work, ATEM Mini is the perfect choice as it features an ATEM Advanced Chroma Key for high quality chroma or luminance keying, plus an additional downstream linear keyer. Customers can even use it for title overlays simply by using PowerPoint or other software with a green or blue background and the keyer will knock out the green and make the background transparent.
With a built in Fairlight audio mixer, the ATEM Mini makes it possible to do extremely complex live sound mixing. The internal mixer features a total of 12 channels so customers get the ability to mix audio from all sources. 8 mixer channels are de-embedded from the HDMI inputs, while an extra two stereo audio channels are input via the 3.5mm microphone connections on the rear panel. Each input channel features the highest quality 6 band parametric EQ and compressor, limiter, expander and noise gate as well as full panning.
The HDMI output is a true "aux" output so customers can clean switch each of the 4 HDMI inputs or the program feed to this output. Customers can even "direct" switch input 1 to the HDMI output for low latency for eSport. If customers select broadcast style mix effects switching, customers can also output a preview feed, allowing verification of the source before transitioning to it.
ATEM Mini Pro
External 12V DC power supply with international socket adapters
4
2
1
2 x 3.5mm stereo mini jack.
None, embedded audio only.
None
4 x HDMI type A, 10-bit HD switchable.
2 channel embedded audio.
On all 4 HDMI inputs.
On all 4 HDMI inputs.
1
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
None
4:2:2 YUV
10-bit
Rec 709
1280 x 720p 50Hz, 59.94Hz and 60Hz
1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz
1920 x 1080i 50, 59.94Hz and 60Hz
Hardware based real time.
1
1
1
2
DVE only.
5
1
2
1
Minimum monitor resolution of 1366 x 768.
6 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Unbalanced stereo
Up to 8 frames
1.8k
+6dBV
Available on both 3.5mm mini jack connections.
ATEM Mini Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard.
Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters.
HD
1
Fill and key for each Media Player.
20 with fill and key.
PNG, TGA, BMP, GIF, JPEG and TIFF.
Built in control panel. Software control panel with camera control included. Supports optional hardware panel.
Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection. Ethernet or USB-C used for updating the software.
Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel.
ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only.
Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 10, 64-bit.
1 x External 12V power supply.
30W
5° C to 40° C (41° - 104° F)
-10° to 60° C (14° to 140° F)
0% to 90% non-condensing
Warranty
12 Months Limited Manufacturer's Warranty.
