Blackmagic DeckLink Mini Recorder 4K

Blackmagic Design DeckLink Mini Recorder 4K

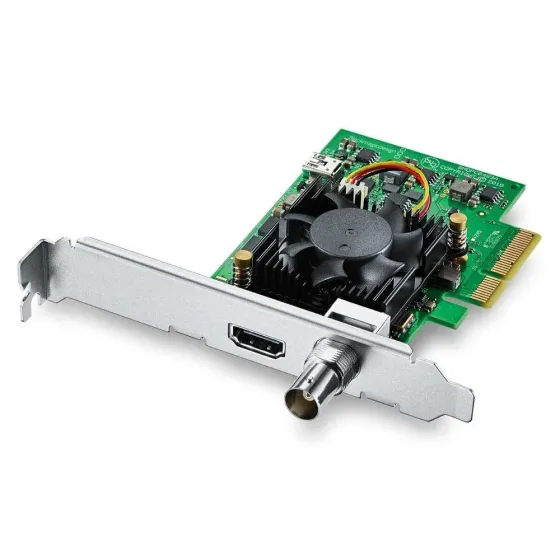

DeckLink Mini Recorder 4K is a low profile PCI Express capture card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can record all formats up to2160p30 on your computer! The SDI and HDMI inputs automatically detect andswitch between all video formats. You even get high dynamic range recording andmetadata over HDMI. The DeckLink Mini Recorder 4K is perfect for integrating intomobile live capture environments, broadcast trucks and more! You can evendevelop your own custom capture solutions using the Blackmagic Desktop VideoSDK for Mac OS, Windows and Linux! Includes two PCI Express shields for both fullheight and low profile slots.

Connections

SDI Video Inputs
1 x 10-bit SD/HD/Ultra HD switchable
SDI Audio Inputs
16 channels embedded in SD, HD,Ultra HD
HDMI Video Inputs
1 x HDMI 2.0a connector
HDMI Audio Input
8 Channels embedded in SD, HD,Ultra HD
Computer Interface
PCI Express 4 lane generation 2,compatible with 4, 8 and 16 lane PCIExpress slots.

Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2,Digital SLR, DV-NTSC, DV-PAL,DVCPRO50, DVCPROHD, DPX, HDV,XDCAM EX, XDCAM HD, XDCAMHD422, DNxHR & DNxHD, AppleProRes 4444, Apple ProRes 422 HQ,Apple ProRes 422, Apple ProRes LT,Apple ProRes 422 Proxy,Uncompressed 8-bit 4:2:2,Uncompressed 10-bit 4:2:2.

HD Video Standards
720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25,1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p601080PsF23.98, 1080PsF24,1080PsF25, 1080PsF29.97, 1080PsF301080i50, 1080i59.94, 1080i60

2K Video Standards (SDI ONLY)
2K DCI 23.98p, 2K DCI 24p, 2K DCI25p2K DCI 23.98PsF, 2K DCI 24PsF, 2KDCI F25PsF

Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25,2160p29.97, 2160p30

4K DCI Video Standards
4KDCI23.98p, 4KDCI24p,4KDCI25p.

New DeckLink Mini Recorder 4K PCIe capture card includes all the powerful features of the HD model but includes new Ultra HD and HDR (high dynamic range) features. It supports all SD, HD and Ultra HD formats up to 2160p30 and practically all video editing and postproduction applications running on Windows, Mac OS X and Linux systems.

The new DeckLink Mini 4K models are low profile 4 lane generation 2 PCI Express cards that include 6G-SDI and HDMI 2.0a connections. This means the high quality connections support broadcast quality 10-bit YUV and 12-bit RGB video, along with the latest Rec. 2020 color and support for high dynamic range (HDR) formats and HDR metadata. Both DeckLink Mini 4K models are fully compatible with the Blackmagic Desktop Video SDK, making them perfect for OEMs or developers that are building custom playback or recording solutions.



DeckLink Mini Recorder 4K lets customers capture broadcast quality video directly from SDI and HDMI sources like decks and cameras to their computer. The low profile design of DeckLink Mini Recorder 4K makes it incredibly versatile and ideal for integrating into mobile live capture environments and outside broadcast trucks. Both models work with uncompressed and compressed video in open standard file formats such as QuickTime and DPX so they are compatible with virtually all professional editing, color correction and visual effects software. That means customers can use the DeckLink Mini 4K models with software such as DaVinci Resolve, Fusion, Media Composer, Final Cut Pro, Premiere Pro and more.



To ensure customers don't have to purchase costly extra accessories, both DeckLink Mini 4K models include both a full height and a half height PCI shield so the user can simply install into either a standard computer PCIe slot or into systems with low profile slots such as rack mount server style computers.
