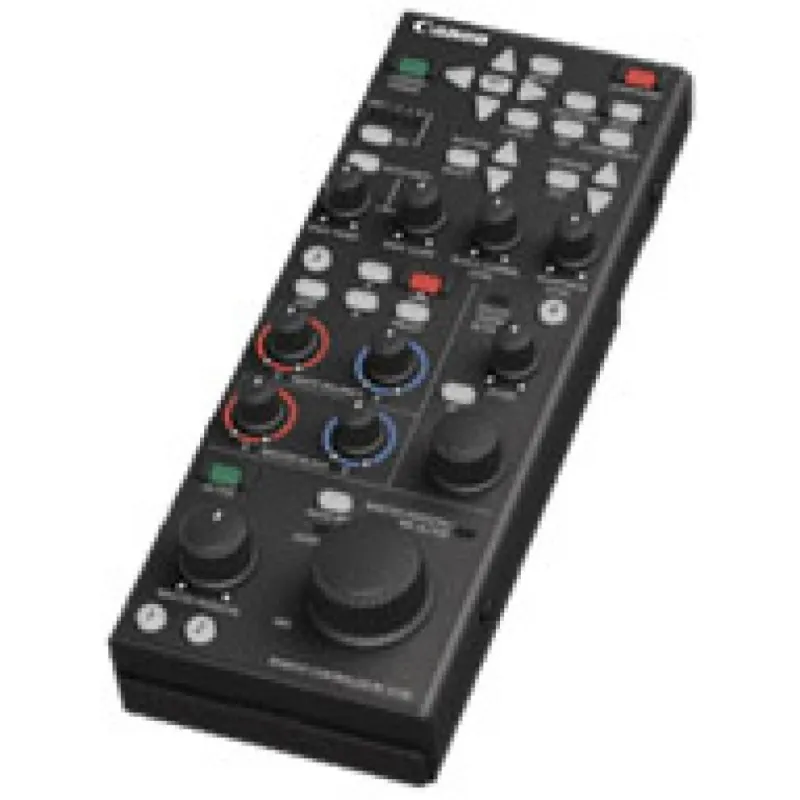

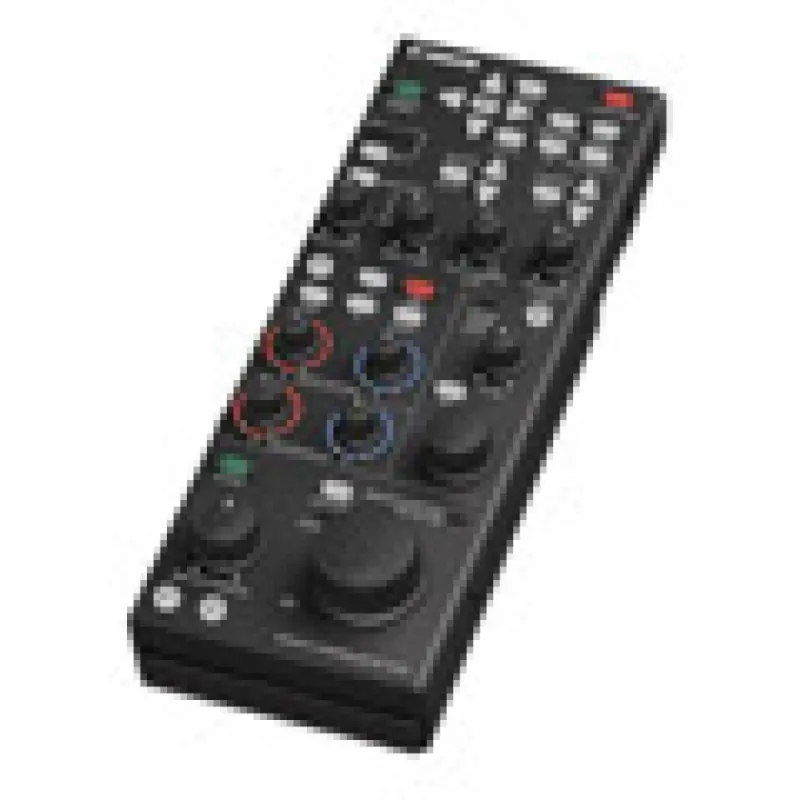

Canon RC-V100 Remote Control

The Canon Remote Control RC-V100 offers camcorder users greater freedom. Whether in a studio, on location, or simply somewhere previously out of reach, it provides wired remote control of almost any camcorder function.

Features:
- Powerful wired remote control of camcorder functions
- Intuitive layout to suit professional users
- Dedicated dials for adjustment of advanced imaging parameters
- Direct operational control of key camera functions such as focus, iris and gain¹
- Access camera operating menus to quickly adjust any setting
- Illuminated buttons enable easy low-light operation
- Configurable buttons for user-specific control
- Compatible with Canon Professional Video Cameras and Cinema EOS cameras
- Ideal for on-location and in-studio usage



Powerful remote control
Users of Canon's professional camcorders can enjoy unrivalled control with the RC-V100 wired remote control unit - bringing both basic and advanced image adjustment to your fingertips.

Extensive control
The RC-V100 combines some of the benefits of an advanced remote control and a Camera Control Unit (CCU), typically found in a studio environment. Almost any adjustable function can be controlled - from focus, iris and zoom, to user-specific options such as Custom Picture presets and specific image adjustments like knee point and slope.

Record more, differently
Certain scenarios demand remote camera control: when the camera is mounted on a jib for elevated shots, for example, or in scenarios that require quick adjustment to compensate for changing conditions. Thanks to remote access and control, these recording obstacles can be overcome. In combination with the RC-V100, Canon professional camcorders become even more versatile tools to help realise your creative vision.

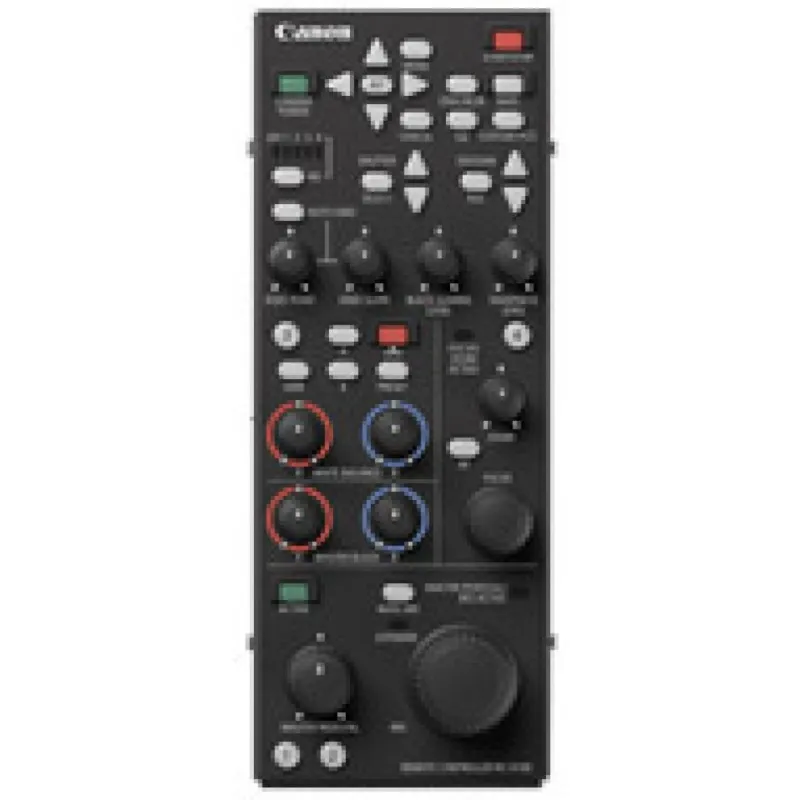

Intuitive layout for greater control
The controller’s intuitive layout makes control of key camera functions and image parameters easy, even if you're not an expert on the camera concerned. It has been carefully designed to be easy to understand and learn, with key features grouped together in three main sections. Common image parameters are controlled using dials, making remote image fine-tuning incredibly simple. Furthermore, user-assignable buttons are provided for added versatility.

Clear and simple operation, wherever, whenever
To aid operation in low-light situations, the buttons are illuminated, with the option of an audible ‘beep’ to confirm user selections.

Firmware updates
Your camera firmware may need to be updated to enable compatibility with the RC-V100. A USB connection on the RC-V100 supports possible future firmware updates.

¹Lens control not possible with PL-mount Cinema EOS cameras or manual lenses

DESIGN SPECIFICATION

Model

Wired Remote Controller

Supply Voltage

DC 5.0V - 6.0V

Power Source

Via camera

Power Consumption

0.25W (Max)

Connections available

REMOTE A Connector (stereo mini jack 3.5mm)
USB connector (mini-B for service and update)

Cable Length

5 M

Maximum Dimensions (Wx H × D)

89 × 224 × 65mm (3.5 × 8.8 × 2.6 inch)

Weight

Approx. 630g (1.4lb)

Operating Temperature Range

0°C to +40°C (32°F to 104°F)

CONTROL OPTIONS

Camera Power

On/Off

Recording Function

Start/Stop

REC Review

When Camera is in MEDIA mode

Colour Bars

On/Off when BARS selected

On Screen

Select

Cancel

Select

Menu

Access Camera Menu

Up/down/left and right SET buttons

Menu Control

ACTIVE button

Prevents accidental operation, depending on mode

Assign Button (1 - 4)

Set/Select custom functions from camera

ND Filter Selection/Operation

C300/C300PL/C500/C500PL

KNEE

Auto Knee/Knee Point/Knee slope

Black Gamma Level

Set

White Balance (WB)

AUTO/WB A, WB B/WB Set/WB Preset

Master Black

Set

Sharpness Level

Set

Focus

AF Select/Manual Focus adjust

Zoom

Zoom Operation

Iris

Auto Iris/Manual Iris adjust

Master Pedastal

Set

Shutter

Shutter Select/Shutter Speed adjust

ISO/Gain

Auto Gain select/Manual Gain/ISO select

Custom Picture Settings

Select

Supported Cameras

See individual Camera specification¹

Supported Cameras

¹Camera firmware update may be required

Canon RC-V100 Remote Control

The Canon Remote Control RC-V100 offers camcorder users greater freedom. Whether in a studio, on location, or simply somewhere previously out of reach, it provides wired remote control of almost any camcorder function.

Features:
- Powerful wired remote control of camcorder functions
- Intuitive layout to suit professional users
- Dedicated dials for adjustment of advanced imaging parameters
- Direct operational control of key camera functions such as focus, iris and gain¹
- Access camera operating menus to quickly adjust any setting
- Illuminated buttons enable easy low-light operation
- Configurable buttons for user-specific control
- Compatible with Canon Professional Video Cameras and Cinema EOS cameras
- Ideal for on-location and in-studio usage

Powerful remote control
Users of Canon's professional camcorders can enjoy unrivalled control with the RC-V100 wired remote control unit - bringing both basic and advanced image adjustment to your fingertips.

Extensive control
The RC-V100 combines some of the benefits of an advanced remote control and a Camera Control Unit (CCU), typically found in a studio environment. Almost any adjustable function can be controlled - from focus, iris and zoom, to user-specific options such as Custom Picture presets and specific image adjustments like knee point and slope.

Record more, differently
Certain scenarios demand remote camera control: when the camera is mounted on a jib for elevated shots, for example, or in scenarios that require quick adjustment to compensate for changing conditions. Thanks to remote access and control, these recording obstacles can be overcome. In combination with the RC-V100, Canon professional camcorders become even more versatile tools to help realise your creative vision.

Intuitive layout for greater control
The controller’s intuitive layout makes control of key camera functions and image parameters easy, even if you're not an expert on the camera concerned. It has been carefully designed to be easy to understand and learn, with key features grouped together in three main sections. Common image parameters are controlled using dials, making remote image fine-tuning incredibly simple. Furthermore, user-assignable buttons are provided for added versatility.

Clear and simple operation, wherever, whenever
To aid operation in low-light situations, the buttons are illuminated, with the option of an audible ‘beep’ to confirm user selections.

Firmware updates
Your camera firmware may need to be updated to enable compatibility with the RC-V100. A USB connection on the RC-V100 supports possible future firmware updates.

¹Lens control not possible with PL-mount Cinema EOS cameras or manual lenses
