Please note: Due to the length of this article, there are always additional shipping costs. Please contact us for the exact transport costs to your postcode area.

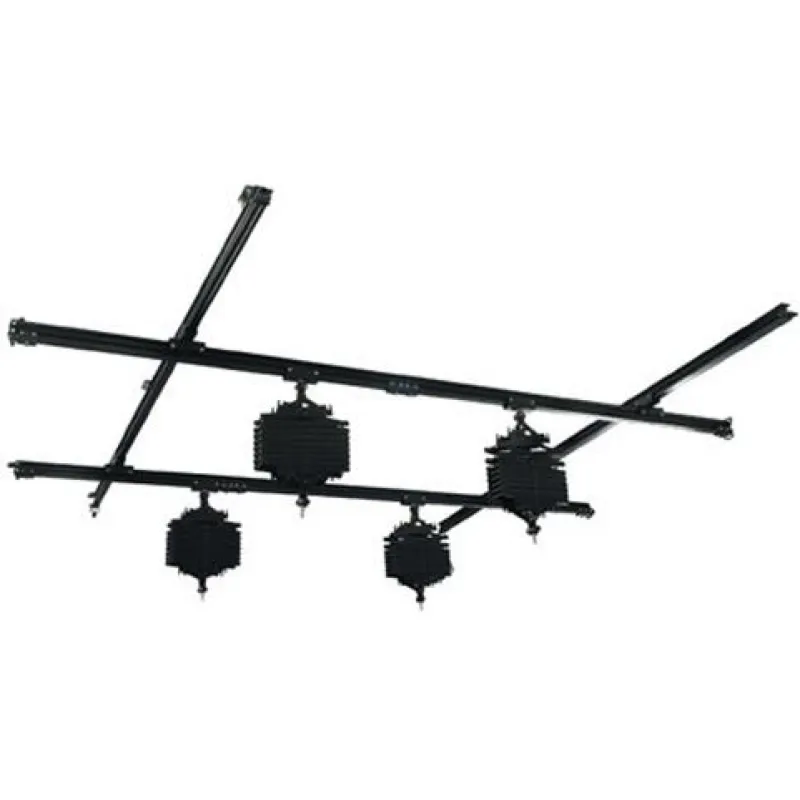

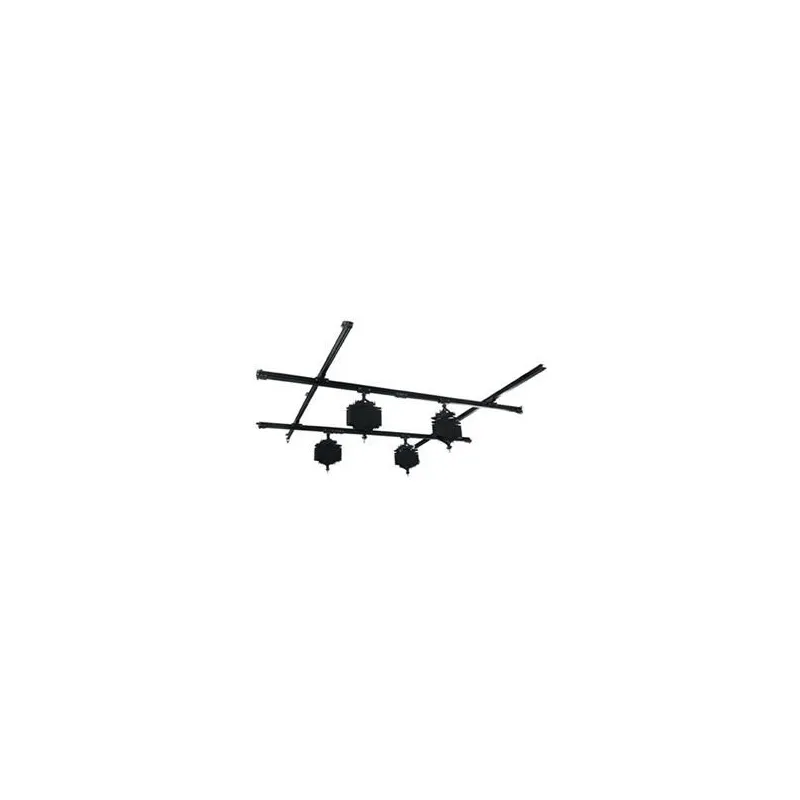

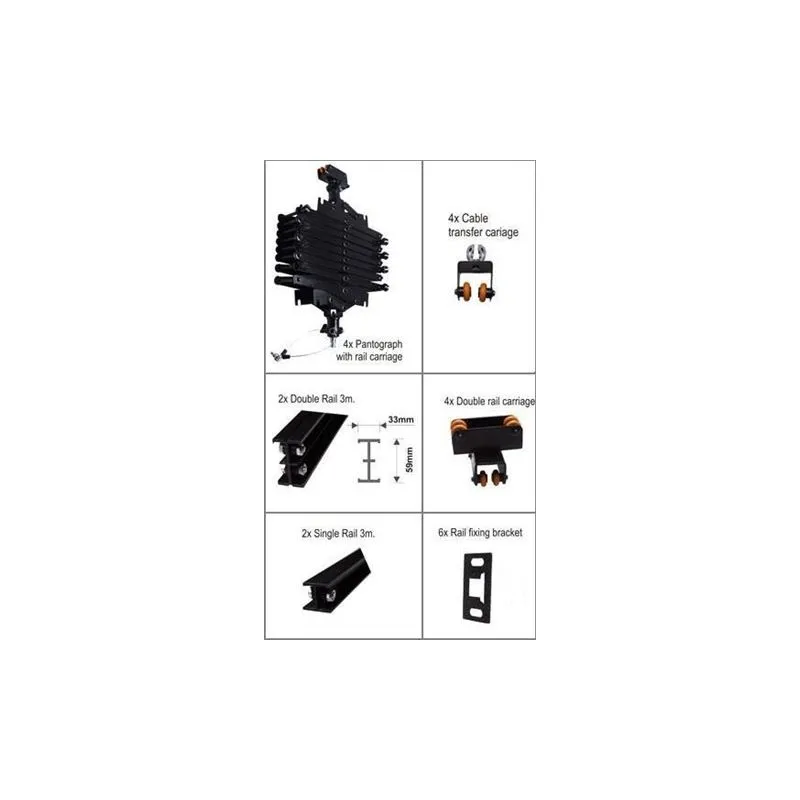

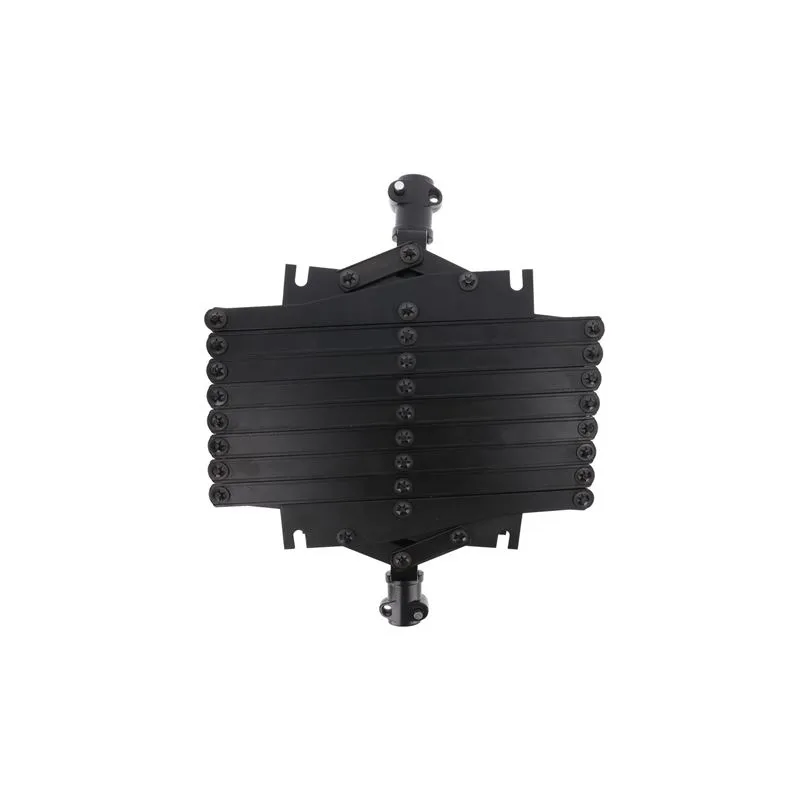

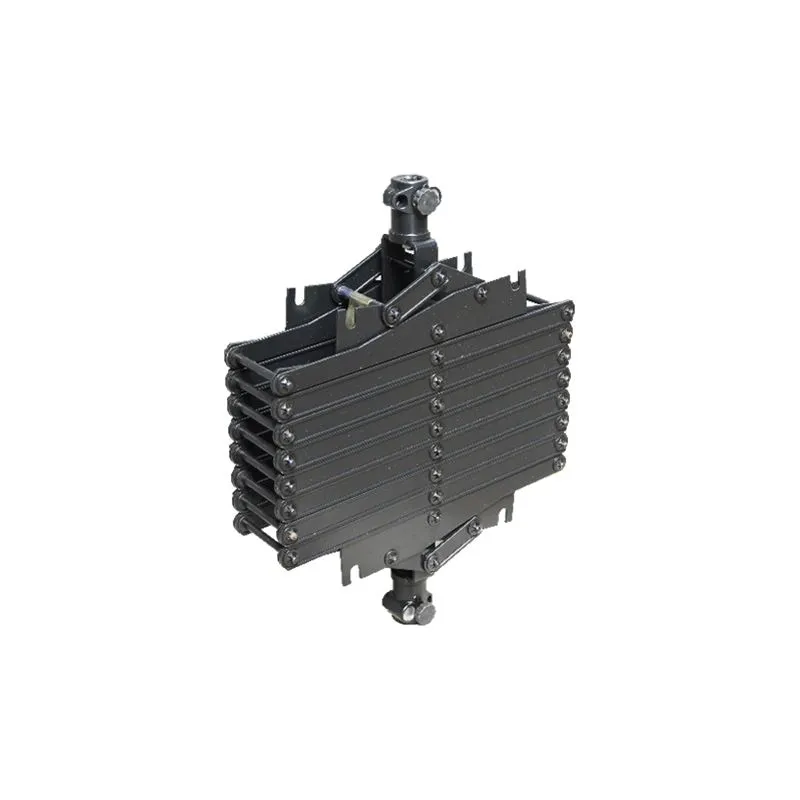

Complete ceiling rail system with four pantographs and 4m rails. Ideal solution for your photo studio! With this system you can position your studio flashes at the required height without needing tripods. Rollers run on the lower crossbar. This makes it easy to move back and forth. The pantographs can be easily moved to the left and right. With the help of the spring system, you can position the studio flashes at any desired height. The pantographs are attached with a universal spigot adapter (which also sits on most lamp tripods). So if you still have a pantograph yourself, it will also fit on this system. The pantographs are 45cm long when folded. They hang 10cm from the rail, so your flash or other equipment hangs 55cm below the ceiling when it is pushed up all the way. The studio flashes are also attached with the help of a spigot adapter. All studio flashes with a pin connection fit onto the adapter. If your studio flash does not fit, you will find spigot adapters in various sizes in our range so that you can still attach it to this system. The pantograph can be loaded with a maximum of 6.5 kg per piece. You must attach a flash or lamp weighing more than 1 kg to the spigot of the pantograph in order for it to function optimally. This prevents the pantograph from accidentally shifting upwards. 600 grams is the absolute minimum per spigot/pantograph.

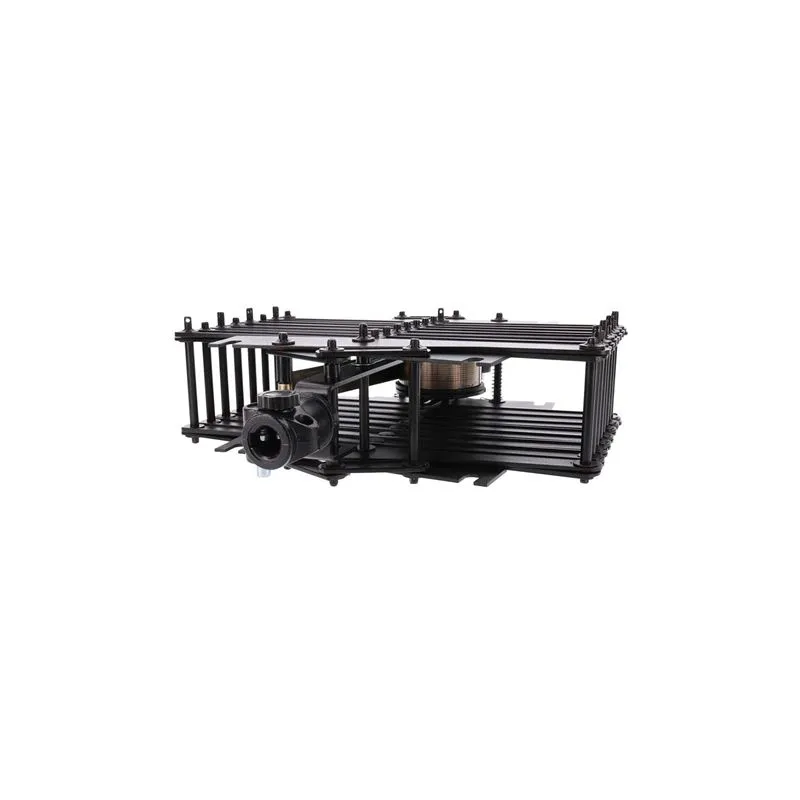

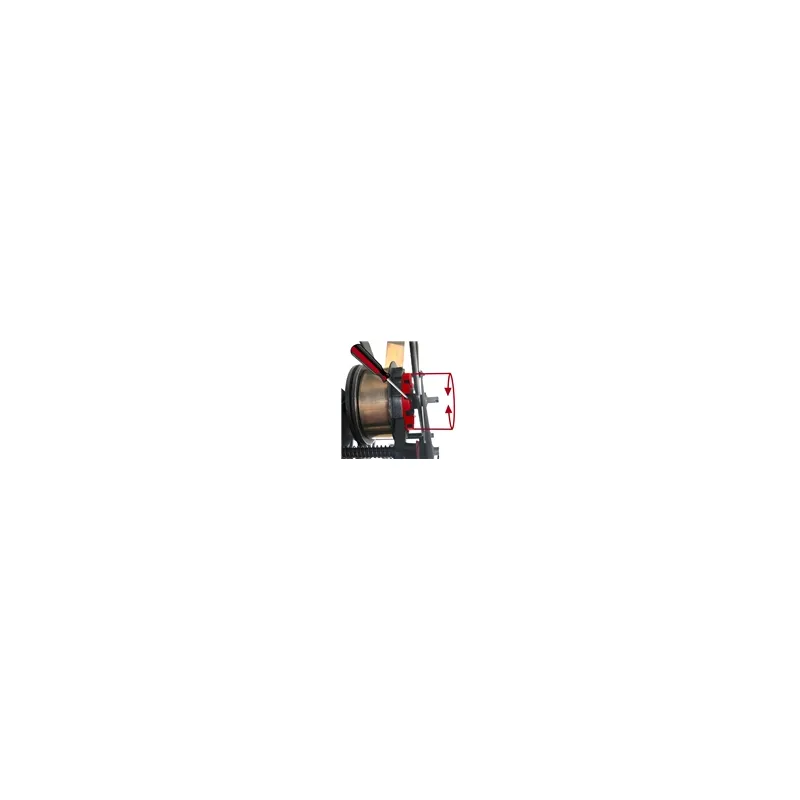

If you have a studio flash with a low weight, you can adjust the carrying weight/tension of the pantograph by adjusting the adjusting ring with a screwdriver (see picture 4).
The system can be extended up to a maximum of 4x8 metres (see optional accessories).
The ceiling rails have a total weight of 14kg.
The 4 pantographs together weigh 24kg (6kg each).
The maximum load per pantograph is 6.5kg.
