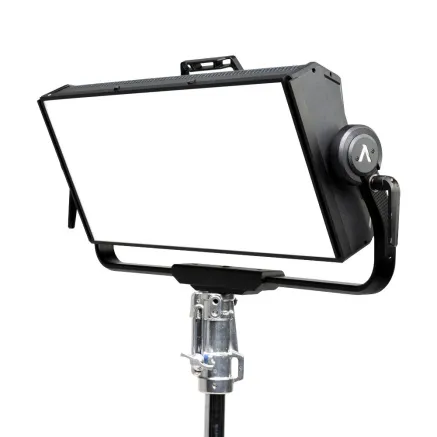

Aputure Nova P600c 600W RGBWW 2x1 LED Soft Light Panel

Main Features

• 600W RGBWW 2x1 LED Soft Light Panel
• 2,298+ lux at 3 meters (6500K)
• Two Times Brighter than Nova P300c
• CRI & TLCI 95+, SSI (D56): 74, SSI (Tungsten): 84
• 4-Light Engine Zone Control
• Fully Tunable CCT from 2,000K to 10,000K
• Fully-Tunable Green-Magenta Adjustment(Full Plus/Minus Green)
• Hue, Saturation & Intensity with CCT Control
• Built-in LumenRadio CRMX
• Sidus Link Mobile App Compatible
• 8-bit & 16-bit DMX512 5-Pin In & Out
• Cable-less Contact Pin Control Box Interface
• Extendable Control Box w/ Lightning Clamp
• 3m-long Head Cable for Flexibility & Reach
• 4 User-Programmable Presets
• Removable Diffusion Panel
• 2 Output Modes: Max & Constant
• Lead-Follow Mode for Quick Workflow
• Variety of Built-in Light Source Presets
• Frequency Selection to Reduce Flicker
• Industry-standard X,Y (CIE 1931) Color Control
• >90% of Colors Within Rec.2020 Color Space
• 300+ Industry-Standard Gel Presets
• 19 Built-in Lighting FX: Cop Car, Lightning,Paparazzi, Candle, Fire, etc.
• Stepless Dimming from 0.1 to 100%
• 3-Pin XLR 48V/15A DC Battery Input
• Internal Power Supply
• Neutrik powerCON TRUE1 TOP AC Power Cable
• Junior Pin (28mm/1.125in)
• -20°~45°C Ambient Operating Temperature
• 360° Rotation, Curved Dual Disk-brake Yoke

The Nova P600c is a 600W RGBWW LED Soft Light and builds on the foundation of the Nova P300c, with twice the output and four times as many light engines. By utilizing a unique RGBWW chipset, the Nova strikes a balance between intense output and precision color quality, capable of producing 2,298+ lux at 3 meters (6500K) with a CCT range of 2,000K-10,000K. The Nova P600c is truly built for professionals, integrating features that enhance on-set workflow.

The P600c’s new control box includes industry-standard LumenRadio CRMX, enabling it to interface with any CRMX wireless control system. In conjunction with its new contact-pin cable-less connection interface, the Nova P600c can achieve truly wireless control without even needing a control box connection cable. And for easy access, with minimal setup, the P600c is also compatible with Sidus Link mobile app control, allowing you to control Aputure fixtures from a smartphone or tablet.

The Nova P600c is ideal for users who want a compact 2x1 LED Soft Panel but need more intensity and control than a Nova P300c. The P600c’s output is equivalent to two Nova P300cs and has 4 zones of control (light engines), which allow for more effects, greater depth in lighting effects, and individual control via DMX. With its built-in power supply, the P600c is also
suitable for users who want to operate with as few components as possible while filmmaking. In addition, Nova P600c also features new DMX functionality like LumenRadio CRMX, 16-bit DMX, and Lead-Follow Mode, to make a lighting technician’s on-set workflow more efficient. The Nova P600c builds upon the design and interface of the Nova P300c, making the P600c
the perfect companion for an existing user’s arsenal. Its weight, output, and power draw are suitable for lighting technicians who are looking to add to their medium to large scale lighting package.

In the box:

• Nova P600c Light x1
• Nova P600c Control Boxx 1
• Neutrik® powerCON TRUE1 TOP AC Power Cable (6m) x1
• 5-Pin XLR Head Cable (3m) x1
• Lightning Clamp x1

The Aputure Nova P600c is a 2x1 LED panel generating soft light with an impressive level of brightness. The lamp offers a maximum light intensity of up to 18346 lux and a huge range of colour temperature adjustment (2000 K - 10000 K). An unprecedented solution is used: the state-of-the-art RGBWW LEDs are divided into 4 independent zones for separate control. The curved fork handle, wireless controller, remote control via the Sidus Link app and DMX and LumenRadio technologies, as well as 300 effect film imitation programmes are just some of the innovations that will help you realise all your amazing lighting ideas to build the atmosphere of your films! Main product features professional RGBWW LED panel impressive maximum output power of 600 W maximum light intensity of 18366 lux (at a distance of 1 m at a CCT of 6500 K) extensive colour temperature control range of 2000 K - 10000 K colour control within 3 colour spaces: HSI, RGB and XY over 300 imitation programmes for working with colour effect films independent light engines for simultaneous display of different colours in 4 panel zones (when working with lighting effects or control via DMX) two times more light than the Aputure Nova P300c 75% brighter compared to the top of the range ARRI SkyPanel S60-C infinitely adjustable light brightness from 1 to 100% (accurate to 0.1%) controller with OLED screen equipped with ergonomic knobs and buttons convenient mounting of the controller to the lamp via an 8-pin connector (no cable then required) high CRI, TLCI and SSI coefficients ensure professional quality light used in film and photography 19 pre-programmed special effects (including paparazzi, explosion, fireworks and party) 4 brand new special effects using independent colour engines (Color Fade, Color Cycle, Color Gradient and One Color Chase) compatible with the LumenRadio wireless transmission system possibility of remote control from the Sidus Link app wireless DMX transmission (8-bit and 16-bit) for lamp control from the app or full-size console 28 predefined DMX profiles for different colour display systems the ability to select one of 4 ways in which the lamp reacts to loss of DMX signal (fast fade, gradual dimming, continue with last settings, continue with last settings for 2 minutes and gradual fade) Lead Follow Mode, in which a set of several lights can synchronise their settings with the Aputure Nova P600c adapted to work with accessories used when working with light (softboxes, grids, gates, etc.) possibility to remove the diffuser located on the front of the housing improved fork mount for convenient angle adjustment innovative Dual Tilt Lock lamp positioning system equipped with a full-size 28 mm pin (Junior Pin) for convenient mounting on a lighting tripod Impressive power The Aputure Nova lamp offers impressive power deposits that double the performance of its big sister, the Nova P300c. With a 120° angle of illumination and a CCT of 6500 K, the unit can emit as much as 18366 lux (at a distance of 1 metre)! This is one of the brightest soft light emitting LED panels you can buy! The combination of 600 W output power and a wide beam angle will effectively illuminate both large rooms and outdoor locations. 4 independent operating zones The Nova P600c is the first Aputure device to feature independent light controllers to manage the operation of individual LEDs within 4 zones. Thanks to such an innovative solution, the panel can be divided into sections displaying different colours of light that intermingle or change. The four working zones also benefit from the completely new special effects Color Fade, Color Cycle, Color Gradient and One Color Chase. Convenient and efficient operation with this state-of-the-art technology will be ensured by remote control via DMX transmission. Precision colour temperature control The technology used in the Aputure Nova lamp has achieved an extended CCT range between 2000 K and 10000 K. The colour temperature here can be adjusted not only for white light, but also within the HSI colour system. This provides infinite possibilities for image creation and adaptation to changing lighting conditions. The Aputure Nova P600c goes beyond the capabilities of conventional lamps, allowing it to produce light warmer than conventional tungsten lamps and cooler than typical daylight (D55). There is also green and magenta colour correction, allowing colours to be even more accurately matched to specific needs and eliminating any imperfections. Magic of coloured light The innovative RGBWW chipset used in the Aputure lamp provides significantly better results than typical RGB and RGBW LED designs. The Nova P600c offers colour control within 3 colour spaces: HSI, RGB and XY. This provides millions of combinations of settings to precisely match the needs of your shots. The lamp also has a built-in library of over 300 presets that simulate the most commonly used gel filters in the film industry. Excellent colour reproduction and depth of tone of the emitted light are guaranteed by high CRI, TLCI and SSI values. Even more special effects Among the innovations offered by the Aputure Nova P600c LED flash, there is no shortage of the built-in library of 15 special effects, which have already been appreciated by filmmakers working with the Nova P300c in the past. Impressive combinations of flashes and changing colours allow you to use such simulations as: Fireworks, Paparazzi, Faulty Bulb, Lightning, TV, Pulsing, Strobe, Explosion, Club Lights, Candle, Fire, Welding, Cop Car, Color Chase, Party Lights. There are also new special effects using 4 independent panel zones. Amazing transitions and colour changes (Color Fade, Color Cycle, Color Gradient and One Color Chase) will allow you to create even more spectacular shots! New, improved handle Precise positioning of a lamp installed on a tripod is ensured by an improved fork mount. Aputure's designers have improved the design known from the Nova P300c, reaching for proven and appreciated solutions similar to those used on the LS 600d Pro and 600x Pro lights. The curved handle allows more comfortable work with light modifiers such as softboxes, grids or gates. The bracket also offers a robust Dual Tilt Lock system, which will hold the flash in one position even when you reach for heavier accessories. The flash also features a full-size 28mm pin (Junior Pin) for convenient mounting on professional lighting tripods. Innovative controller Another innovation that improves the comfort and convenience of working with light on set is a controller equipped with an OLED screen and ergonomic dials and buttons. In a second, you plug it into a special socket located on the rear panel of the lamp. Thanks to the 8-pin connector, you do not need to connect the controller with a cable, thus gaining better ergonomics. However, if you decide to operate the lamp from a greater distance and do not want to use wireless connectivity, you will also find a professional XLR cable with a length of 3 metres included. Integrated power supply In order to reduce the time required to get the unit ready for use, as well as to increase ergonomics, Aputure's engineers aimed to hide the power supply inside the lamp housing. Finally, you can say goodbye to the extra module tangled under your feet! There's also a 3-pin XLR input (DC 48 V / 15 A), which is compatible with a wide range of mobile power options - from block batteries to 48 V power stations. If you do not have access to a standard mains electricity supply and want to avoid using noisy power generators at the same time, this will be the perfect solution! Sidus Link app The Aputure Nova P600c couldn't miss integration with the proprietary Sidus Mesh ecosystem, which allows the lights to be controlled using the Sidus Link app. It is available completely free of charge from the App Store, Google Play, Mi App Store and Huawei App Gallery. With the help of the app, it is possible to control both a single light source and a whole group of them. It allows access to almost all functions of the physical controller, making working on a film or shooting set even more convenient. Remote control The Sidus Link app is not the only way to remotely control the lamp or the entire light setup. The Nova P600c does not lack solutions known from professional equipment used on film and photography sets. On the housing of the lamp, you will find a 5-pin DMX512 port. It will ensure cooperation with the DMX system (8-bit and 16-bit), which will allow you to control the device from special applications or a full-size console. Under the casing, there is also the LumenRadio CRMX module. The standard appreciated by lighting professionals from all over the world will allow you to enter an even higher level of light control! Compatible modifiers Want to further expand your beam control capabilities and give your Nova P600c panel even more versatility? Additional accessories will come to the rescue. Aputure's light-enhancing tools, grids and softboxes are easily installed on your flash in just seconds. The manufacturer is already announcing a whole series of accessories compatible with the Nova P600c, as well as providing compatibility with a series of modifiers from the DoPchoice and Chimera brands. Specification model: Aputure Nova P600c colour temperature: 2000 K - 10000 K additional colour adjustment: green / magenta (± 1.00 G) colour modes: HSI, RGB, XY, Gels (simulation of effect film application) CRI: ≥ 95 TLCI: ≥ 95 CQS: ≥ 95 SSI (Tungsten): ≥ 84 SSI (D56): ≥ 74 TM-30 RF: 95 (averaged value) TM-30 RG: 103 (averaged value) TM-30 RG. angle of illumination: 120° maximum power output: 600 W maximum power consumption: 720 W working current: AC: 100 V - 240 V / 4.5 A DC: 48 V / 15 A Power supply: 48 V / 15 A cables: power supply: Neutrik® powerCON True1 Top AC power cable (6 m) lamp: 5-pin XLR cable (3 m) operating temperature: - 20°C - 45°C controls: controller with OLED screen sidus Link application 5-pin DMX512 port LumenRadio CRMX Communications: bluetooth 5.0 (Sidus Mesh) lumenRadio CRMX Software update: USB (FAT16 / FAT32) sidus Link cooling: active cooling system lighting tripod mounting: 28 mm pin (Junior Pin) accessory mounting point: Nova P600c Accessory Slot LED life expectancy: 50000 h dimensions: lamp (with bracket): 80.20 x 48.15 x 17.96 cm lamp (without handle): 63.97 x 28.49 x 16.58 cm panel surface: 63.97 x 28.49 cm controller: 15.75 x 9.66 x 4.58 cm lightning clamp mounting bracket: 10.35 x 8.74 x 12.5 cm Weight: lamp: 13.74 kg controller: 0.43 kg Kit contents Nova P600c controller Neutrik® powerCON True Top power cable (6 m) 5-pin XLR cable (3 m) lightning Clamp mounting bracket Photometry CCT   1 m 2 m 3 m 2700 K 14586 lx 1850 lx 725 lx 3200 K 15240 lx 1936 lx 746 lx 4300 K 15533 lx 1945 lx 758 lx 5600 K 17520 lx 2167 lx 847 lx 6500 K 18346 lx 2298 lx 867 lx
