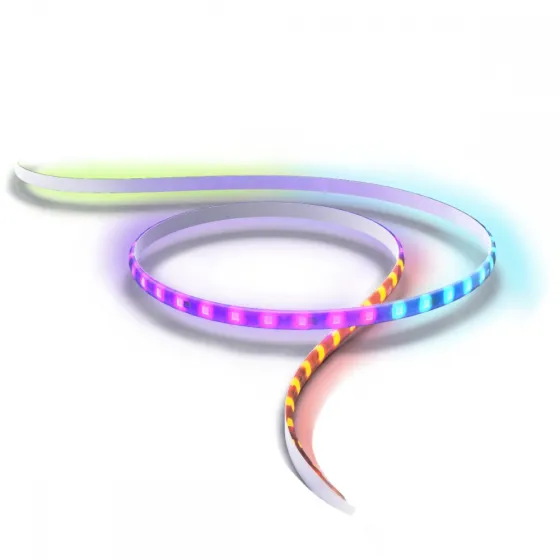

Amaran SM5c

• 20W Output 300 RGB Smart Pixel LED Strip Light
• Supports SidusPro® FX, Including Picker FX, Lighting FX, Manual FX, and Pixel Control
• Ultra High LED Density: 60 RGB LEDs per Meter
• 100 Pixels in 5 Meters for Creative Pixel Effects
• 21 Built In Pixel FX, 9 System FX
• Built In Microphone for Music Effects Visualization
• 3 Color Modes: CCT, HSI, Lighting FX
• High Quality Flexible Flat Cable For Easy Installation
• Strong Adhesive Attaches to Any Smooth Surface
• Frosted Diffusion Layer for Smoother Light and Reduced Glare
• Designed for Content Creators Livestreamers and Home Studios

The SM 5 c is amaran’s first ever RGB smart pixel LED strip light for creators Featuring intuitive pixel effects and Amazon Alexa Google Assistant integration, the amaran SM 5 c is the perfect accent light for instantly transforming at home setups or video studios with a wave of color and curating an environment for inspiring creativity and innovation.

With 300 RGB LEDs over 5 meters, the SM 5 c is a high density strip light that creates saturated colors and pixel effects Using its advanced circuitry, the SM 5 c smoothly transitions between its 100 pixels, while remaining flicker free at standard frame rates.

As the first amaran light to feature both Bluetooth and Wi Fi connectivity, the SM 5 c can be controlled via smart speakers, including Amazon Alexa and Google Assistant, for hands free lighting control For total customization, creators can use the Sidus Link mobile app to unlock the full suite of smart light
features, including various color modes, 21 Pixel FX, and Pixel Control of up to 25 light segments.

Featuring a built in microphone, the SM 5 c can also act as a real time audio visualizer by synchronizing its 100 pixels to any audio track.

For illuminating larger spaces, the strip light can be extended by an additional 5 meters 16 4 ft) with the amaran SM 5 c Extension By producing one continuous light effect over 10 meters 32 8 ft), the Extension creates a truly expansive environment.

The SM 5 c’s frosted diffusion and simple installation process produces a soft glow, whether mounted along ceilings and walls or behind bookshelves, cabinets, and tables.

Delivery Content
• amaran SM5c Strip Light (5m)
• AC Power Supply
• LED Controller
• Double Sided Tape1
• Cleaning Kit

Specifications

CCT

3,200K - 6,500K

Max Power Input

20W

Max Operating Current

1.7A

Operating Voltage

12V

Supply Voltage

110V ~ 240V

Operating Temperature

- 10 C ~ 40 C / 14 F ~ 104 F

Pixel Mapping

100 Pixels

Wireless Control Methods

Sidus Link App, Amazon, Alexa, Google Assistant

Wireless Operating Range (Bluetooth)

≤80m

Wireless Operating Range (Wi Fi)

≤60m

Firmware Upgradeable

Sidus Link

Cooling Method

Passive Cooling

Controller Dimensions

4.8 x 9.7 x 2.8cm

Length

Strip Length 5m
DC Power Cable 2m
Controller Cable 2m

Weight

Controller 137g / 0.30lbs
DC Power Supply 157g / 0.35lbs

The Amaran SM5c is an innovative LED strip that stands out for its excellent light quality, multitude of additional functions and competitive price, compared to products with similar capabilities. Thanks to it, you can create a striking backdrop for your vlog, decorate your flat or highlight valuable items standing on shelves. As many as 300 LEDs are arranged on the 5 m strip, which together form 100 separate RGB sections. Their colours can be changed within up to 25 different groups! The manufacturer has also taken care of 21 spectacular transition effects, support for a mobile app and voice assistants, as well as the ability for the light to react to sound in real time. In the set you will also find: power supply, controller, spare 3M tape and cleaning cloths. Main product features Innovative 5 metre long RGB LED strip with controller and power supply equipped with 300 "smart pixel" LEDs divided into 100 RGB sections a source of beautiful lighting for the living room, bedroom, office or home recording studio the perfect way to create a striking backdrop or scenery in a venue for vlogs, streams or podcasts includes a functional controller equipped with buttons and an ergonomic dial a microphone in the controller allows the light to react to the sound in real time visualisation of sound with light is great for events, concerts or music videos adjustable light colour within the HSI space (hue, saturation, intensity) adjustment of the colour temperature of the light between 3200 K and 6500 K control of led effects and colours within 5 or 25 independent groups possibility to define separate light characteristics for each group 21 pre-defined effects for transitions ("Pixel FX") between individual sections (e.g. permeation, rainbow, party, aurora, star) additional 9 effects ("FX") known from Amaran and Aputure lights (including police car, paparazzi, campfire, TV) remote control via the advanced Sidus Link mobile app (iOS / Android) option to control the light by voice when paired with Amazon Alexa or Google Assistant equipped with strong 3M adhesive tape for quick and convenient installation includes an extra roll of double-sided 3M tape included are cloths for cleaning the area to which the tape will be applied no light flicker effect in video recordings the use of diffusion coating ensures better light dispersion all kit elements in white for best light reflection and blending in with the surroundings possibility to extend the set with an additional 5 m LED strip (extension module to be purchased separately) LED strip as never before Appreciated in the photo-video industry, the Amaran brand decided to go beyond the world of lighting designed for cameras and camcorders. Experience, an innovative approach and openness to the diverse needs of users allowed them to create a product like never before! The Amaran SM5c LED tape will prove useful not only as a striking element of vlog or stream scenography. You will also successfully use it to create a unique atmosphere in your living room, bedroom, gaming room or recording studio. Unparalleled light quality The Amaran SM5c is a completely new quality in the world of LED tapes. Its design was accompanied by an uncompromising approach, known from the world of video production, which ensures excellent light quality and unparalleled functionality. As many as 300 LEDs are arranged on the 5-metre strip, which together form 100 separate RGB sections. On one side of the strip, you will find strong double-sided 3M tape, which will enable quick and convenient installation. On the other side, the LEDs have been protected by a special diffuser, which ensures adequate protection of the LEDs and above-average dispersion of the light points. Effective colour transitions The Amaran SM5c LED strip allows for the personalisation of 5 or even 25 groups of LEDs. This means that adjacent sections can shine in different colours. However, that is not all. The device also offers 21 transition effects (including penetration, rainbow, party, aurora, star) that will create unique light animations. Colour sound visualisation Excellent light quality, striking transitions and personalisation of settings within separate zones are not all. A microphone built into the included controller will make a feast of colours respond to the sound in real time. Are you recording your DJ sets or videos of you playing an instrument? Or are you looking for a way to create a disco atmosphere at home? The Amaran SM5c LED strip will provide an amazing atmosphere when the LEDs start "dancing" to the rhythm of the music being played. Extendable set 5 metres of LED tape is not enough? Do you want the striking colour transitions to go even further? With the Amaran SM5c extension module, you can create an LED strip with a total length of 10 metres. You don't need any additional tools to connect two 5-metre pieces together. Just connect the 2 plugs together and you're done! Thanks to the extension module, you don't need to buy a second set with a separate driver and power supply! Extension module AMARAN SM5C IS NOT PART OF THE KIT. It is available as a separate product. Sidus Link application You can control the Amaran SM5c LED strip without having to reach for a controller. Remote operation is provided by the powerful Sidus Link mobile app, which has been accompanying users of equipment from Aputure and Amaran for years. So there is nothing to prevent the tape from becoming part of a larger ecosystem of light sources that you use, for example, when recording video footage. The app will allow you to conveniently program advanced combinations of transitions, as well as personalise the settings for each group of LEDs. Thanks to Sidus Link, LED tape will become an even more powerful tool for creating the atmosphere of places with light! Voice control Connectivity to a smartphone via Bluetooth is not all. Compatibility with the WiFi standard also allows you to pair the tape with smart speakers offering voice assistant support - Amazon Alexa and Google Assistant. Simply use the Tuya Smart app to make the device respond to dozens of commands, such as 'turn on the light', 'set the light to a warm colour' or 'turn the light red'. Specification model: Amaran SM5c light colour temperature: 3200 K - 6500 K maximum power consumption: 130 W working current: max. 1.7 A power supply: 12 V allowed operating temperature: - 10°C - 40°C number of sections ("pixel mapping"): 100 (300 RGB LEDs) remote control via app: Sidus Link voice assistant support: Amazon Alexa / Google Assistant (via Tuya Smart app) Remote range: Bluetooth: max. 80 m LumenRadio: max. 60 m Software update capability: via Sidus Link app cooling: passive cooling system controller dimensions: 4.8 x 9.7 x 2.8 cm Length: LED ribbon: 5 m power cable: 2 m controller cable: 2 m Weight: LED ribbon: 391 g controller: 137 g power supply: 157 g Kit contents Amaran SM5c Strip Light LED strip power supply controller 3M double-sided tape cleaning kit
