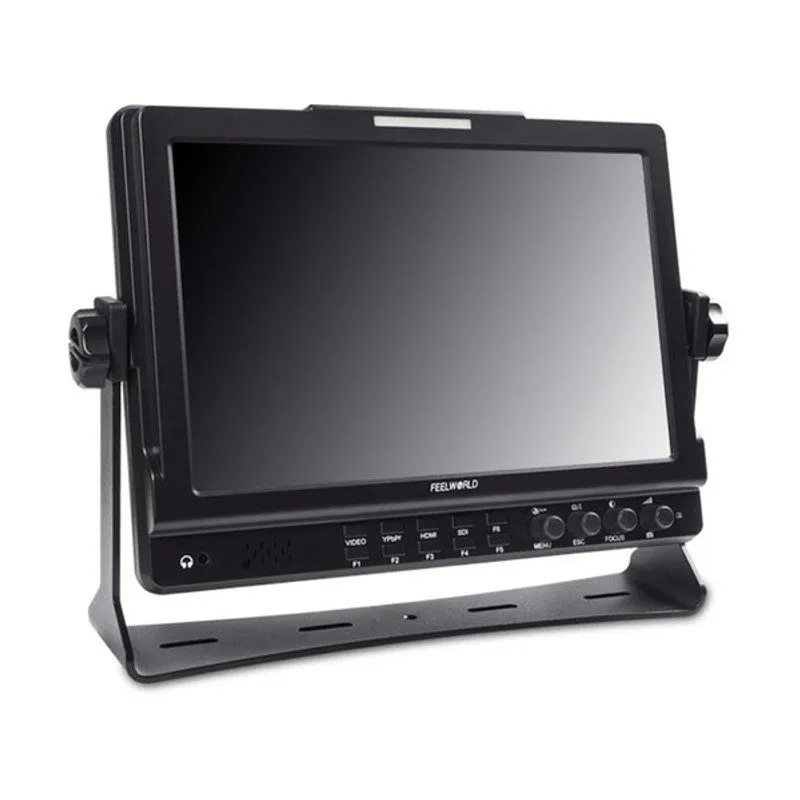

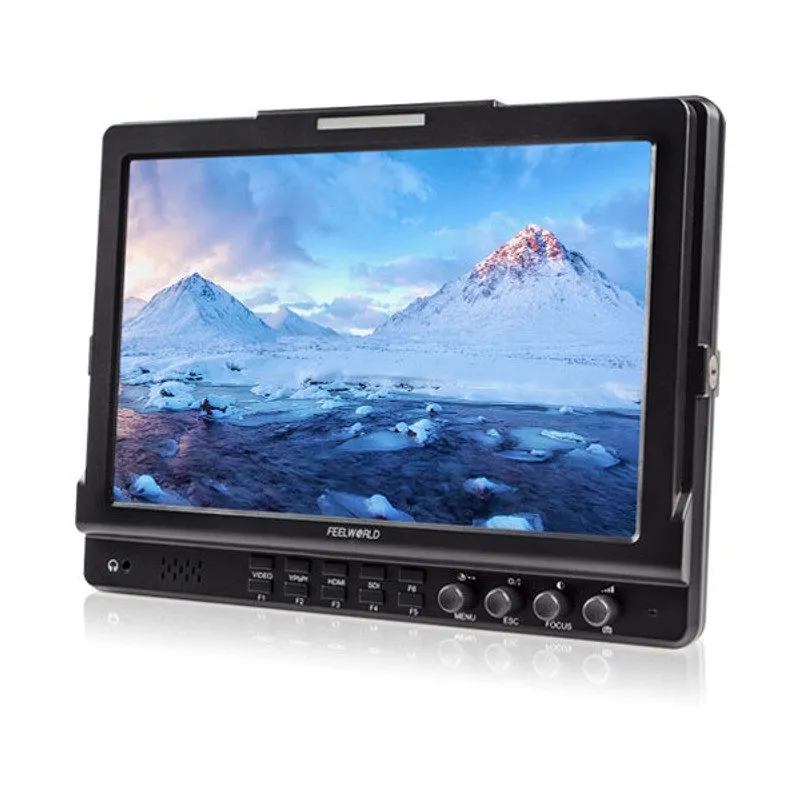

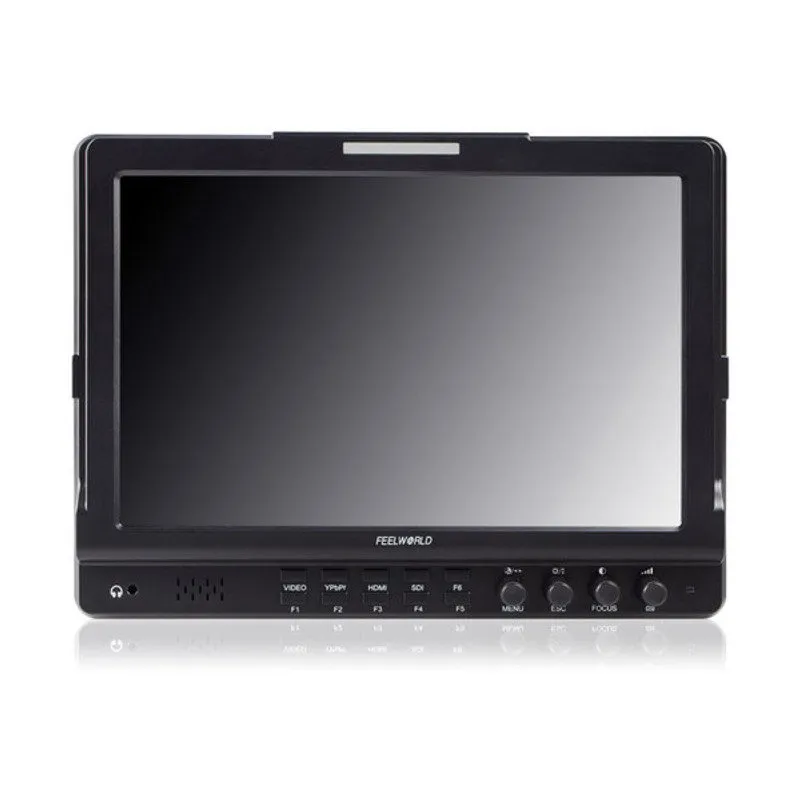

Feelworld FW1018PV1 field monitor (Without SDI)
The Feelworld FW1018PV1 fieldmonitor (without SDI) is a 10 inch monitor with a screen resolution of 1920 x 1200 pixels and numerous image analysis tools. The monitor has a 1/4" screw thread with which you mount it on your camera. With the included U-bracket you can easily place it on, for example, a desk.
Sunshood
This field monitor is supplied with a hood. The hood prevents glare and reflections by the sun, so it is easy to work with the screen outdoors.
HDMI and analogue

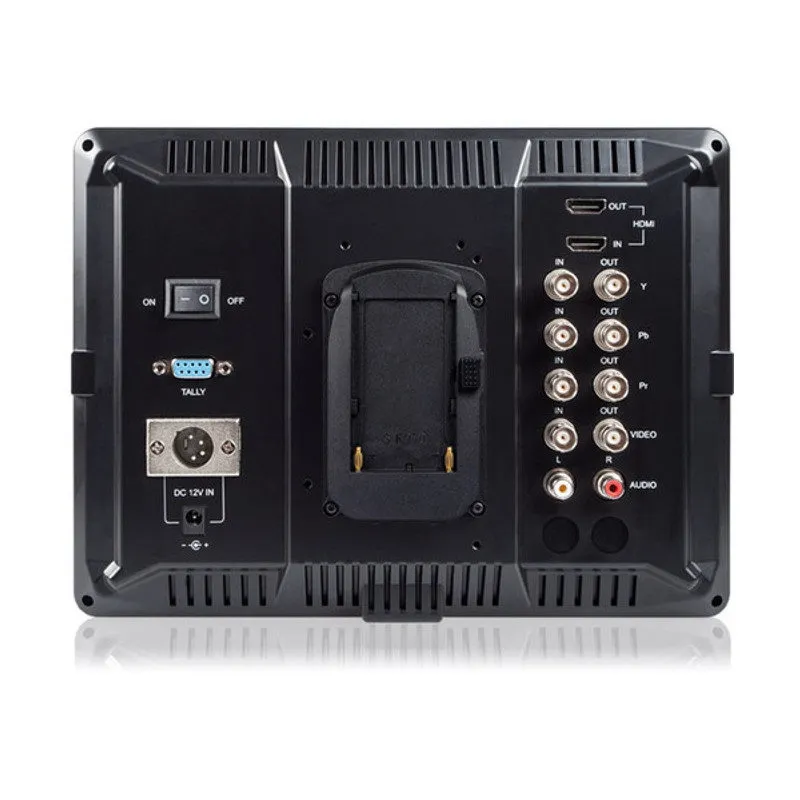

The Feelworld monitor has HDMI, composite and component video inputs and outputs, RCA audio inputs, a tally input, a headphone jack and a speaker.
4K Support

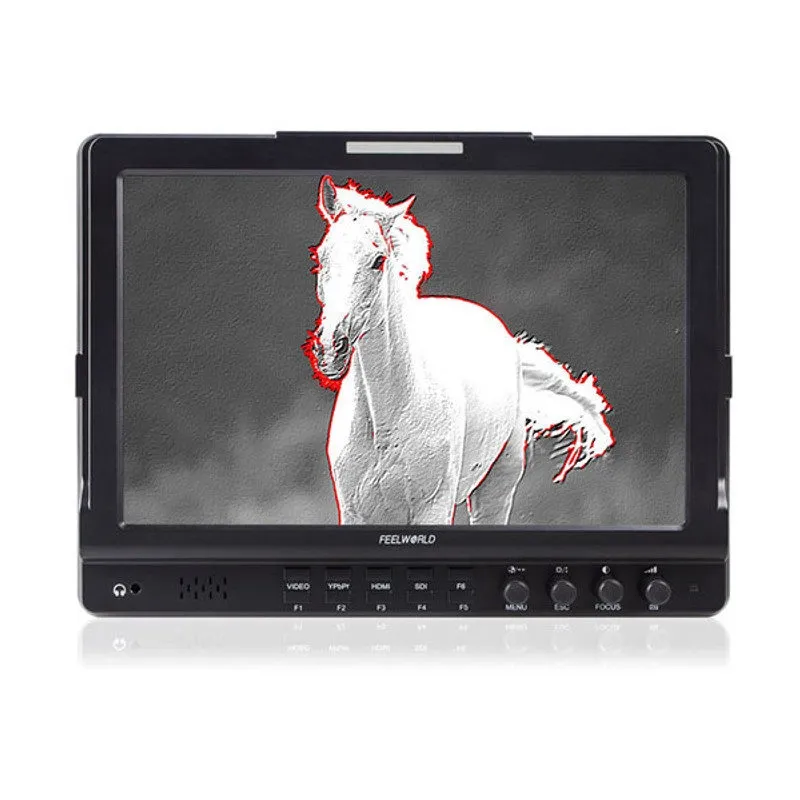

The display supports signals up to DCI 4K resolution at 24fps via the HDMI input. Up to 6 of the image analysis tools, such as histrogram, peaking, false colours and zebra are assignable to the function buttons on the front panel.
Power supply
An L-battery holder is supplied with the monitor, but it can also be exchanged for an optional LP-E6, D28S, V-mount or Gold-mount mounting plate. A battery pack is not included.
Characteristics
- Screen resolution of 1920 x 1200 pixels
- Supports up to DCI 4K resolution
- HDMI and analogue
- RCA audio input
- Headphone and speaker input
- Picture angle of 170 degrees
- Six assignable functions
- With L-Series battery plate
- 2-year warranty
In the box
- L-series battery plate
- Mini HDMI cable
- Foldable lens hood
- Shoe mount
- Tally kit
- U-bracket
