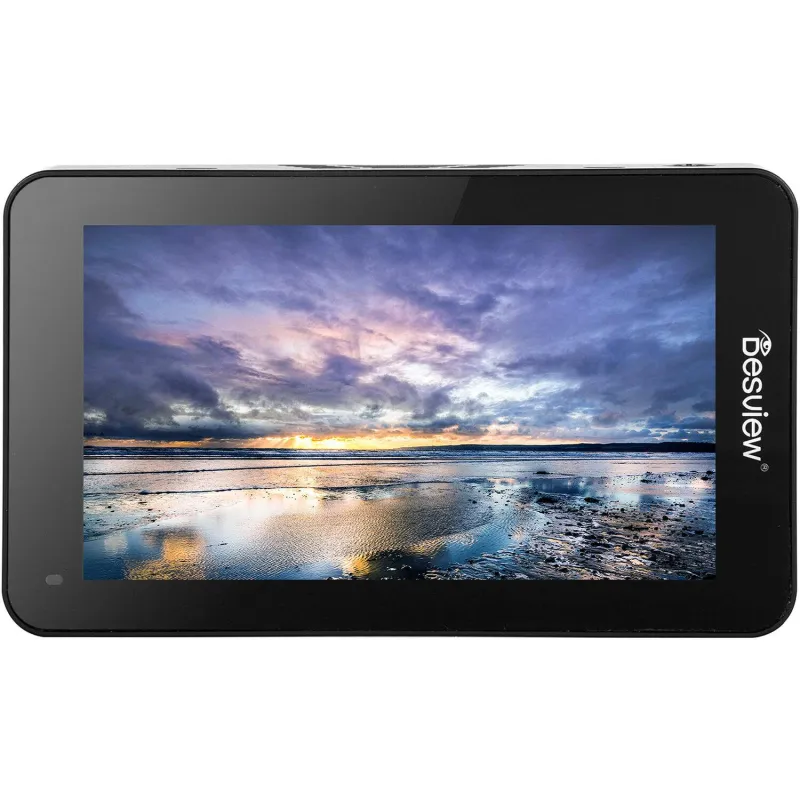

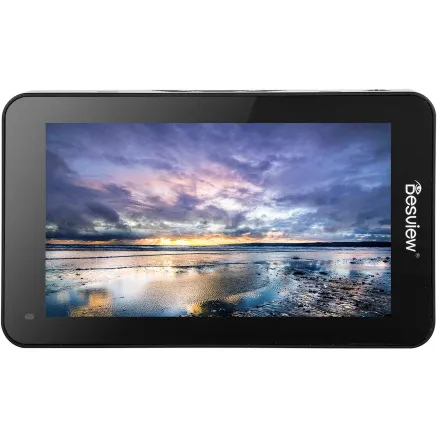

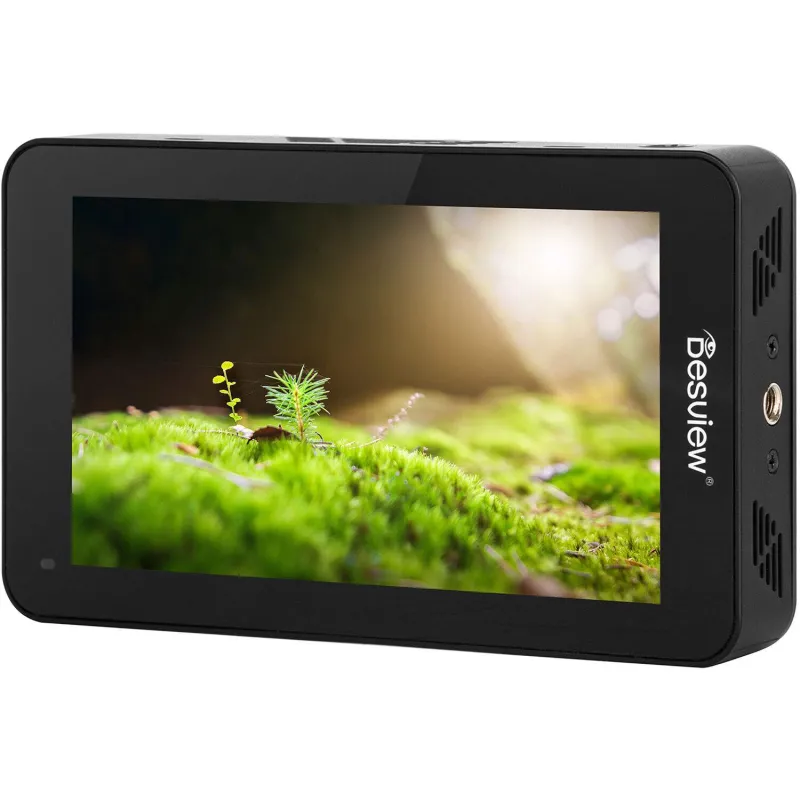

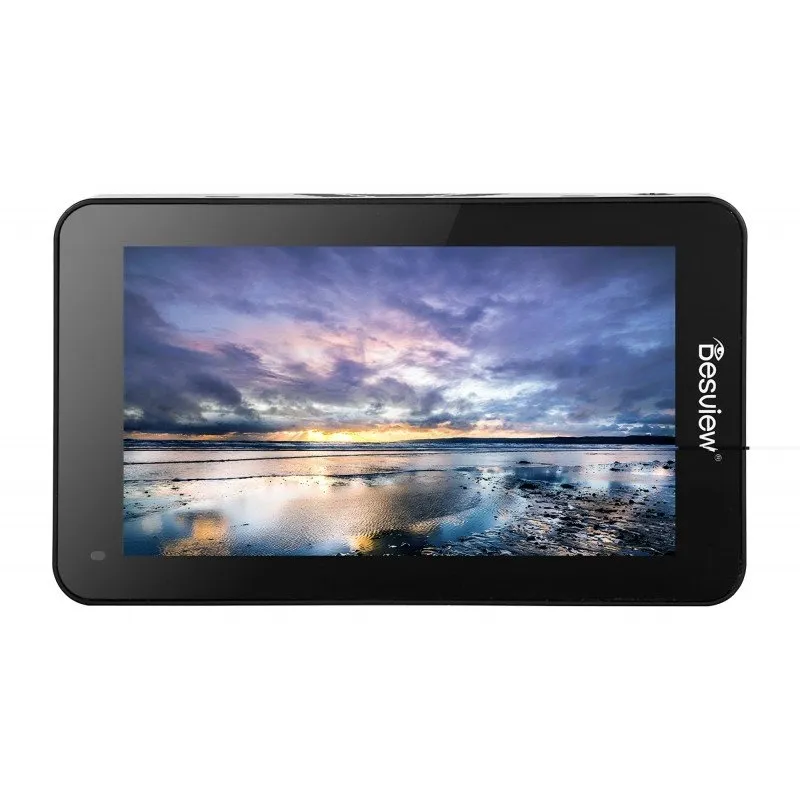

Monitor Desview R6UHB Touchscreen

R6 UHB 5,5-дюймовый сенсорный монитор сверхвысокой яркости 2800 кд/м² — это компактный 5,5-дюймовый накамерный сенсорный монитор с легким, но прочным корпусом из поликарбоната и АБС-пластика. Он оснащен сверхъярким дисплеем с разрешением 1920 x 1080 и Коэффициент контрастности 1000:1 подходит для использования на улице без солнцезащитного козырька, а встроенный датчик позволяет монитору автоматически регулировать яркость экрана Монитор поддерживает DCI 4K24 и 4K30 UHD через вход HDMI, масштабируя сигнал для дисплей, а сквозной выход HDMI позволяет отправлять исходный немодифицированный сигнал камеры на другие мониторы или подключаться к беспроводному передатчику для упрощения передачи.

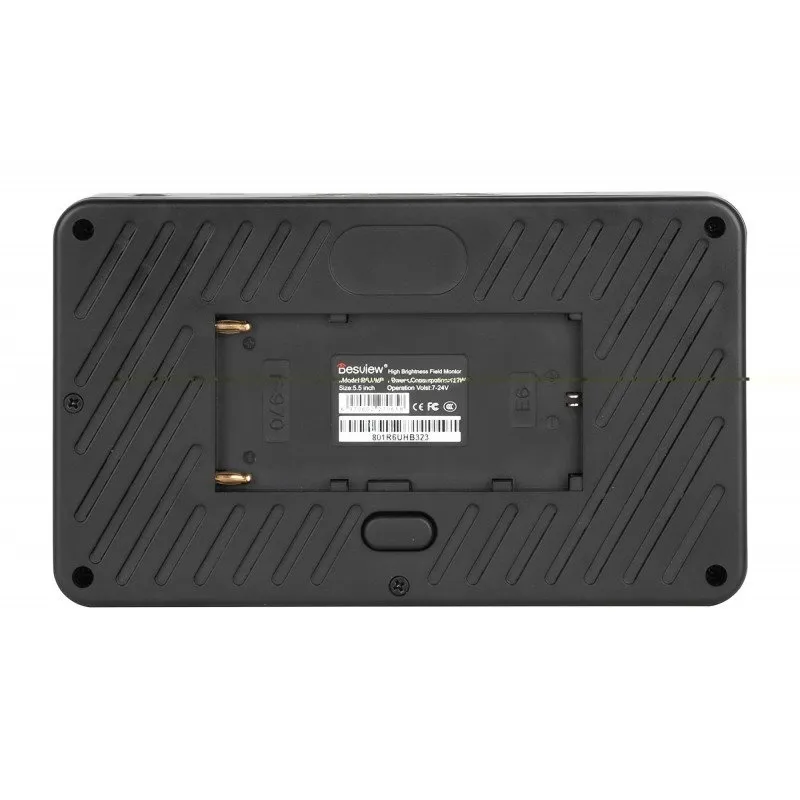

R6 UHB позволяет импортировать до 3D LUT через слот для SD-карты, а монитор поддерживает просмотр SDR и HDR, включая HLG и PQ. Встроенные инструменты сигнала и камеры включают гистограмму, искусственный цвет, выделение контуров, зебру и многое другое. Функции дисплея легко доступны с сенсорного экрана и включают стоп-кадр изображения, поворот L/R, регулировку соотношения сторон и выбор анаморфотного сжатия. Монитор оснащен разъемом для наушников, а встроенный вентилятор втягивает воздух с боков и сзади монитора, выдувая его сверху. Предусмотрены два монтажных отверстия 1/4 "-20 внизу и справа, что позволяет выполнять горизонтальную и вертикальную установку. В комплект входит адаптер для крепления монитора к горячему башмаку камеры или клетке с креплением для башмака. Монитор оснащен комбинированной аккумуляторной батареей серии L/LP-E6 и входным портом питания 7–24 В постоянного тока, а также выходным портом питания 8 В постоянного тока.

Функции мониторинга программного обеспечения

• Фальшивый цвет
• Искусственный цвет ARRI
• Зебра
• График яркости
• Форма сигнала RGB
• Гистограмма яркости
• Гистограмма RGB
• Выделение фокуса
• Маркер безопасности
• Центральный маркер
• Аудиометры
• Настройка цветовой температуры
• Масштаб
• Пиксель в пиксель
• Показать флип
• Наложение линий сетки
• Анаморфотный режим: 1,33x, 1,5x, 1,66x, 1,79, 2,0

Поддержка HDR

Монитор поддерживает мониторинг SDR и HDR, включая HLG и PQ

Поддержка LUT

R6 UHB поддерживает загрузку LUT через встроенный слот для SD-карты и поставляется с SD-картой, на которую предварительно загружено несколько LUT

The R6 UHB 5.5'' 2800 cd/m² Ultra High-Brightness Touchscreen Monitor is a compact 5.5" on-camera touchscreen monitor with a lightweight yet durable polycarbonate and ABS plastic shell. It features an ultrabright 1920 x 1080 display with a 1000:1 contrast ratio suitable for use in exteriors without a sun hood, and a built-in sensor allows you to let the monitor adjust the screen brightness automatically. The monitor supports DCI 4K24 and 4K30 UHD through its HDMI input, scaling the signal for display, and the loop-through HDMI output allows you to send the original unmodified camera signal downstream to other monitors or connect to a wireless transmitter for easier transmission.

The R6 UHB allows you to import up to 3D LUTs via an SD card slot, and the monitor supports SDR and HDR viewing, including HLG and PQ. Built-in signal and camera tools include histogram, false color, peaking, zebra, and more. Display functions are easily accessed by the touchscreen and include image freeze, L/R flip, aspect ratio adjustment, and anamorphic de-squeeze selection. The monitor features a headphone jack, and a built-in fan draws air in from the sides and back of the monitor, expelling out of the top. Two 1/4"-20 mounting holes are provided, on the bottom and right side, allowing for horizontal and vertical mount. A shoe mount adapter is included for attaching the monitor to your camera's hot shoe or a cage with a shoe mount. The monitor has a combination L-series/LP-E6 battery plate and a 7-24 VDC power input port, as well as an 8 VDC power output port.

• Full HD 1920x1080 IPS Panel with 178° Viewing Angle;
• 2800 Nits Ultra-high Bright Touch Screen;
• Supports 4K HDMI Input/Output;
• Supports Sony NP-F series and Canon E6 batteries power supply;
• Featuring Professional Auxiliary Functions, such as Histogram, Waveform, Vectorscope, False Color, Peaking, etc;
• Supports Custom Loading 3D LUTs
• Supports HDR(HLG/PQ) Monitoring

Full HD Panel with 2800 Nits
Desview R6 UHB Touchscreen Monitor features 2800nits ultra-high brightness, giving clear and non-reflective
display even under strong sunlight. 1920*1080 resolution and 1000:1 high contrast ratio bring images with more details
in shadows and highlights.

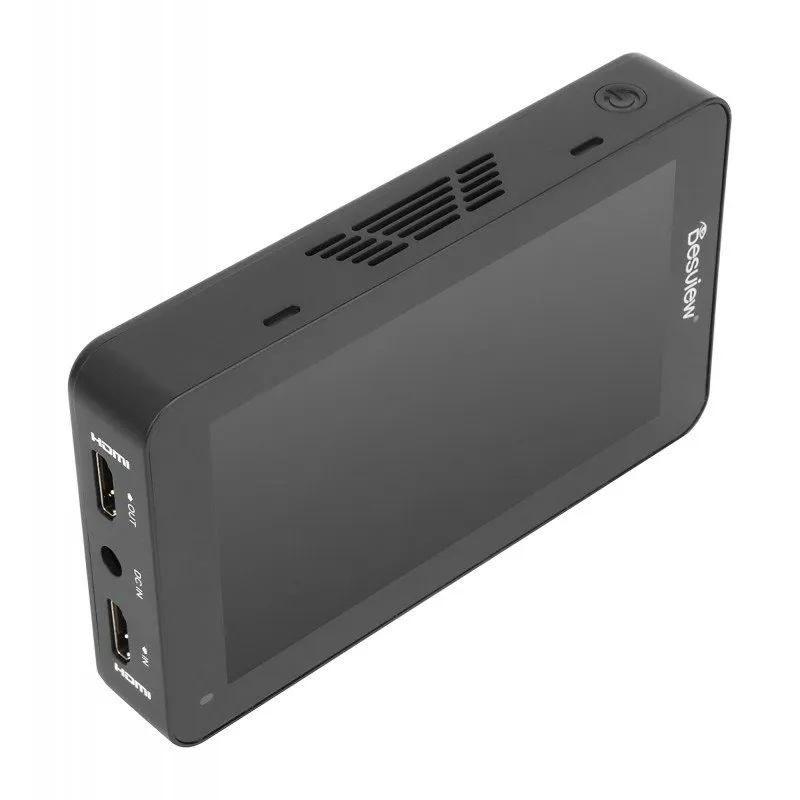

4K HDMI In/Out and Headphone Jack
Supporting HDMI signal input/output up to 4K signal, R6 UHB can be connected directly to most DSLR or
HD/4K video cameras and synchronize footage smoothly.
A 3.5mm headphone jack allows you to monitor the audio in real-time.

Support Custom 3D LUTs and HDR
R6 UHB boasts a custom 3D LUT function via SD card (inbuilt Log files) for fast color calibration.
The HDR function in R6 contains HLG mode and PQ mode. They both provide a wider color gamut and a
higher dynamic range, making the images more vivid.

Professional Assisting Features
More monitor functions are equipped for improving your filmings, such as False Color, Zebra, Histogram, Waveform,
Vectorscope, All Wave, Single Color, Peaking, and Safe Area, better assisting in exposure, focusing, and composition.

---

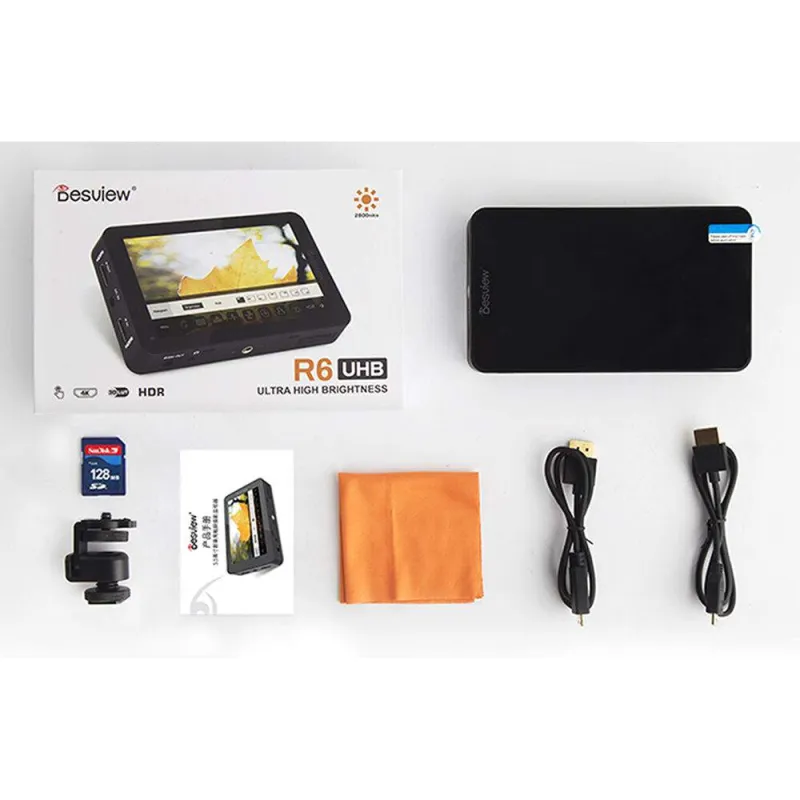

1x Monitor
1x Cold Shoe
1x SD Card
1x Mini HDMI Cable
1x Micro HDMI Cable
1x User Manual
1x Microfiber Cloth

---

The Desview R6UHB is a compact preview monitor that stands out for its high screen brightness (2800 nits), touch control, and high image quality (FullHD). A built-in sensor allows to automatically adjust the backlighting to the prevailing conditions. Tools such as False Color, Histogram and Zebra will help effectively control the recorded image. The monitor supports 3D LUT color profiles, allowing you to use ready-made or custom presets. There is also an HDR mode, which allows you to reproduce images with a greater dynamic range. Power via NP-F or LP-E6 batteries, as well as the ability to connect a power supply, provide convenience for studio and field work. It's the ideal tool for filmmakers who want the highest level of control over the captured image. Main Product Features 5.5 "diagonal preview monitor Above-average screen brightness - 2800 nits Touch operation for quick and convenient use of the device gesture support - sliding or spreading fingers to zoom in/out native resolution of 1920 x 1080 px (FullHD) offers signal transmission of up to 4K resolution equipped with HDMI 1.4 output and input includes HDMI / micro HDMI and HDMI / mini HDMI cable support for various aspect ratios (4:3, 16:10, 16:9, 1.85:1, 2.35:1, 2.40:1) HDR mode with support for HLG and PQ standards tools for easy control of the captured image (False Color, Single Color, Histogram, Waveform, Zebra, Peaking, Vectroscope) support for 3D LUT boards (ready-made effects + ability to upload your own presets) possibility to be powered by 2 types of rechargeable batteries (NP-F and LP-E6) or by a power adapter cold shoe mount included (convenient installation on camera or mount) 3.5mm mini jack headphone output 2 1/4" female threads allowing the monitor to be installed vertically or horizontally USB-A port for software updates and LUT uploads also included: microfiber cloth, allen wrench and USB flash drive Ultraight screen The Desview R6UHB preview monitor is equipped with a 5.5" touch screen. The device is distinguished by above-average brightness, which is as high as 2800 nits. Thanks to such parameters, the image will be legible and clear even when you work in bright sunlight. The device also features an optical sensor that can automatically adjust the brightness of the image to the conditions in which you will be filming. Touch operation The Desview R6UHB preview monitor features a high-quality 5.5" screen that provides full touch operation. Such a solution provides fast and convenient control of settings. The intuitive interface, which works with the "pinch to zoom" gesture (sliding or spreading your fingers), will allow you to conveniently zoom in or out, making it easier to control the recorded shots. The lack of physical buttons will streamline your workflow, allowing you to quickly adjust the monitor to suit your current needs. HDR mode Want to make the image displayed on your monitor even more detailed? Take advantage of HDR (High Dynamic Range) technology, which makes whites whiter and blacks even deeper! High dynamic range also means greater brightness, contrast and more vivid colors. With the HDR function, the Desview preview monitor will allow you to render the full scale of contrasts and enjoy an even more realistic image. The R6UHB supports HLG and PQ standards. Convenient power supply The Desview R6UHB preview monitor will work well both in the studio and outdoors. This is because the device supports various power supply methods. If you have an electrical outlet nearby, reach for an AC adapter (7-24V DC). And when you are working in the field or want to avoid tangled cables, use a rechargeable battery. A special locking socket supports 2 different types of cells - NP-F and LP-E6. The monitor is also equipped with a DC 8V output, which you can use to power other compatible devices (e.g. by connecting a "dummy" battery placed in the camera). Power supply or batteries MUST be purchased separately. 3D LUT: Custom color profiles The Desview R6UHB preview monitor allows you to use 3D color tables. This means that you will already apply so-called LUTs at the recording stage, effects that can be compared to filters, which are responsible for color correction of video images. The device has its own library of ready-made presets, but the possibilities of the Desview R6UHB do not end there. You can plug the included flash drive into a USB port and upload your own LUTs to the device, which will allow you to test a professional "film look" on the preview or experiment with unique image styling, even before you start the editing and post-production stages. Full control of your recordings Among the tools that the Desview R6UHB preview monitor offers, there is also a histogram. It shows the distribution of luminance and allows you to identify the overexposed or underexposed area of the frame. The tool provides visual information about the tonal range of the image, helping to preserve details in both the dark and light spaces of your shots. Tools such as "Waveform" ("waveform monitor") and "Vectroscope" will also help you assess brightness levels correctly. Fast Exposure Level Assessment The Desview R6UHB preview monitor offers a number of tools to help you better evaluate exposure levels while working with your camera or camcorder. Using the "Zebra", "False Color" and "Single Color" modes, you can easily determine which elements of the frame are too bright and which are too dark. These tools will come in handy wherever poor lighting conditions prevent you from accurately assessing the exposure of, among other things, the skin or faces of the filmed characters. Perfect frames Working with the Desview R6UHB preview monitor will help you set up your frames with precision. The device allows you to use the center markers of the frame ("Center Mark") and the safe area ("Safe Area"). Among the available tools, there is also a grid that can be superimposed on the preview. The feature will allow you to work comfortably with custom lenses to achieve an even more cinematic "movie look." Specification model: Desview R6UHB screen: 5.5" (LED) resolution: 1920 x 1080 screen aspect ratio: 16:9 contrast ratio: 1000:1 brightness: 2800 nits pixel density: 401 PPI viewing angle: 178º Ports: DC input DC output HDMI input HDMI output mini jack 3.5 mm USB-A port HDMI input signal format: 720×480i / 720×480p @ 59.94, 60Hz 720 x 576i / 720 x 576p @ 50Hz 1280 x 720p @ 50, 59.94, 60 HZ 1920 x 1080i @ 50, 59.94, 60 Hz 1920 x 1080psf @ 23.98, 24, 25, 29.97, 30 Hz 1920 x 1080p @ 23.98, 24, 25, 29.97, 30.50, 59.94, 60 Hz 3840 x 2160p @ 24, 25, 30 Hz 4096 x 2160p @ 24 Hz HDMI output signal format: 720×480i / 720×480p @ 59.94, 60Hz 720 x 576i / 720 x 576p @ 50Hz 1280 x 720p @ 50, 59.94, 60 HZ 1920 x 1080i @ 50, 59.94, 60 Hz 1920 x 1080psf @ 23.98, 24, 25, 29.97, 30 Hz 1920 x 1080p @ 23.98, 24, 25, 29.97, 30.50, 59.94, 60 Hz 3840 x 2160p @ 24, 25, 30 Hz 4096 x 2160p @ 24 Hz Voltage: DC input 7 - 24 volts DC output 8 V power consumption: ≤ 12 W standby power consumption: material of construction: ABS plastic dimensions: 186 x 120.6 x 28.75 mm weight: 240 g Set contents Desview R6UHB preview monitor cold foot mount USB flash drive HDMI / micro HDMI cable HDMI / mini HDMI cable allen wrench microfiber cloth
