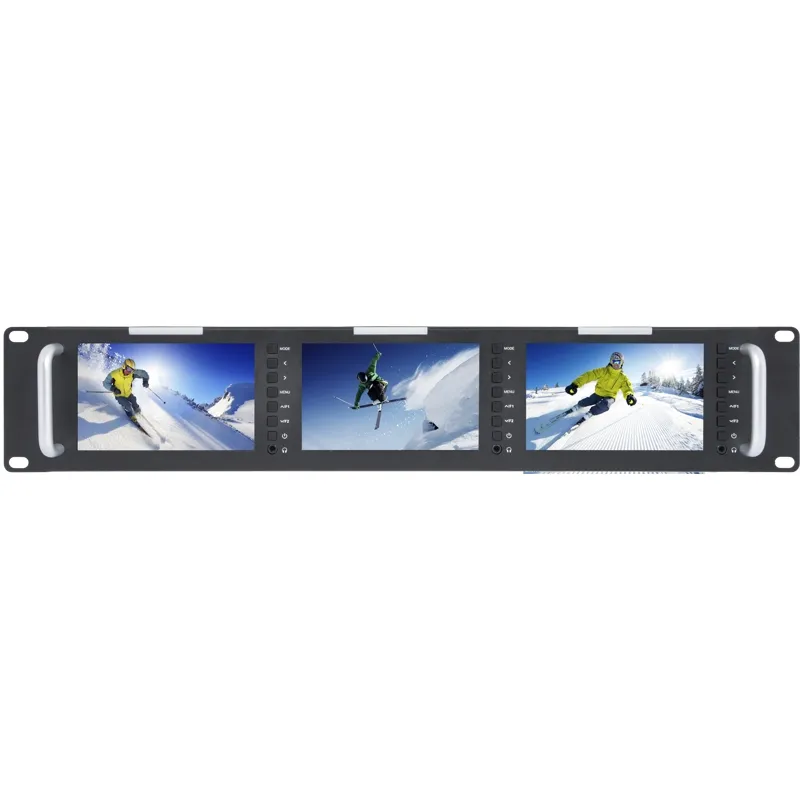

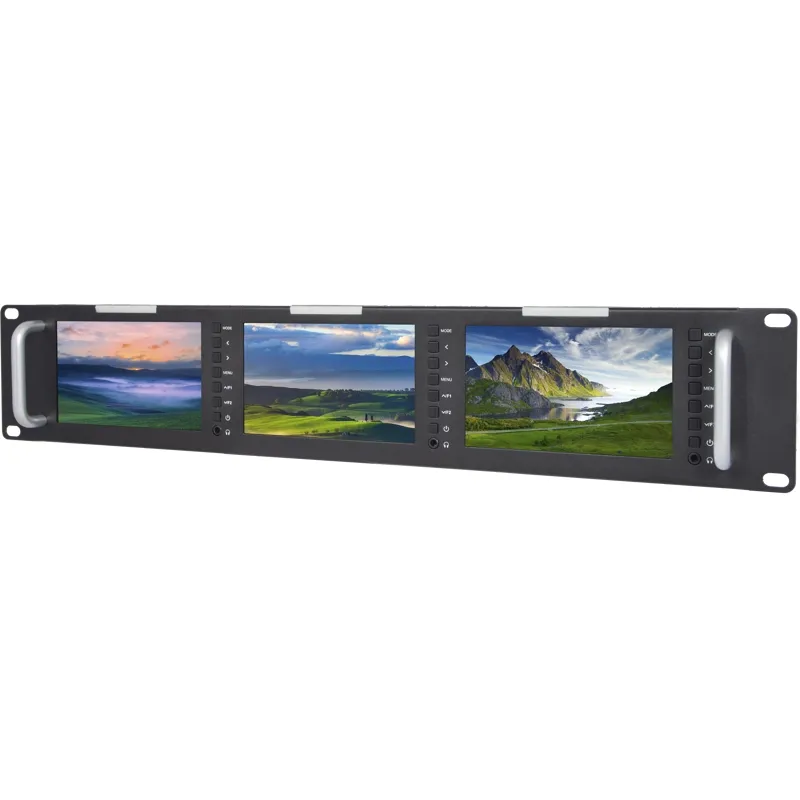

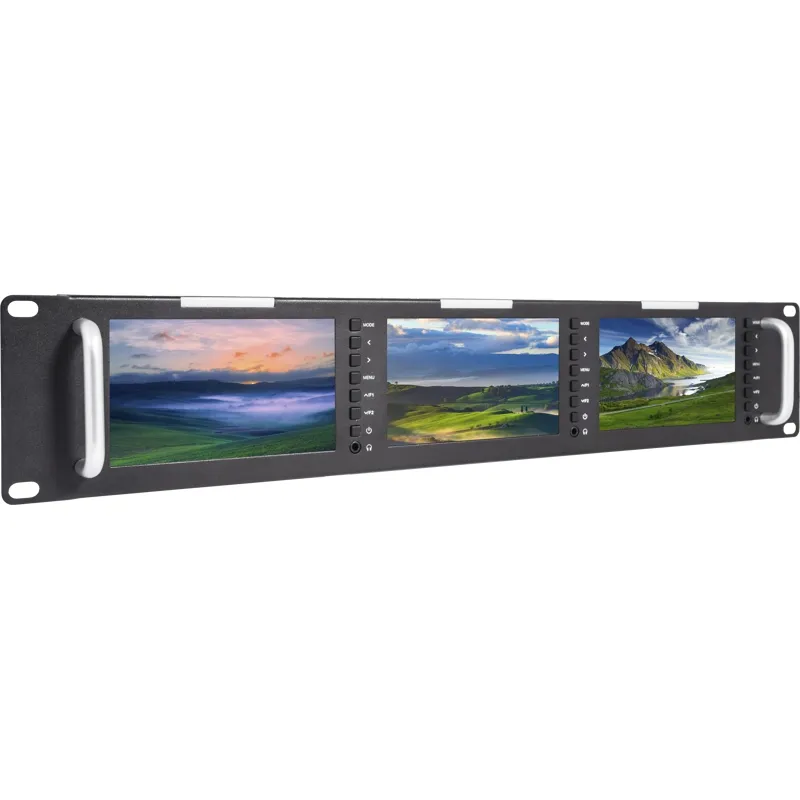

Triple 5" 2RU Rack Monitors
T51 are extremely thin and lightweight. 5" 2RU Rack Monitors with triple 5” 800×480 screens, viewing SD, HD and 3G-SDI video on 2RU rack monitor. FEELWORLD Rack mount LCD monitor has been widely used in all levels of TV news production, post production, programme broadcasting and TV broadcasting trucks, special vehicles video surveillance and other fields. Since this series is working with other adjacent professional equipments, therefore, the high stability, high reliability and electromagnetic compatibility are very important conditions to make sure the whole system work smoothly.
5" 800×480 LCD
TFT Panel with LED backlight
The D51 is made of 3× 5-inch TFT LCD panel, with 800×480 resolution and LED backlight, 500cd/m² brightness and 500:1 contrast. The viewing angle is Horizontal: 140° / Vertical: 120°.
Easy to operate, time-saving
Consistent design style, the same function and operation mode setting is one of the features of the products. Users only need to know one product operation mode, you can operate the full range products, time-saving and convenient.
Multiple Inputs and Outputs
SDI / HDMI / CVBS / Audio
Each LCD of T51 monitor supports:
Input: 3G-SDI X 1, HDMI X 1, CVBS X 1, Auido (L/R) X 2
Output: 3G-SDI X 1, HDMI X 1, CVBS X 1
Audio: Stereo Headphone
3-color Tally Light
DB-15 input signal

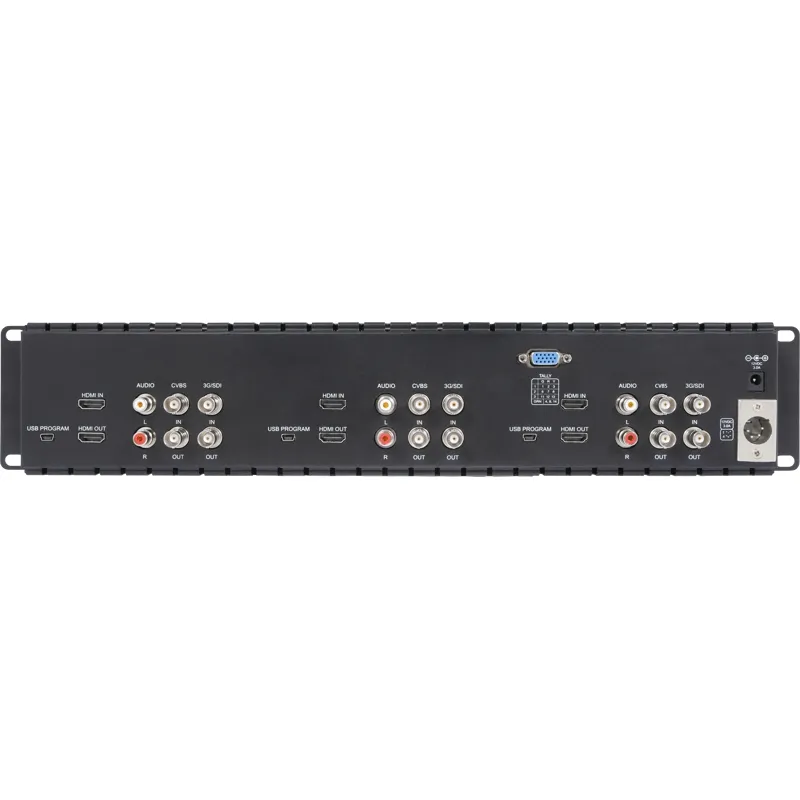

There are front TALLY lights for each screen, with 3 colors display (Red, Green, Yellow), and controlled via DB-15 ports on the rear panel.
Stablity and Reliability
As rack mount LCD monitors usually in a continuous working condition, all components including LCD panel must be accordance with industrial quality standard. Full Metal case not only makes the product more robust, and durable, but also is a good solution to the heat dissipation problem.
Key Features
- Peaking Focus Assist
- Pixel to Pixel
- Centre Marker
- Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Image Flip (H, V, H/V)
- Check Field (Red, Green, Blue, Mono)
- Image Freeze
- Zoom All
- U/D & L/R Zoom
- Built-in LED tally indicators (Red, Green, Yellow)
In the box
- T51 monitor
- 3A Power Adapter
- Tally Kit
- Operation Manual
Triple 5" 2RU Rack Monitors
T51 are extremely thin and lightweight.5" 2RU Rack Monitors with triple 5” 800×480 screens, viewing SD, HD and 3G-SDI video on 2RU rack monitor.FEELWORLD Rack mount LCD monitor has been widely used in all levels of TV news production, post production, programme broadcasting and TV broadcasting trucks, special vehicles video surveillance and other fields. Since this series is working with other adjacent professional equipments, therefore, the high stability, high reliability and electromagnetic compatibility are very important conditions to make sure the whole system work smoothly.
5-inch 800×480 LCD
TFT Panel with LED backlight
The D51 is made of 3× 5-inch TFT LCD panel, with 800×480 resolution and LED backlight, 500cd/m² brightness and 500:1 contrast. The viewing angle is Horizontal: 140° / Vertical: 120°.
Easy to operate, time-saving
Consistent design style, the same function and operation mode setting is one of the features of the products. Users only need to know one product operation mode, you can operate the full range products, time-saving and convenient.
Multiple Inputs and Outputs
SDI / HDMI / CVBS / Audio
Each LCD of T51 monitor supports:
Input:
3G-SDI X 1
HDMI X 1
CVBS X 1
Auido (L/R) X 2
Output:
3G-SDI X 1
HDMI X 1
CVBS X 1
3-color Tally Light
DB-15 input signal
There are front TALLY lights for each screen, with 3 colors display (Red,Green,Yellow), and controlled via DB-15 ports on the rear panel.
Stablity and Reliability
As rack mount LCD monitors usually in a continuous working condition, all components including LCD panel must be accordance with industrial quality standard. Full Metal case not only makes the product more robust, and durable, but also is a good solution to the heat dissipation problem.
It is equipped with a 5" TFT panel with 800x480 resolution, 140°/120° viewing angles, 500 cd/m2 brightness and 500:1 contrast for previewing SD/HD material via 3G-SDI and HDMI inputs. Its compact size and solid metal body with good heat dissipation make it an ideal monitor for mounting in transfer trucks, portable racks or desktop installations in studios, directories or venues. A signal light (red/green/yellow) is available on the front panel of each monitor (DB-15).
Display Spec.
Model | T51 |
Screen Size | 5"×3 |
Resolution | 800×480 pixels |
Dot pitch | 0.045(W)×0.135(H) mm |
Aspect Ratio | 16:9 |
Brightness | 500cd/m² |
Contrast Ratio | 500:1 |
Backlight | LED |
Viewing Angle | 70°/70°(L/R) 50°/70°(U/D) |
Input (Each LCD)
1 X BNC | 3G-SDI |
1 X HDMI | HDMI |
1 X BNC | Video |
2 X RCA | Audio(L/R) |
Output (Each LCD)
1 X BNC | 3G-SDI |
1 X HDMI | HDMI |
1 X BNC | Video |
Audio (Each LCD)
Audio Out | Stereo Headphone × 1 |
SDI Support Format
480i/576i |
720p(60/59.94/50/30/29/25/24/23.98) |
1080i(60/59.94/50) |
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
HDMI Support Format
480i/576i/480p/576p |
1080i (60/59.94/50) |
720p (60/59.94/50/30/29/25/24/23.98) |
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
General
Input Voltage | DC9~24V |
Power Consumption | ≤25W |
Power Connector | DC/ 4-pin XLR |
Operating Temperature | -20°C~55°C |
Storage Temperature | -30°C~65°C |
Install Way | Rack Mount |
Unit Size | 482.6Lx88Hx34D mm |
Unit Weight | 1570g |
Outer Carton Qty | 5 |
Outer Carton Size | 637*552*258 (mm) |
Gross Weight | 15kgs |
Advanced Features
*Peaking Focus Assist(Red highlight over parts of the monochrome image in focus) |
*Check Field (Red,Green,Blue,Mono) |
*Pixel to Pixel |
*Center Marker |
*Screen Marker (80%,85%,90%,93%,96%,2.35:1) |
*Image Flip (H, V, H/V) |
*Image Freeze |
* Zoom All |
* U/D & L/R Zoom |
* Custom Color Temperature |
*Built-in LED tally indicators (Red, Green, Yellow) |
