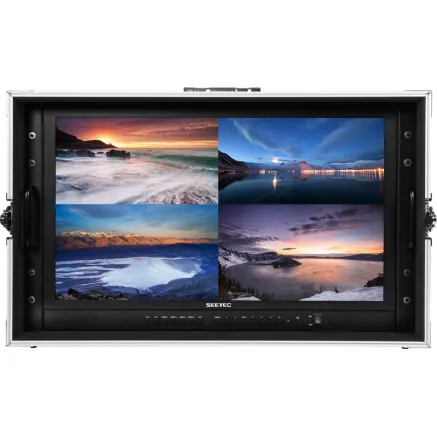

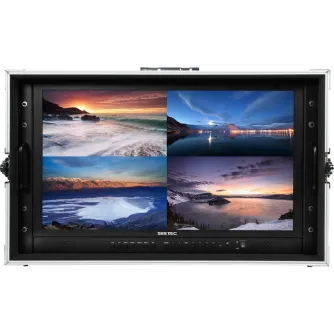

SEETEC MONITOR 4K280-9HSD-CO 28 INCH CARRY-ON MONITOR 4K280-9HSD-CO

SEETEC Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly.
The full metal case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full metal case improves the anti-interference capability! More Stablity and Reliability.

More Auxiliary Functions
More professional functions assist users to accurately monitor when shooting, making and playing movies/ videos.

28" 4K Ultra-HD Resolution
The SEETEC 4K resolution (3840x2160) 28" LCD monitor delivers an immersive 4K experience for images and video, bring unbeatable image clarity in cinematic display.

Quad Split LCD Display
SEETEC new 4K280-9HSD-CO is the professional cost-effective Quad-split LCD Monitors with 4 x HDMI inputs, provides a new display solution for a wide range of applications that require ultrahigh resolution contents.

High Efficiency OSD Operation Design
You can fast and direct switching signal, and F1-F4 user-definable buttons, witch can be customized as shortcut function, such as peaking, check field, display rotate, center marker, safe marker etc.

Rich Interfaces
Multiple inputs meet the best need of various professional display solutions. 3G-SDI, 4xHDMI, DVI, VGA, Audio, Tally.

Key Features

• Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P)
• Peaking Focus Assist
• False Color
• Overscan
• Display Rotate (0°, 90°, 180°, 270°)
• Check Field (Red, Green, Blue, Mono)
• Image Freeze
• Zoom
• Pixel to Pixel
• Center Marker
• Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
• Color Temperature Adjustment
• Built-in LED Tally Indicators (Red, Green, Yellow)

In the box

• Seetec monitor
• 5A DC Power Adapter
• V-Mount Battery Plate
• Mini HDMI Cable
• Tally Kit
• Sunshade
• Operation Manual

SEETEC Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly. The full metal case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full metal case improves the anti-interference capability! More Stablity and Reliability.

More professional functions assist users to accurately monitor when shooting, making and playing movies/ videos.

SEETEC new 4K280-9HSD-CO is the professional cost-effective Quad-split LCD Monitors with 4 x HDMI inputs, provides a new display solution for a wide range of applications that require ultrahigh resolution contents.

You can fast and direct switching signal, and F1-F4 user-definable buttons, witch can be customized as shortcut function, such as peaking, check field, display rotate, center marker, safe marker etc.

Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during production. The 4K280-9HSD-CO is based on how monitors are being used by film crews. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through.

• 1× Mini HDMI Cable
• 1× V Battery Plate
• 1× 5A Power Adapter
• 1× Tally Kit
• 1× Suitcase
• 1× Sunshade
• 1× Operation Manual

Display Spec.

• Screen Size: 28"
• Color Depth: 1.073G (10 bits)
• Resolution: 3840×2160 pixels
• Pixel Pitch: 0.16 (H) × 0.16 (V) mm
• Aspect Ratio: 16:9
• Brightness: 300cd/m²
• Contrast Ratio: 1000:1
• Backlight: LED
• Viewing Angle: 170°(H) / 160°(V)

Input

• 4 X HDMI: HDMI (HDMI2.0x1 support 4K 60HZ; HDMI1.4x3 support 4K 30HZ)
• 1 X BNC: SDI
• 1 X DVI: DVI
• 1 X VGA: VGA
• 2 X RCA: Audio(L/R)
• 1 X Tally: Tally

Output

• 1 X BNC: SDI

Audio

• Audio Out: Stereo Headphone, Speaker
• SDI Support Format
• 720p(60/59.94/50/30/29/25/24/23.98)
• 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format

• HDMI 2.0: 4K UHD 2160p (23.98/24/25/29.97/30/50/59.94/60)
• HDMI 1.4: 4K UHD 2160p (23.98/24/25/29.97/30)
• 480p/576p
• 720p (60/59.94/50/30/29/25/24/23.98)
• 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

General

• Input Voltage: DC12～24V (XLR)
• Power Consumption: ≤45W
• Working Temperature: -10°C~50°C
• Storage Temperature: -20°C~60°C
• Unit Size: 731L×410H×39D (mm) (W/O Suitcase) / 780L×470H×250D (mm) (W/ Suitcase)
• Unit Weight: 21.7kg (with Suitcase)
