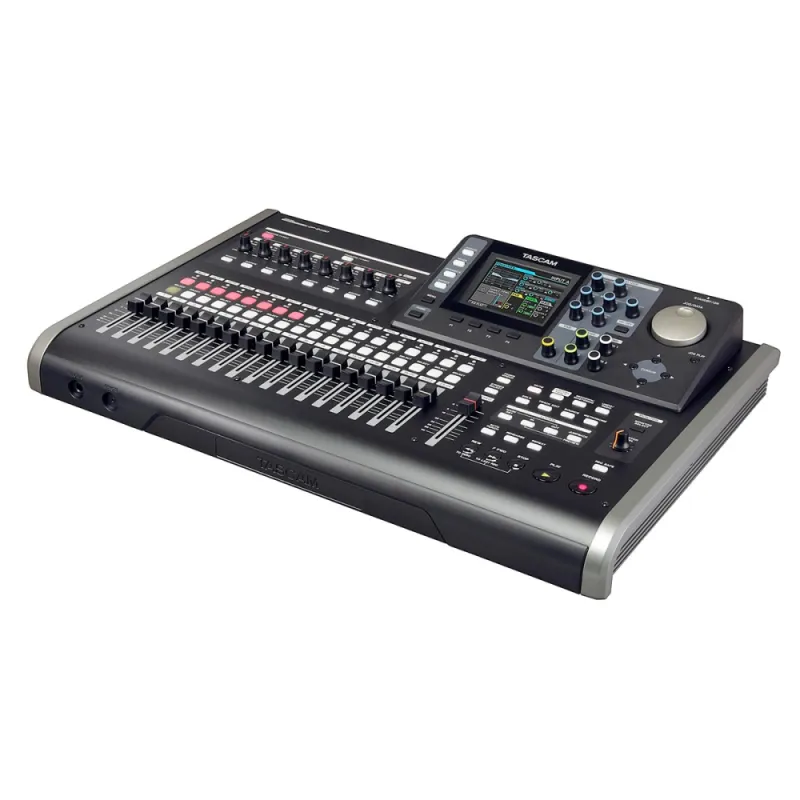

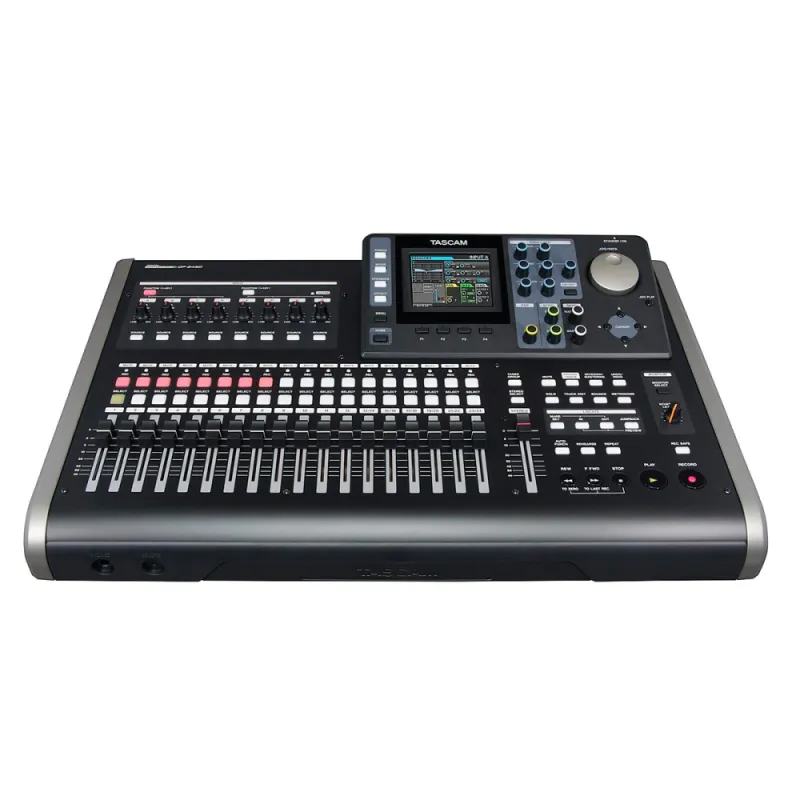

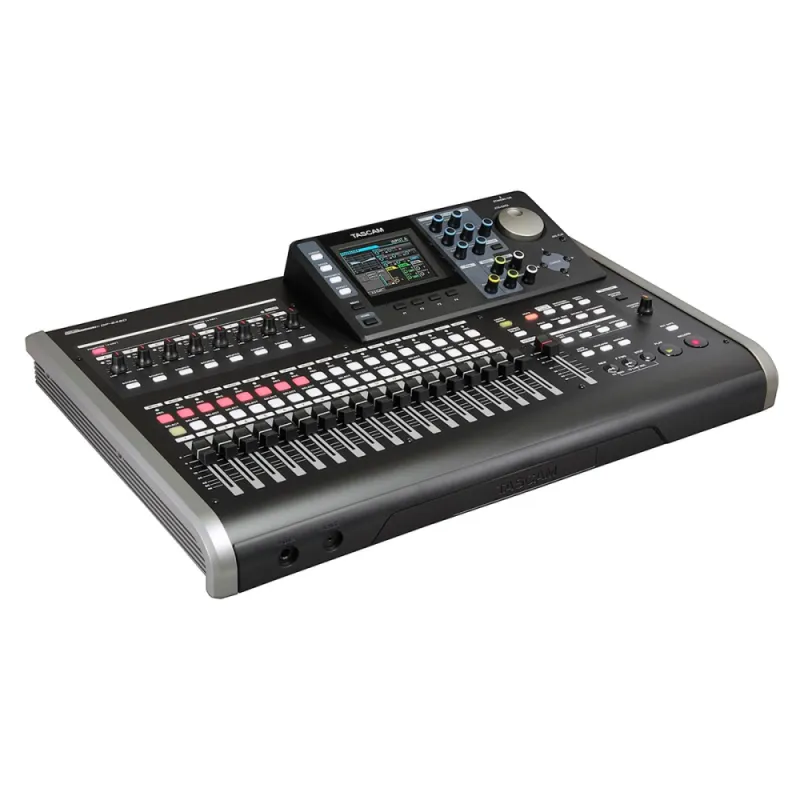

Tascam DP-24SD 24-Track Digital Portastudio

Tascam DP-24SD 24-Track Digital Portastudio

• Eight XLR/TRS inputs, eight-track simultaneous recording, 24 tracks playback
• Full-colour LC display and illuminated buttons for increased visibility
• 19 faders eliminate the use of fader layers
• Dynamics, effects, mastering and normalizing – all within the same device
• Solid-state media ensures confident recording and easy extensibility

The DP-24SD is a 24-track Digital Portastudio with solid-state recording, a colour LCD and channel strip controls to make recording simple so you stay creative. Up to eight tracks can be recorded at a time through its combination XLR and 6.3-mm combo jacks. Input processing like compression and limiting are available during recording, as well as guitar amp simulation and multi-effects for use with the instrument-level input.

Once recorded, tracks can be viewed on the large display and mixed with dedicated mixing controls like nineteen linear faders and a dozen channel strip encoders. Two mixdown effects including reverb and chorus are also available, as well as a mastering effect. Once finished, songs can be transferred to computer over USB for further processing or sharing with other people.

• 24-track digital Portastudio
• 12 mono tracks + 6 stereo tracks, 19 faders
• Simultaneous playback of 24 tracks
• Simultaneous recording of 8 tracks
• 44.1 kHz or 48 kHz sampling rate, 16 bit or 24 bit resolution

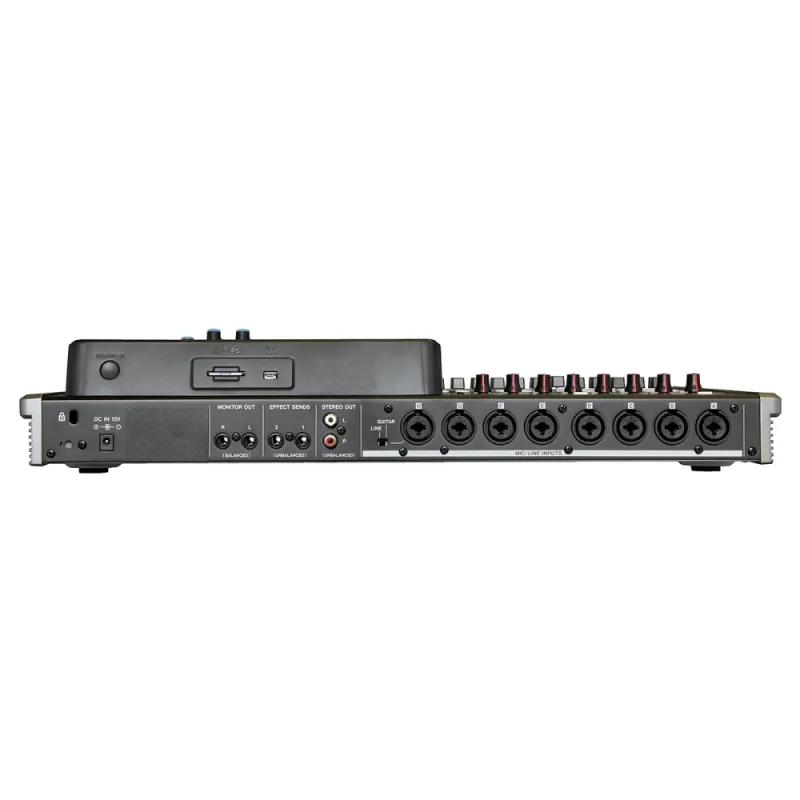

• 8 XLR/TRS combo connectors for inputs
• Phantom power supplied on all inputs (switchable A–D, E–H)
• Instrument-level input for direct recording of guitar or bass
• Inputs A–H and each track equipped with 3-band EQ
• Colour LC display and 12-encoder channel strip for simple operation
• Dedicated controls for EQ, pan and effect sends
• Peak-hold function for level meters on display
• Stereo RCA output
• 2 effect send outputs (6.3-mm TS jack)
• Headphones output with 70 mW per channel
• Remote connector for optional RC-3F footswitch to enable hands-free control of several functions
• Automatic punch in/out
• Track bounce function
• 8 virtual tracks per track for alternative takes
• Up to 99 locate marks per song
• Various edit functions (copy insert, copy paste, move insert, move paste, open, cut, silence, clone track, clean out)
• Editing on sub-frame level
• Undo and Redo function with undo history
• Dynamics effects for input (Limiter, Compressor, Noise Suppressor, Exciter)
• Guitar multi-effects (Noise Suppression, Amp Simulation, Compression, Chorus, Flanger, Phaser, Tremolo, Auto Wah, Delay)
• Mix-down effects (Reverb, Delay, Stereo Chorus)
• Mastering tools (Equalizer, Multi-band Compressor, Normalizer)
• Chromatic tuner
• Metronome
• File transfer via USB 2.0
• Dedicated AC adapter included (GPE248-120200-Z)
• Solid-state recording to SD cards for better shock resistance than hard drive recording
• SD card included

Supported Operating Systems
Windows: Windows 10 (November 2019, version 1909) Windows 8 Windows 7 Windows Vista Windows XP
Mac: OS X Mountain Lion (10.8) OS X Lion (10.7) OS X Snow Leopard (10.6)
