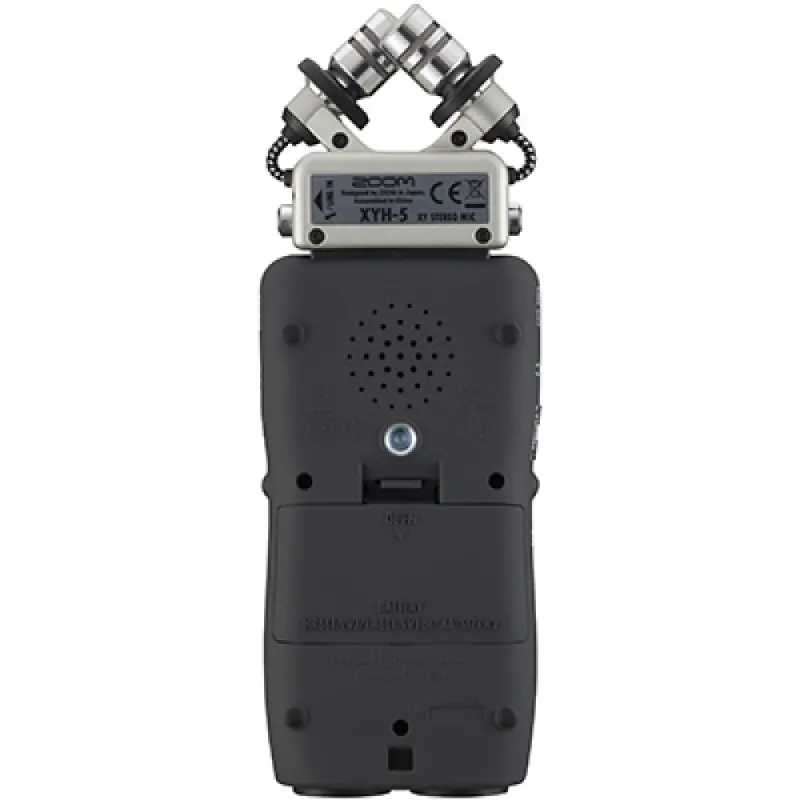

Zoom H5 Handy Recorder

Zoom H5 skaņas ierakstītājs Handy Recorder 311109

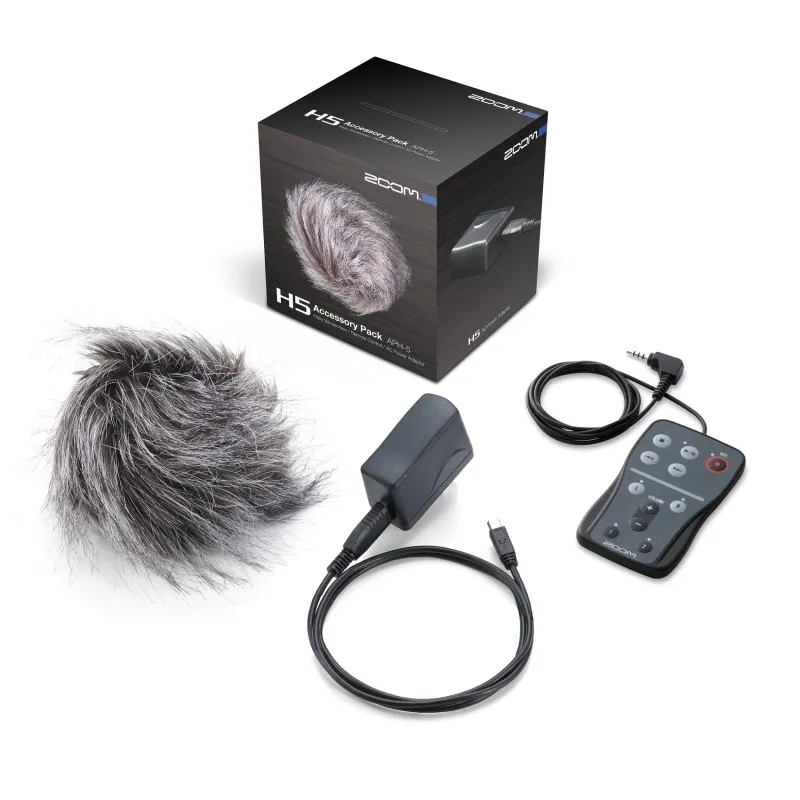

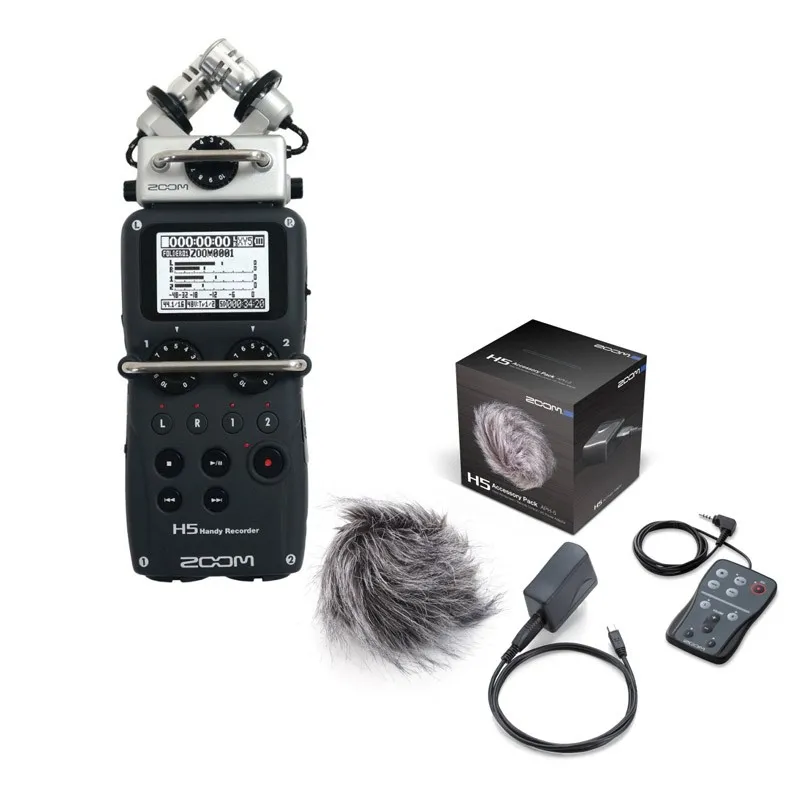

Included the APH-5 Accessory Pack for Zoom H5 Recorder - all of the essential accessories you need to start using your H5 recorder both outdoors and indoors. The kit includes the

• AD-17 power adapter with USB cable,
• RCH-5 wired remote control
• a hairy windscreen.

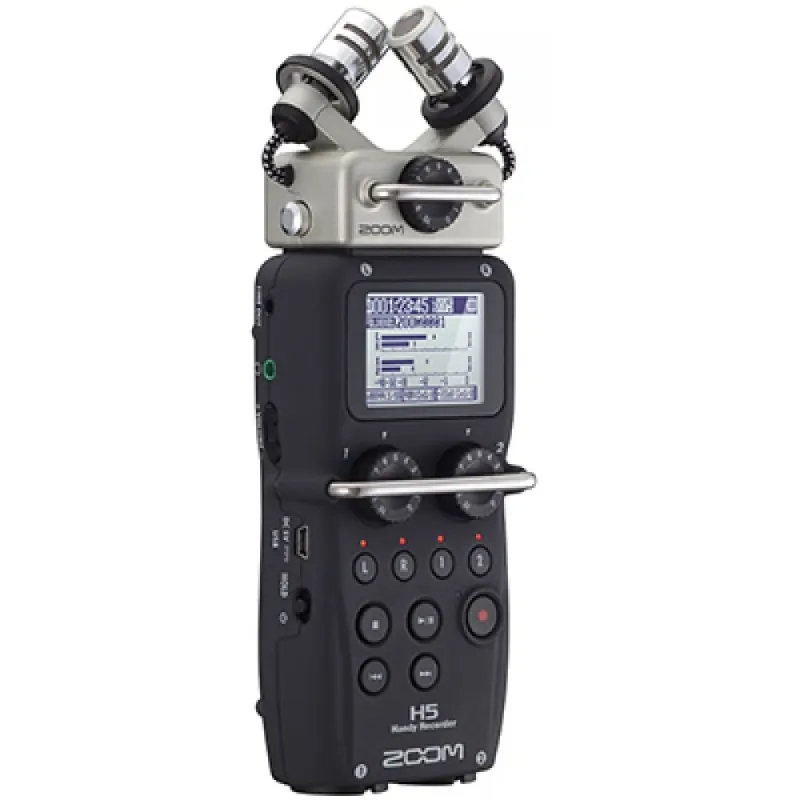

The H5 Handy from Zoom is a compact, portable handheld digital recorder that is capable of four-track recording and features an interchangeable, modular microphone system. The recorder ships with an XY microphone capsule and is compatible with the existing line of H6 modules including the optional shotgun mic and XLR/TRS input modules.

The included XY stereo mic module provides two matched unidirectional condenser microphones set at a 90 degree angle, and features a built-in shockmount system and a maximum SPL of 140dB. Additionally, the recorder is equipped with two inputs for external sources, allowing you to record simultaneously with the included stereo XY mic for a total of four input channels. Each input is controllable by its own analog gain knob, and also has a -20dB pad.

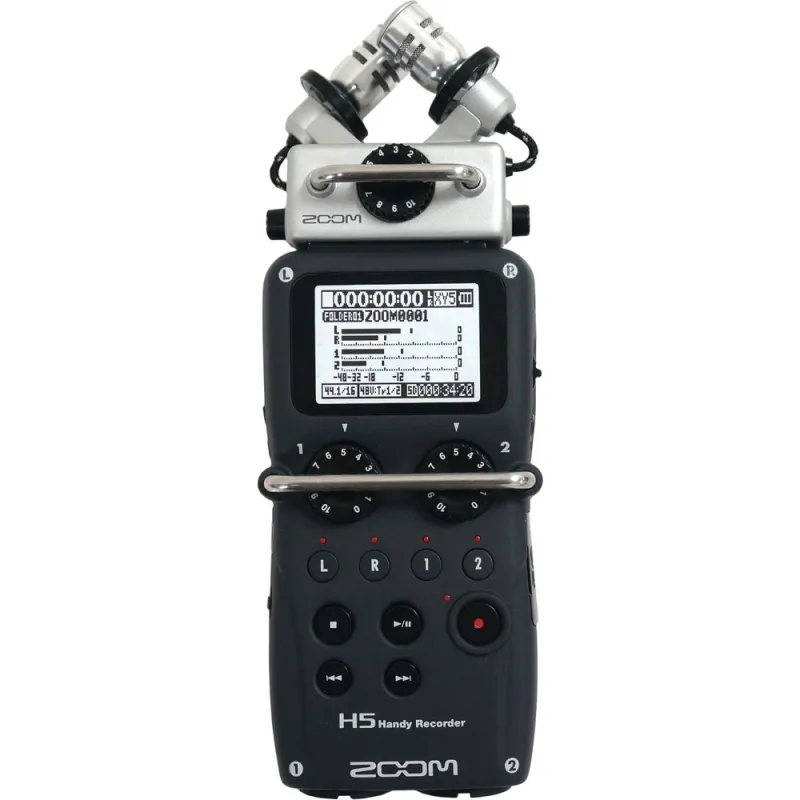

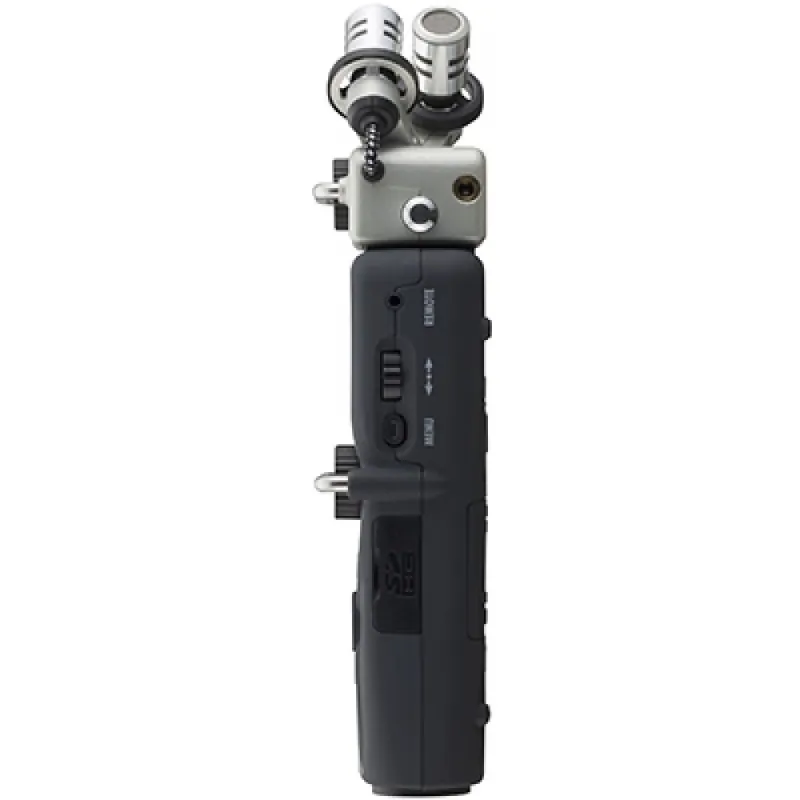

The recorder also has an LCD screen and a side-mounted toggle control for navigating through the menu options. It gives you fast access to transport functions, offering physical control buttons right underneath the screen, and conveniently stores its recorded audio to external SD cards.

In addition to the detachable X/Y capsule, the recorder also ships with a foam windscreen, a 2GB SD card, two AA batteries, a USB cable, WaveLab LE (download), Cubase LE (download), and a hard plastic case.

Features:

• Includes detachable X/Y capsule (XYH-5) with extended signal capacity and shockmounted microphones for reduced handling noise
• Compatible with Zoom H6 input capsules and optional capsules including the SGH-6 shotgun mic capsule and the EXH-6 dual XLR/TRS combo input capsule
• Four-track simultaneous recording
• Large backlit LCD display
• Records directly to SD and SDHC cards up to 32GB
• Up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats
• Two mic/line inputs with XLR/TRS combo connectors, each with selectable phantom power and -20dB pad
• Analog-style gain controls for each input
• Protective "roll-bar" type covers prevent accidental movement of gain controls
• Plug-in power (2.5 volts)
• Built-in effects, including low-cut filtering, compression and limiting
• Chromatic tuner and metronome
• Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take
• MS decoding
• Multitrack to stereo internal mixdown
• Normalize, Divide and Trim editing
• Voice memo and up to 99 marks per recording
• A/B loop playback
• Variable playback speed and variable pitch without affecting playback speed
• Multichannel and stereo USB audio interface for PC/Mac/iPad with loop back function
• Mountable to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter
• Uses two standard AA alkaline or NiMH rechargeable batteries
• Over 15 hours of operation with alkaline batteries

Zoom H5 Handy Recorder

Our products are constantly evolving to meet the needs of the creators who use them. With the H5 Handy Recorder, the tradition continues. The H5 provides four tracks of simultaneous recording and, like our flagship H6, it can use all Zoom interchangeable input capsules, allowing you to choose the best microphone for every recording situation. The flexible and powerful H5 provides everything you need to create multitrack recordings, audio for video, and state-of-the-art podcasting, broadcasting and electronic newsgathering.

Louder. Closer. Cleaner.
X/Y recording allows you to cover a wide area yet still capture sound sources in the center with clarity and definition, making it ideal for all types of live stereo recording. The XYH-5 X/Y microphone capsule included with the H5 provides two matched unidirectional condenser microphones set at a 90 degree angle. These are housed within an advanced shockmount that employs rugged external mic wires and rubberized material to isolate the unit from the H5 body and thus minimize vibration and handling noise. The design of the XYH-5 also allows the H5 to handle louder sounds than any other Handy Recorder model: 140 dB SPL, to be precise—equivalent to the sound of a jet aircraft from less than 200 feet away—enabling you to capture sounds louder, closer, and cleaner than you ever could before.

Five interchangeable mic capsules that can be swapped out as easily as the lenses of a camera

XYH-5 X/Y CAPSULE
The XYH-5 X/Y microphone capsule provides two matched unidirectional condenser microphones set at a 90 degree angle. These mics are housed within an advanced shockmount that employs rugged external mic wires and rubberized material to minimize vibration and handling noise, making the XYH-5 ideal for location videography and live broadcast/podcast applications. The design of the XYH-5 also allows it to handle extremely loud sounds—140 dB SPL, to be precise (equivalent to the sound of a jet aircraft from less than 200 feet away)—making it perfect for capturing the sound of live rock concerts and for electronic news gathering.

MSH-6 MS CAPSULE
Welcome to “Mid-Side” recording, a whole new level of precision in your ability to shape sound. The MSH-6 Capsule contains dual mic elements – a forward-facing, unidirectional mic (the “Mid”) and a side-facing, bi-directional mic (the “Side”). Together with the H5's onboard MS decoder, they capture a fully mono-compatible stereo image that can actually be adjusted after recording – ideal for film, video, and television projects.

XYH-6 X/Y CAPSULE
The XYH-6 capsule employs two angled high-quality unidirectional mics which are sensitive to signals coming from the front but less to signals coming from the sides and rear. X/Y recording is optimum when you want to cover a wide area yet still capture a strong center image, making it the perfect choice for all types of live stereo recording.

SGH-6 SHOTGUN CAPSULE
The optional SGH-6 Shotgun Capsule adds a professional-quality, highly directional microphone to the H5, creating an ideal audio setup for film, video, live theater, and ENG (electronic newsgathering) applications. Three elements combined with digital signal processing inside the SGH-6 give you the highly directional pickup power of a conventional shotgun mic in a unit only half the size – ideal for recording dialogue and narration with no intrusive mic in the scene.

EXH-6 DUAL XLR/TRS COMBO CAPSULE
Plugging in the optional EXH-6 Dual XLR/TRS Combo Capsule gives you two more inputs. This allows you to connect up to four discrete signals from external microphones, instruments, mixers, or portable music players to fully realize your audio vision. It’s all the power of a professional recording studio, right in the palm of your hand.

Ins & Outs
In addition to standard transport controls (stop, play/pause, record, rewind and fast-forward), the front panel of the H5 offers dedicated record arming buttons for each track, which double as mute switches during playback. A Hold switch disables all front panel buttons to prevent accidental operation during recording. The H5 can be attached to a camera strap or, with the use of our optional Hot Shoe mount, mounted directly to a DSLR or camcorder.

The H5 also provides everything you need to connect with the outside world. Dual combo XLR/TRS inputs that can handle both mic- and line-level signals allow you to connect external microphones and line-level devices like mixers, portable music players, effects processors and electronic keyboards—even electric guitars or basses equipped with active electronics. Each H5 input has its own dedicated gain control knob, located beneath a protective bar that prevents accidental movement during handling. The supplied XYH-5 X/Y capsule also provides a secondary input for connecting stereo mic- or line-level signal via a ⅛" mini phone jack. The H5 supports a +4 dB (professional) input level and utilizes the same high-quality preamps as our flagship H6, ensuring great-sounding recordings in all sonic environments.

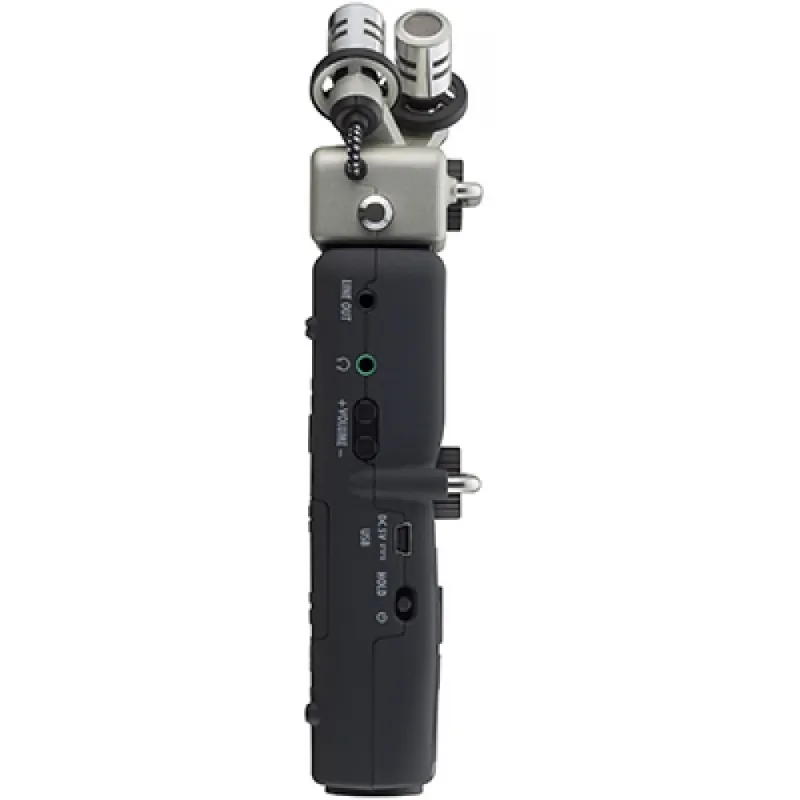

There are lots of output options as well. A dedicated Line Out with adjustable volume allows you to send a stereo audio output from the H5 to the mic input of a video camera or other device without the need for an attenuator cable. In addition, there's a separate headphone output with a dedicated volume control. You can use both outputs simultaneously to route audio to your DSLR while monitoring over headphones. There's also a built-in speaker for fast access playback, and a USB port which allows the H5 to be used as an audio interface for your computer or iPad.

Power and Storage
Just 2 AA batteries—either alkaline or rechargeable NiMH—are required for power. When using alkaline batteries, the H5 will operate for more than 15 hours, even while recording continuously. You can also use an optional AC adapter to power the H5 without batteries. The H5 records directly to SD and SDHC cards up to 32 gigabytes. Maximum recording time is dependent upon the card size and file type; for example, the supplied 2GB SD card can hold approximately fourteen hours of stereo 320kbps MP3 files, three hours of stereo 16-bit / 44.1 kHz WAV files, or an hour of stereo 24-bit / 96kHz WAV files

File types
The H5 can operate in two different modes—choose stereo for two-track stereo recording, or multitrack for four-track recording (in either stereo pairs or individual mono tracks)—and it captures audio in the two most commonly used file formats: WAV and MP3.

The WAV files recorded by the H5 can be 16- or 24-bit, with sampling rates of 44.1, 48, or 96kHz*. They are automatically time-stamped and thus Broadcast Wave Format (BWF) compliant, allowing for precise synchronization in video post-production. MP3 files, while slightly lower in fidelity, are much smaller than WAV files and are thus easier to email and post on social networking sites—allowing you to quickly and easily share your creations around the world.
* 96kHz sampling rate available in stereo mode only

Signal Processing
The H5's onboard effects allow you to add polish to your recordings. Compression and limiting compensate for fluctuations in input level, while a low-cut filter helps eliminate wind noise, blowing, and other kinds of low frequency rumble. There's even an onboard metronome and chromatic/guitar/bass tuner.

Other features
But the list of H5 features doesn't end there. There's playback looping, pitch change and variable playback speed (without pitch change) to help with phrase training. A pre-record function that keeps the H5 continuously recording in the background, keeping the previous two seconds before you hit RECORD.

There’s an Auto-Record function that allows recording to begin automatically when a certain level of sound is detected and an equivalent Auto-Stop function that ends recording when the sound drops below a user-designated level, either immediately or up to 5 seconds later. And then there's Backup-Record—the ultimate safety net.* It enables the H5 to automatically record a duplicate set of stereo tracks with 12dB less input gain. Even if your original track is distorted, chances are the Backup version will be fine!
* 44.1 and 48kHz WAV files only.

You can even use your H5 as an audio interface, complete with a Loop Back function that makes it easy to add narration to music playback. Simply connect the H5 to your computer or iPad** via USB, launch your favorite DAW or use the included Wavelab LE software,
and start creating a masterpiece.
** Apple Camera Connection Kit required.

Features:
– Uses a system of interchangeable input capsules that can be swapped out as easily as the lens of a camera
– Includes detachable X/Y capsule (XYH-5) with extended signal capacity and shockmounted mics for reduced handling noise
– Compatible with all Zoom input capsules
– Four-track simultaneous recording
– Large backlit LCD
– Records directly to SD and SDHC cards up to 32GB
– Up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats
– Two mic/line inputs with XLR/TRS combo connectors, each with selectable phantom power and -20dB pad
– Analog-style gain controls for each input
– Protective "roll-bar" type covers prevent accidental movement of gain controls
– Plug-in power (2.5 volts)
– Built-in effects, including low-cut filtering, compression and limiting
– Chromatic tuner and metronome
– Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take
– MS decoding
– Multitrack to stereo internal mixdown
– Normalize, Divide and Trim editing
– Voice memo and up to 99 marks per recording
– A/B loop playback
– Variable playback speed and variable pitch without affecting playback speed
– Multichannel and stereo USB audio interface for PC/Mac/iPad with loop back function
– Mountable to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter
– Uses two standard AA alkaline or NiMH rechargeable batteries
– Over 15 hours of operation with alkaline batteries

Delivery Contents:
– Zoom H5 Handy Recorder
– Operation manual
– XYH-5 X/Y mic capsule
– SD card (2GB)
– AA size (LR6) battery x 2
– USB cable
– Foam windscreen
– Case
– Steinberg Wavelab LE software download

Recording media:

SD card

16MB to 2GB , SDHC card: 4GB to 32GB

Display

Backlit LCD (128 × 64 pixels)

Mic type

Unidirectional

Sensitivity

-45 dB, 1 kHz at 1 Pa

Input gain

-∞ to 52 dB

Max sound pressure input

140 dB SPL

MIC/LINE IN

Connector: 1/8" stereo mini jack

Input gain

- ∞ to 52 dB

Input impedance

2 k Ω or more

Plug-in power

2.5V supported

Backup recording

-12dB lower than set L/R input gain

INPUTS 1/2

Connectors: XLR / TRS combo jacks (XLR: Pin 2 hot / TRS: Tip hot)

Input gain (PAD OFF)

-∞ to 55.0 dB

Input gain (PAD ON)

-∞ to 35.0 dB

Input impedance

1.8 k Ω or more

Max input level

+22 dBu (PAD ON)

Phantom power

+12V /+24V /+48V

Equivalent Input Noise (EIN)

-120 dBu or less

Connector

1/8" stereo mini jack

Rated output level

-10 dBm

Output load impedance

10k Ω or more

Connector

1/8" stereo mini jack

Output Level

20 W +20 W into 32 Ω load

Built-in speaker

400mw 8 Ω mono

STEREO MODE

WAV (BWF-compliant)

Sampling frequency

44.1/48/96 kHz

Bit rate

16/24 (Stereo)

Maximum simultaneous recording tracks

2

MP3 Sampling frequency

44.1kHz

Bit rate

48/56/64/80/96/112/32/160/192/224/256/320kbps

MULTITRACK MODE

WAV (BWF-compliant)

Sampling frequency

44.1/48 kHz

Bit rate

16/24 (Mono/Stereo)

Maximum simultaneous recording tracks

6 (L/R + INPUT 1/2 + L/R backup)

Class

USB 2.0 High Speed

Audio Interface operation

Multitrack mode

Class

USB 2.0 High Speed

Sampling frequency

44.1/48kHz

Bit rate

16/24 bit

Inputs / Outputs

4 / 2

Audio Interface operation

Stereo mode: Class: USB 2.0 Full Speed

Sampling frequency

44.1/48kHz

Bit rate

16 bit

Inputs / Outputs

2 / 2
USB bus powered operation possible (iPad operation supported in Stereo mode only)
AA size (LR6) battery × 2

AC adapter

AD-17 (DC5V/1A/USB-type) (optional) USB bus power
