Sennheiser EW-DP ME4 SET (Q1-6: 470,2 - 526 MHz)
Portable digital UHF wireless microphone system with ME 2 omnidirectional lavalier for filmmakers, content creators, and broadcasters.

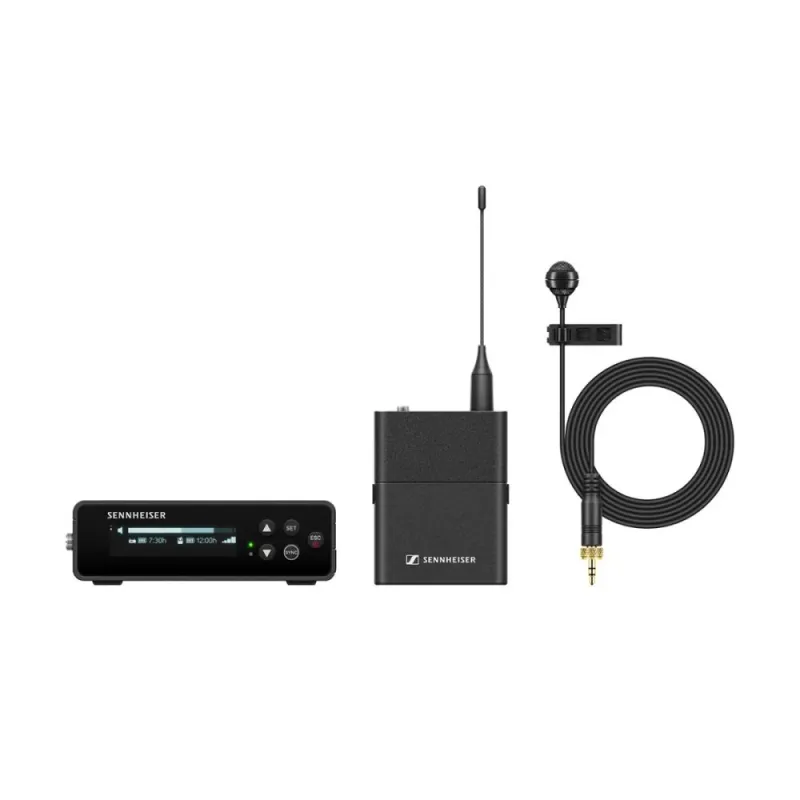

Delivery Content

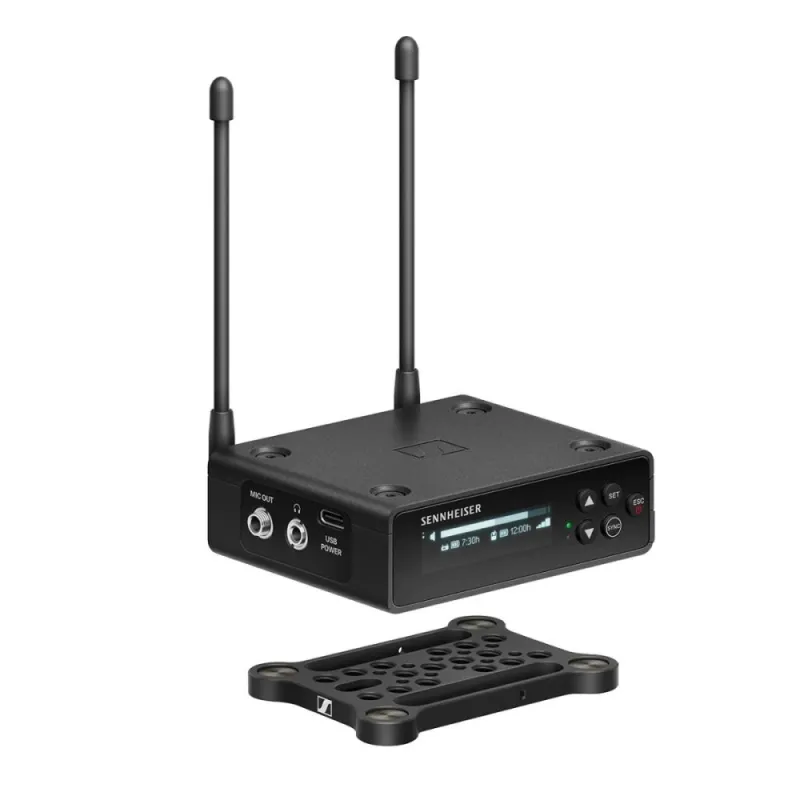

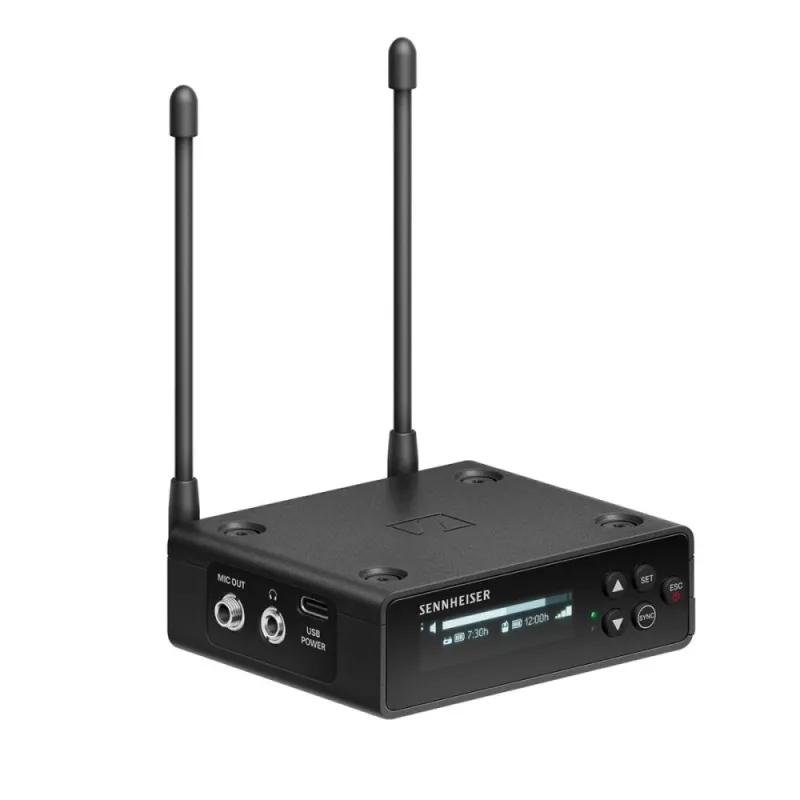

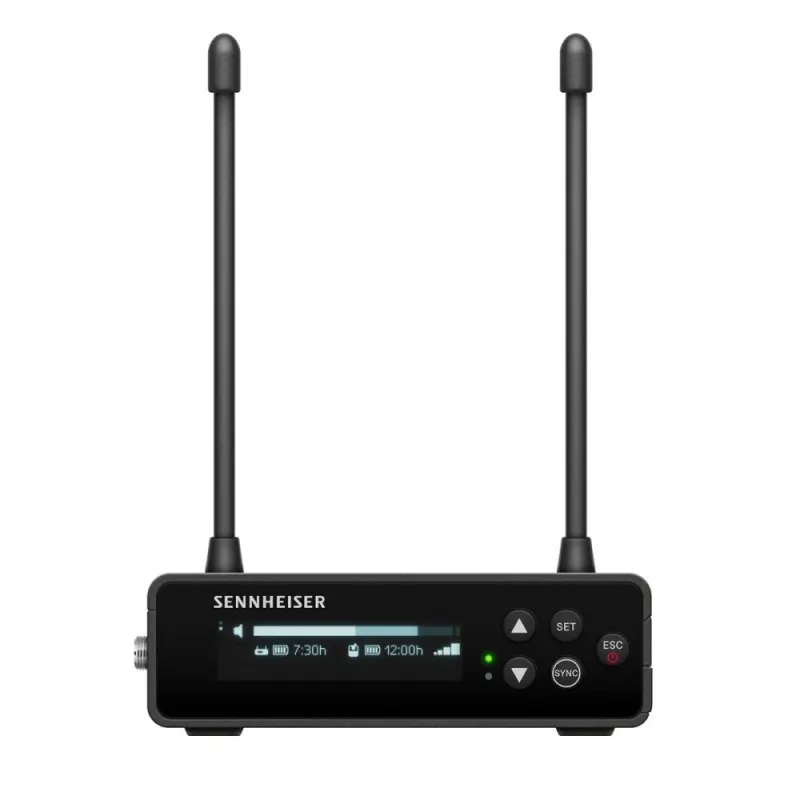

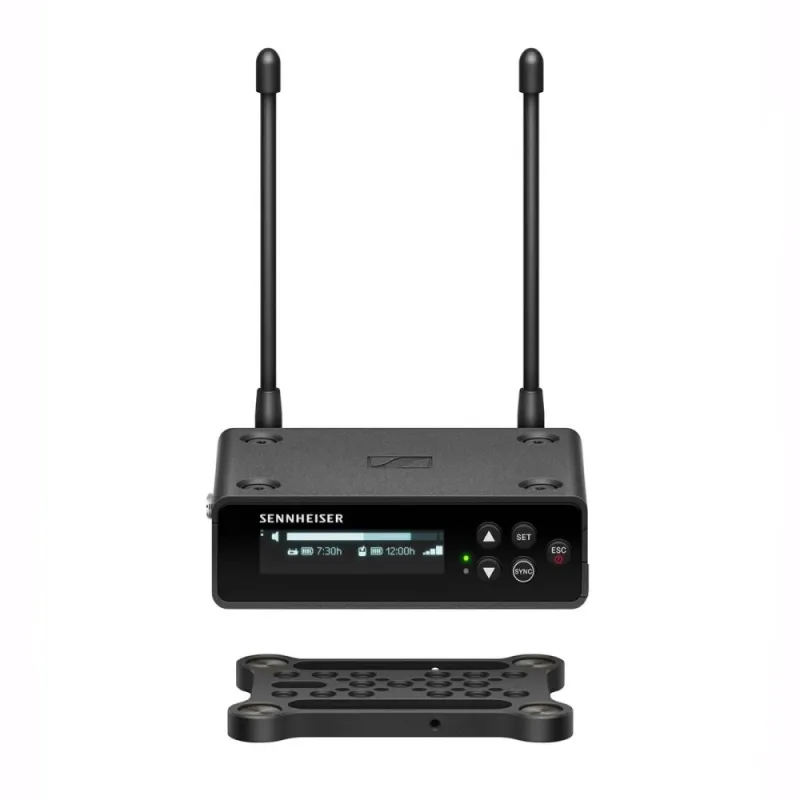

• EW-DP EK digital portable single channel receiver
• EW-D SK digital bodypack transmitter
• ME 4 microphone
• Mounting kit (cheese plate, cold shoe, belt clip & screws)
• BA 70 li-ion battery & (2) AA battery
• Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
• Locking 3.5 mm TRS plug to XLR plug cable
• USB-C charging cable
System | Bluetooth® Low Energy (BLE) frequency range | 2402 - 2480 MHz |
Audio frequency response | 20 Hz - 20 @ 3 dBfs | |
Audio THD | ≤ -60 dB for 1 kHz @ -3 dBfs input level | |
Dynamic range | 134 dB | |
System Latency | 1.9 ms | |
Operating temperature | -10 °C - +55 °C (14 °F - 131 °F) | |
Relative air humidity | 5 - 95 % (non-condensing) | |
EW-DP EK | Input voltage | ~ 1.8 - 4.35 V |
Input Current | Typ. < 250 mA / Max. < 400 mA (BA 70) Typ. < 400 mA / Max. < 750 mA (2x AA batteries) < 300 mA@5 V (USB-C standalone) | |
Power supply | 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.): 5V / 1500mA 9V / 900mA 12V / 700mA | |
Transmission power | BLE: max. 10 mW EIRP | |
Audio output power | < 2 dBV max. (high level) / < 4dBU max (high level) | |
Headphone Output | < 50 mW into 16 Ohms | |
Dimensions | 86 x 67 x 28 mm (3.39 x 2.64 x 1.1) | |
Weight (without antennas and power supply) | approx. 140g (0.31 lbs) | |
EW-D SK (Transmitter) | Input voltage | 2.0 - 4.35 V |
Input Current | < 300 mA | |
Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack | |
Occupied bandwidth | 200 kHz | |
Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP | |
ME 4 (Lavalier) | Transducer principle | pre-polarized condensor microphone |
Pick-up pattern | cardioid | |
Sensitivity in free field, no load (1kHz) | 40 mV/Pa | |
Frequency response | 50 to 18,000 Hz | |
Equivalent noise level A-weighted | 31 db | |
Connector | 3.5 mm jack | |
Cable length | approx. 1.60 m (62.99) | |
Supply voltage | 7.5 V |
Frequency variants | Region | |
---|---|---|
Q1-6 | 470.2 - 526 MHz | EU, US, Canada, Middle East, Japan |
R1-6 | 520 - 576 MHz | EU, US, Canada, Australia, Middle East, Japan |
R4-9 | 552 - 607.8 MHz | EU, US, Canada, Australia, Middle East, Japan |
S1-7 | 606.2 - 662 MHz | UK, Australia, Korea, Japan |
S4 - 7 | 630 - 662 MHz | EU |
S7-10 | 662 - 693.8 MHz | China |
U1/5 | 823.2 - 831.8 MHz & 863.2 - 864.8 MH | EU, UK |
V3-4 | 925.2 - 937.3 MHz | Korea |
Y1-3 | 1785.2 - 1799.8 MHz | EU, UK, Australia |
Вид продукта | Записывающие устройства |
Соединительный штекер | USB-C |
