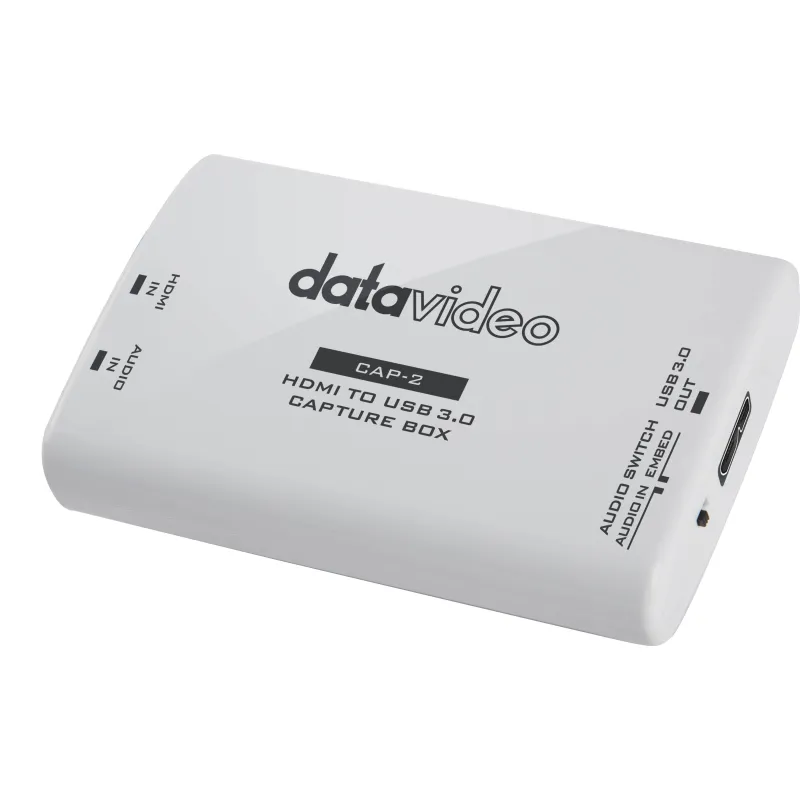

CAP-2 HDMI to USB 3.0 Capture Box is an HDMI-USB Capturing device, which supports up to 1080p50/60. Plug and play in the various operating system. It features a stereo line in external audio, which can be switched as HDMI embedded audio or external line-in audio. There are more flexible and powerful settings for capturing.
CAP-2 HDMI to USB 3.0 Capture Box | |
Input | 1x HDMI |
Output | 1x USB 3.0 (Micro B) |
Input Video Bandwidth | 150MHz (pixel clock rate) |
Output Video Bandwidth | Up to 350Mbps (USB) |
Supported Input Video Formats | 1920 x 1080p 60/59.94/50/30/29.97/25/24/23.976 |
Supported Output Video Formats | 1920 x 1080p 60/50/30/25/24 |
Audio Input | HDMI Embedded Audio & 3.5 mm stereo in |
Audio Support | 2-Channel, 44.1KHz and 48KHz sample rate embedded in, up to 24-bit PCM, fixed 48KHz output |
Capture Video Format | YUY2 (USB3.0), MJPG (USB2.0/3.0) |
Firmware Update | Via USB |
Firmware update | USB Port |
Power Consumption | 2W |
Operation Temperature | 0~40°C |
Storage Temperature | -20~60°C |
Humidity | 20~90% RH |
Minimum System Requirement |
|
Dimension (LxDxH) | 105 x 68 x 23 mm |
Weight | 70g |
What's in the Box | 1 x CAP-2 |
