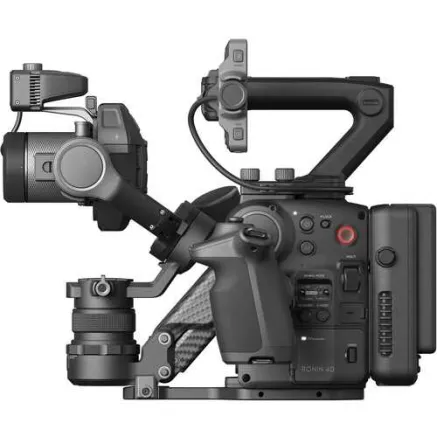

Designed for both solo use by independent creators and dynamic pro video capture, the Ronin 4D from DJI is an innovative all-in-one camera/gimbal solution. The "4D" designation refers to the Z-axis (vertical) stabilization built into the X9-6K camera and the three-axis gimbal stabilization. Constructed from lightweight carbon fiber and an aluminum/magnesium alloy, this system is ideal for independent content creators, indie filmmakers, and event videographers. The full-frame capture at rates up to 6K60 in Apple ProRes 422 HQ and Ronin's CineCore 3.0 image processing system with ACES workflow support also suits the 4D as a "B" or 2nd unit camera for larger cine-style productions.
This combo includes the main Zenmuse X9-6K full-frame video camera and a 3-axis gimbal, plus an array of modular monitor, focusing, and control components. Kit items include a DL lens mount, a LiDAR range finder, one TB50 battery, a charging hub, and left and right control handgrips.
Note: A wireless video transmitter is not included in this combo kit.
All-in-One Camera Gimbal System
Firmware Update at Launch
CineCore 3.0 Imaging Processing System
Advanced 4-Axis Stabilization
Zenmuse X9-6K Camera with DL Lens Mount
ProRes 422 HQ and H.264 Capture
Dual Native ISO
In-Camera ND Filters
LiDAR Focus Control
Autofocus Features
Automated Manual Focus
ActiveTrack Pro
Dual Focus, Iris, and Control Grips
Single User or Crew-Assisted Operation
Media Storage Options
Built-In 5.5" Touchscreen Monitor
Audio Recording
Power Options
Lens Mount | DJI DL |
Sensor Resolution | Effective: 24.1 Megapixel |
Sensor Type | Full-Frame CMOS |
Image Stabilization | Digital, 4-Axis |
Built-In ND Filter | Mechanical Filter Wheel with Clear, 1 Stop (1/2), 2 Stop (1/4), 3 Stop (1/8), 4 Stop (1/16), 5 Stop (1/32), 6 Stop (1/64), 7 Stop (1/128), 8 Stop (1/256), 9 Stop (1/512) ND Filters |
Internal Filter Holder | Yes |
ISO Sensitivity | 200 to 12,800 |
Shutter Type | Electronic Rolling Shutter |
Shutter Speed | 1/24 to 1/8000 sec |
Advertised Dynamic Range | 14 Stops |
White Balance | 2000 to 11,000K |
Rotation Range | Yaw (Pan): 285° Pitch (Tilt): 210° (-55 to 155°) Roll: 70° (-35 to 35°) |
Z-Axis Adjustment Range | 5.1" / 130 mm |
Follow Speed | Pan/Tilt/Roll: 360°/s using DJI Master Wheels or Pro Force Pan/Tilt/Roll: 120°/s using Ronin 4D Handgrip |
Load Capacity | 2.1 lb / 960 g |
Recording Modes | ProRes 422HQ: 6008 x 3168p at 23.98/24/25/29.97/30/50/59.94/60 fps 4096 x 2160p at 23.98/24/25/29.97/30/48/50/59.94/60/72/96/100/120 fps 2048 x 1080p at 23.98/24/25/29.97/30/48/50/59.94/60/72/96/100/120 fps H.264 4:2:0 10-Bit: 4096 x 2160p at 23.98/24/25/29.97/30/48/50/59.94/60/72/96/100/120 fps 2048 x 1080p at 23.98/24/25/29.97/30/48/50/59.94/60/72/100/120 fps |
Gamma Curve | HDR-HLG, Rec709 |
Audio Recording | 2-Channel 48 kHz LPCM Audio |
Still Image Support | None |
Video Output | USB: 4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps USB: 2048 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps HDMI: 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
IP Streaming | None |
Media/Memory Card Slot | Single Slot: DJI ProSSD Single Slot: CFexpress Type B |
Video I/O | 1 x HDMI (HDMI 1.4) Output |
Audio I/O | 1 x 3.5 mm TRS Stereo Mic/Line Input 1 x 3.5 mm TRS Stereo Headphone Output |
Built-In Microphone Type | Stereo |
Other I/O | 1 x USB Type-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output 1 x Proprietary Monitor Output |
Size | 5.5" |
Resolution | 1920 x 1080 |
Display Type | Tilting Touchscreen LCD |
Type | Optional, Not Included |
Battery Type | DJI TB50 |
Power I/O | 1 x Barrel (12 to 30 VDC) Input |
Operating Temperature | 14 to 104°F / -10 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Material of Construction | Aluminum, Carbon Fiber, Magnesium Alloy |
Dimensions (W x H x D) | 12.2 x 11.4 x 10.9" / 309 x 290 x 277 mm (With Protrusions) 9.3 x 6.3 x 4.5" / 235 x 160 x 115 mm (Without Protrusions) |
Weight | 10.3 lb / 4.67 kg 3.2 lb / 1.45 kg 2.29 lb / 1.04 kg |
