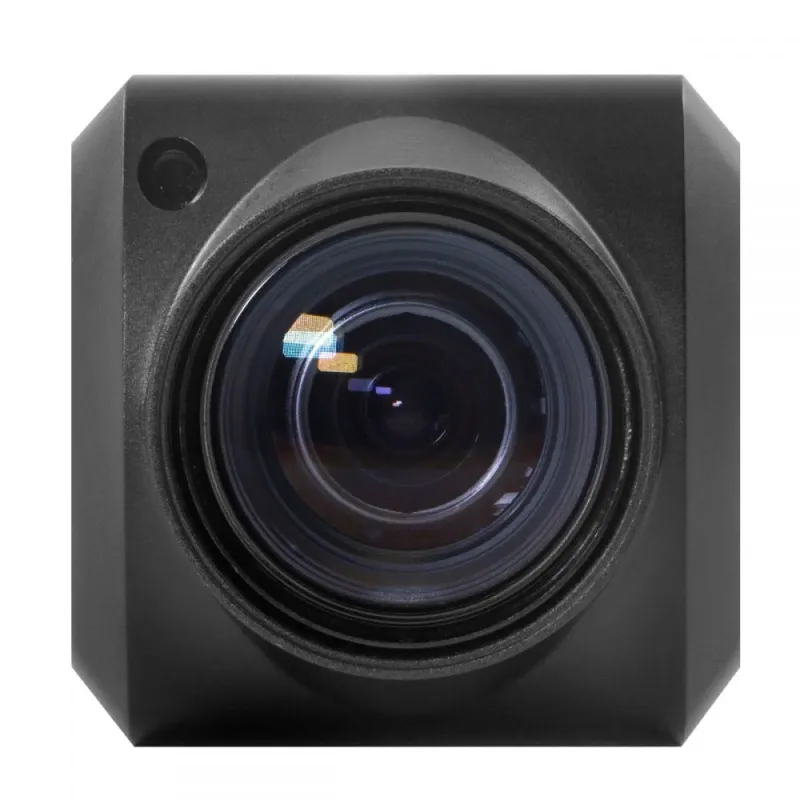

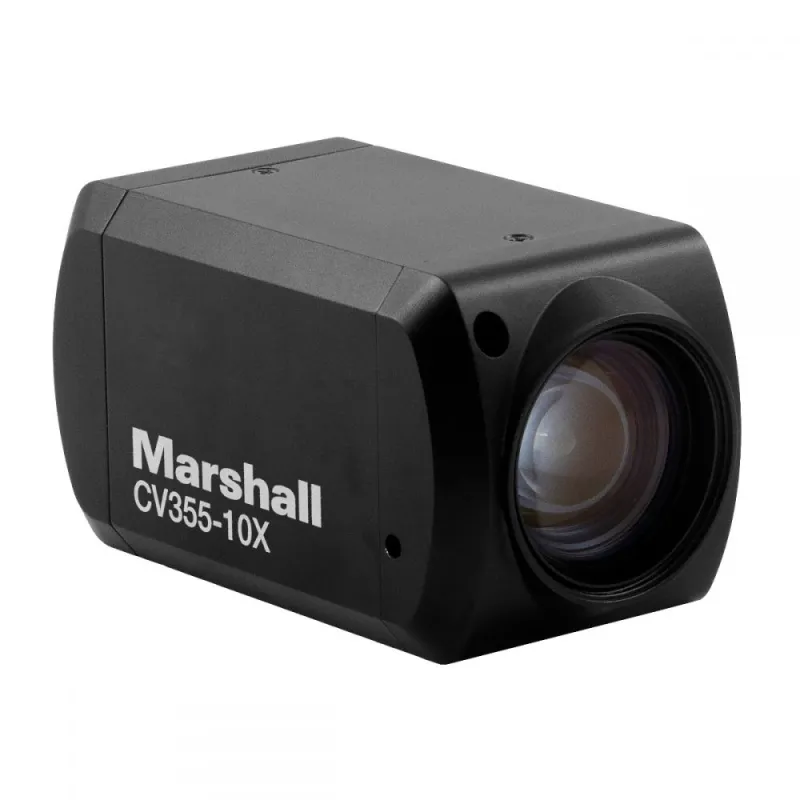

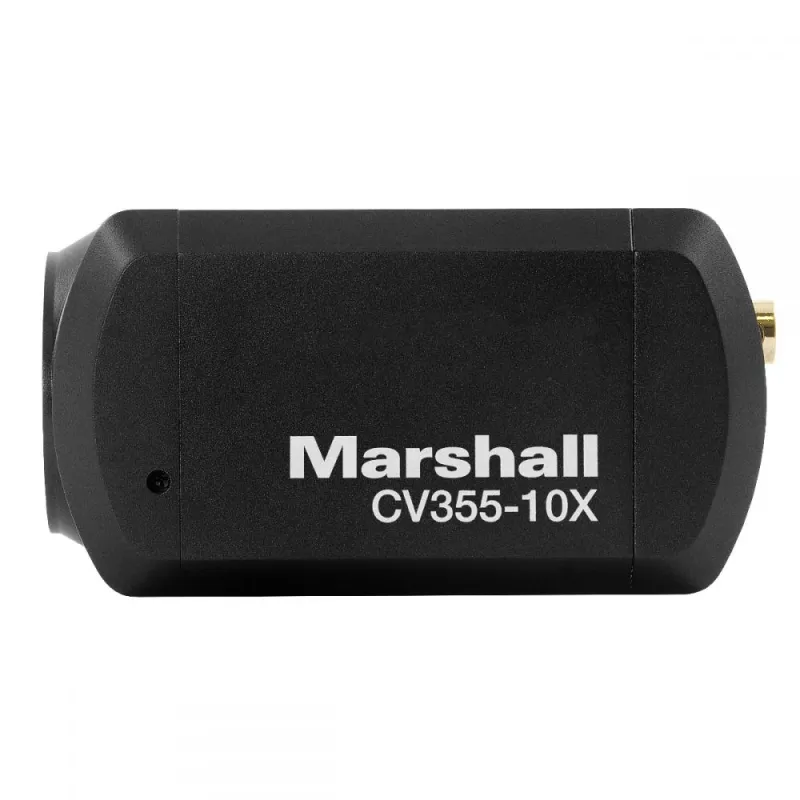

Marshall CV355-10X Block Camera

• 2 Megapixel HD (16:9) Sensor (1/2.8")
• 10x Optical zoom (4.7~47mm) starting at 60° H.AOV - 12x Digital zoom
• 3GSDI, HDSDI, and HDMI simultaneous outputs
• 1920x1080p, 1920x1080i and 1280x710p
• 60, 59.94, 50, 30, 29.97, 25, 24 and 23.98fps
• 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
• 12V Power cable included (7V~15V, 4.5W max)

Marshall CV355-10X features 10x optical (12x digital) zoom block and flexible 3GSDI/HDMI simultaneous outputs with clear HD images up to 1920x1080 at 60fps. Remote adjust and match settings include Iris, WB, Exposure, Pedestal, and many more over long distances or during setup with capable Auto settings that track environmental fluctuations.

Unmatched Versatility
Presenting 3GSDI and HDMI simultaneous outputs, remote adjustable optical zoom range, and stereo audio embedding ability. CV355-10X delivers crystal-clear HD images up to 1920x1080p with all usable framerates on one model with ultra-low light ability and industry leading low noise performance.

Durable Build Construction

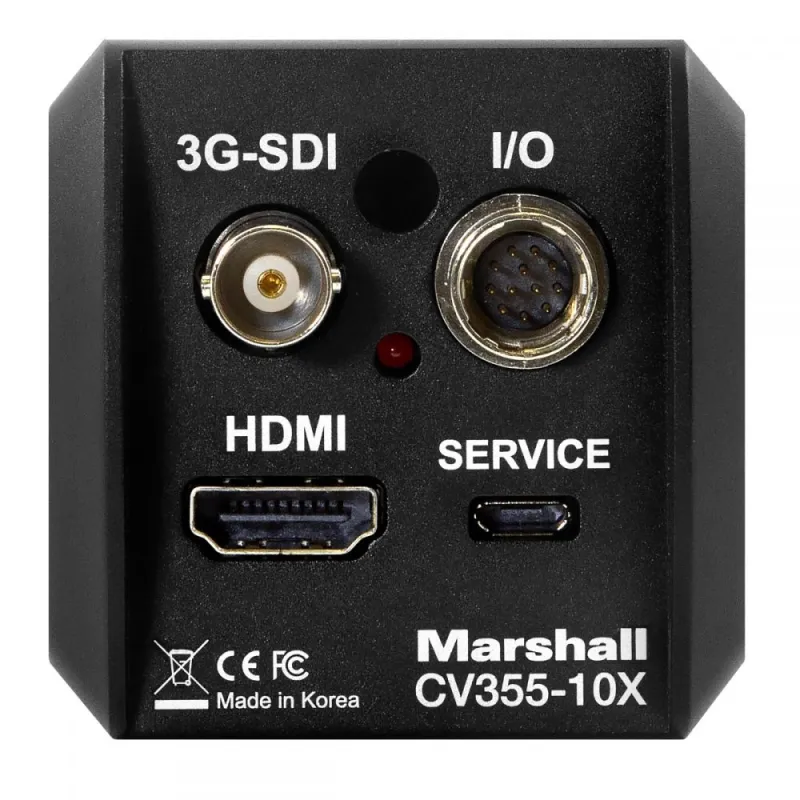

Constructed with a durable aluminum alloy body, full-sized BNC and HDMI connections, locking I/O cable carrying RS485/Audio/Power, and side impact protection panels to secure cable connections.

Universal Use Cases
Featuring a wide range of HD selections in 1920x1080i (interlaced), 1920x1080p and 1280x720p (progressive). Choose between 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 frames per second to capture any workflow or application in every region of the world.

Broadcast Performance
Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

Delivery Content
• Camera
• Infrared remote control for zoom, focus and menu navigation
• Power supply unit with various socket adapters for EU and US standards
• Breakout cable for power supply, audio-in and RS232 interface

Specifications

Image Sensor

1/2.8” Progressive 2.1 Megapixel CMOS

Effective Pixel

1920(H) x 1080(V)

Pixel Size

2.9(μm) x 2.9(μm)

Min. Illumination

0.1Lux (Day-color), 0.01Lux (Night-b/w), 0.001Lux (DSS on)

Lens

10x Optical Zoom, f=4.7~47mm, F1.6 ~ F3.0

Zoom

10x optical zoom / 12x digital zoom

Angle of View (H)

60 degrees (wide end) to 6 degrees (tele end)

Minimum Working Distance

100 mm (wide open), 900 mm (tele end)

Focus

Auto/ Manual

Exposure

Auto / Shutter Priority/ Iris Priority/ AGC Priority/ Manual/ Bright

White Balance

Auto (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / INDOOR / OUTDOOR / ONE PUSH / Manual

Light Modes

DAY (color), NIGHT (b/w), AUTO switch

Electronic Shutter

NTSC: 1/30~1/10000, PAL: 1/25~1/10000

Adjustable Features

Pedestal (Black Level), White Level, Privacy Mask, Image Mirror/Flip, Image Freeze, 2D/3D Noise Reduction, Edge Enhance, Defog, DIS (Digital Image stabilizer), Gamma Correct

HDMI

1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1920 x 1080i: 60, 59.94, 50
1280 x 720p: 60, 59.94, 50

HDSDI Output

1920 x 1080i: 60, 59.94, 50
1280 x 720p: 60, 59.94, 50

3GSDI Output

1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98

Input

3.5mm TRS Stereo Audio Jack over I/O Cable (Mic and Line)

Sample Rate

16/24/32 Bits

RS485

SONY-VISCA protocols, PELCO-P/D

Operation Temperature

-10°C ~ 50°C

Power Input

12VDC (7V to 15VDC)

Power consumption

Max 4.5W

Mass

0.80 lbs (camera only), 1.02 lbs (with breakout cable)

Dimensions

104.55 (D) x 56 (W) x 56 (H) mm
