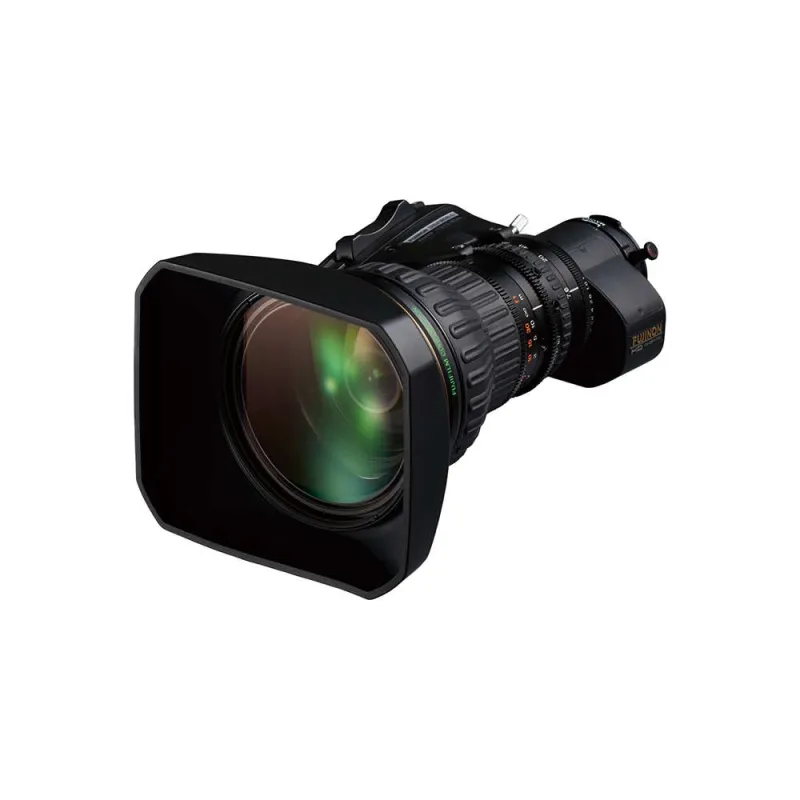

The ZA22x7.6BERD-S6 with Servo for Focus and Zoom is a 7.6-167mm lens, designed to provide 2/3" cameras with a wide to telephoto angle-of-view. The lens has a zoom ratio of 22x, and a 2x extender effectively doubles the focal range. The maximum aperture is a fast f/1.8 at 7.6-120mm and stops down to f/2.5 at 167mm. The lens also includes a digital servo for focus and zoom, which enables full studio control via RS-232.
ZA22x7.6BERM / BERD
Focal length
[1x] 7.6-167mm
[2x] 15.2-334mm
Zoom ratio 22x
Extender 2x
Maximum relative aperture (F-no.)
1 : 1.8 (7.6-120mm) / 1 : 2.5 (167mm)
Minimum object distance (M.O.D.) from front lens
0.8m
Object dimensions at M.O.D.
16 : 9 Aspect ratio
[1x]
7.6mm 915 x 514mm
167mm 43 x 24mm
[2x]
15.2mm 473 x 266mm
334mm 22 x 12mm
Angular field of view
16 : 9 Aspect ratio
[1x]
7.6mm 64.5° x 39°
167mm 3.3° x 1.8°
[2x]
15.2mm 35° x 20.1°
334mm 1.6° x 0.9°
Filter thread
M95 x 1 / M107 x 1 (Filter attaches to the lens hood.)
Approx. Size
φ100 x 220.4mm(φ x Length)
Approx Mass
1.85kg (RM) / 1.92kg (RD) (without lens hood)
Байонет | Nikon F |
Lens Format Coverage | Full Frame |
Lens Design | Зумм объективы |
Focus Type | Manual Focus |
Image Stabilization | Нет |
Тип обьектива | теле zoom |
Maximum Aperture | f/1.8 |
