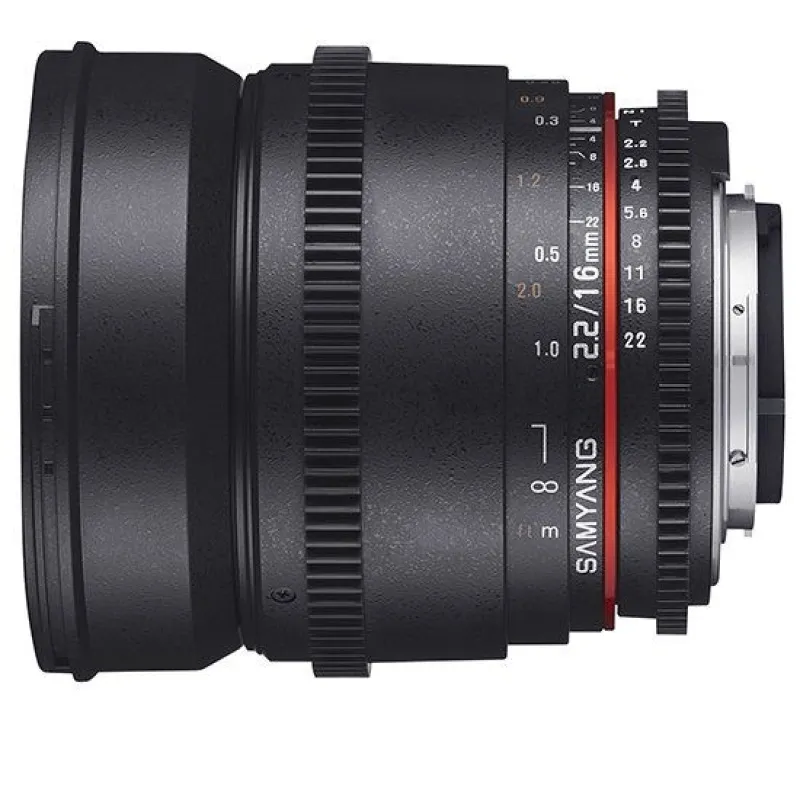

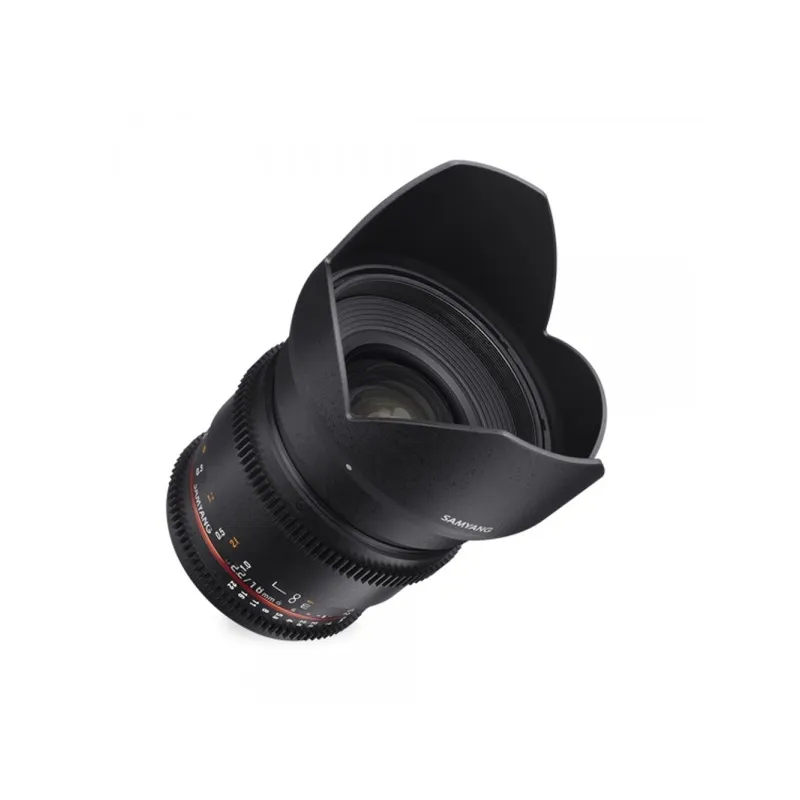

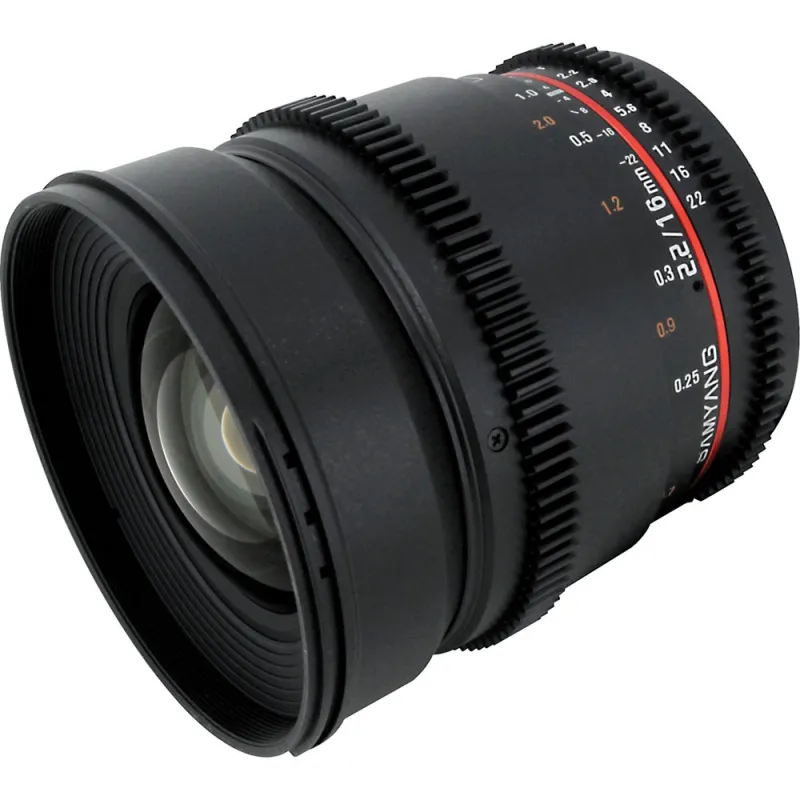

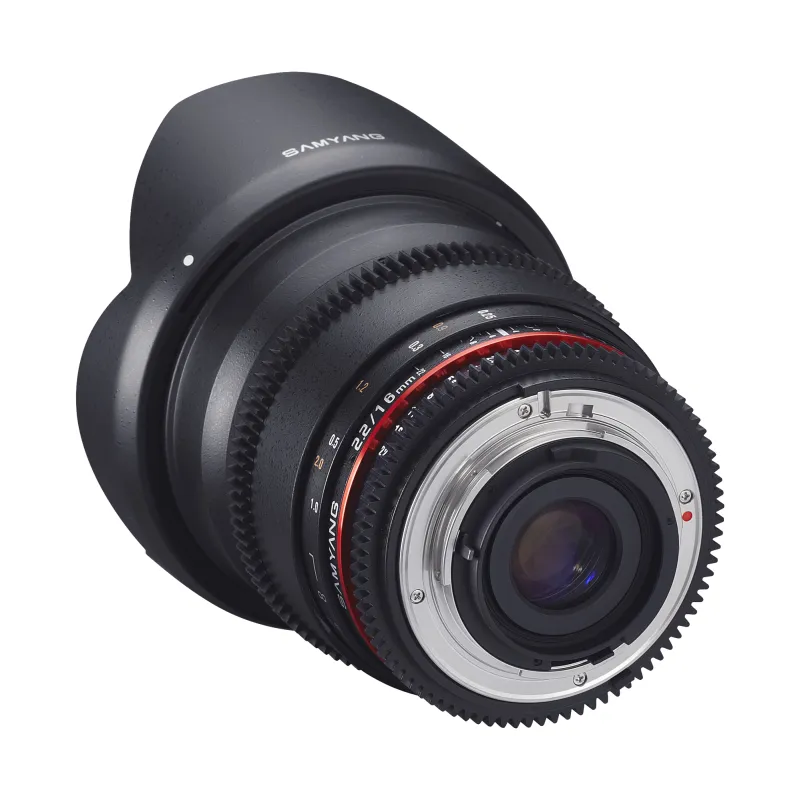

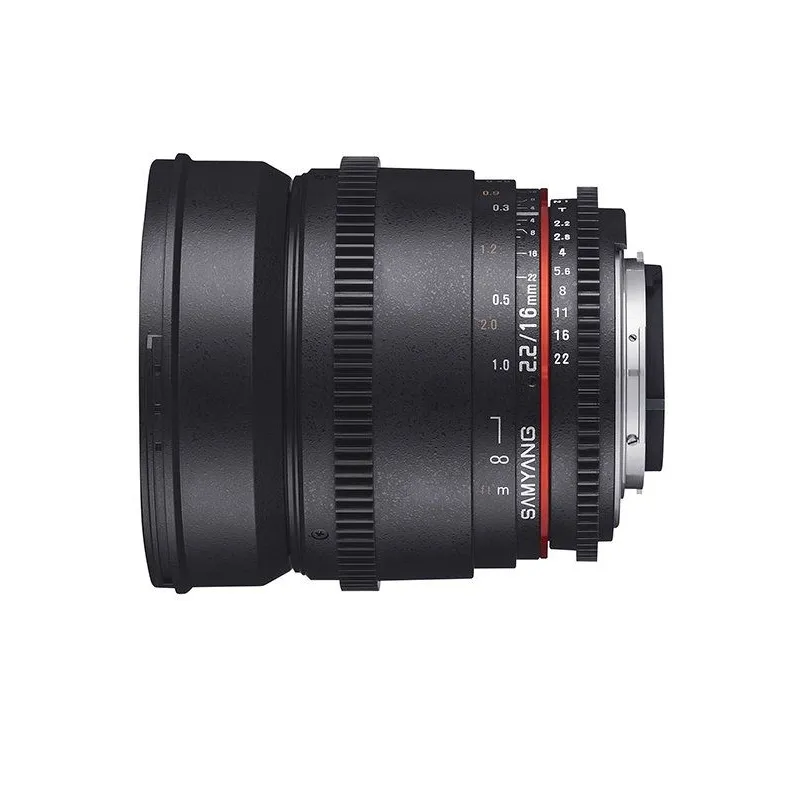

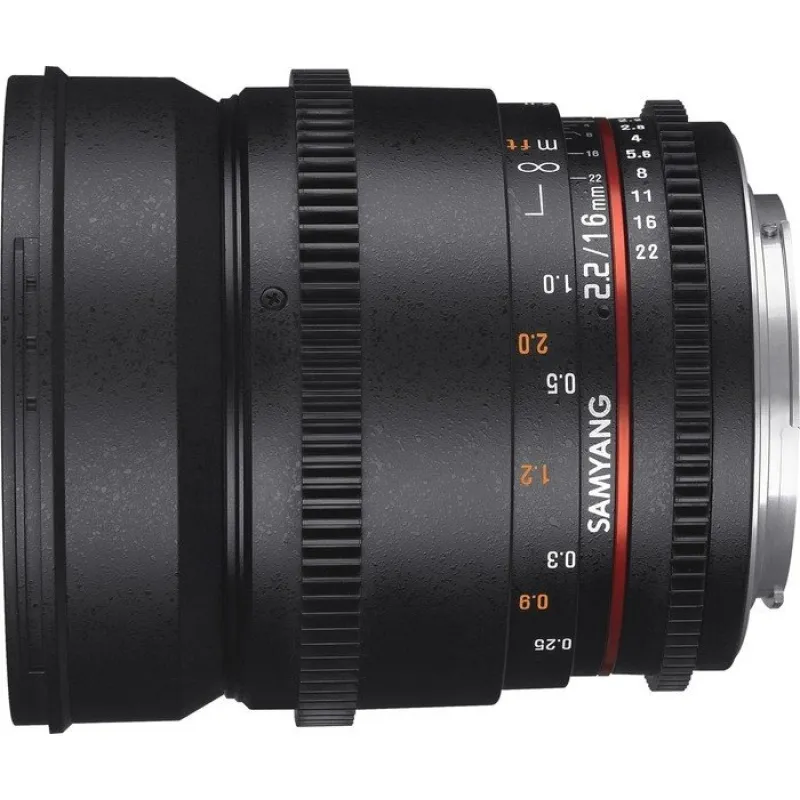

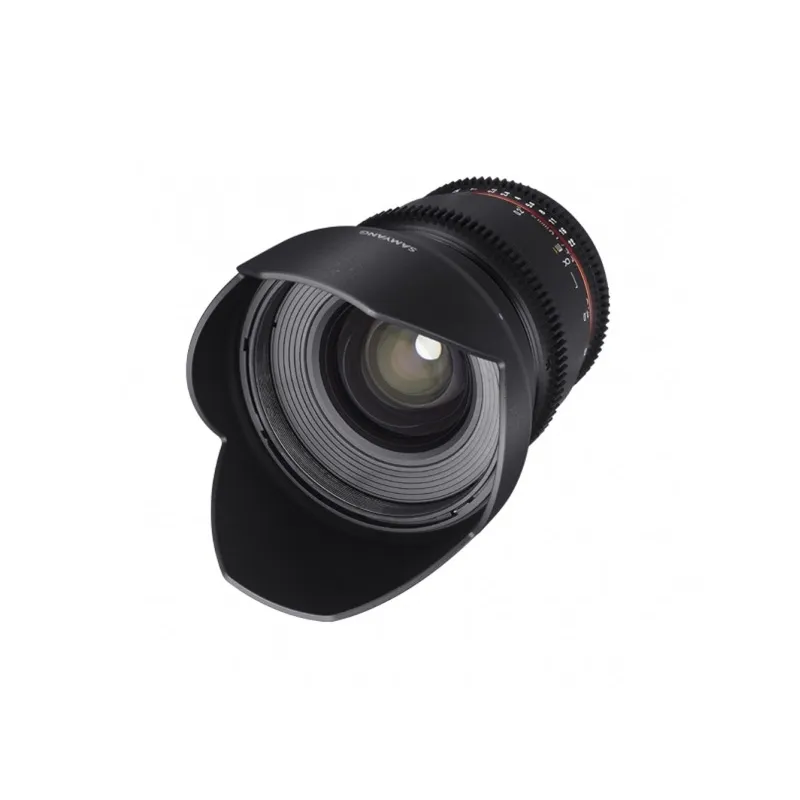

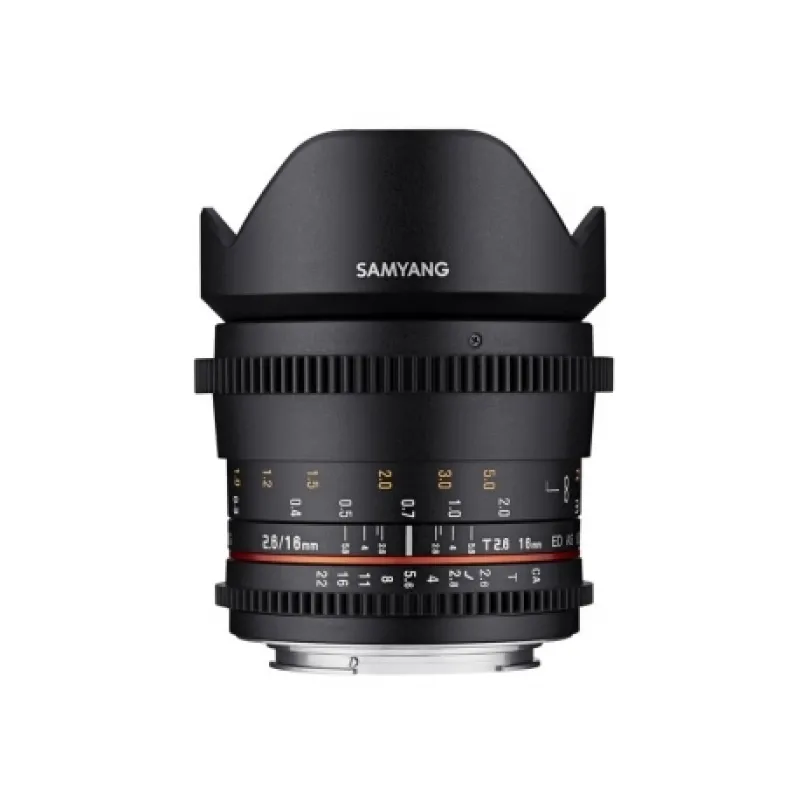

Ultra Samyang lens 16mm t2.2 VDSLR ED AS UMC CS designed for digital SLR cameras with APS-C.
Новое

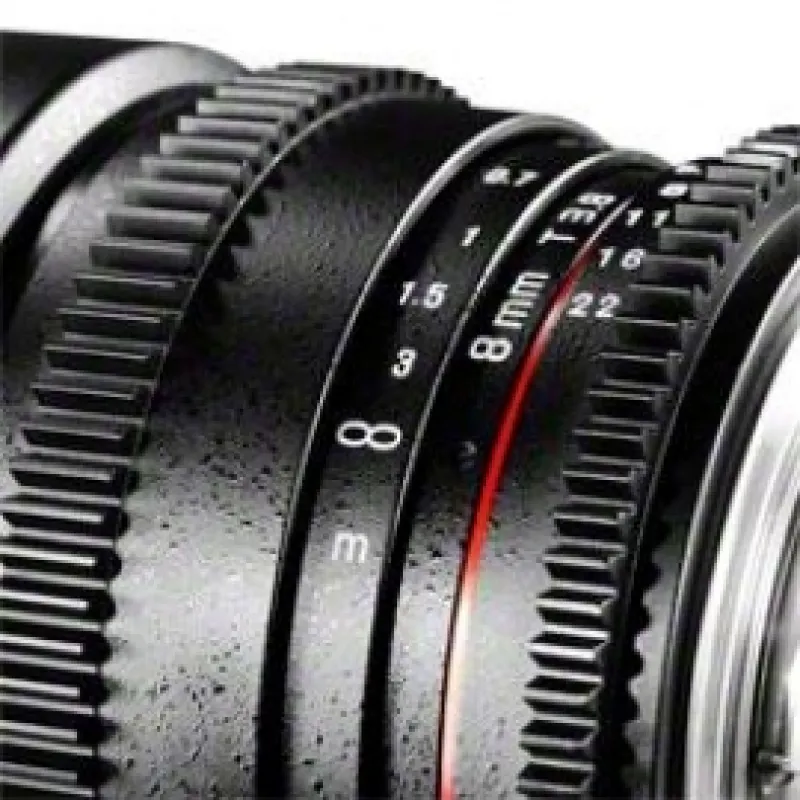

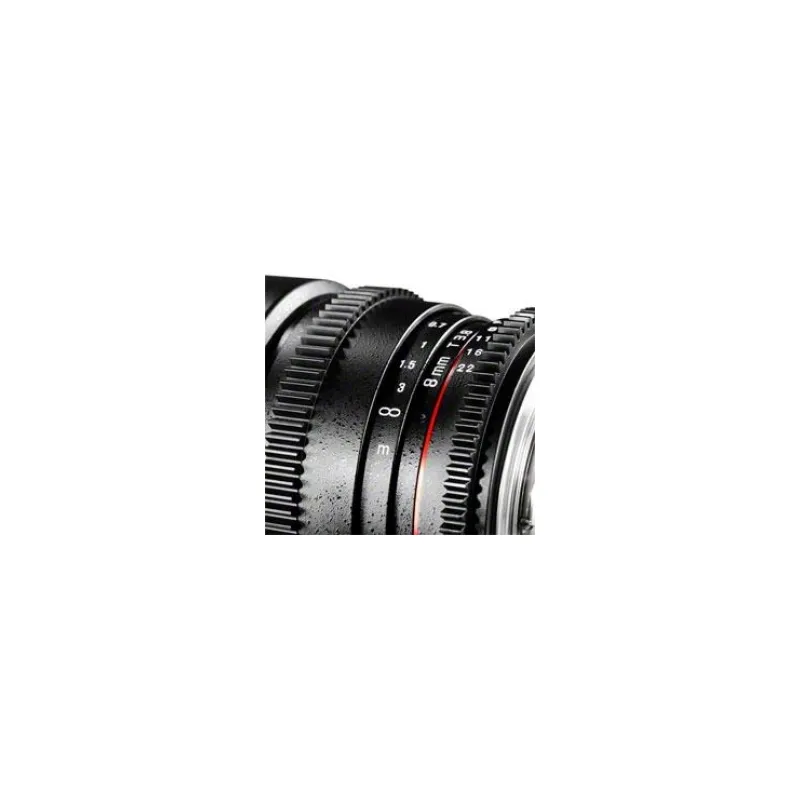

Ultra wide angle, bright Samyang 16mm T2.2 ED AS UMC CS lens is intended for digital reflex cameras and mirrorless compact cameras fitted with APS-C sensor. VDSLR Samyang lenses are fitted with racks compatible with the Follow Focus system. This solution allows for effortless and accurate rotation of focus and aperture rings. The aperture ring is rotated smoothly and noiselessly. These modifications allow for extremely comfortable and effective control of focal plane and depth of field during filming.
The lens has been designed with an extreme care for details. Its optics comprise of 13 elements arranged in 11 groups, including one ED element with very low dispersion factor, aspherical element made of optical glass and hybrid-aspherical element. The lenses have been covered with multi-layered anti-reflective UMC coatings to ensure perfect light transmission. Brightness of the lens corresponds with the T-number of 2.2. To facilitate the reading on the focus and aperture scale, both these indexes are marked in a parallel position to the optical axis of the lens.
Focal length: | 16 mm |
T-number: | 2.2 |
Angle of view: | 83.1° |
Minimum focusing distance: | 0.2 m |
Minimum aperture: | 22 |
Number of aperture blades: | 8 |
Focus adjustment: | manual |
Optical construction: | 13 lens elements, 11 groups, 1 ED, 1 ASP, 1 Hybrid ASP |
Dimensions (for Canon EF): | 89.4 x 83 mm |
Weight (for Canon EF): | 583g |
Ultra Samyang lens 16mm t2.2 VDSLR ED AS UMC CS designed for digital SLR cameras with APS-C. VDSLR Series is equipped with a rack that work with Follow Focus system. This results in smooth and precise rotation of the focus ring and aperture. Additionally, an aperture ring is rotated smoothly and silently. With these modifications can be extremely convenient and efficient handling of depth and & nbsp, the plane of focus during shooting.
The lens has been designed with great care. Its construction is based on the optical elements 13 arranged in 11 groups. In this type of lens used ED very low-dispersion aspheric lens optical glass and a lens-hybrid aspherical. Lenses coated with a multilayer anti-reflex coatings of UMC, which provide very good light transmission. The brightness of the lens is determined by the number T equal to 2.2.
For ease of reading on the scale and focus the aperture indices are deposited parallel to the optical axis of the lens.
Focal length: 16 mm
Number T
2.2 Minimum distance: 0.2 m
maximum aperture
22
number of diaphragm blades
8
Setting focus
hand
optical construction
13 elements, group 11, ED 1, 1 ASP ASP 1 Hybrid
Dimensions:
Байонет | Canon EF |
Lens Design | Фикс объективы |
Фокусное расстояние, мм | 16 |
Тип обьектива | широкоугольный |
Maximum Aperture | T2.4 |
