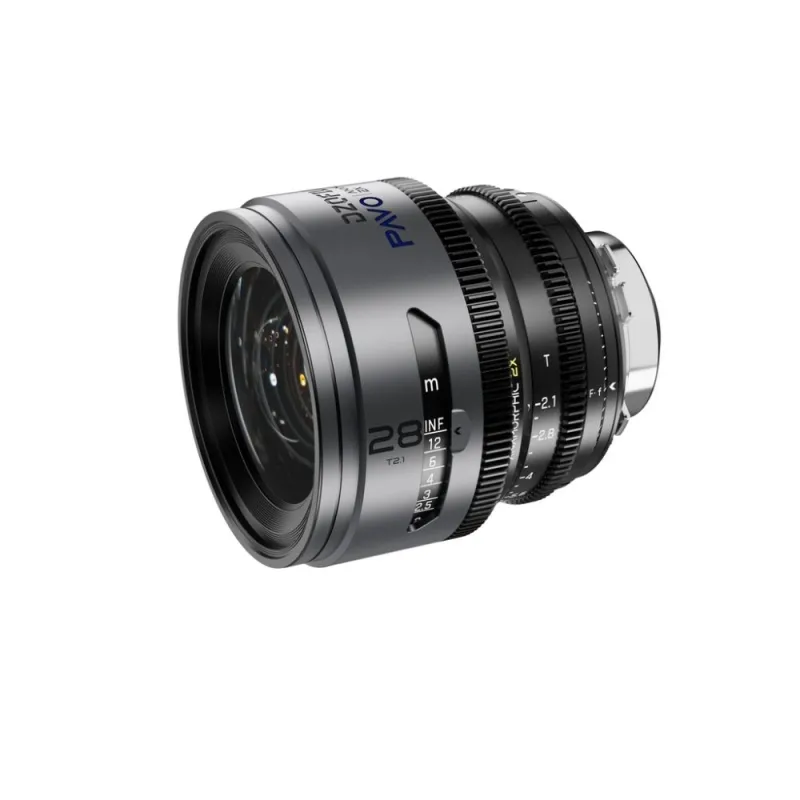

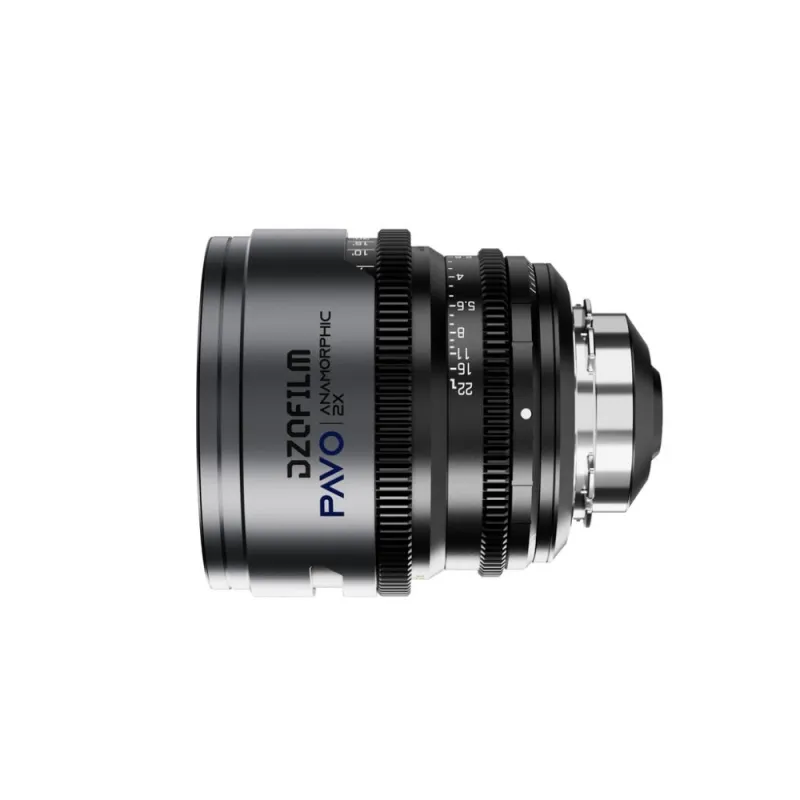

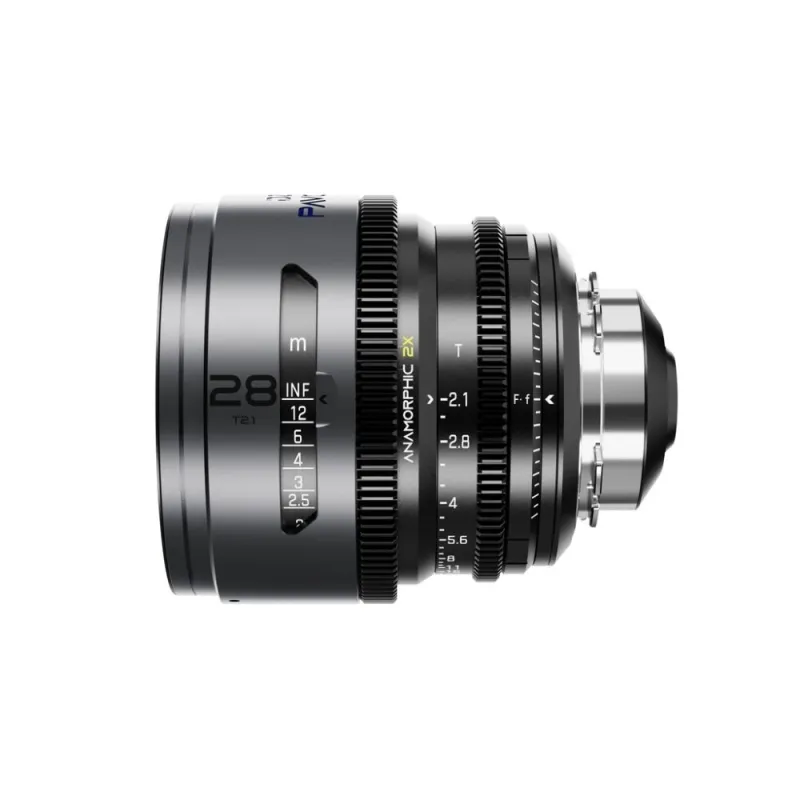

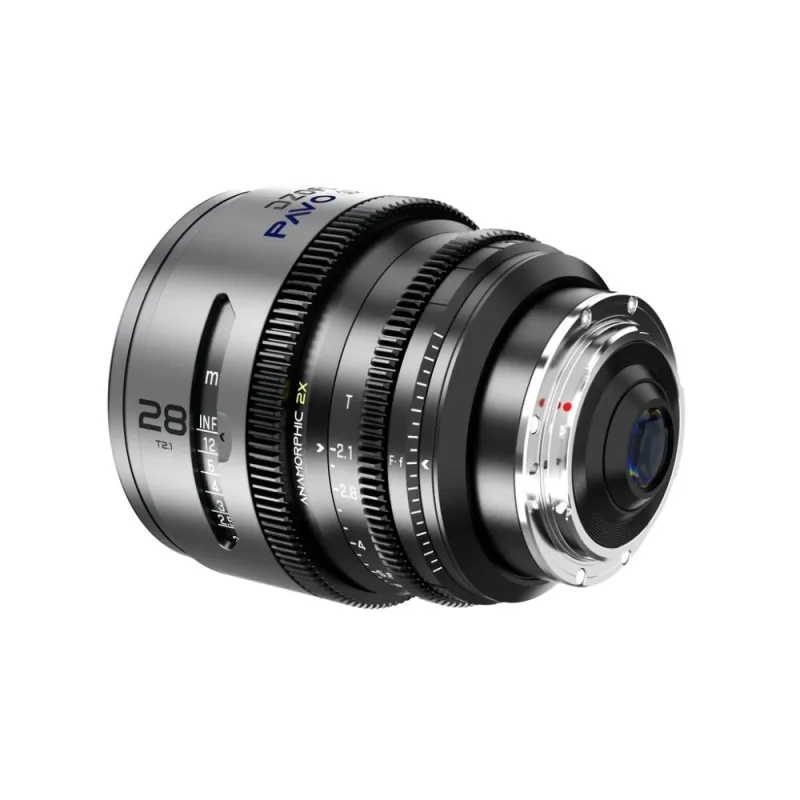

DZOFILM Pavo 2x Anamorphic 28mm T2.1 for PL/EF Mount (S35) metric - Blue Coating (DZO-PA2821PLMB)

The concept of DZOFILM is to explore more possibility and incorporate it into daily filming and thinking. At DZOFILM it is all about the interaction and  the relationship between the cinematographer and their projects.

There is no need to look for other cine-lenses or hesitate. DZOFILM is dedicated to balance the harmony between aesthetics and utility and keep their cine-lenses compact and versatile. This way DZOFILM cine-lenses are enabling a swift and fast workflow and amazing footage.

The Pavo 2x Anamorphic Cinematic Lenses with two different coatings boasts great appeal and friendliness for filmmakers who are keen for creating wide-screen videos. Moreover, this brand new series of DZOFILM in all-metal body adopting a blend of black and space gray prides itself on catering to medium-to-high-budget production. Consisting of 6 lenses from 28mm to 100mm, they can also work well with full-frame cameras if paired with the DZOFILM Marlin expanders.

Creating An Immersive World of Visual Storytelling
Combing Super 35 and a 2x squeeze factor, the Pavo Series are veritable anamorphic lenses, being compatible with various cinema cameras and providing alluring waterfall bokeh. The 2x compressive factor offers a broader FOV, presenting more details directors would like to express through background with protagonists natural reproduction on screen.

Featuring Tableaux of Distinctiveness And Texture
With the design of blue and neutral coating, the Pavo lenses generate horizontal blue or other different flares under multiple lighting sources, creating tableaux of mesmerizing and cinematic scenes while maintaining clarity. Apart from outstandingly controlling classic barrel distortion featured by anamorphic lenses, the Pavo Series also excels in minimizing chromatic aberration even under wide open, and reproducing natural skin complexion and vibrant colors.

Inspiring More Creations Possible
Breaking the stereotype of bulky anamorphic lenses, the solid yet lightweight Pavo weighing 1.2-1.6kg with a front diameter of only 95mm is easy to carry and suitable to apply in drones and Steadicam shooting. The minimum focus distances across all focus lengths are shorter than we expected in general anamorphic lenses, enlarging possibilities to bring out as diverse scenarios as possible. The consistent fast aperture of T2.1 of 28mm, 32mm, 40mm, 55mm, 75mm and T2.4 of 100mm ensures excellent image quality even in low light conditions and provides a more cost-effective shooting solution.

Convenient Back Focus Adjustment
PAVO lenses feature a built-in back-focus adjustment, enabling precise adjustment while adapting to different cameras or changing mounts, making the workflow more efficient and fast.

Bundle design
There are six golden focal lengths; 28mm, 32mm, 40mm, 55mm, 75mm with consistant T2.1 and 100mm with T2.4 which makes it more easy for filmmakers to use them through out one project.

S35, 2X Compression factor
The format is unworried to match with various cinema cameras, and the 2X anamorphic magnification brings excellent WATERFALL BOKEH. The combination of S35 and 2X is so-called the TRUE anamorphic.

Small Size & Lightweight
The lightweight size of Pavo Anamorphic lenes reduces the burden on filmmakers/ video-makers, and it is a perfect match for drones, Steadicam and other shooting equipment.

Breaking through the anamorphic limitaion of closest focusing
The close focusing distance of all Pavo lenses is shorter than any anamorphic lenses on the market. This provides the possibility of diverse and multi-scene presentations for videos and feature films.

Pleasing barrel distortion, classic anamorphic with modern design
Low distortion rate design, retaining classic anamorphic user experience without losing good image quality in style.

Beautiful horizontal flare, excellent image quality
Blue and silver flare colors are availableWell controlled and soft flare, pictures can still keep clean when shooting night scenes and with multiple light sources.

Technical Specifications

Focal Length

28mm

Flare Type

Blue Coating

Mount

PL/EF

Aperture

T2.1-T22

Image Circle

31,5 mm (S35)

Construction of Optics

15 Elements in 13 Groups

Flange Distance

52mm (PL) / 44mm (EF)

Close Focus

0.4m

Squeeze Factor

2x

Iris Control

Manual (79°)

Focus Control

Manual (270°)

Front Dia.

95mm

Length

106,3mm

Iris Blade

14

Filter Size

M86

Gear Pitch

0.8 Mod

Material

Aluminium

Weight

1203g

Delivery Content

1 x Pavo 2x Anamorphic 28mm T2.1 for PL/EF Mount metric - Blue Coating
1 x Front Cap
1 x PL Rear Cap
1 x EF Bayonet
1 x EF Rear Cap
2 x Screw packs
1 x Shim set
1 x Screwdriver
1 x Sticker
1 x Warranty card
