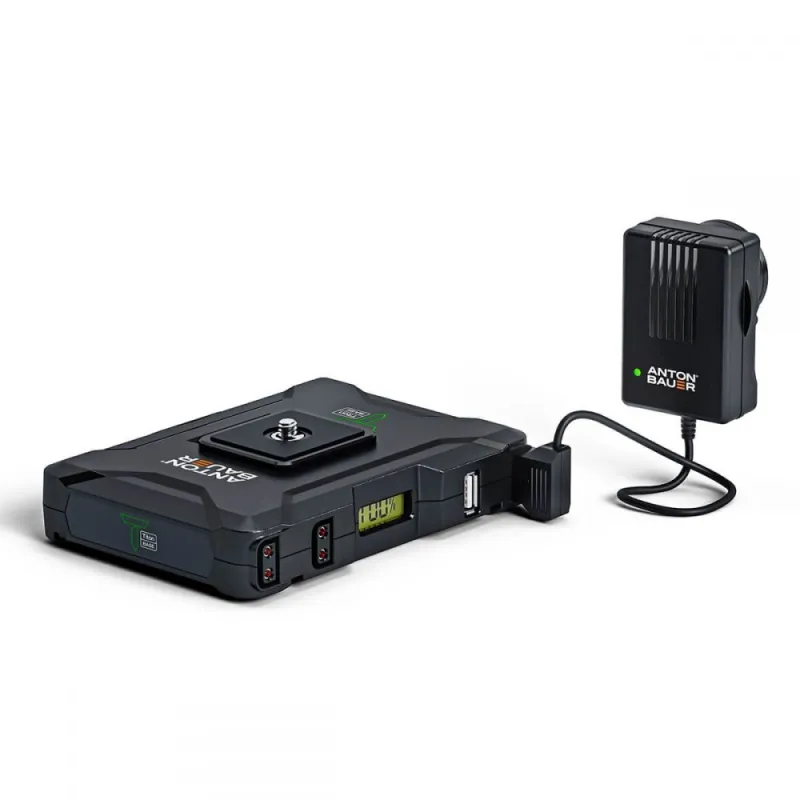

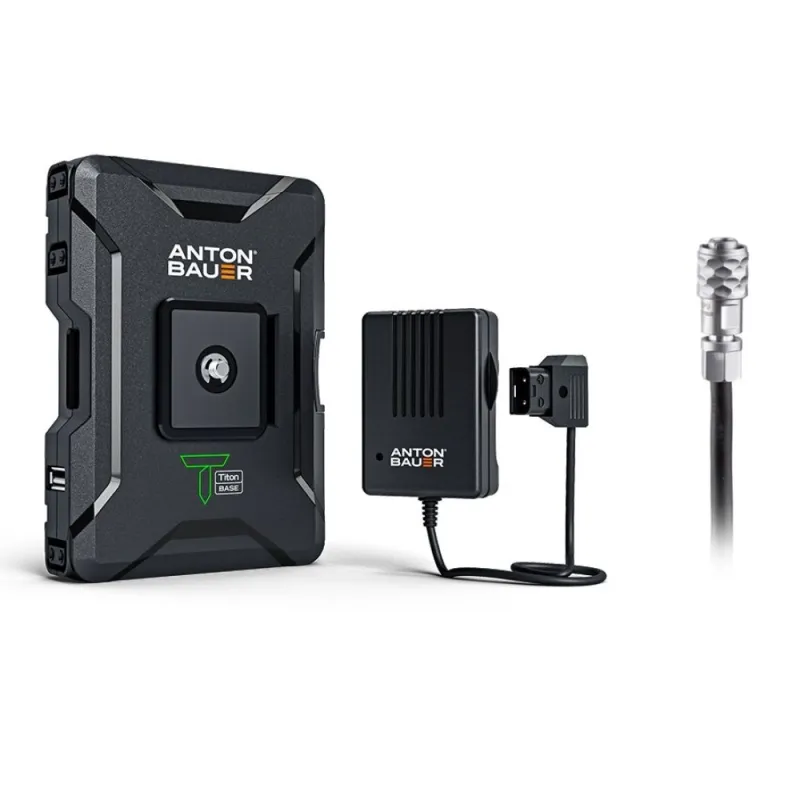

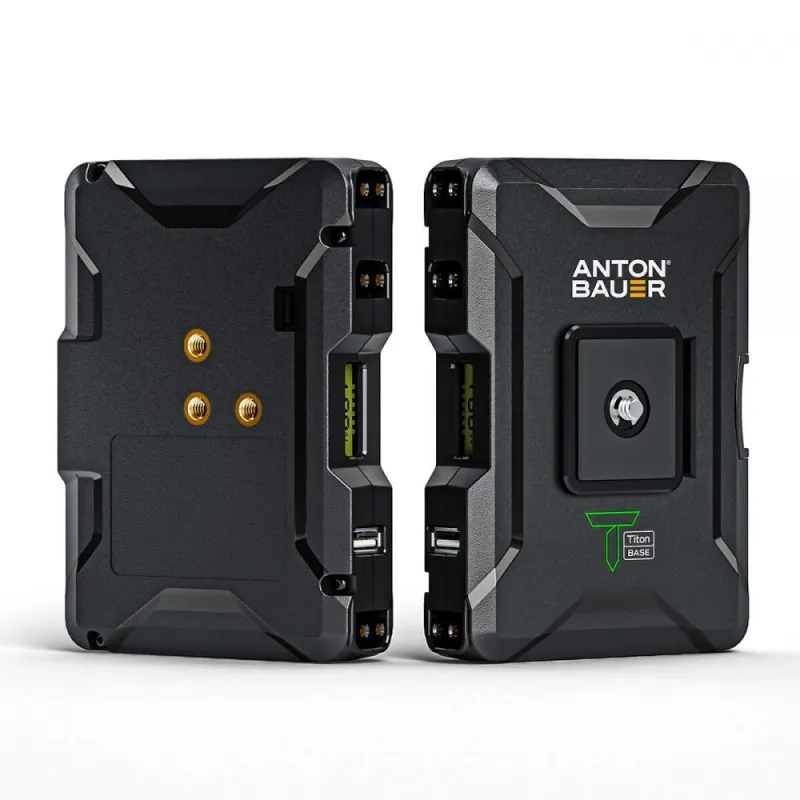

Anton Bauer Titon Base Kit, for Blackmagic Lemo input (8275-0131)

The slimmer, lighter, more powerful power base for compact cine cameras Titon Base is a 68Wh portable power hub designed to deliver hours more runtime than the consumer batteries supplied with cameras in a lightweight, travel-friendly form. Run Blackmagic Pocket Cinema 4k / 6k cameras or similar camera systems for longer than any other Base battery. Base mounts under the camera to create a perfectly balanced base safely away from camera controls. The quick-release plate and Integrated ¼”-20 mounts allow Titon Base to be quickly released from your camera and mounted to a tripod or camera support with a simple click for fast-moving hand-held action.

• 68Wh, lithium-ion battery
• 8A continuous draw
• 1 1/8” (29mm) slim
• 3 x P-Tap output/charging ports
• 5V 2A USB port with Apple-ID for fast charging
• Built-in LCD fuel gauge shows runtime and charge capacity
• Quick release plate with ¼”-20 mount

Lightweight, compact, power distribution hub
The powerful yet slim and light Titon Base delivers 68Wh of consistent power to run DSLR, mirrorless and small-form pocket cinema cameras for hours. A single lightweight compact power hub with 20” P-Tap to Blackmagic Pocket Cinema Camera 4K / 6K lemo style cable and P-Tap cable with Dummy LP-E6 allows you to power the BMPCC4K or BMPCC6K with your Titon Base Battery through either line input or with a replacement dummy battery. Titon Base will run cameras more than five times longer than the standard manufacturer batteries supplied allowing you to stay fast and agile. Three P-Tap ports and a high-speed USB port deliver dependable premium power for camera accessories including monitors, and wireless transmitters or even a boost to your phone at the end of a long day.

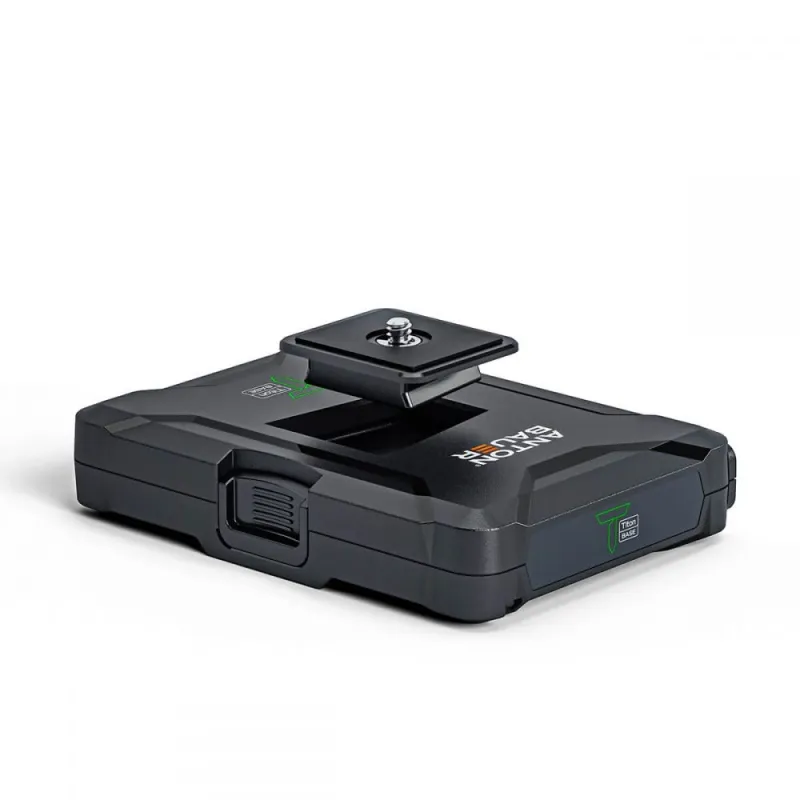

Quick release mounting plate
Better connected. Mount cameras to Titon Base in a snap and release in an instant with the built-in quick-release plate providing seamless transition from mounted to handheld shooting. Integrated ¼”-20 inserts allow the Titon Base to be securely mounted under your camera and mounted to a tripod, gimbal or other camera support perfectly placing the center of gravity to create a balanced camera rig that’s easier to operate.

Advanced onboard LCD fuel gauge
Knowledge is power. With Titon Base there is no guesswork, the built-in LCD fuel gauge displays the remaining runtime of your camera and any other connected device down to the minute and the battery charge level when it’s not connected. Confirm the battery status in an instant allowing you to focus your attention on the action in front of the camera.

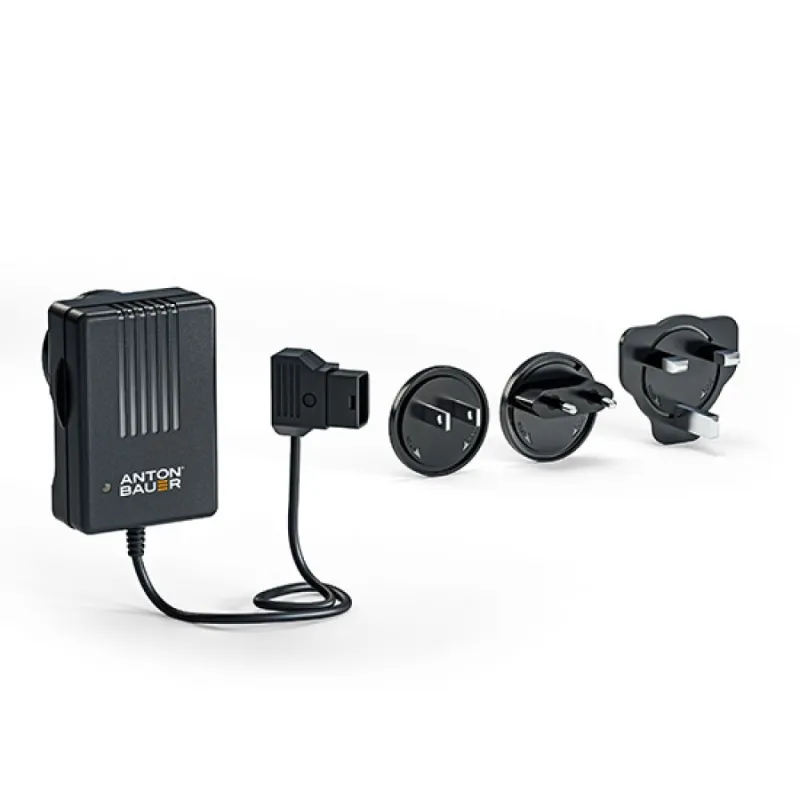

• P-Tap Charger (8475-0142)

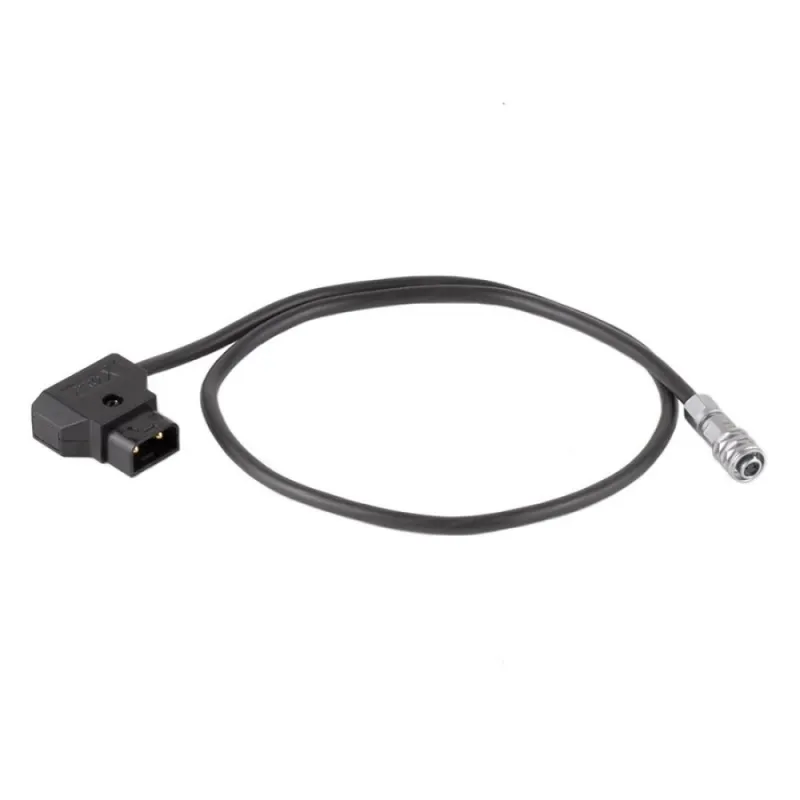

• P-Tap to BMPCC4K / BMPCC6K (Blackmagic Pocket Cinema Camera 4K / 6K) (8075-0309)
• Titon Base (8675-0169)

Technical Specifications

Chemistry

Lithium-ion

Voltage

14.4 V

Capacity

68 Wh

Max current

8 Amps

Power tap

Yes

USB

Yes

Weight

520 g

Height

29 mm

Width

101 mm

Depth

142 mm
