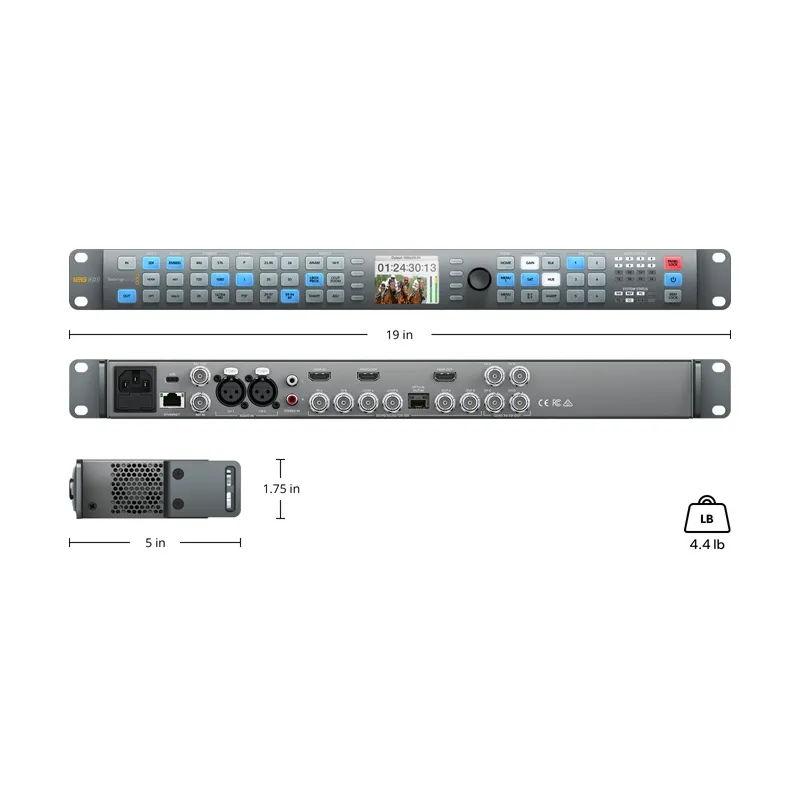

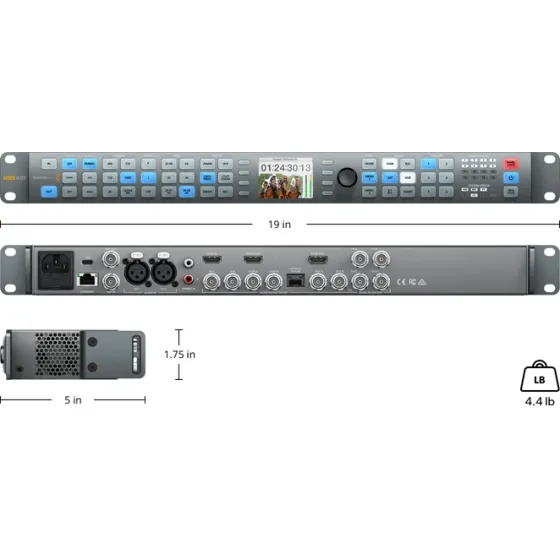

Blackmagic Teranex AV

Teranex AV is a new broadcast quality standards converter designed specifically for AV professionals. Teranex AV features 12G-SDI and HDMI 2.0a inputs, outputs and loop through, along with AV specific features such as low latency, a still store, freeze frame, and HiFi audio inputs for professionals working on live, staged presentations and conferences.

The new Teranex AV features low latency that’s as low as 67 milliseconds, which means that customers can convert any HDMI or SDI video format instantaneously to a different format and output it for projection in sync with the live event. For example, customers using Teranex AV at a concert can project a close up of a virtuoso pianist as their fingers fly across the keys on a big screen projector in synchronization with the live performance.

In addition, customers get advanced HDMI 2.0a processing with input, loop through and output connections. This lets customers convert HDMI to SDI without any additional hardware. They can loop the HDMI signal out to a big screen projector while simultaneously converting it and and sending it to downstream equipment like decks and monitors.



For audio, Teranex AV also features 2 channel consumer HiFi connections, as well as XLR connections for 4 channels of AES/EBU or 2 channels of balanced analog audio. The consumer HiFi connections are critical for professional AV customers because they allow lapel microphones, laptop computers and other devices with consumer audio connections to be used with Teranex AV. Now customers can connect virtually any audio source to Teranex AV and use it to embed the audio with the video and output the signal in any format.

Teranex AV also features a still store that can capture a video frame in any format and hold it in memory, even when the power is cycled. Customers can preload corporate logos or graphics to display between presenters at conferences, or for outputting sponsor logos at concerts and events between acts. Plus, Teranex AV has built in resynchronization, so customers always get clean switches between the still store and live feeds for professional looking presentations.



There’s even a live freeze frame feature that temporarily holds any current frame on the screen until Teranex AV is switched to another video output, a black frame, or the still store. This is ideal for conferences and events where customers might need to hold a slide on screen while the presenter makes changes to their presentation in the background. The freeze frame and still store make it possible to always have something on screen at all times.



In addition to HDMI and 12G-SDI connections, Teranex AV also includes quad link 3G-SDI outputs, making it compatible with a wide range of older Ultra HD monitors and projectors that only support quad link SDI 1080 HD inputs. This also makes Teranex AV a great video wall processor because it can split Ultra HD into 4 HD screens, or it can scale regular HD up, split it and output it onto 4 large screens for a tiled video wall. That means customers can create massive multi-screen outdoor displays and digital signs that will amaze the crowd at live events!



Customers also get BNC input and output connections for generating or receiving reference signals. The built in ethernet connection allows for remote control, and an optical fiber cage is available for adding optional SMPTE fiber optic modules so customers can send video and audio over massive distances. Teranex AV even has rear brackets to protect cables and connectors from damage during portable, outside broadcast, or field work.



With Teranex AV, customers get 1089 up, down, cross and standards conversions for all formats up to 2160p60 in full 10-bit quality. Like all Teranex processors, Teranex AV features patented algorithms and powerful processing that give customers visually transparent conversions that are indistinguishable from the original. Conversions use optical quality scaling, have advanced de-interlacing, noise reduction, automatic 3:2 cadence detection, removal and insertion, and retain timecode, ancillary data, audio and more.

Teranex AV

SD card with software and manual

2 x Bumper guards with 4x M4 screws

Connections

SDI Video Inputs

1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.

1x BNC (IN B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as 2nd input or for dual link input for 4:2:2 3G or 6G Ultra HD

SDI Video Input L oops

1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.

1x BNC (IN B Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.

SDI Video Outputs

1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.

1x BNC (OUT B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as dual link output for 4:2:2 3G or 6G Ultra HD.

Quad SDI Video Outputs

4x BNC (Channels A, B, C, D) - 10-bit 3G-SDI Quad Link or Quad HD Split for Ultra HD p50/59.94/60; 10-bit 1.5G-SDI Quad HD Split for Ultra HD p23/24/25/29/30. For other output formats, these connectors will supply four replicated SDI outputs.

HDMI Video Inputs

1x HDMI 2.0 type A connector. YUV or RGB, auto switching.

HDMI Video Loop Inputs

1x HDMI 2.0 type A connector. Active Input loop.

HDMI Video Outputs

1x HDMI 2.0 type A connector. YUV or RGB, user selectable.

SDI Audio Inputs

16 channels in SD, HD, 3G HD, 2K and Ultra HD.

SDI Audio Outputs

16 channels in SD, HD, 3G HD, 2K and Ultra HD.

HDMI Audio Inputs

8 channels in SD, HD, 3G HD, 2K and Ultra HD.

HDMI Audio Outputs

8 channels in SD, HD, 3G HD, 2K and Ultra HD.

Optical Fiber Connection (optional)

1x SMPTE optical fiber SFP socket.

Optical Fiber Video Inputs

1x 10­bit SD, HD, 3G HD, 2K, Ultra HD auto switching.

Optical Fiber Video Outputs

1x 10­bit SD, HD, 3G HD, 2K, Ultra HD auto switching.

Optical Fiber Audio Inputs

16 channels in SD, HD, 3G HD, 2K and Ultra HD.

Optical Fiber Audio Outputs

16 channels in SD, HD, 3G HD, 2K and Ultra HD.

Analog Audio Inputs

2x XLR - 2 channels professional balanced analog audio (XLRs are shared with AES/EBU inputs) .
2x RCA - stereo unbalanced analog audio on RCA connectors for consumer equipment.

AES/EBU Digital Audio Inputs

2x XLR - 2 pairs (4 channels) professional 110Ω balanced digital audio (XLRs are shared with analog inputs)

Dolby® Support Built In

Dolby® AC-3 pass through in all conversions. Dolby® E pass through except during video frame rate conversions.

Timecode Inputs

Support for VITC/ATC. No support for LTC.

Timecode Outputs

Support for VITC/ATC. No support for LTC.

Multi Rate Support

SDI connections are switchable between standard definition, high definition and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.

Reference Input

1x BNC - Black Burst in SD or Tri-level sync in HD.

Reference Output

1x BNC - Internal reference generator providing blackburst or tri-level sync output at the current output frame rate.

Computer Interface

1 x USB type C port for software updates. 1 x RJ45 Gigabit Ethernet for remote control and configuration.

Processor Interface

Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.

Conversions

Operating Systems

Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

Windows 10, 64-bit.

Physical Specifications
