Blackmagic Design Blackmagic ATEM 1 M/E Constellation HD

Blackmagic ATEM 1 M/E Constellation HD

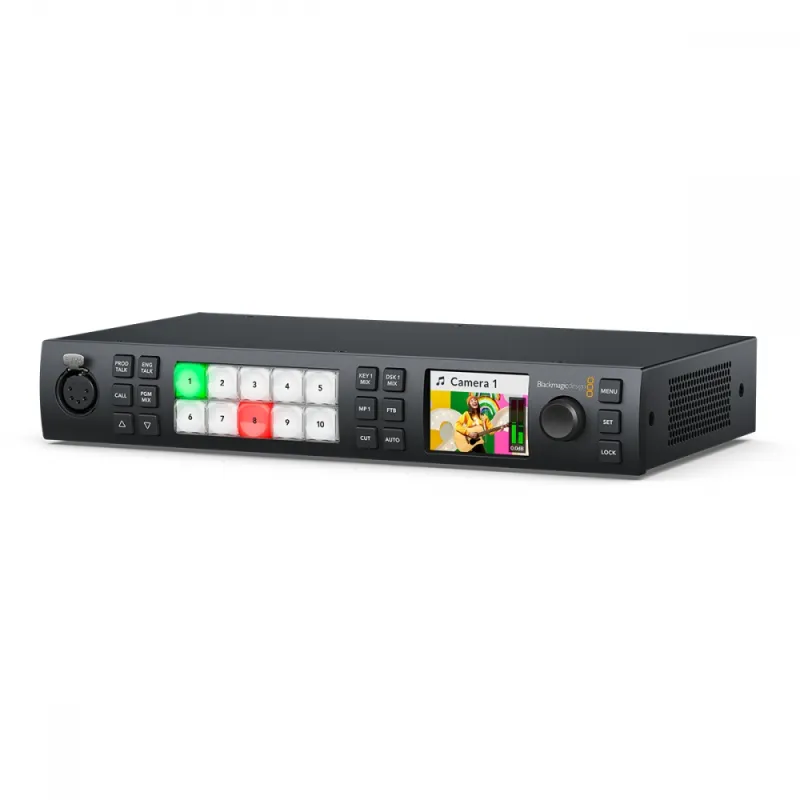

ATEM 1 M/E Constellation HD is a high definition live production switcher packed with advanced features! The single M/E design includes 10 standards converted 3G‑SDI inputs and 6 independent 3G‑SDI aux outputs! It also includes a USB webcam output, DVE, chroma keyers, media players, multiview and more!

• Powerful 1 M/E live production switcher
• 10x standards converted 3G-SDI inputs
• 6x 3G-SDI outputs
• 4x chroma keyers, DVE, multiview & talkback
• 1x USB-C Webcam-Output

In the Box
(1) ATEM 1 M/E Constellation HD
(1) Welcome wallet with QR code for software download

Technical Data

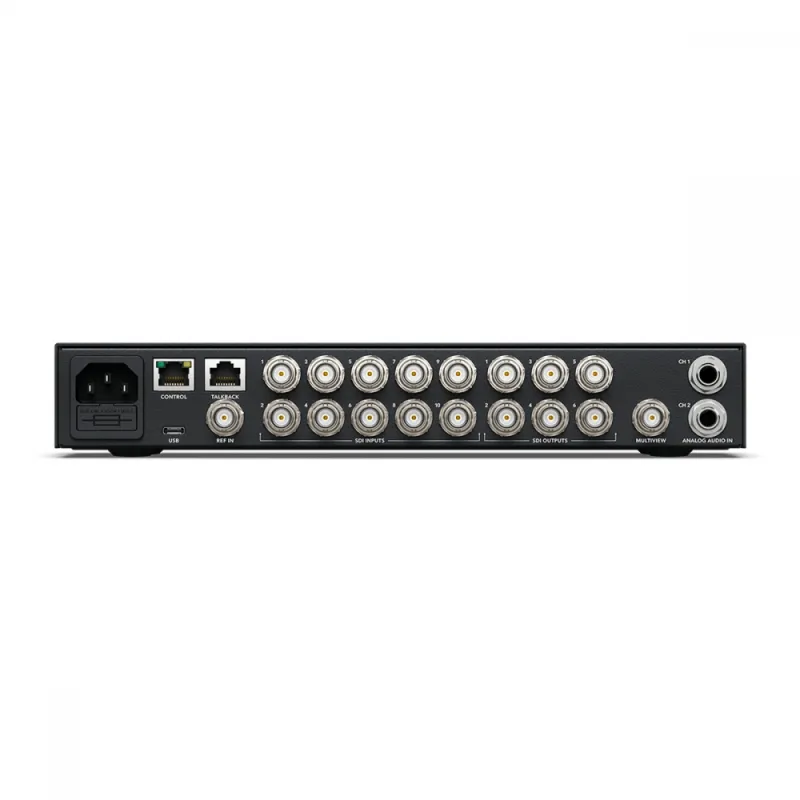

Connections

Total Video Inputs

10

Total Video Outputs

6

SDI Rates

1,5G, 3G

Total Audio Inputs

2x balanced 1/4 inch Jack
1x 5 pin XLR Talkback

Total Audio Outputs

1x 5 pin XLR Talkback

SDI Audio Inputs

2 Ch embedded audio on all SDI inputs

SDI Audio Outputs

2 Ch embedded audio on all SDI outputs

Timecode Connections

None

Reference Input

Tri-Sync or Black Burst

Video Input Re-Sync

On all 10 inputs

Frame Rate and Format Converters

On all 10 inputs

SDI Aux Outputs

Any of the 6 SDI outputs

SDI Preview Outputs

Any of the 6 SDI outputs

SDI Program Outputs

Any of the 6 SDI outputs

Down Converted SDI Program Output

None

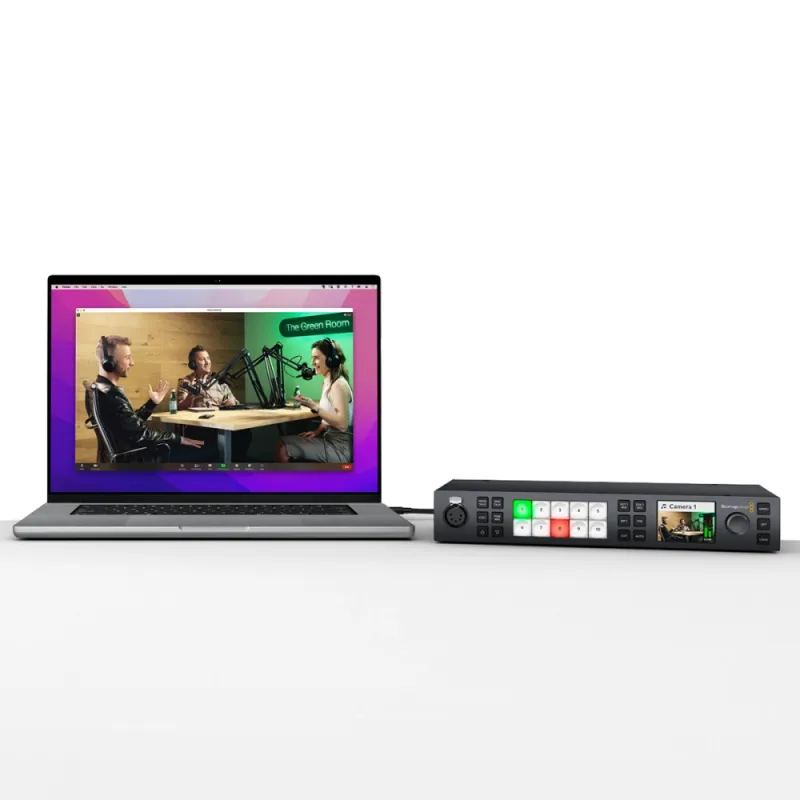

Webcam Output

1x USB-C supporting 720p or 1080p at PGM frame rate

Total Multi Views

1x 3G-SDI

Control Panel Connection

Ethernet. Direct connection between panel and chassis, or via network

Internal Timecode Generator

Yes

Talkback

RJ45 for 3rd party talkback systems

Tally Output

Added via ethernet connection to Blackmagic Design GPI and Tally Interface product.
(Not included)

Ethernet

Supports 10/100/1000 BASE-T

Computer Interface

1x USB-C supports USB 3.1 Gen 1 (5Gb/s)

SD Video Standards

None

HD Video Standards

720p/50; 720p/59,94; 720p/60
1080i/50; 1080i/59,94; 1080i/60
1080p/23,98; 1080p/24; 1080p/25; 1080p/29,97
1080p/30; 1080p/50; 1080p/59,94; 1080p/60

SDI Compliance

SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A und B

Video Sampling

4:2:2

Color Precision

10-bit

Color Space

REC 709

SDI Auto Switching

Automatically detects between 1.5G-SDI and level A or level B 3G-SDI

Upstream Keyers

4

Downstream Keyers

1

Advanced Chroma Keyers

4

Talkback Support

Yes

Mix Minus Support

Yes

Linear/Luma Keyers

5

Transition Keyer (Stinger/DVE)

1 Stinger, 1 DVE

Total Number of Layers

7

Pattern Generators

5

Color Generators

2

Control Panel

Front fascia emergency switching, software or optional hardware panel

Routable Windows

16

Tally

Red for program and green for preview indication

Windows Source Labels

Yes

Multi View Monitoring

1x multi view configurable to 16, 13, 10, 7 or 4 up view. Includes monitoring of Program, Preview, Inputs, Media Players, DSK, Clean Feed with optional labels and audio meters

Multi View Video Standard

HD

Display Minimum Resolution

1366 x 768

Media Players

2

Kanäle

Fill and key for each media player

Media Pool Still Image Capacity

20

Media Pool Clip Capacity

2x up zu 1080p60

Media Player Clip Length in 720 HD

400 frames

Media Player Clip Length in 1080 HD

200 frames

Media Pool Still Image Format

PNG, TGA, BMP, GIF, JPEG and TIFF

Media Pool Video File Format

TGA Sequence

Media Pool Audio File Format

WAV, MP3 and AIFF

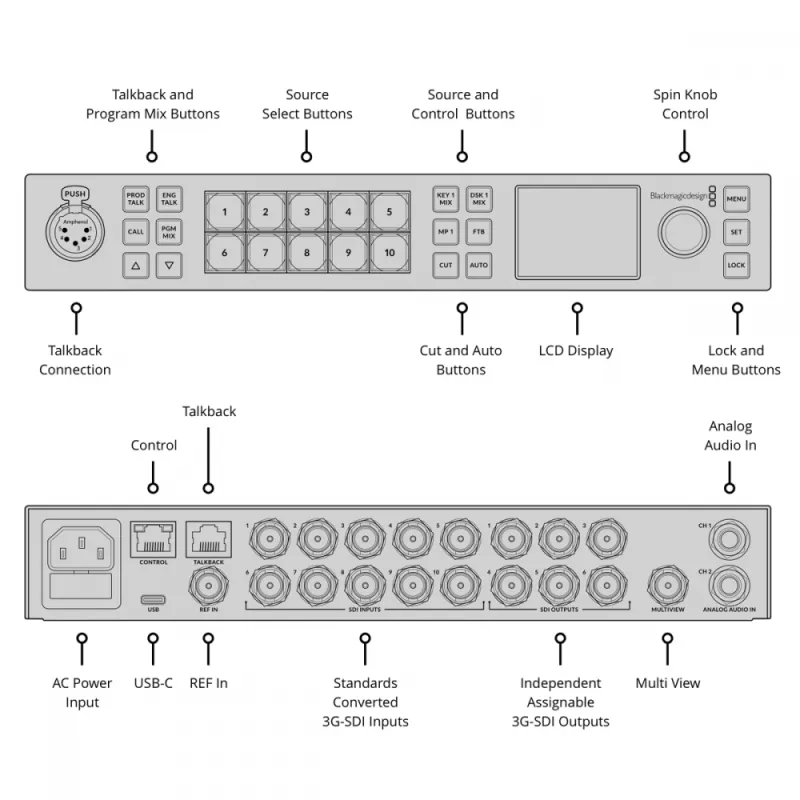

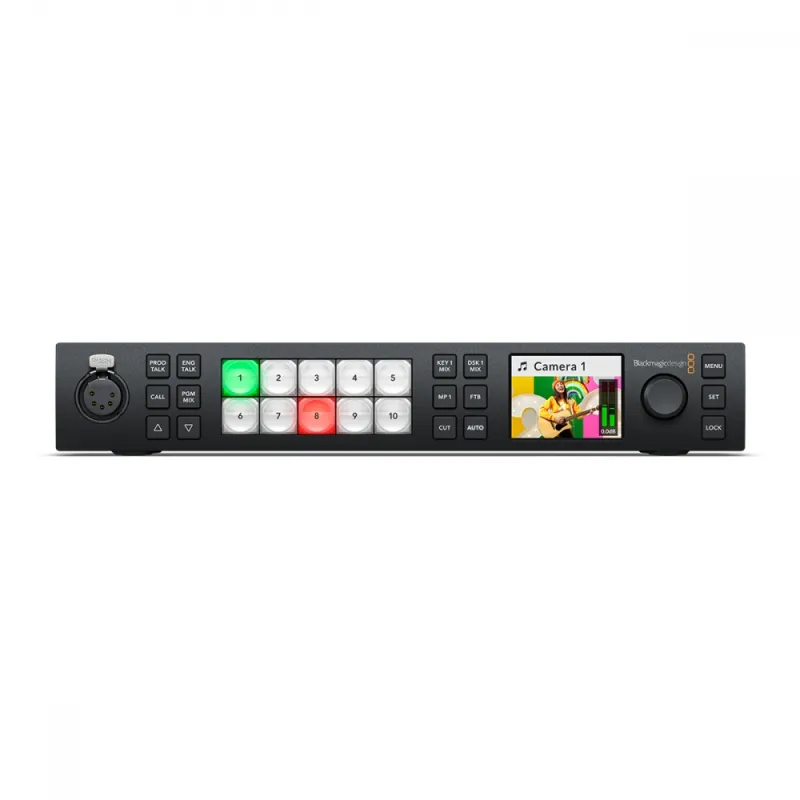

Front panel

Built in 2.2 inch LCD monitor for video, 10 LED buttons for setup and emergency switching, 4 source buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.

Processing Delay

< 10 lines

Audio Mixer

28 Channel mixer
Selectable On/Off/Audio-Follow-Video
Level and Peak metering
Master gain control
6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter

Down Conversion

None

Control Panel Included

ATEM Software Control Panel included free for Mac 11.11 Big Sur, Mac 12 Monterey or later and Windows 10 or 11

Software Updates

Using USB or Ethernet connection directly connected to Mac OS or Windows computers.
Includes ATEM Setup Utility

Set via ATEM Software Control Panel.
excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis

Operating Systems

Mac Big Sur 11.1, Mac Monterey 12.0 or later
Windows 10 and 11

Power Supply

1x Internal 100-240 AC

Power Usage

36W

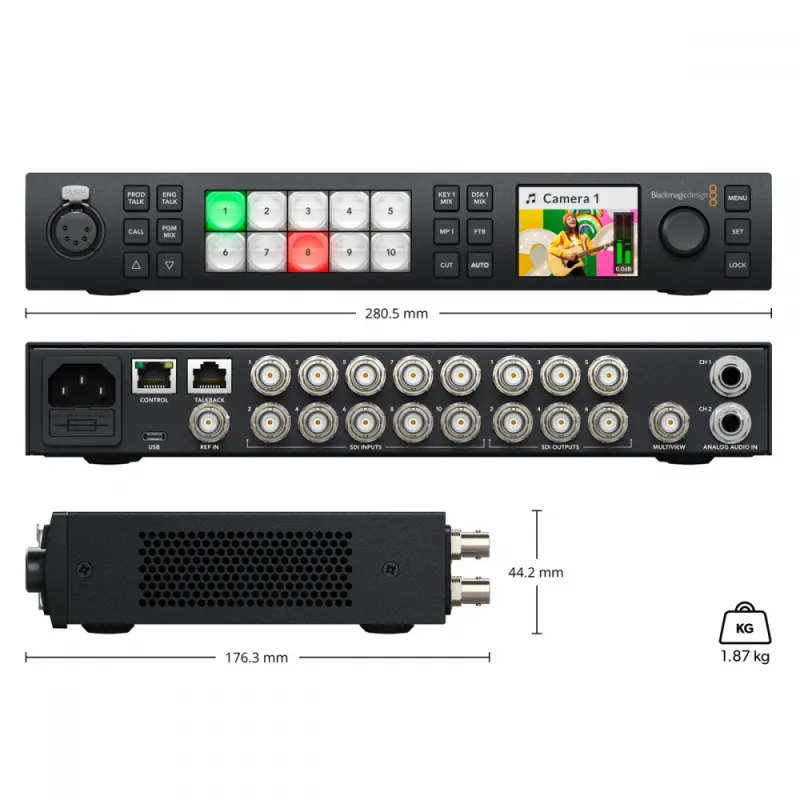

Dimension (BxTxH)

280.5 x 176.3 x 44.2 mm

Weight

1.87kg

Physical Installation

2/3 rack unit width, 1 rack unit height

Optional Accessories

Teranex Mini Rack Shelf

Operating Temperature

0 to 40° C (32° to 104° F)

Storage Temperature

-20 to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing

In the box

ATEM 1 M/E Constellation HD
Welcome wallet with QR code for software download

Warranty

12 Month Limited Manufacturer's Warranty
