Blackmagic Design Web Presenter 4K (BM-BDLKWEBPTR4K) BM-BDLKWEBPTR4K

Blackmagic Web Presenter 4K

• Complete streaming solution for YouTube, Facebook, Twitter and more
• Supports streaming via Ethernet or tethered phones via USB
• Built in broadcast quality hardware H.264 encoder
• Tethers to 5G or 4G phones for mobile remote streaming
• USB looks like a webcam allowing support for all video software
• Monitoring output includes meters, trend graphs and SDI technical data
• Includes Web Presenter Utility software for Mac and Windows
• 12G-SDI input with down conversion for any HD or Ultra HD source
• Both AC and DC connections allows redundant power
• 1/3rd rack width design allows 3 streams in a single rack unit

Now you can live stream to the world! Blackmagic Web Presenter is a complete streaming solution that includes a professional hardware streaming engine for direct streaming via Ethernet to YouTube, Facebook, Twitter and more! It’s just like a modern broadcast television transmitter for a new global streaming audience! Plus the built in USB connections work like a webcam, so you can connect a computer and use any streaming software, or even Skype or Zoom. For redundancy, you can stream to the internet via Ethernet or connect a 5G or 4G phone to use mobile data! Web Presenter also includes a technical monitoring output that includes video, audio meters, trend graphs and even SDI technical data!

Make Live Streaming Easy!
Blackmagic Web Presenter is a self contained solution that includes a powerful hardware encoder, software for connecting to streaming platforms, and network connections. That means you don’t need to buy an expensive computer or use complicated streaming software. Simply connect an SDI video source such as a live production switcher or a camera, then connect to the internet using the built in Ethernet connection. Or plug in a mobile phone to use mobile data! With settings built in for popular streaming platforms, you simply need to enter a streaming key and press on air! Plus you can simultaneously use the USB webcam output to connect to a computer, allowing other video software to be used!

Connect 5G or 4G Phones for Mobile Data
If you're streaming from a remote location, or you need a backup for the main Ethernet connection, you can plug in an Apple or Android phone to connect to the internet via mobile data. For convenience, there are USB connections on both the front and rear panel that can be used for tethering phones. Plus it works with the latest high speed 5G phones, as well as 4G phones! Blackmagic Web Presenter will auto detect when a phone is connected and switch its internet connection to use it. You can select Ethernet or phone priority, which makes phone internet backup fully automatic. Plus, by using phone tethering and mobile data, Web Presenter becomes the perfect remote location streaming solution!

USB Webcam Output for Video Software
For increased compatibility, Blackmagic Web Presenter also features two USB connections that operate as a simple webcam source. That means you can plug into any computer and work with any video software. The software is tricked into thinking the web presenter is a common webcam, but it's really a broadcast quality SDI video source! That guarantees full compatibility with any video software and in full resolution 1080 HD quality. Imagine connecting web presenter to a camera and then Skype or Zoom calling your client with live video of a shoot! Web Presenter works with any video software including Zoom, Microsoft Teams, Skype, Open Broadcaster, XSplit Broadcaster and more!

Built-in Technical Monitoring
Traditional broadcast transmitters are critical equipment in a television station, however now the streaming server is just as critical because millions of viewers can be watching globally! To help, Blackmagic Web Presenter includes a feature rich technical monitoring output. The graphics based monitoring output includes a video view, audio meters with accurate ballistics, trend graphs for codec data rates and cache fill, plus a summary of the streaming settings and detailed SDI technical information. Plus the technical monitoring output works in full 1080 HD and outputs to both SDI and HDMI. That means you can use an SDI router for monitoring multiple units, or connect a simple HDMI TV!

12G-SDI Supports 720 HD, 1080 HD and Ultra HD!
Blackmagic Web Presenter includes a 12G‑SDI input with support for all HD and Ultra HD formats up to 2160p60. A 12G‑SDI loop output is included enabling you to loop video through more than one web presenter, so you can stream to multiple services. Blackmagic Web Presenter features Teranex conversion technology on the SDI input for incredibly clean looking video.
Blackmagic Web Presenter takes the incoming HD or Ultra HD input signal and automatically converts it to high quality, low data rate 1080p HD or high resolution 2160p60 Ultra HD depending on the model, which is then sent to the hardware H.264 encoder for streaming. All this means you can use any HD or Ultra HD source for streaming!

Built in Redundancy Keeps You On Air!
Serious broadcasters love redundancy because it increases reliability. Blackmagic Web Presenter includes redundant features to help ensure you stay online. You get dual internet connections, so you connect to the internet using the built in Ethernet or a tethered phone for 5G or 4G mobile data. Plus the internet automatically switches in case of an outage! Or you can use 2 separate units to stream to both the primary and secondary YouTube servers. With both AC and DC inputs, you can use a broadcast battery pack for redundant power. There are even front panel buttons and menus, plus the Blackmagic Web Presenter Utility software for control.

Delivery Content
• Blackmagic Web Presenter 4K

Blackmagic Web Presenter 4K model has an upgraded Ultra HD resolution H.264 encoder for live streaming in native Ultra HD. The new Web Presenter 4K is a compact design that includes a 12G-SDI input with down converter, so customers can select to stream in 1080p HD or 2160p Ultra HD resolutions. This new model also simulates a USB webcam when connected to computers, and the USB webcam feature also supports 1080p HD or 2160p Ultra HD resolutions.

Blackmagic Web Presenter is a complete streaming solution that includes a professional hardware streaming engine for direct streaming via Ethernet to YouTube, Facebook, Twitter and more. It’s just like a modern broadcast television transmitter for a new global streaming audience. Plus the built in USB connections work like a webcam, so customers can connect a computer and use any streaming software, or even Skype or Zoom. For redundancy, customers can stream to the internet via Ethernet or connect a 5G or 4G phone to use mobile data. Web Presenter also includes a technical monitoring output that includes video, audio meters, trend graphs and even SDI technical data.

Blackmagic Web Presenter supports the most popular streaming platforms. Plus the built in hardware streaming engine has been designed for live streaming at professional broadcast quality. That means customers get a self contained solution for live streaming that works without dropped frames. Customers only need to connect it to the internet. Setup is easy, as the Web Presenter Utility software lets customers select the streaming platform and update the streaming key.

Blackmagic Web Presenter is a self contained solution that includes a powerful hardware encoder, software for connecting to streaming platforms, and network connections. That means customers don’t need to buy an expensive computer or use complicated streaming software. Simply connect an SDI video source such as a live production switcher or a camera, then connect to the internet using the built in Ethernet connection. Or plug in a mobile phone to use mobile data. With settings built in for popular streaming platforms, customers simply need to enter a streaming key and press on air. Plus customers can simultaneously use the USB webcam output to connect to a computer, allowing other video software to be used.

If users are streaming from a remote location, or customers need a backup for the main Ethernet connection, customers can plug in an Apple or Android phone to connect to the internet via mobile data. For convenience, there are USB connections on both the front and rear panel that can be used for tethering phones. Plus it works with the latest high speed 5G phones, as well as 4G phones. Blackmagic Web Presenter will auto detect when a phone is connected and switch its internet connection to use it. Customers can select Ethernet or phone priority, which makes phone internet backup fully automatic.

Blackmagic Web Presenter features two USB connections that operate as a simple webcam source. That means customers can plug into any computer and work with any video software. The software is tricked into thinking the web presenter is a common webcam, but it's really a broadcast quality SDI video source. That guarantees compatibility with any video software in full resolution 1080 HD or even 2160p Ultra HD quality, depending on the model. Web Presenter works with any video software including Zoom, Microsoft Teams, Skype, Open Broadcaster, XSplit Broadcaster and more.

Traditional broadcast transmitters are critical equipment in a television station, however now the streaming server is just as critical because millions of viewers can be watching globally. To help, Blackmagic Web Presenter includes a feature rich technical monitoring output. The graphics based monitoring output includes a video view, audio meters with accurate ballistics, trend graphs for codec data rates and cache fill, plus a summary of the streaming settings and detailed SDI technical information. Plus the technical monitoring output works in full 1080 HD and outputs to both SDI and HDMI. That means customers can use an SDI router for monitoring multiple units, or connect a simple HDMI TV.

The Blackmagic Web Presenter Utility software provides a single place to manage multiple web presenters and to update the settings and software. Simply plug directly into the front of the web presenter’s USB connection, or connect using Ethernet so customers can configure remotely, which is important when users are managing multiple remote sites. The familiar menus and controls make it very easy to set up a live event, so customers can get started fast. Plus the front panel LCD menus have the same settings and controls. The Blackmagic Web Presenter Utility software is included free and runs on both Mac and Windows platforms.

Blackmagic Web Presenter includes a 12G-SDI input with support for all HD and Ultra HD formats up to 2160p60. A 12G-SDI loop output is included enabling customers to loop video through more than one web presenter, so customers can stream to multiple services. Blackmagic Web Presenter features Teranex conversion technology on the SDI input for incredibly clean looking video. Blackmagic Web Presenter takes the incoming HD or Ultra HD input signal and automatically converts it to high quality, low data rate 1080p HD or high resolution 2160p60 Ultra HD depending on the model, which is then sent to the hardware H.264 encoder for streaming.

Blackmagic Web Presenter includes redundant features to help ensure customers stay online. Customers get dual internet connections, so customers can connect to the internet using the built in Ethernet or a tethered phone for 5G or 4G mobile data. Plus the internet automatically switches in case of an outage. Or customers can use 2 separate units to stream to both the primary and secondary YouTube servers. With both AC and DC inputs, customers can use a broadcast battery pack for redundant power.

While Blackmagic Web Presenter can send video to a wide range of streaming services, it can also be used as a private broadcast SDI video link between studios. The ATEM Streaming Bridge is a video converter that lets customers receive the H.264 stream from Blackmagic Web Presenter and then convert it back to SDI video. This means customers can send video between remote locations across their local Ethernet network, or via the internet globally. That's all possible due to the built in H.264 hardware codec that decodes the Web Presenter stream.

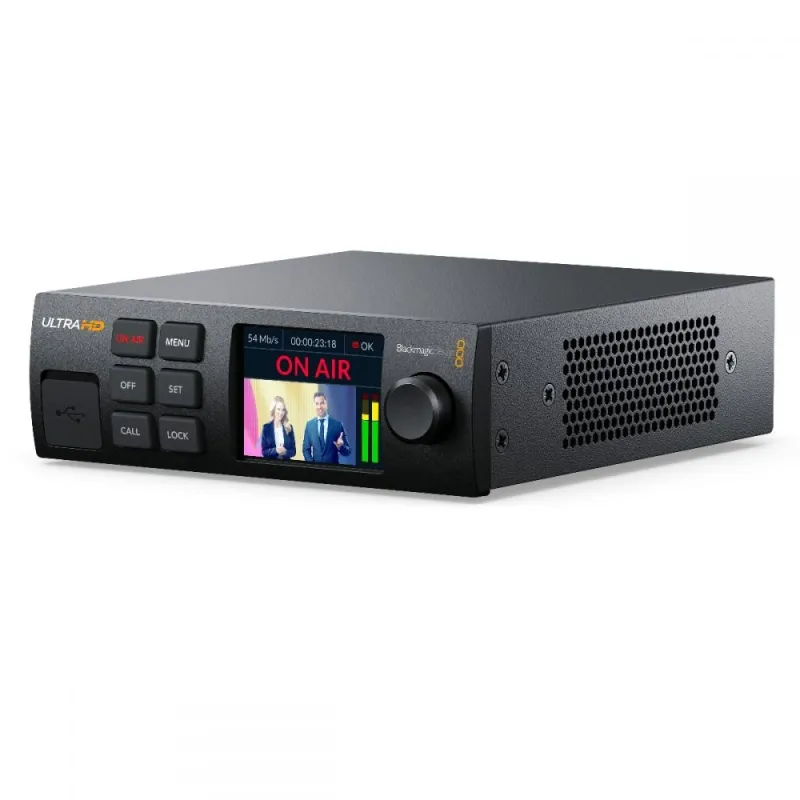

Blackmagic Web Presenter is based on the modular Teranex Mini design allowing desktop or rack use. The extremely portable design is only 5.5 inches wide, which means customers can mount 3 in a single rack unit, perfect when customers need to stream to multiple independent services all at the same time. Plus customers can combine Blackmagic Web Presenter with other products such as the ATEM Television Studio HD switcher for a live production and streaming solution in a single rack unit.

Blackmagic Web Presenter 4K

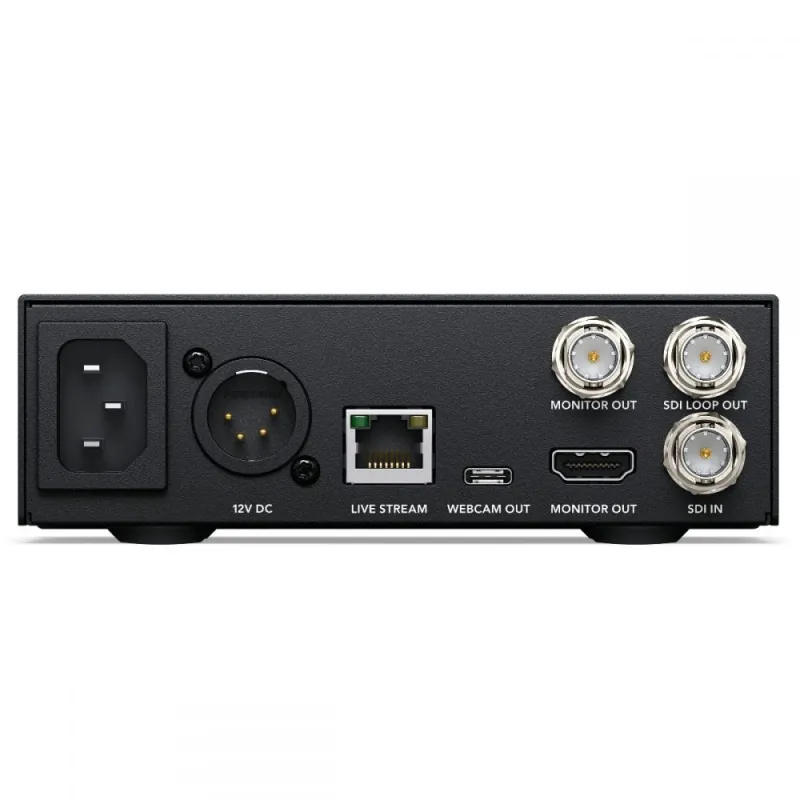

Connections
SDI Video Inputs
1

SDI Video Outputs
1 x loop out, 1 x monitor out.

SDI Rates
1.5G, 3G, 6G, 12G

HDMI Video Outputs
1 x monitor out

Webcam Output
1 x USB-C up to 2160p60

Ethernet
Ethernet supports 10/100/1000 BaseT for live streaming, software control and software updates.

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Video Input Color Space
Rec.601, Rec.709, Rec.2020

3G SDI
Auto detects SMPTE level A or B on SDI input.

Standards
HD Video Input Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
Ultra HD Video Input StandardsSDI and HDMI Monitor Out Video Standards
1080p50, 1080p59.94, 1080p60
Video Streaming Standards
720p25, 720p30, 720p50, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Streaming
Direct Streaming
Blackmagic Web Presenter 4K supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP).

Closed Captions
Web Presenter 4K supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream.

Control
Control Panel

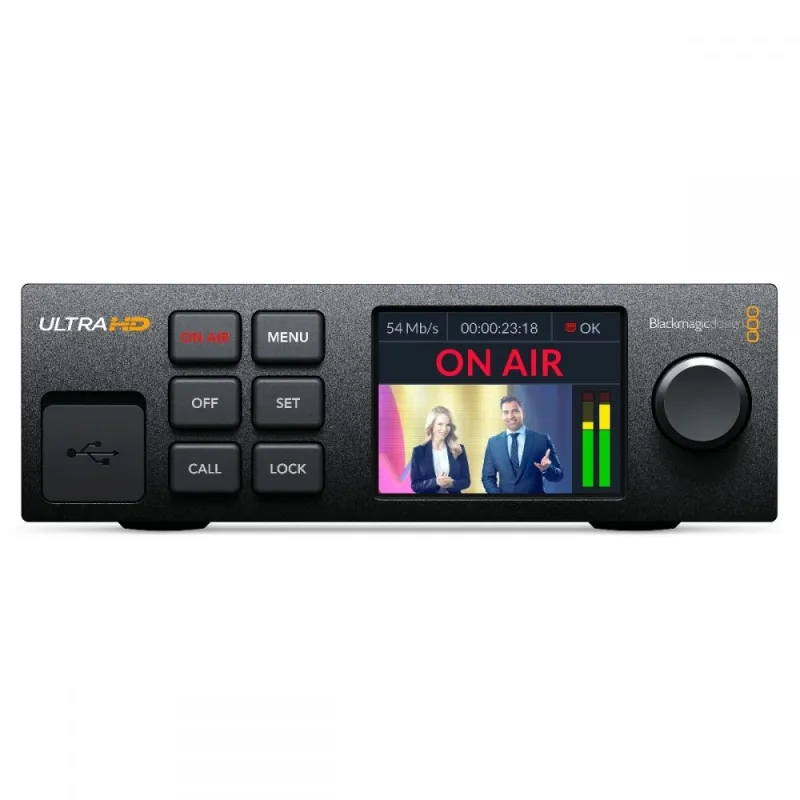

Built in control panel with 2.2 inch color display for video preview, audio meters and status.

Device Control
Front panel, USB‑C or ethernet.

Software
Compatible Services and Software
YouTube Live, Facebook Live, Twitter, Twitch, Skype, Microsoft Teams, Open Broadcaster and Wowza Streaming Engine.

Operating Systems
Mac icon
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

Windows Icon
Windows 10, 64-bit.

Linux icon
Linux

Chrome Icon
Chrome OS

Power Requirements
Power Supply
1 x Internal 100 - 240V AC.

12V DC Input
1 x +12V DC 4‑pin XLR.

Power Usage
25 W
