Blackmagic Design Multiview 4 HD (BM-HDL-MULTIP3G/04HD) BM-HDL-MULTIP3G/04HD
19683
HDL-MULTIP3G/04HD
9338716005424
Новое
255.46
Лизинг. калькулятор
Сравните аналогичные товары
Сравните аналогичные товары

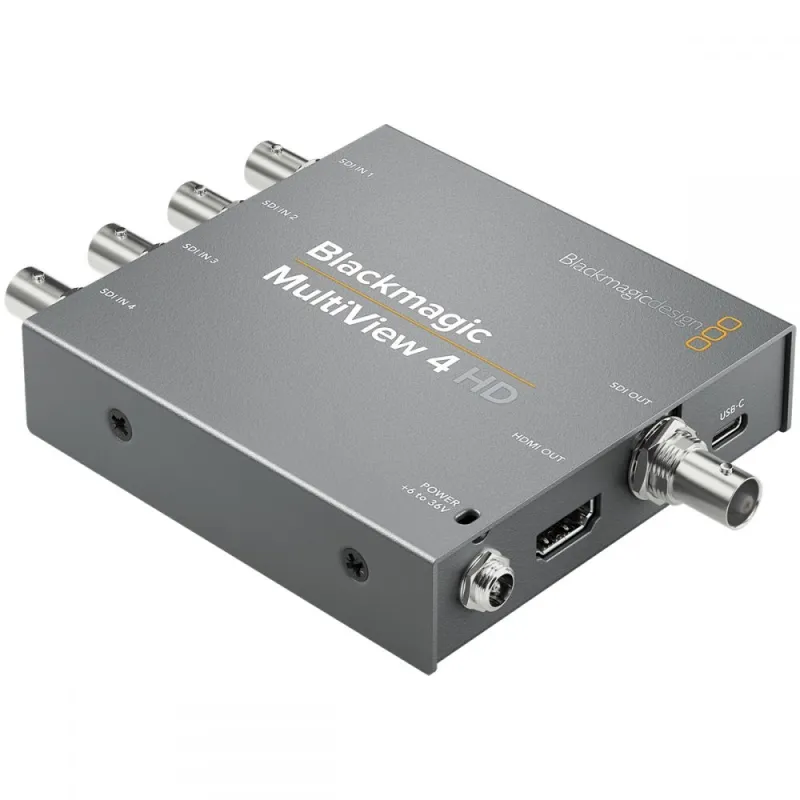

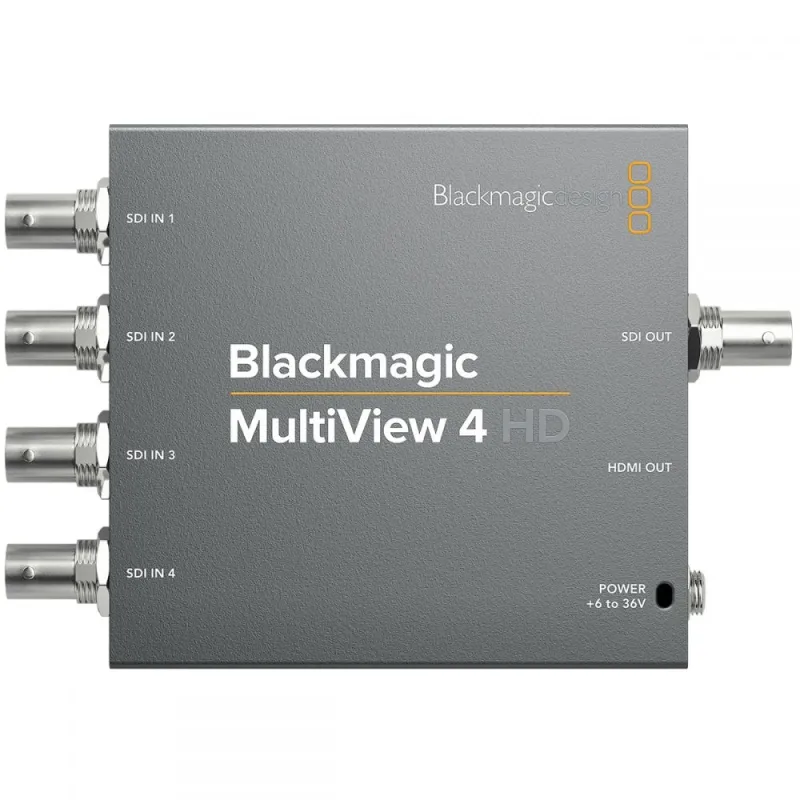

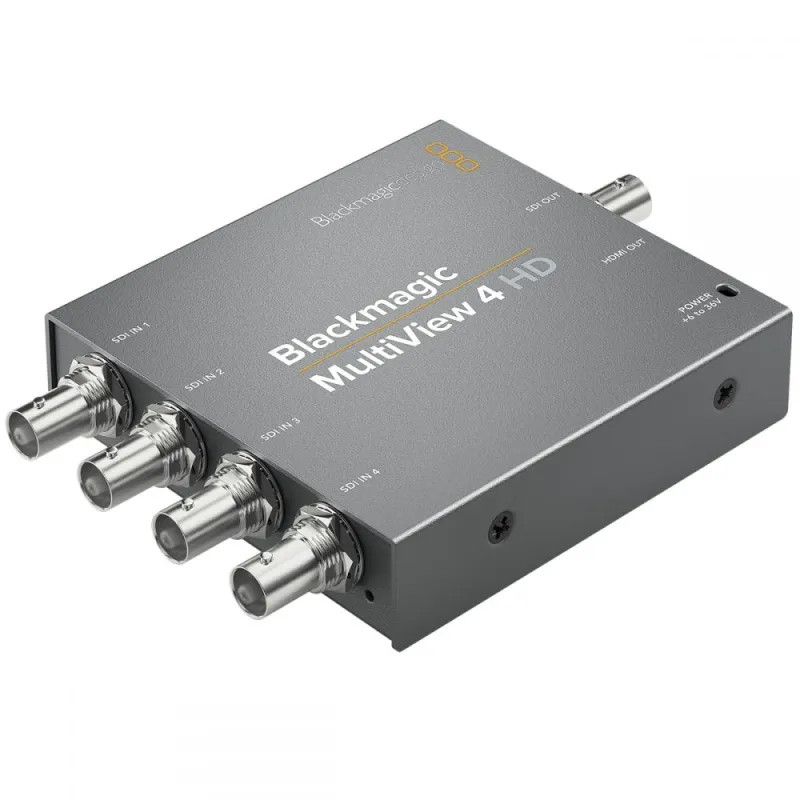

Blackmagic Multiview 4 HD
The new Blackmagic MultiView 4 HD model is a low cost multi viewer that lets you simultaneously monitor 4 different SDI video sources on a single display! Each view is a completely independent video monitor with overlays that you can turn on and off such as custom labels, audio meters and more. Full frame re-synchronization on each input lets you monitor any combination of video signals, even if they are different frame rates. The multi rate 3G-SDI connections are compatible with all existing SD and HD equipment and formats up to 1080p60, including Level A and B devices. Plus, you get both 3G-SDI and HDMI outputs so you can use traditional SDI displays or even low cost big screen televisions!
Delivery Contents:
• Blackmagic MultiView 4 HD
• +12V universal power supply with international socket adapters
Blackmagic MultiView 4 HD is a new multi viewer that lets customers monitor 4 completely independent SDI video sources on a single display. Customers can monitor any combination of SD and HD formats and frame rates at the same time. Blackmagic MultiView 4 HD features both SDI and HDMI outputs so it can be used with both professional SDI broadcast displays or big screen consumer HD televisions.
Blackmagic MultiView 4 HD includes four completely independent multi rate 3G-SDI inputs that are compatible with existing SD and HD equipment, including Level A and B devices. All inputs feature automatic frame re-synchronization, so customers can mix and match any combination of video standards and frame rates, including referenced or non-referenced NTSC, PAL, 720p, 1080i and 1080p60 frames per second, all on the same display at the same time.
With Blackmagic MultiView 4 HD, customers no longer have to connect multiple monitors, dozens of cables or run extra power to view all of their sources. They simply plug in cameras, decks, switchers, routers and feeds into the SDI connections on Blackmagic MultiView 4 HD and can see everything on a single HD display. That means there’s less equipment to carry around and set up.
Blackmagic MultiView 4 HD features both HDMI and 3G-SDI outputs so customers can connect to either a professional SDI broadcast monitor or a low cost big screen HDMI television. When combined with an HDMI television, Blackmagic MultiView 4 HD gives customers the world’s most affordable professional multiview solution, making it perfect for use in control rooms, outside broadcast trucks, or on location shooting at live events.

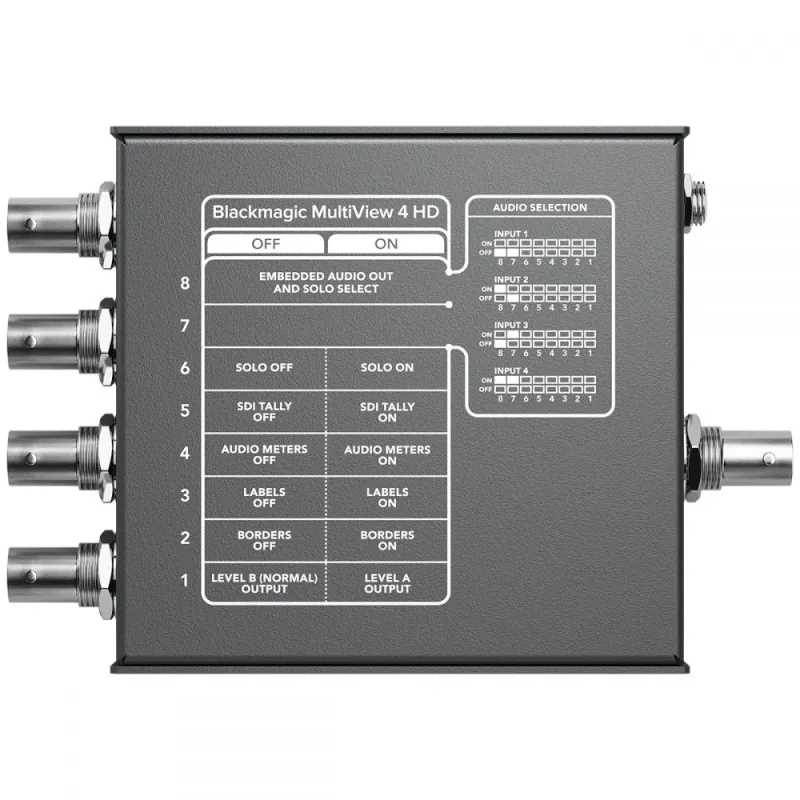

Designed to be plug and play, connected sources will instantly be displayed in a standard 2x2 grid layout. Customers can use the mini switches to turn on audio meters, choose which audio to output, as well as create custom labels, and more.
Blackmagic MultiView 4 HD Key Features
- Display up to 4 SDI sources on a single HD display via SDI or HDMI.
- 4 multi rate 3G-SDI inputs.
- Compatible with all SD and HD equipment and formats up to 1080p60.
- Automatic frame re-sync allows simultaneous display of mixed SD and HD formats.
- Standard quad split 2x2 view or SOLO.
- 1920 x 1080 supported output resolution.
- 90V-240V DC power supply with international AC adapters for use worldwide.
Blackmagic MultiView 4 HD

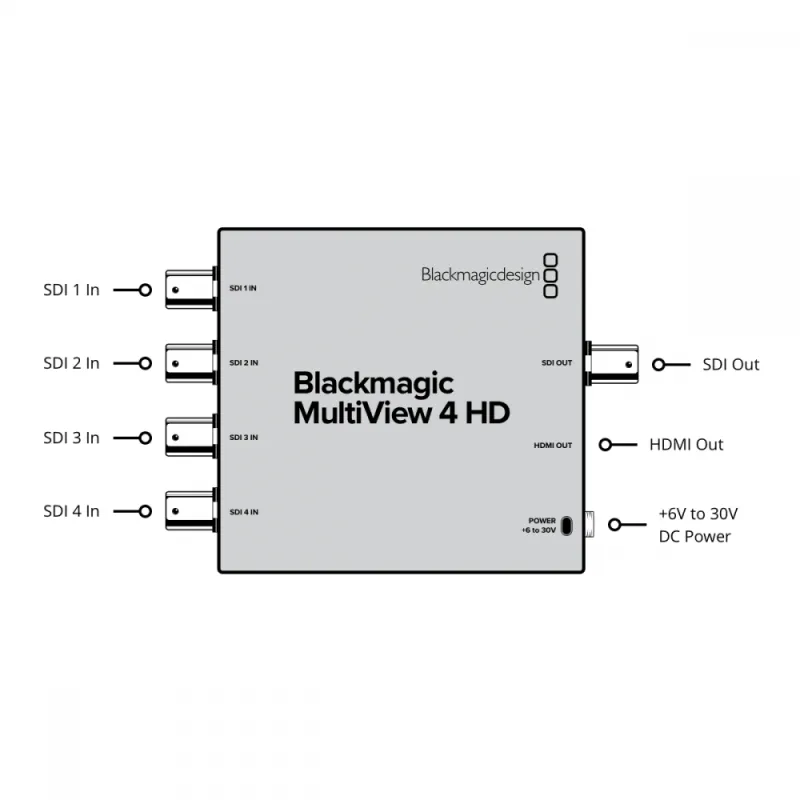

Connections
SDI Video Outputs
1 x HD-SDI.
SDI Rates
270Mb, 1.5G, 3G.
SDI Video Multi View Outputs
1 x 10-bit HD-SDI.
HDMI Video Multi View Outputs
1 x HDMI type A connector. Output supports EDID of the monitor.
SDI Reclocking
On all SDI outputs, auto switching between standard definition or high definition.
Reference Input
None
Multi Rate Support
Auto detection of SD or HD.
Updates
USB 2.0 high speed (480Mb/s) interface.
Configuration
USB 2.0
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601.
Audio Meters
Each view, VU standard.
Source Routing
None
SDI Video Sampling
4:2:2 and 4:4:4.
SDI Audio Sampling
Television standard sample rate of 48kHz and 24-bit.
SDI Color Precision
10-bit 4:2:2 and 4:4:4.
SDI Color Space
YUV or RGB for inputs, YUV for outputs.
SDI Auto Switching
Automatically selects between SD-SDI and HD-SDI on each input so that each input can be running a different television standard.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
Control
Built in Control Panel
None
External Control Panel
None
Display
None
Software
Software Control
MultiView software included free for Windows™ and Mac™.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Fail Protection
MultiView 4 HD settings preserved and restored instantly at power on.
Power Consumption
5.5 Watts
Operational Voltage Range
6 to 36V DC

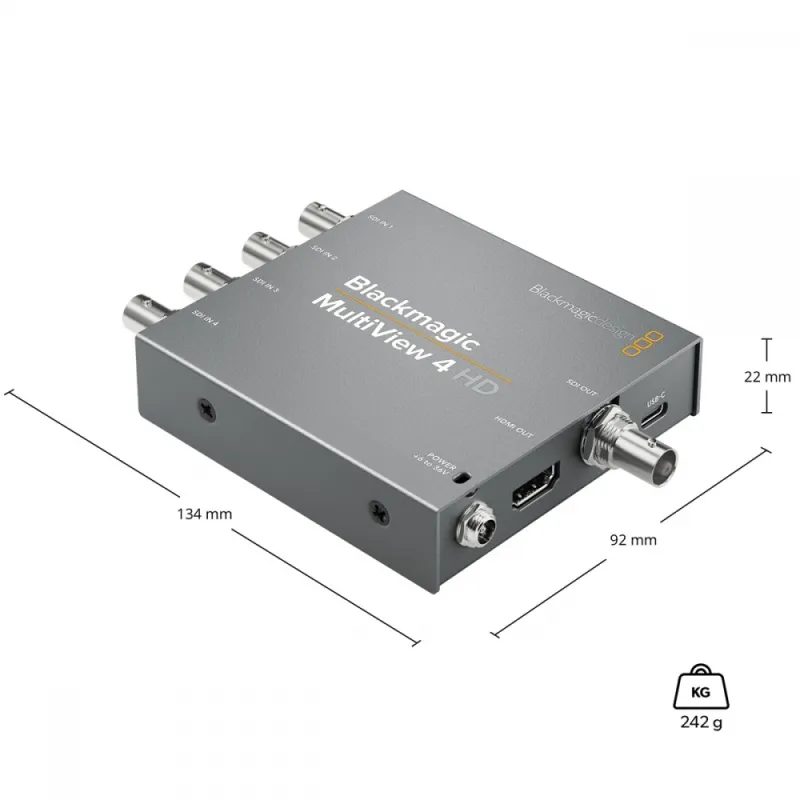

Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic MultiView 4 HD
+12V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer's Warranty.
