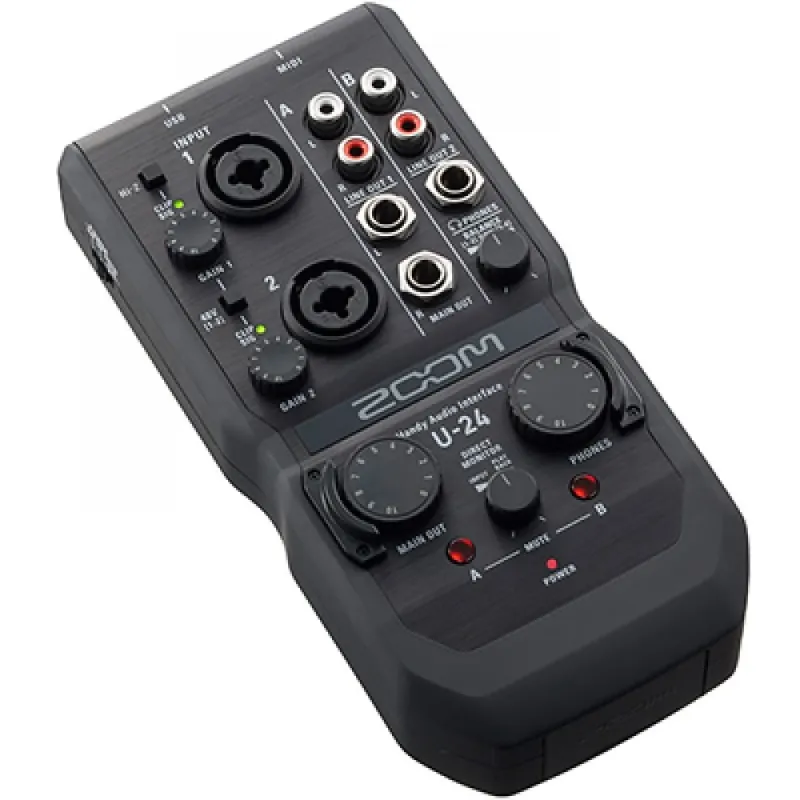

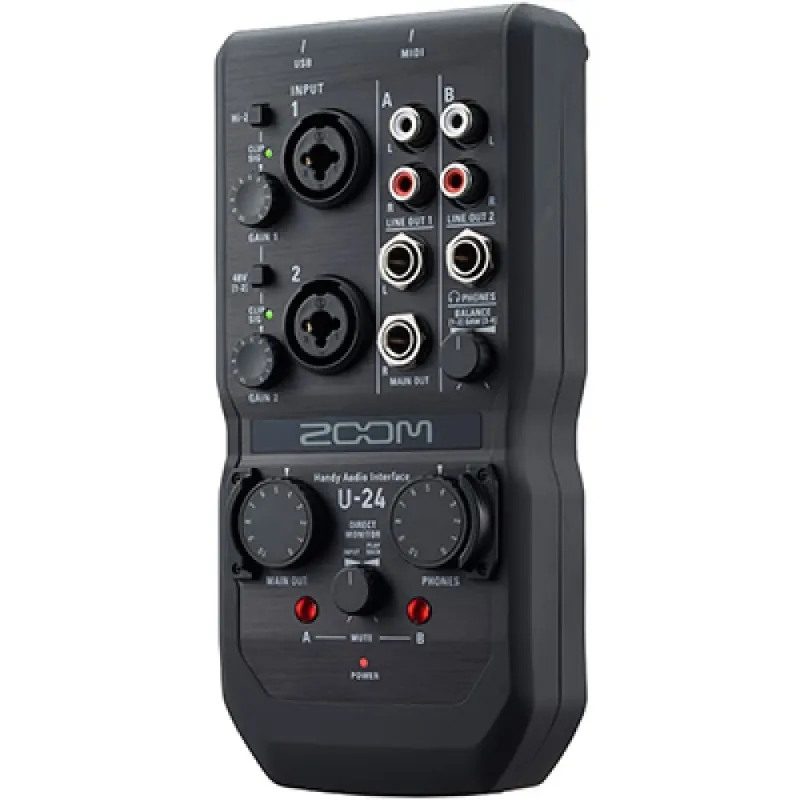

Zoom U 24 Audio Interface

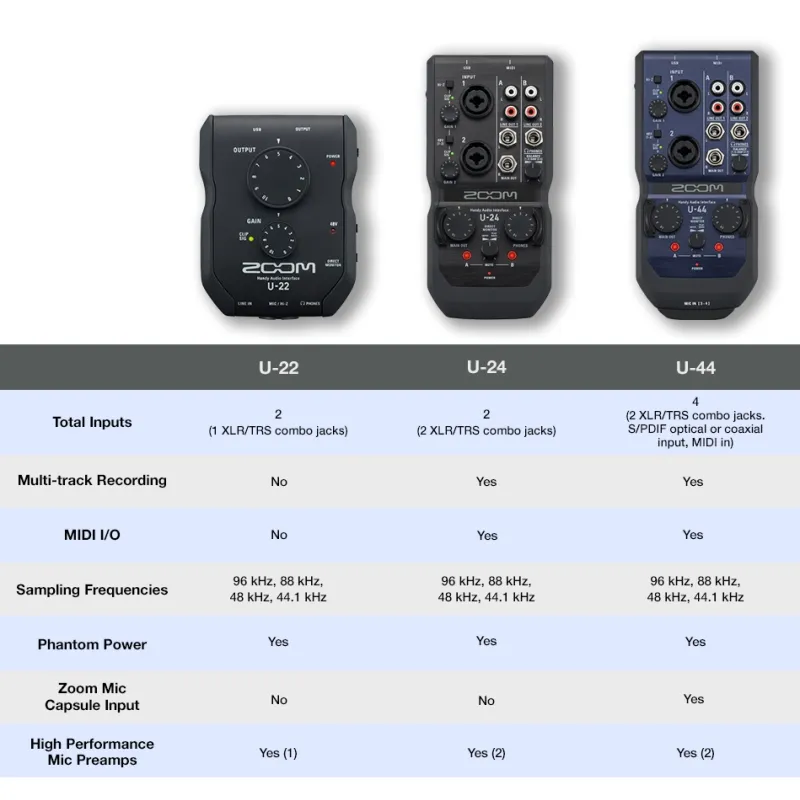

The U-24 is a compact, 2-in/4-out audio interface that provides all of the essential tools you need for recording and performing with high resolution, 24-bit/96 kHz audio—anywhere you go. Get incredible sound quality thanks to high-quality, low-noise preamps—the same ones found on our acclaimed H5 and H6 Handy Recorders. Connect to your PC, Mac, or iPhone/iPad via USB and record mics, instruments, and more. The U-24 delivers the same great sound as our U-44 interface, with a more streamlined feature set.

The bus-powered U-24 packs all the essential tools into a compact form factor that fits in the palm of your hand. Record with mics, instruments, and more at home or on the go—the U-24 is iPhone/iPad* compatible and small enough to take anywhere. It can even run on just two AA batteries for recording in the most remote locations.

* Requires 2 AA batteries or optional AC adapter for power, plus an Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter for connection to iPhone/iPad.

Inspired by our Zoom H-series recorders, the U-24 is equipped with high-performance, low-noise mic preamps (-119.5 dB EIN) that enable recording and playback at resolutions up to 24-bit/96 kHz. You can also use U-24 as a studio-quality headphone amp and listen to your favorite music in full fidelity.

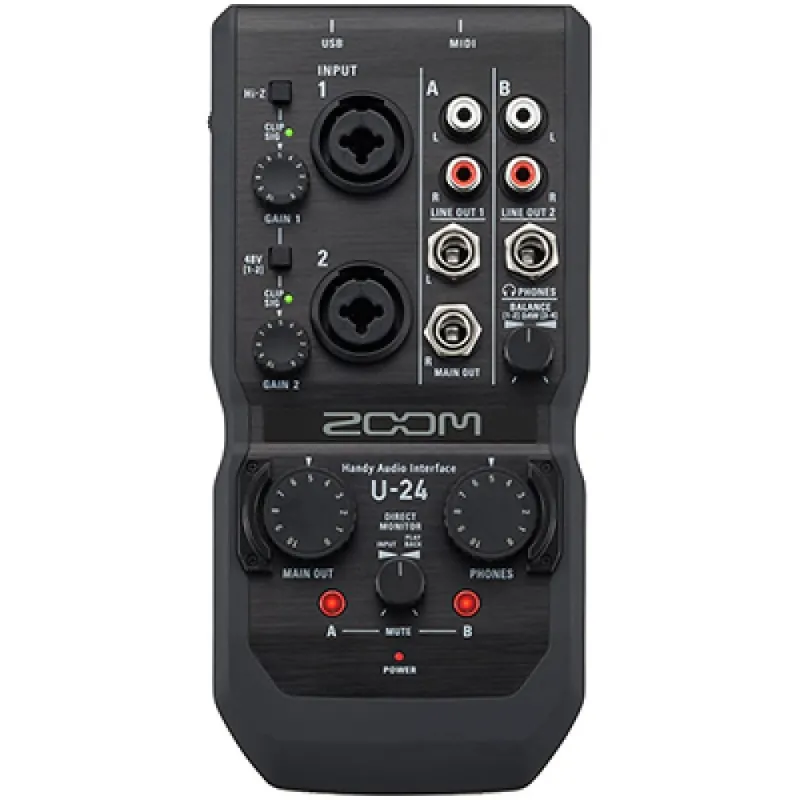

The U-24 is equipped with an essential collection of inputs and outputs for streamlined recording. Two combo inputs with independent gain knobs and multi-color level indicators allow you to connect mics, keyboards, mixers, and more. 48V phantom power can be supplied to both inputs, and input 1 supports Hi-Z for connecting guitars, basses, or other passive instruments. MIDI input and output jacks allow you to use devices like keyboards, controllers, synthesizers, and drum machines.

Separate TRS and RCA output jacks provide multiple options for connecting DJ mixers, monitors, and other gear. Finally, an independent headphone output with dedicated volume control gives you complete flexibility while monitoring.

The U-24 has flexible monitoring options for dialing in the perfect mix with zero latency. Balance the cue and main out signals when you’re DJ’ing, or create a mix of click track and main out signals during live performances. Each connector and knob is strategically positioned for fast access, so you can set up and control the U-24 with ease.
Includes Ableton Live 9 Lite
When you combine the U-24 with Ableton Live 9 Lite, you have everything the modern music creator needs. Record your tracks quickly and intuitively, enhancing them with studio-quality effects like EQ, compression, reverb, delay, chorus, filter, and more. Plus, Ableton’s performance workflows let you take your music to the stage where you can mix and record live.
Multi-channel and stereo USB audio interface for PC/Mac/iPhone/iPad
Connect to iPhone/iPad with Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter (sold separately), plus 2 AA batteries or optional AC adapter for power
Two mic/line inputs with high performance mic preamps
High quality recording and playback at resolutions up to 24-bit/96 kHz
Approximately 4 hours of operation with 2 AA alkaline batteries
Includes download code for Ableton Live 9 Lite
Two-channel simultaneous inputs
Hi-Z support (input 1)
Zero-latency direct monitoring
Two TRS phone jack outputs
Dedicated RCA L/R and headphone outputs
MIDI I/O
Gain control knobs for each input
+48V phantom power for inputs 1 and 2
Accepts standard AA alkaline or NiMH rechargeable batteries

ZOOM U-24 Audio-Interface

The U-24 is a compact, 2-in/4-out audio interface that provides all of the essential tools you need for recording and performing with high resolution, 24-bit/96 kHz audio—anywhere you go. Get incredible sound quality thanks to high-quality, low-noise preamps—the same ones found on our acclaimed H5 and H6 Handy Recorders. Connect to your PC, Mac, or iPad via USB and record mics, instruments, and more. The U-24 delivers the same great sound as our U-44 interface, with a more streamlined feature set.

The Go-Everywhere Interface
The bus-powered U-24 packs all the essential tools into a compact form factor that fits in the palm of your hand. Record with mics, instruments, and more at home or on the go—the U-24 is iPad* compatible and small enough to take anywhere. It can even run on just two AA batteries for recording in the most remote locations.

* Requires 2 AA batteries or optional AC adapter for power, plus an Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter for connection to iPad.

Pristine Recording and Playback
Inspired by our Zoom H-series recorders, the U-24 is equipped with high-performance, low-noise mic preamps (-119.5 dB EIN) that enable recording and playback at resolutions up to 24-bit/96 kHz. You can also use U-24 as a studio-quality headphone amp and listen to your favorite music in full fidelity.

Get Connected with the U-24
The U-24 is equipped with an essential collection of inputs and outputs for streamlined recording. Two combo inputs with independent gain knobs and multi-color level indicators allow you to connect mics, keyboards, mixers, and more. 48V phantom power can be supplied to both inputs, and input 1 supports Hi-Z for connecting guitars, basses, or other passive instruments. MIDI input and output jacks allow you to use devices like keyboards, controllers, synthesizers, and drum machines.

Separate TRS and RCA output jacks provide multiple options for connecting DJ mixers, monitors, and other gear. Finally, an independent headphone output with dedicated volume control gives you complete flexibility while monitoring.

Your Mix, Your Way
The U-24 has flexible monitoring options for dialing in the perfect mix with zero latency. Balance the cue and main out signals when you’re DJ’ing, or create a mix of click track and main out signals during live performances. Each connector and knob is strategically positioned for fast access, so you can set up and control the U-24 with ease.

Create More with Your U-24
When you combine the U-24 with Ableton Live 9 Lite, you have everything the modern music creator needs. Record your tracks quickly and intuitively, enhancing them with studio-quality effects like EQ, compression, reverb, delay, chorus, filter, and more. Includes Ableton Live 9 Lite.

Features:
• Multi-channel and stereo USB audio interface for PC/Mac/iPad
• Connect to iPad with Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter (sold separately), plus 2 AA batteries or optional AC adapter for power
• Two mic/line inputs with high performance mic preamps
• High quality recording and playback at resolutions up to 24-bit/96 kHz
• Approximately 4 hours of operation with 2 AA alkaline batteries
• Includes download code for Ableton Live 9 Lite
• Two-channel simultaneous inputs
• Hi-Z support (input 1)
• Zero-latency direct monitoring
• Two TRS phone jack outputs
• Dedicated RCA L/R and headphone outputs
• MIDI I/O
• Gain control knobs for each input
• +48V phantom power for inputs 1 and 2
• Accepts standard AA alkaline or NiMH rechargeable batteries

Delivery Contents:
• U-24
• Operation manual
• Ableton Live 9 Lite software download code
• USB Cable

ANALOG IN: Input 1/2

Connector

TRS/XLR combo jacks (XLR: 2 hot, TRS: TIP hot)

Input gain

0 – 43 dB

Input impedance

2.6 kOhm (MIC IN) 1.1 M Ohm (when Hi-Z ON)

Maximum input level

+2.7 dBu (MIC IN) /+20.7 dBu (TRS IN)

Phantom power

+48V

ANALOG OUT: Main Out L/R

Connector

TRS phone jacks (unbalanced)

Maximum output level

+10 dBu (at 0 dBFS)

Output impedance

330 Ohm

ANALOG OUT: Line Out 1/2

Connector

RCA (coaxial)

Maximum output level

+8 dBu (at 0 dBFS)

Output impedance

1kOhm

ANALOG OUT: Phones

Connector

Standard stereo phone jack

30 mW × 2 (into 32 Ohm load)

Maximum output level

+10 dBu (at 0 dBFS)

Output impedance

33 Ohm

Frequency characteristics

At 44.1 kHz: -1.0 dB: 20 Hz - 20 kHz; at 96 kHz: -3.5 dB: 20 Hz - 40 kHz

Input conversion noise

Measured EIN: -119.5 dB (IHF-A)

at 43 dB, 150 Ohm input

Number of audio recording and playback channels

Recording: 2 channels

Playback: 4 channels

Sampling frequencies

96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz

Bit depth

24-bit

Interface

USB 2.0

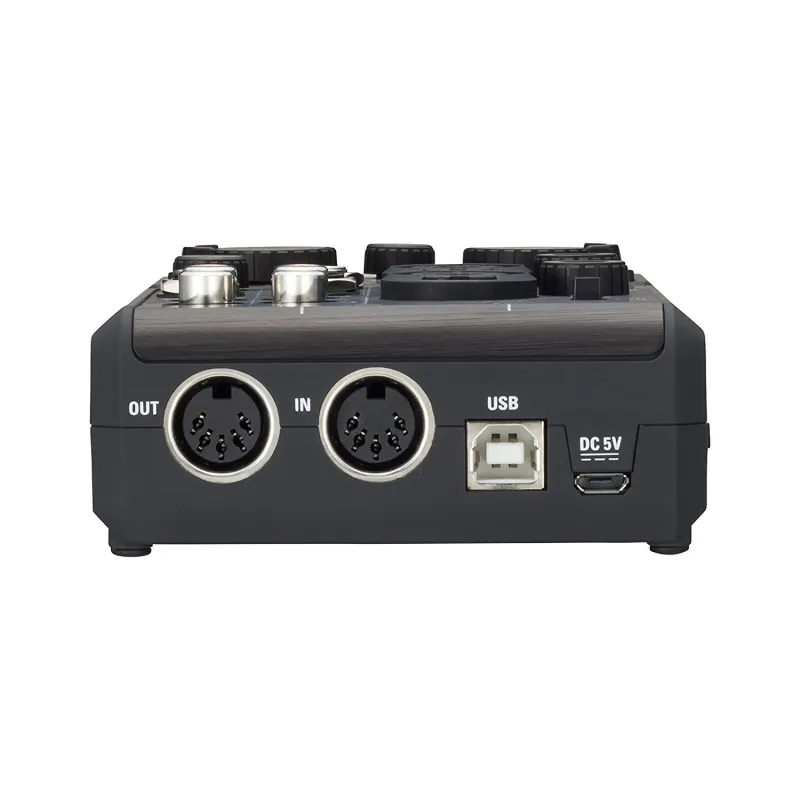

MIDI IN/OUT

5-pin DIN jack

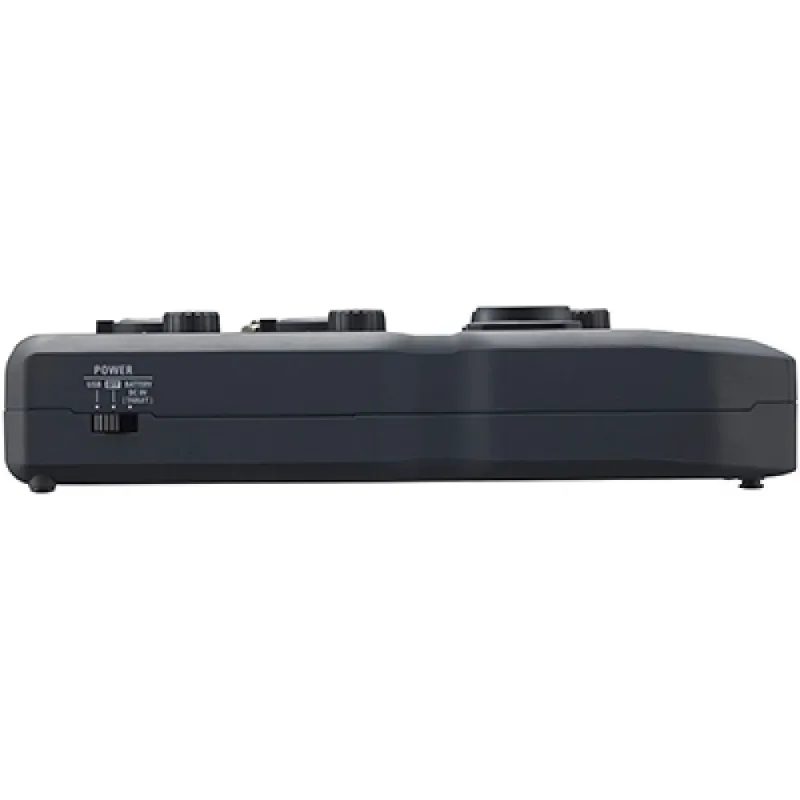

Power Source

USB bus power (Type B)

Zoom AD-17 (Micro-B)
DC 5V power supply (Micro-B)
2 AA batteries (4 hours continuous operation with phantom power off)

Power consumption

5W maximum

Dimensions

191.8 mm (D) × 92.3 mm (W) × 42.7 mm (H)

Weight (main unit only)

285 g

*0dBu=0.775Vrms
