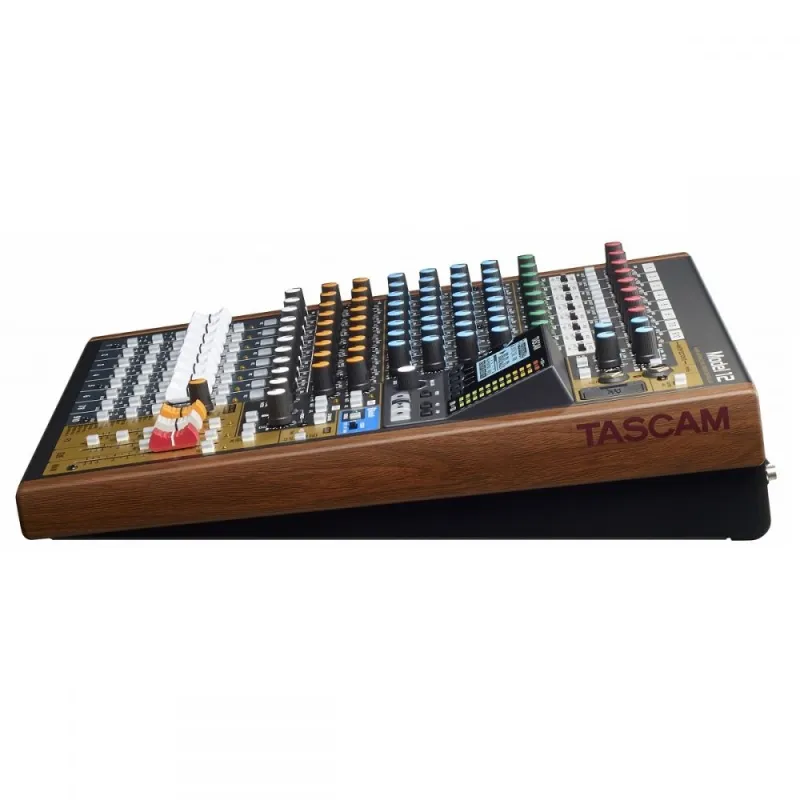

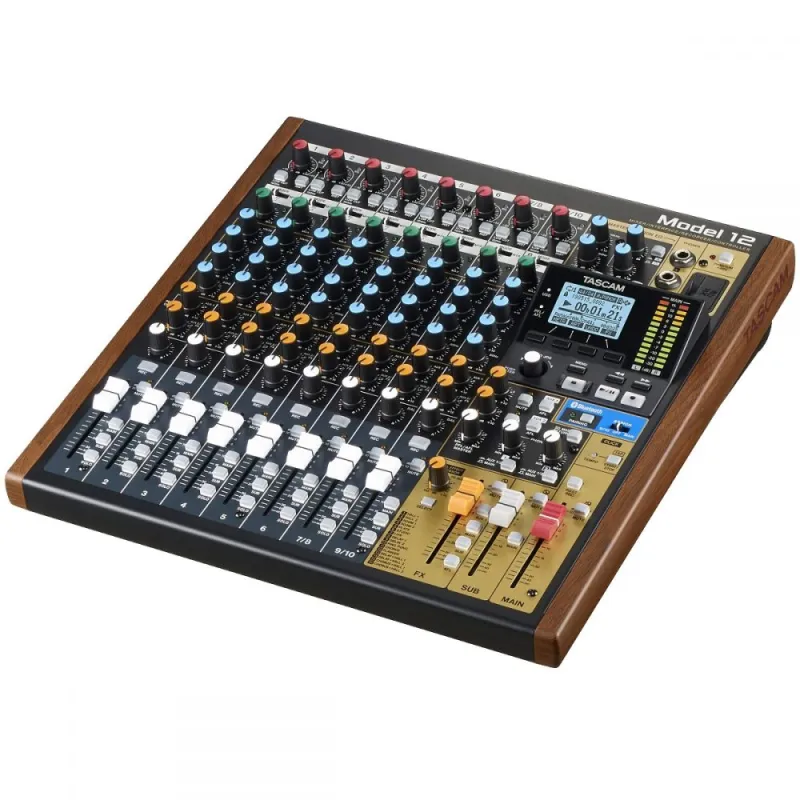

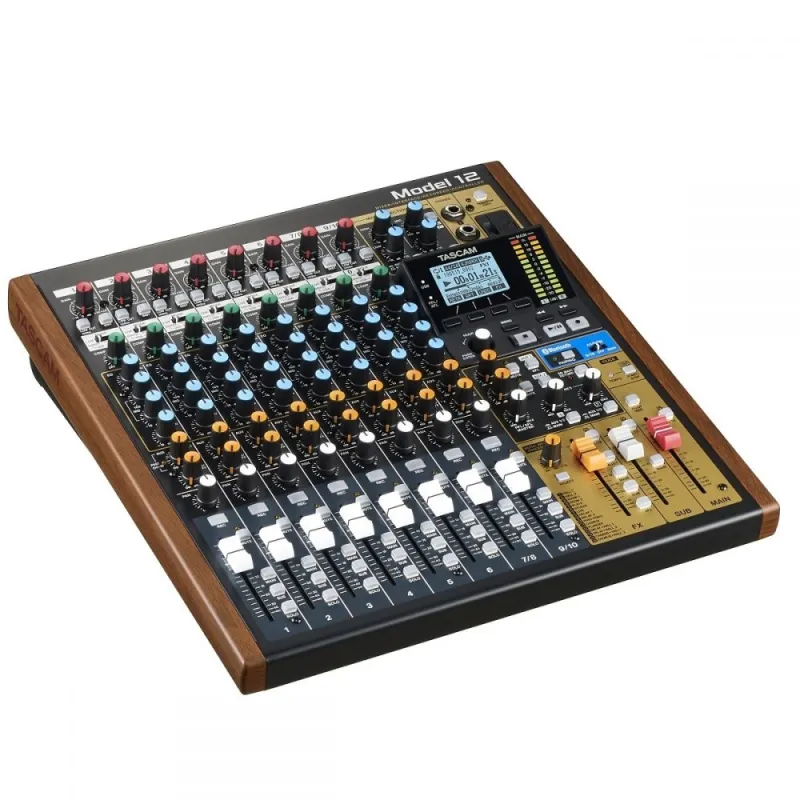

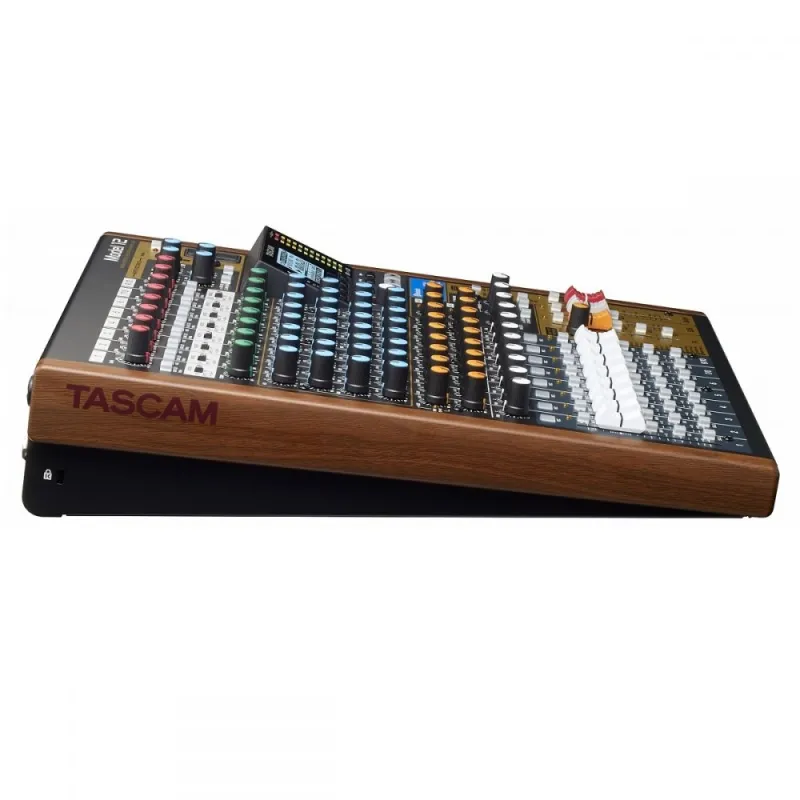

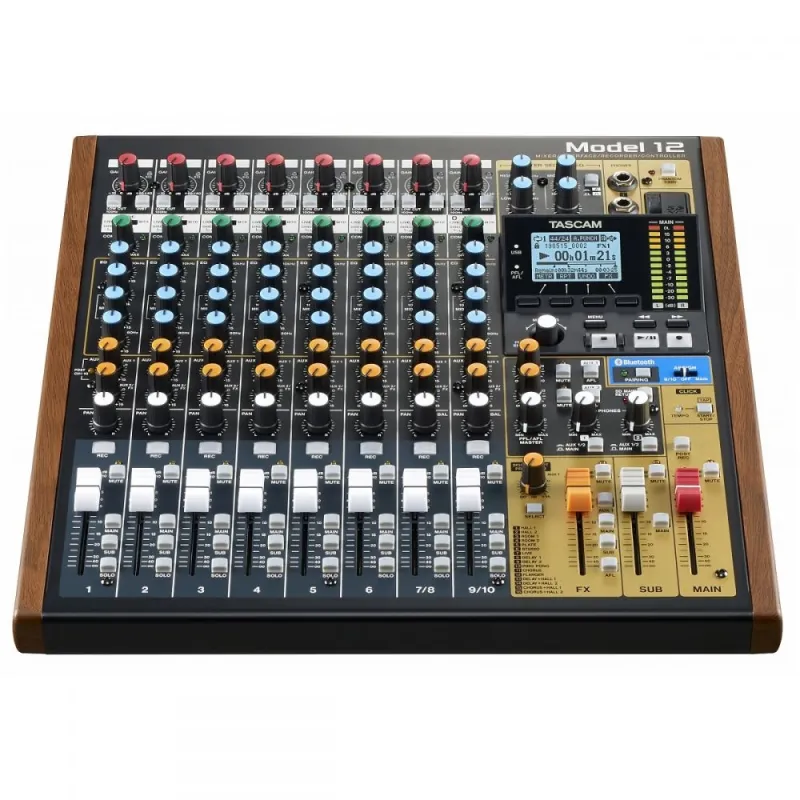

Tascam Model 12 Mixer / Interface / Recorder / Controller
Integrated Production Suite for Music and Multimedia Creators
Tascam Model 12 is a compact all-in-one integrated mixing and recording suite designed for music and multimedia creators, songwriters and performers. It consists of a 10-input mixer, a 12-track version of the highly acclaimed Tascam multi-track audio recorder, USB audio interface, MIDI connectivity, DAW control functions, and unique podcasting capability including mix-minus and smartphone input.
Combining the feel of an analogue user interface with the efficient workflow and pristine quality associated with digital recording and production, the compact and affordable Model 12 supports your creative process from start to finish.
12-Track Recording and 10-Track Playback
The Model 12’s intuitive internal 12-track recorder creates WAV files of up to 24-bit/48 kHz audio quality directly to an SD card. Up to ten tracks can be played back simultaneously. Supporting metronome, punch-in/out, and overdubbing functions, the internal recorder also allows WAV files to be imported from another Tascam Model Series mixer like the Model 12, Model 16 or Model 24. And, of course, it is possible to export tracks in WAV file format which can then be imported directly into a DAW for further editing or production.
12 In / 10 Out USB Audio Interface for DAW Connectivity
A USB connector facilitates connecting a computer to the Model 12 for playback and recording utilizing a wide range of popular DAWs. Sounds can be recorded in a DAW to create precise and original tracks, and then played back during live performances using Model 12 only. The USB audio interface can be used simultaneously with the built-in multi-track recorder. Model 12 also supports class compliant mode and can be connected to Apple iOS devices using an optional adapter.
DAW Control Integration
Basic control for an external DAW using HUI/MCU protocol emulation is integrated for tactile control of most major DAWs. Controllable parameters include Faders, Mutes, Pans, Solos, Record Arm, Play, Record, Stop, FF/Rew, Jog.
Click Output With Tap Tempo Feature
A dedicated click output with TAP TEMPO allows the tempo to be controlled and monitored in both live or recording environments. This allows live performers to play with tracks using the built-in multi-track engine or music creators to keep track of the tempo when recording. The click sound can also be assigned to each MAIN, SUB or AUX output, or, with individual volume setting, to headphones outputs 1 and 2.
Combine Your Setup With MIDI Equipment
Standard MIDI input and output make it possible to use keyboards, drum machines, controllers, and other sources that employ MIDI technology with the Model 12. This also allows playback-start commands to be triggered or external multi-track recorders and other external MIDI devices to be synchronized with the Model 12.
Podcast Your Latest Music and Live Performances to Your Fan Base
The Model 12 incorporates several features for podcasting and internet streaming like mix-minus, smartphone input, multiple mic-ready channels, Bluetooth pairing, dual headphone monitoring, and internal multi-track recording. Use the Model 12 as a versatile live production recorder, USB audio interface and live streaming tool.
All-in-One Audio Production From Recording to Mastering
The Model 12’s seamless integrated workflow facilitates less focus on the technical and more on the creative part. The built-in multi-track recorder allows one-button recording and playback. And the comfortable, familiar feel of the 60-mm faders, one-knob compressor, three-band EQ, and high-quality Tascam effects enable fast and intuitive tweaking of mixes and tones.
Pristine Audio Quality
Tascam Ultra-HDDA mic preamps with an Equivalent Input Noise (EIN) of –128 dB ensure low noise and natural, high-grade sound quality. Apart from microphones and line-level sources, all inputs can also be used for direct connection of guitars, basses, and other high-impedance (Hi-Z) sound sources.
Compact Size With Plenty of Inputs

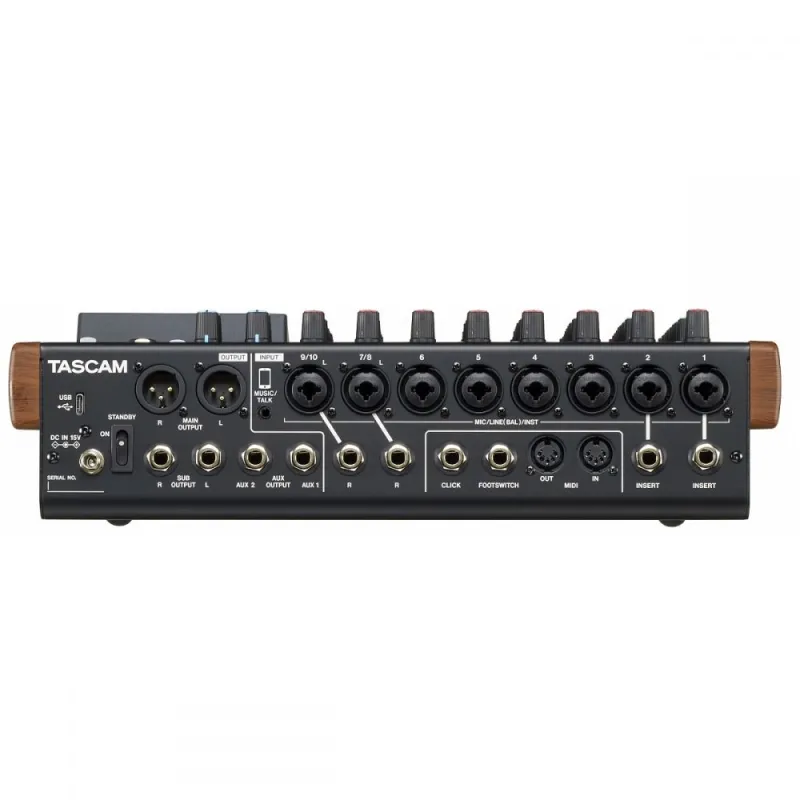

The compact Model 12 packs eight XLR microphone inputs (with switchable +48V phantom power), ten TRS line inputs, a 3.5-mm TRRS input (for a smartphone) and a Bluetooth 5.0 input to handle any small-format recording or live production environment.
Dual Headphones Outputs for Creative Teamwork
The Model 12 offers two independant headphone busses with output jacks on the top panel to allow monitoring of two discrete mixes from AUX 1/2 and/or the main stereo bus simultaneously for performers and engineers alike.
Selectable PFL/AFL modes and solo-in-place (SIP) allow for flexible monitoring of individual channels, eliminating the need to mute each single channel when dialing in the perfect mix.
Special Features
- 10-channel mixer with built-in 12-track recorder and USB audio interface
Mixer features
- Ten analogue inputs on six mono and two stereo channels
- Eight mono mic inputs on XLR connectors with switchable phantom power (48 V)
- Ultra-HDDA microphone preamps on inputs 1–6
- Eight channels can be used with high-impedance instruments like electric guitars/basses
- Ten balanced line inputs (six mono, two stereo)
- Multi-purpose stereo channel for input from mobile devices via Bluetooth or TRRS smartphone connector (CH 9/10)
- Inserts on input channels 1 and 2
- Mix-minus function on smartphone mini-jack input
- Two Aux outputs (monitor, effects) and two stereo outputs with independent master faders (Main, Sub)
- Monitoring can be selected between PFL (pre-fader), AFL (after-fader) and SIP (solo-in-place)
- Dedicated click output with tap tempo feature
- One-knob compressor for all input channels
- Three-band equalizer with sweepable mids for all input channels
- Switchable low-cut filter (100 Hz) on each channel
- Semi-parametric EQ with sweepable mid band for aux or main outputs
- Built-in Bluetooth receiver for wireless playback
- On-board effects processor
- 16 effects types
- Can be used on all input channels, aux busses, sub and main stereo bus
- Can be turned on/off by an optional footswitch (Tascam RC-1F)
- Compact 60-mm faders
- 12-segment LED output level meters
- XLR balanced outputs for main stereo bus
- TRS balanced outputs for sub and aux outputs
- Two headphones outputs with separate level controls
Recorder features
- Tascam multi-track recording engine, uses SD cards as storage media (up to 512 GB)
- Up to 12 tracks (10 input channels + stereo mix) can be recorded without the need for a computer
- Recording/playback format: Linear PCM (WAV format, 44.1/48 kHz, 16/24 Bit)
- Overdubbing, punch in/out recording
- Multi-track playback for advanced live performance
- Illuminated Play/Record/Stop buttons for better legibility in poorly lit environments
Audio interface features
- USB audio interface for use with Windows (ASIO) and Mac (Core Audio) computers
- Transfer to computer: 12 channels (all 10 inputs + stereo mix)
- Transfer from computer: 10 channels, assignable to each channel input
- Audio resolution 44.1/48 kHz, 16/24 bit
- USB MIDI interface function
- Simple DAW control support via HUI/MCU protocol emulation
Other features
- MIDI input and output
- Support for MIDI timecode (MTC) and MIDI clock output with song position pointer (SPP)
- Simple and quick menu operation with multi-jog dial
New in firmware version 1.10
- Vamp playback allows to automatically or manually repeat up to ten previously marked intervals per song
- Metronome tempo can now also be changed with an audible click
- Three volume options available for the accented note of the metronome click
- New sound pattern with four bars for the count-in
Supported Operating Systems
Windows
- Windows 10 (November 2019 Update 1909)
- Windows 10 (May 2019 Update 1903)
- Windows 10 (October 2018 Update 1809)
- Windows 10 (April 2018 Update 1803)
- Windows 8.1
- Windows 7
Mac
- macOS Catalina (10.15)
- macOS Mojave (10.14)
- macOS High Sierra (10.13)
iOS
- iOS 13 / iPadOS
- iOS 12
- iOS 11
Specifications
| Recorder | ||
|---|---|---|
| Recording media | SD (512 MB – 2 GB) SDHC (4–32 GB) SDXC (64–512 GB) Class 10 or higher required | |
| File system | FAT16 (SD), FAT32 (SDHC), exFAT (SDXC) | |
| Recording file format | WAV (BWF, maximum file size: 2 GB) | |
| Playback formats | WAV (BWF) | |
| Sampling frequency | 44.1 kHz, 48 kHz | |
| Bit depth | 16 bit, 24 bit | |
| Recordable channels | 12 channels max. (10 inputs + stereo mix) | |
| Audio inputs and outputs | ||
|---|---|---|
| Microphone inputs (CH 1–6, 7/8, 9/10) | XLR-3-31, balanced (1: GND, 2: HOT, 3: COLD) | |
| Nominal input level | –8 dBu | |
| Maximum input level | +10 dBu | |
| Minimum input level | –58 dBu | |
| Gain adjustable range | 0–50 dB | |
| Input impedance | 1.8 kΩ | |
| Line inputs (CH 1–10) | 6.3-mm TRS phone jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND) | |
| Nominal input level | +4 dBu | |
| Maximum input level | +22 dBu | |
| Gain adjustable range | –10 dB to +40 dB (CH 1–6) –20 dB to +30 dB (CH 7/8, 9/10) | |
| Input impedance | 22 kΩ | |
| Instrument inputs (CH 1–6, 7, 9) | 6.3-mm TS phone jack, unbalanced (Tip: HOT, Ring: GND, Sleeve: GND) | |
| Nominal input level | –4.2 dBV | |
| Maximum input level | +13.8 dBV | |
| Gain adjustable range | –10 dB to +40 dB (CH 1–6) –20 dB to +30 dB (CH 7, 9) | |
| Input impedance | 1 MΩ | |
| Inserts (CH 1–2) | 6.3-mm TRS phone jack (Tip: SEND, Ring: RETURN, Sleeve: GND) | |
| Nominal input level | 0 dBu | |
| Maximum input level | +18 dBu | |
| Input impedance | 5 kΩ | |
| Nominal output level | 0 dBu | |
| Maximum output level | +18 dBu | |
| Output impedance | 100 Ω | |
| Music/Talk input (CH 9/10) | 3.5-mm TRRS mini jack, unbalanced | |
| Maximum input level | +8 dBV | |
| Nominal input level | –10 dBV | |
| Input impedance | 10 kΩ | |
| Main output | XLR-3-32, balanced (1: GND, 2: HOT, 3:COLD) | |
| Nominal output level | +4 dBu | |
| Maximum output level | +22 dBu | |
| Output impedance | 200 Ω | |
| Sub output, Aux output | 6.3-mm TRS, balanced (Tip: HOT, Ring: COLD, Sleeve: GND) | |
| Nominal output level | –2 dBu | |
| Maximum output level | +16 dBu | |
| Output impedance | 200 Ω | |
| Phones output 1/2 | 6.3-mm stereo phone jack | |
| Maximum output power | 45 mW + 45 mW (at 32 Ω) | |
| Footswitch connector | 6.3-mm TS phone jack (Tascam genuine footswitch RC-1F recommended) | |
| EQ | ||
|---|---|---|
| Channel EQ | ||
| Low cut | 100 Hz, –12 dB/Oct. | |
| High (shelving) | 10 kHz, ±15 dB | |
| Mid (peaking) | variable 100 Hz to 8 kHz, ±15 dB (Mono) fixed 600 Hz, ±15 dB (Stereo) Q = 0.5 | |
| Low (shelving) | 80 Hz, ±15 dB | |
| Master EQ | ||
| High (shelving) | 10 kHz, ±15 dB | |
| Mid (peaking) | variable 100 Hz to 8 kHz, ±15 dB, Q = 0.5/5 | |
| Audio performance | ||
|---|---|---|
| Residual output noise | –103 dBu (MAIN OUT, MAIN fader at nom.) | |
| Equivalent input noise (EIN) | –128 dBu (Mono input channel at 150 Ω, GAIN at max.) | |
| Total harmonic distortion (THD+N) | <0.003 % (MIC IN-> MAIN OUT, 1 kHz, GAIN at min., +2 dBu) | |
| Frequency response | 20 Hz to 20 kHz, +0.1/–0.15 dB (MIC IN-> MAIN OUT) | |
| Channel crosstalk | 95 dB (1 kHz, PAN fully counter-clockwise / fully clockwise) | |
| Maximum gain | 74 dB (MIC to MAIN OUT) 50 dB (MIC to INSERT OUT) 74 dB (MIC to SUB OUT) 75 dB (MIC to AUX 1/2 OUT) 24 dB (USB/SD to MAIN OUT) (all EQs flat, PAN fully counter-clockwise / fully clockwise) | |
| Phantom Power | DC 48 V | |
| Computer system requirements | ||
|---|---|---|
| Windows | ||
| Compatible computers | Windows-compatible computer with a USB 2.0 (or higher) port | |
| CPU type/speed | Dual core, 2 GHz or faster | |
| Memory | 2 GB or more | |
| Drivers | USB Audio Class 2.0, ASIO 2.0, WDM (MME) | |
| Screen resolution | 1280 px × 800 px or more | |
| Macintosh | ||
| Compatible computers | Apple Mac computer with a USB 2.0 (or higher) port | |
| CPU type/speed | Dual core, 2 GHz or faster | |
| Memory | 2 GB or more | |
| Driver | Core Audio | |
| Screen resolution | 1280 px × 800 px or more | |
| USB audio specifications | ||
| Sampling rate | 44.1 kHz, 48 kHz | |
| Bit depth | 16 bit, 24 bit | |
| Maximum number of audio channels | 12 inputs, 10 outputs | |
| Bluetooth® | Version 5.0 | |
| Output class | Class 2 (approximate transmission distance: 10 m) * The transmission distance is approximate. The transmission distance could vary depending on the surrounding environment and electromagnetic disturbances. | |
| Supported profile | A2DP | |
| Supported A2DP codecs | SBC, AAC | |
| A2DP content protection | SCMS-T | |
| Power supply and other specifications | ||
|---|---|---|
| Power supply | Tascam AC adapter (included, input voltage AC 100–240 V, 50/60 Hz) | |
| Power consumption | 16 W | |
| Dimensions (W × D × H, overall) | 343 mm × 360 mm × 99 mm | |
| Weight | 4.3 kg | |
| Permissible operating temperature range | 5–35 °C | |
| Included items | AC adapter, Owner’s manual incl. warranty | |
Design and specifications subject to change without notice.
