Saramonic audio adapter Universal Mixer SR-PAX1 2-CH

The Saramonic SR-PAX1 is a two-channel active audio mixer with preamplifier and phantom power, specially designed for DSLR Cameras, Mirrorless or Camcorders. It is a compact and lightweight mixer ideal for recording professional-quality audio from two sources and mixing them into your camera.

It attaches to the base of a camera, and a threaded socket on its base allows for mounting on a tripod or case. The SR-PAX1 features dual balanced XLR inputs, dual 3.5mm (TRS) inputs, and dual 6.3mm inputs which provide the ability to accepts signals from a wide variety of mic or line level sources such as wireless microphones and external audio recorders.

The input levels of each channel can be easily controlled with the dual gain control knobs. A phone jack allows you to monitor the audio in real time. The SR-PAX1 makes your recording work much easier by reducing time in post-processing.

Key Features

• Two mono 1/8″ (3.5 mm) mini-Jack inputs
• Two balanced XLR inputs.
• Two 1/4″ (6.35mm) mono standard inputs
• Stereo 1/8″ (3.5 mm) mini-Jack input
• One Stereo 1/8″ (3.5 mm) output jack
• Mono/Stereo switch (M/S)
• Dual Volume Control Knobs adjust the signal of each channel to the optimum recording levels
• LINE /MIC /PH switch
• 3.5mm Headphone Output for Monitoring
• 1/4” Female Screw Hole

The Saramonic SR-PAX1 enables you to connect multiple professional microphones and other audio signals to DSLR, mirrorless, cinema and video cameras in order to record broadcast-quality sound. It’s proof that you can get a professional piece of equipment at an affordable price. The solidly constructed and compact PAX1 offers ultimate flexibility both in what you can plug into it, and how you can attach it to your camera. The ability to provide 48 volts of phantom power gives you the creative freedom to use any kind of microphone.

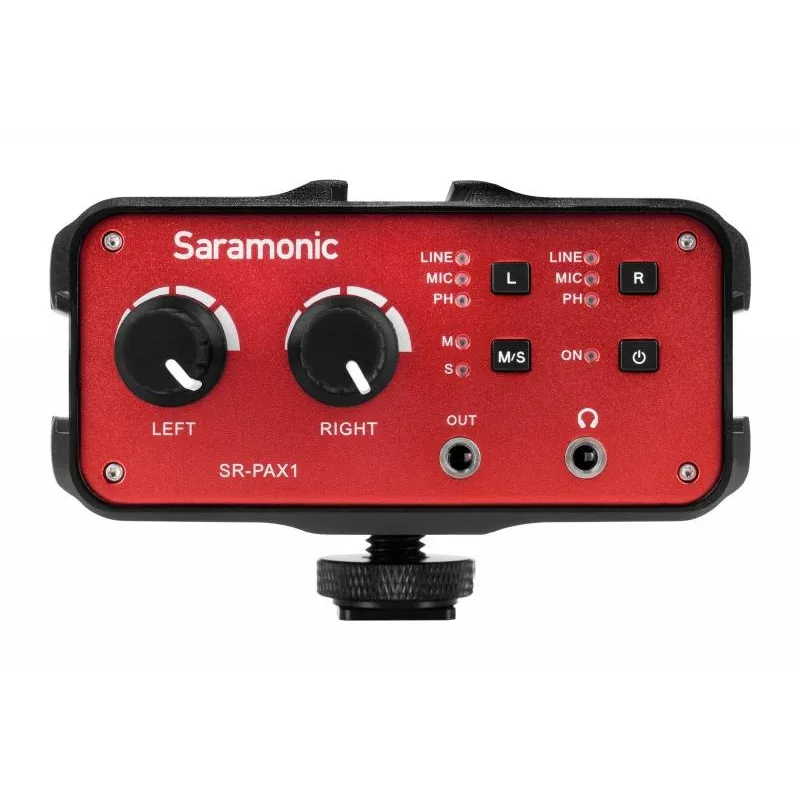

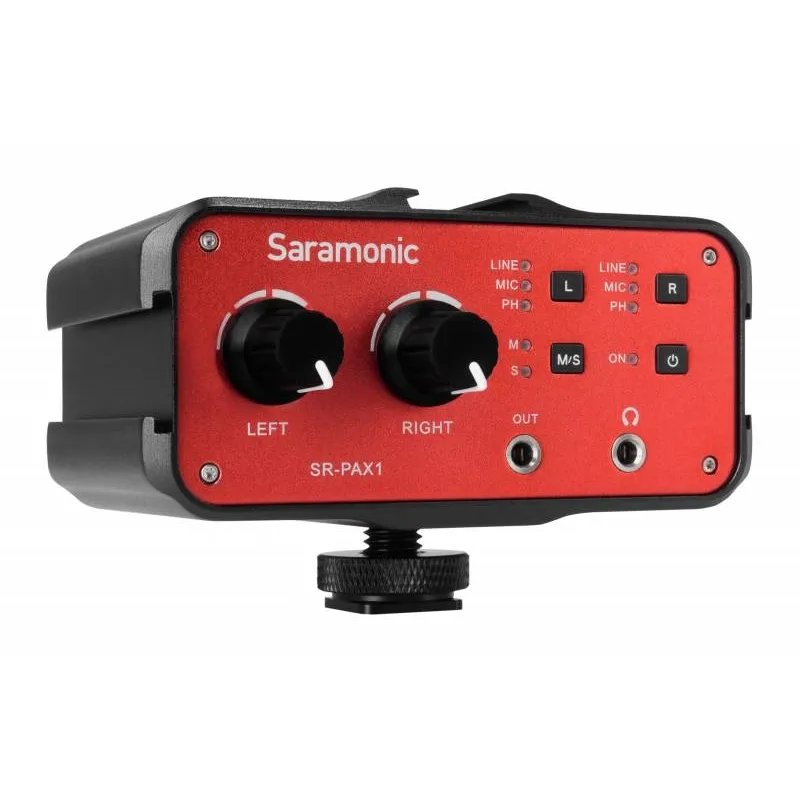

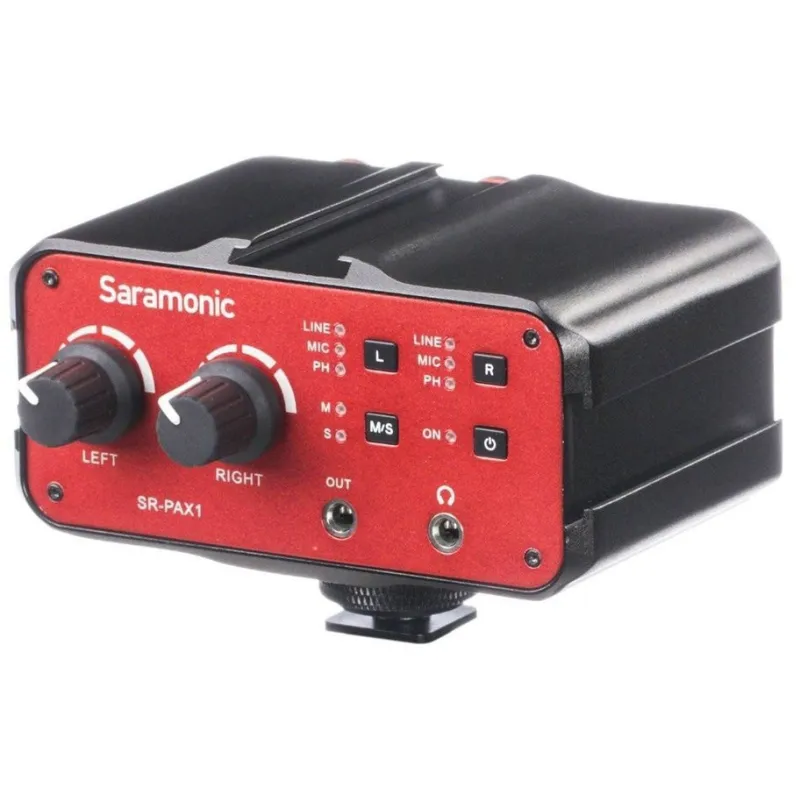

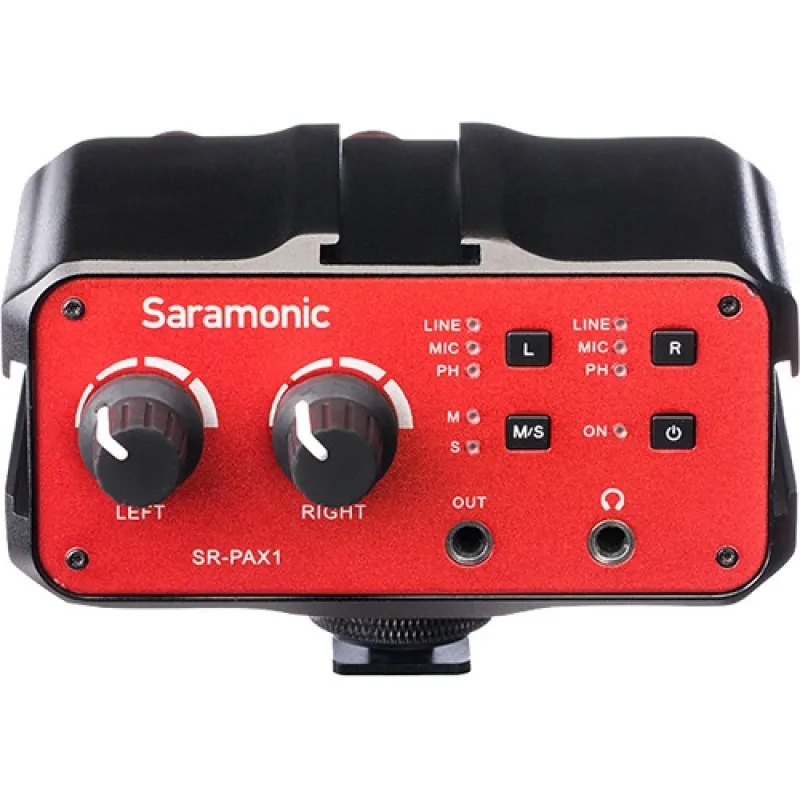

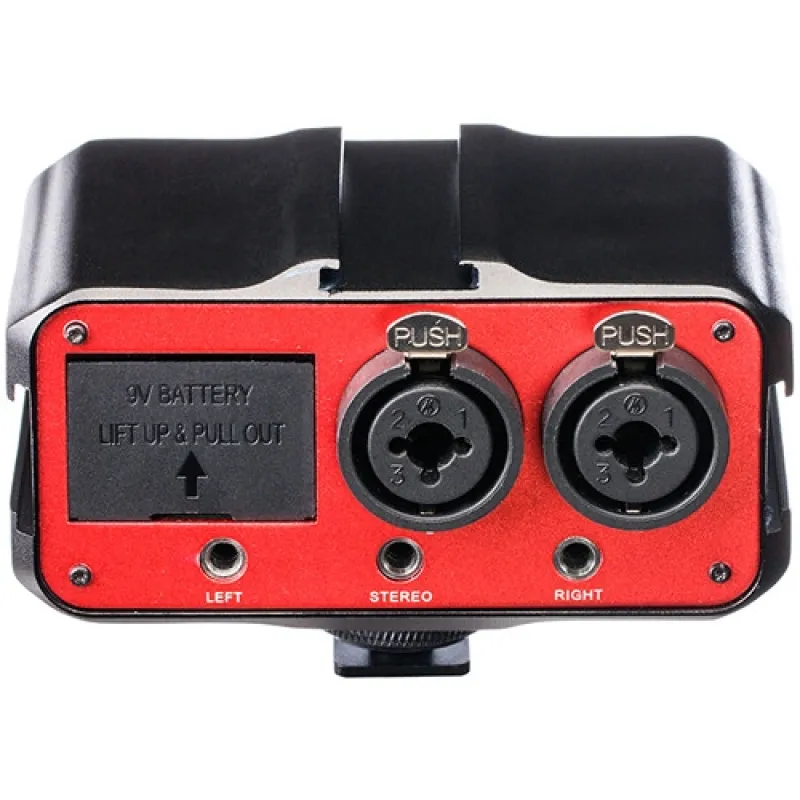

The front of the PAX1 provides an all-important headphone jack so you can always hear your sound, and a set of buttons that enable you to easily cycle through various functions. Bright LEDs make it easy to see what settings you currently have selected. The back provides an impressive range of connection options. There are two locking combo XLR / 1/4” (6.5mm) TRS inputs, which is where you can plug in professional microphones, line-level signals, and even guitars and other musical instruments. There are also three 1/8“ (3.5mm) inputs for connecting video microphones, stereo mics, and other sound sources — such as the headphone jack of a smartphone.

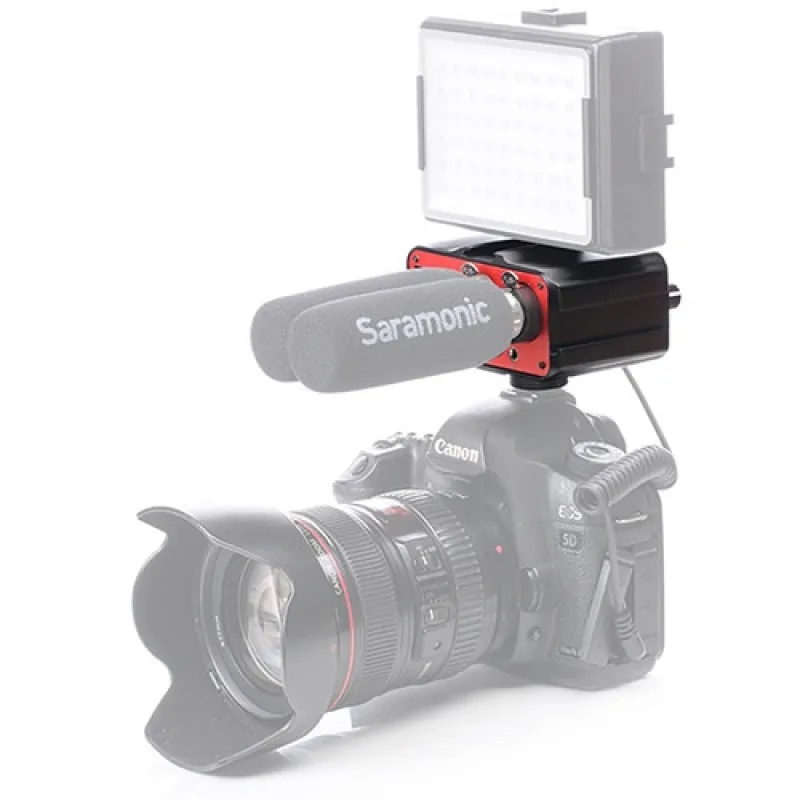

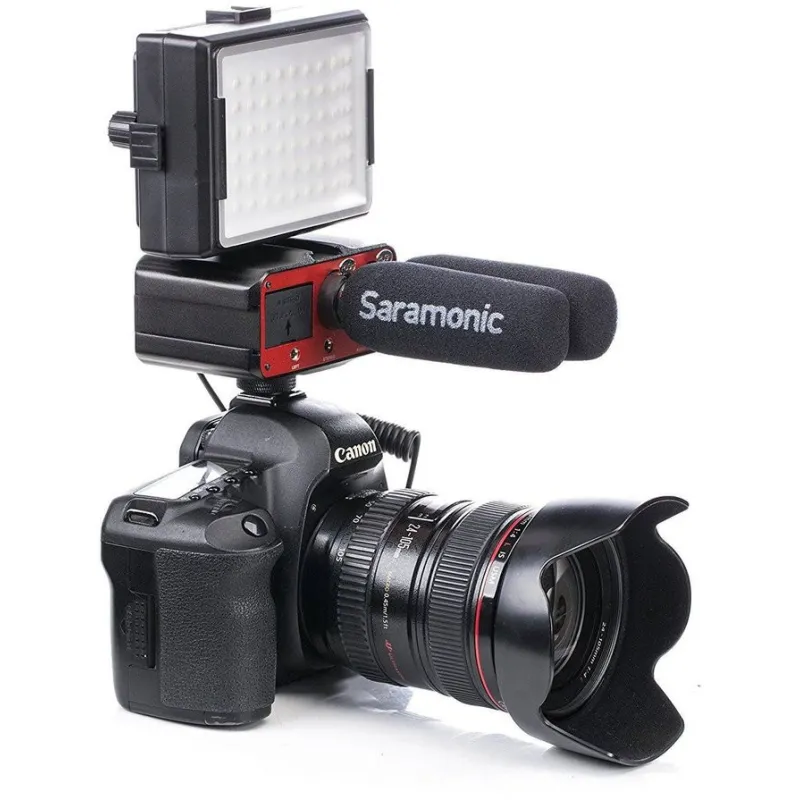

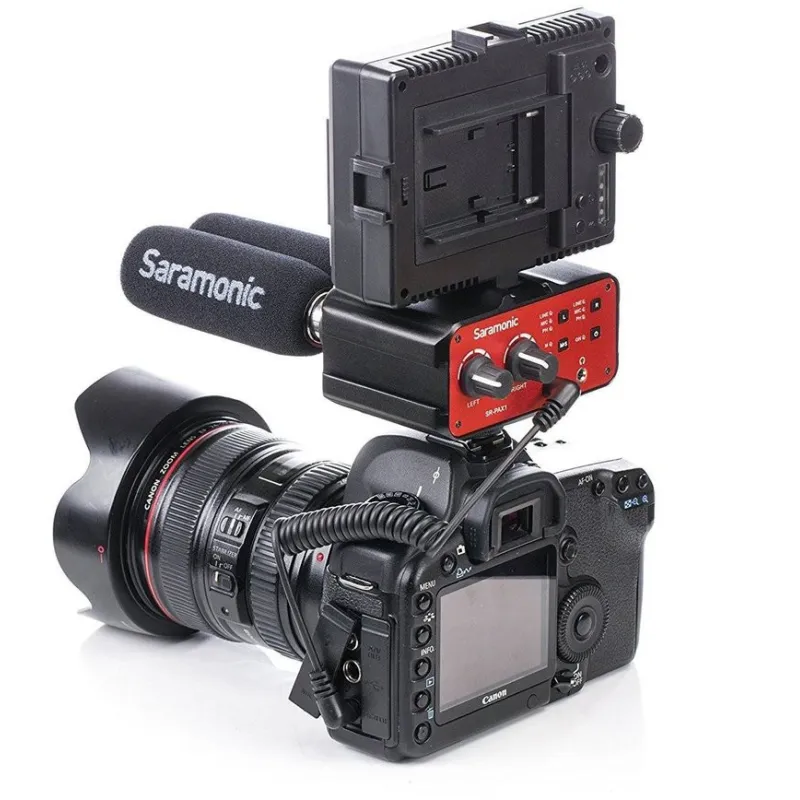

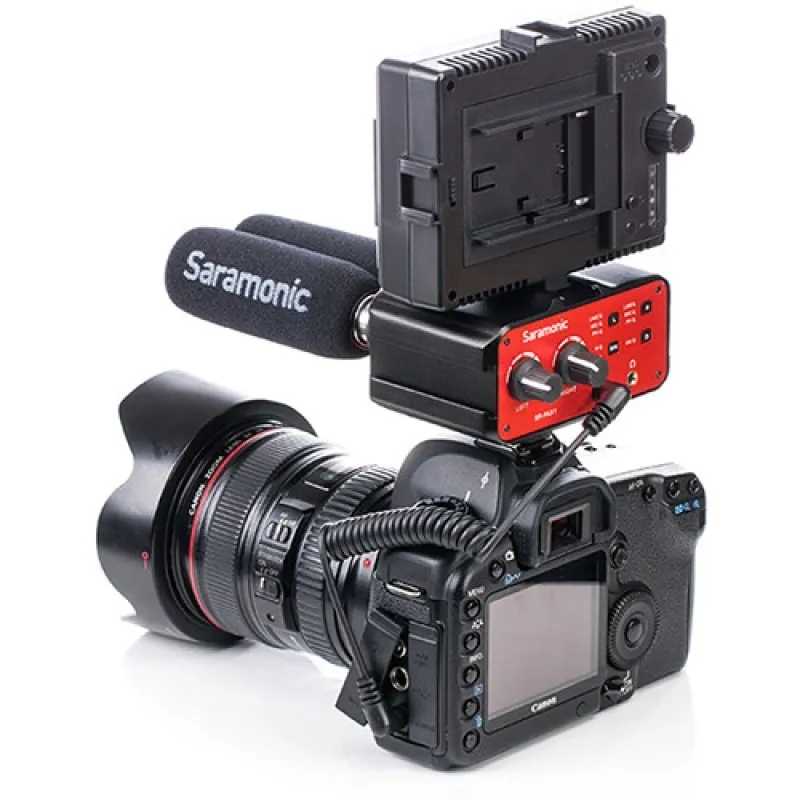

The PAX1 also acts as a useful bracket for your camera with its deep shoe mounts on the top and sides, providing ideal places to confidently mount microphones, wireless receivers, lights and more. A metal shoe mount on the bottom enables you to attach it to your camera, and a tripod thread is supplied to mount to a cage or tripod. While the PAX1 provides great utility, it sports an attractive design and its all-metal construction means it’s prepared for the rigors of production.

• Two XLR / 1/4" (6.5mm) TRS Combo preamp inputs with +48V phantom power inputs and three 1/8“ (3.5mm) preamp inputs with 5V plug-in power for mic and line level devices
• Connect, adapt and mix any microphone or audio source to a variety of 1/8“ (3.5mm) mini input cameras
• A dedicated headphone output is provided so you can always hear your sound even when your camera lacks a headphone output
• A compact and versatile solution for connecting, adapting and mixing multiple microphones and audio sources to 1/8” (3.5mm) input cameras
• Adds 3 shoe mounts to your camera to hold mics, lights, wireless receivers and more
• Power: 9 V battery
• Battery duration: 5 hours (alkaline battery), 3 hours (lithium battery)
• Dimensions: 10.2 × 8.4 × 6.4 cm
• Weight: 12.6 oz / 357.2 g

Saramonic PAX1 SR-channel audio adapter is designed to work with cameras VDSLR.
SR-PAX1 equipped with a mini-jack input (3.5mm) and XLR connectors for connecting both line and microphone audio sources. With this adapter is compatible with a wide range of devices such as microphones, consoles, musical instruments, telephones or MP3 players.
control over the quality of recorded material enables headphone output and two independent knobs governing sound levels of individual channels.
aluminum housing, provided with cold and attaching the tripod foot female 1/4 ", allows the mounting unit to the camera or the tripod. Three-type attachment sled ISO allow the installation of accessories, such as:
