Neutrik NC3MXX-B

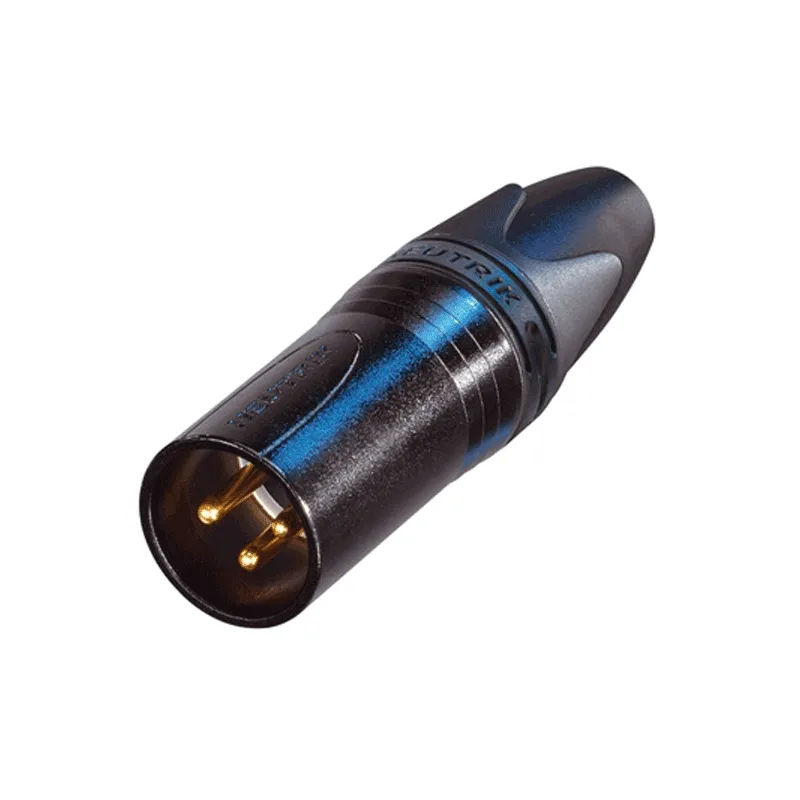

3 pole male cable connector with black metal housing and gold contacts.

The new generation of the globally recognized XLR cable connector standard. The successor to the X series offers several new features, more reliable, easier assembly, and better contact and cable clamp integrity.

Technical Specifications

  • Capacitance 4 pF
  • Contact resistance 3 m
  • Rated voltage 1min 1.5 kVdc
  • Insulation resistance > 10 G
  • Rated current per 1 contact 16 A
  • Rated voltage 50 V
  • Cable diameter 3.5 - 8.0 mm
  • Force required to connect connectors 20 N
  • Force required to disconnect connectors 20 N
  • Lifetime > 1000 connection cycles
  • Conductor max. 2.5 mm, max. 14 AWG
  • Soldering
  • Cable cap polyurethane
  • Contact surface treatment 0.2 m Au layer on 2 m Ni
  • Contact material Bronze (CuSn8)
  • Polyamide (PA 6.6 30 GR)
  • Lock Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Connector body Zinc diecast (ZnAl4Cu1)
  • Connector body finish black chrome
Вид продуктаПровода, кабели
Соединительный штекерXLR
ЦветЧерный
