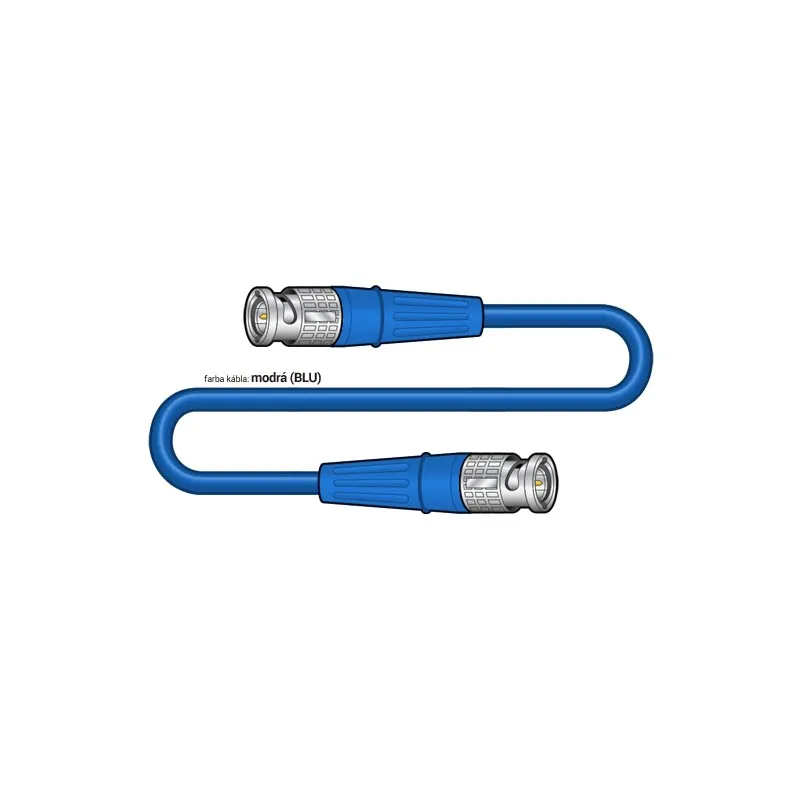

Canare L-4.5CHWS flexible 4K UHD, 12G-SDI cable, BNC-BNC 25m, BLU CV-45W-M/M-BLU-25

Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm Low Loss koaxial SD/HD/3G/12G-SDI cable, ideal for mobile applications.

, BLUUse of flexible 12G/3G/HD-SDI cable Canare L-4.5CHWS:

• compliant with SMPTE 424M and SMPTE 292M, SMPTE ST 344M and SMPTE ST 2082-1 specifications
• HDTV
• 4K/HD/SD-SDI video
• PAL & NTSC analog video
• Satellite applications
• TELCO
• Test equipment

Specifications:

• Standard manufactured lengths: 100/200m
• Sheath diameter (overall diameter) in mm:7.2
• Cable weight in kg/100m: 6.6
• Central conductor - number and diameter of stranded wire in mm: 7/0,34
• Total diameter of central conductor in mm: 1.02
• Foam dielectric - diameter in mm: 4,57
• Resistance of central conductor in /100m:3,3
• Resistance of outer conductor in /100m:0,8
• Temperature range: -30C ~ +60C
• Static capacitance in pF/m:53
• Attenuation in dB/100m:22.8

Maximum transmission distance depending on video format:
