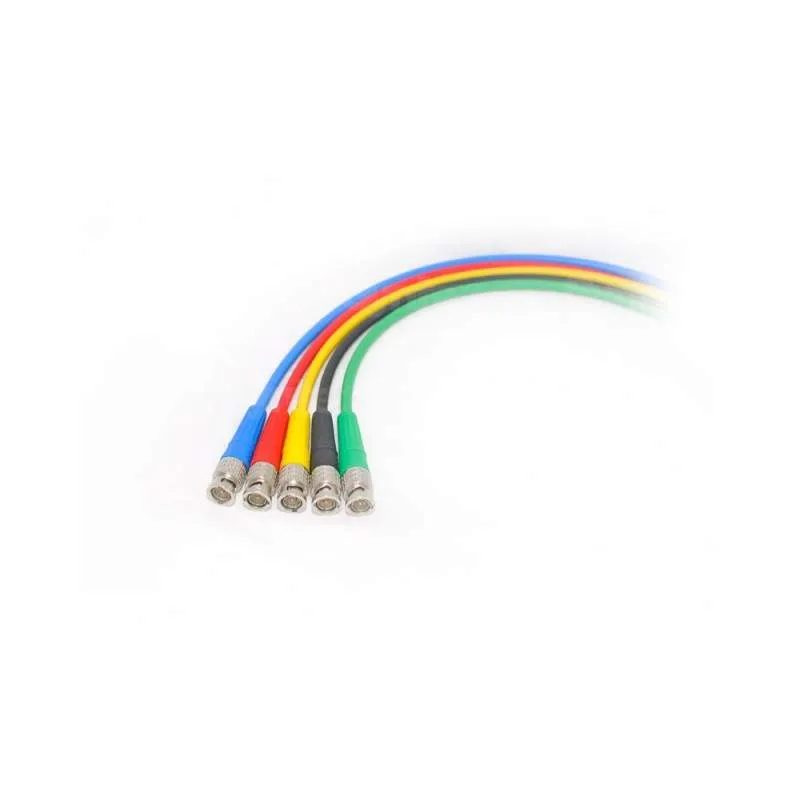

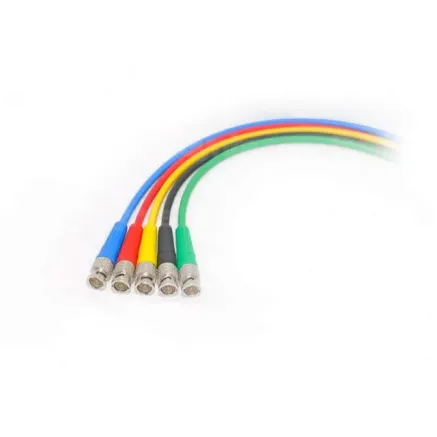

Canare L-3C2VS BLU BNC 20m Coaxial Cable

Rated 4.9/5 based on 1 customer reviews

4945 ar PVN

Piegādes laiks no 3 nedēļām.

15220
CV-3-M/M-BLU-20
0000000000000
Canare

Jauns

Delivery Instore
iespējams pēc 09.12.2024
Saņemt veikalā
Bezmaksas
Delivery Postbox
iespējams pēc 09.12.2024
Pakomāts (Omniva, DPD, Venipak)
no 3 €
Delivery
iespējams pēc 09.12.2024
Kurjers (DPD, Omniva)
no 10 €
Delivery Bycicle
iespējams pēc 09.12.2024
Velokurjers (tikai Rīga)
no 7 €
Produkta veidsVideo vadi, kabeļi
Produkta veidsVadi, kabeļi
LCD monitoriHDMI adapter
SavienojumiBNC to BNC

Oriģinālais preces apraksts no ražotāja (oriģinālā valodā)

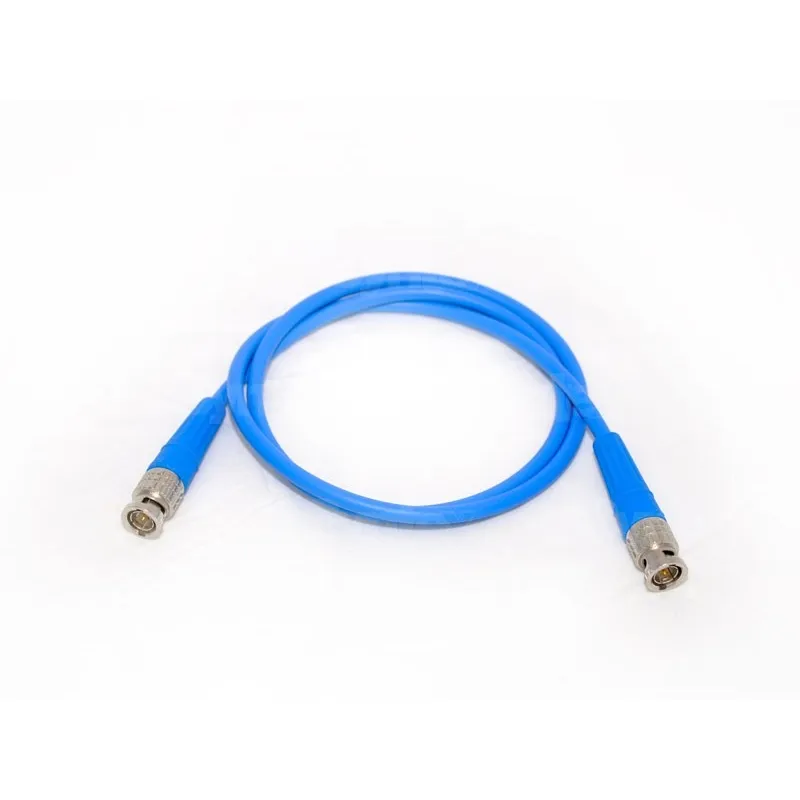

CanareL-3C2VS BLU BNC(M-male) / BNC (M-male)20m

Canare L-3C2VS is a very lightweight and super flexible 75 ohm 5.5mm HD/SD-SDI coaxial cable with a stranded center conductor and a tightly woven shielded outer conductor. The L-3C2VS cable remains flexible even at low temperatures. At both ends are crimp-on BNC (M) connectors type BCP-A3.

Usage:

  • HD/SD-SDI video
  • PAL & NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment
  • Rack cabling
  • Video Patch Cables

Cable Specifications:

  • Sheath diameter (overall diameter) in mm: 5.5
  • Cable weight in kg/100m: 4.5
  • Central conductor - number and diameter of wire strands in mm: 7/0.18
  • Total diameter of central conductor in mm: 0.54
  • Foam dielectric - diameter in mm: 3,1
  • Resistance of central conductor in Ohm/100m:10,5
  • Resistance of the outer conductor in Ohm/100m:1,9
  • Static capacitance in pF/m: 67
  • Attenuation in dB/100m: 4,5
  • Impedance in Ohm: 75

Connector Specifications:

  • Tensile strength in kg: >24.9
  • Insulation resistance at 500V DC in Ohm: >1000M
  • Rated voltage for 1min: 1500V AC (rms)
  • Resistance of central contact: <6m ohm
  • Resistance of outer contact: <3m ohm
  • Impedance in Ohm : 75
  • Connector body - material/surface : Brass / Nickel
  • Central contact - material/surface: Brass / Gold
  • External contact - material: Beryllium Copper
  • Dielectric - Material: PTFE polytetrafluoroethylene
  • Crimp sleeve - material/surface: Copper / Tin

Maximum transmission distance depending on video format
Data transfer rate143 Mbps177 Mbps270 Mbps360 Mbps540 Mbps1.5 Gb/s
SpecSMPTE 259MITU-R BT.601SMPTE 259MSMPTE 259MSMPTE 344MSMPTE 292M
UseComposite NTSCComposite PALComponent 4:2:2Component 4:2:2 16x9SDIHD-SDI
Modelmmmmmm
L-3C2VS24121817415012046
