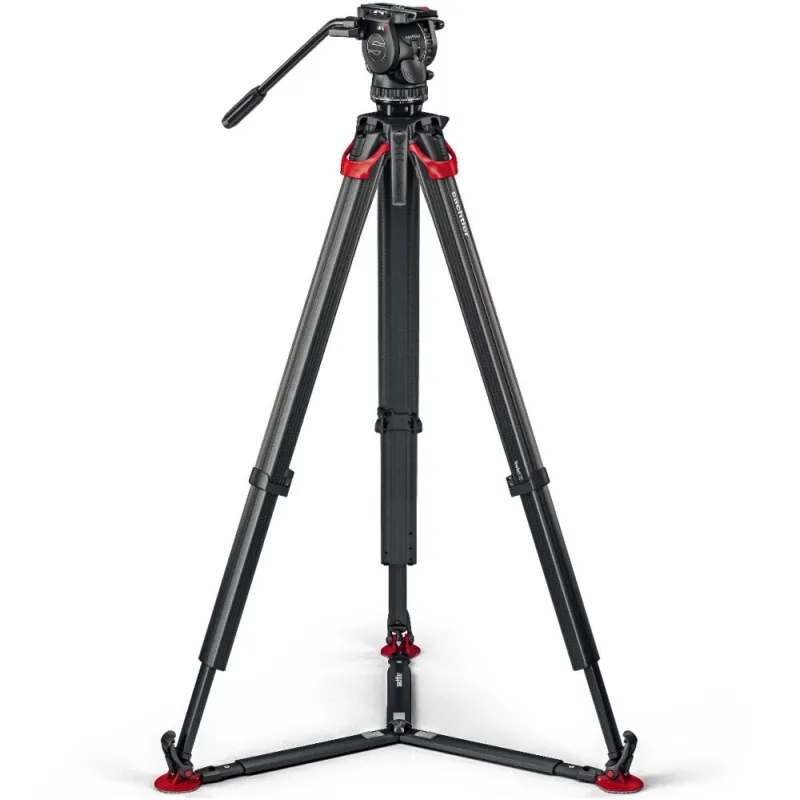

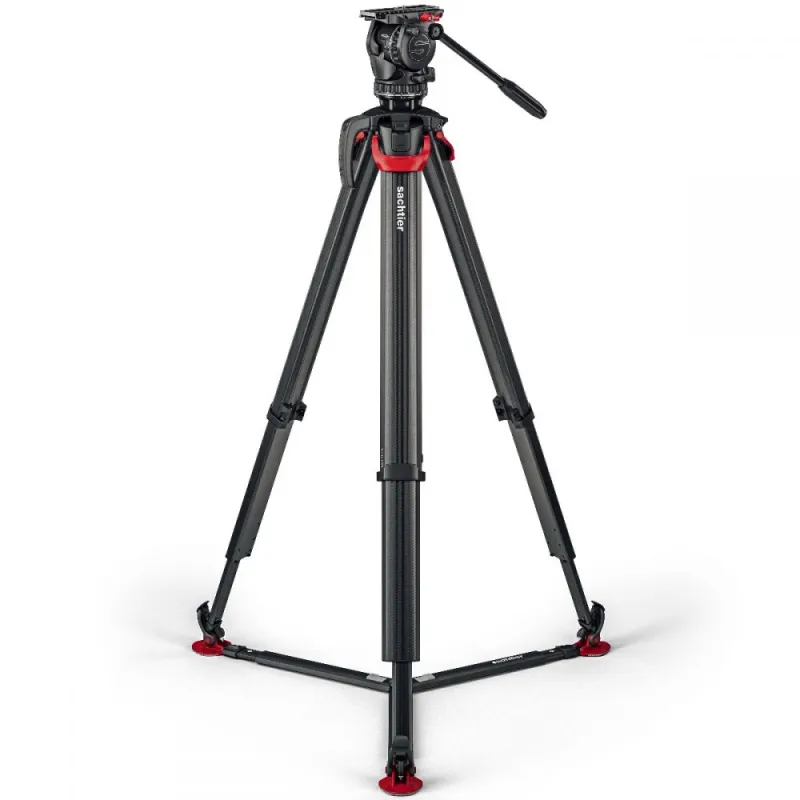

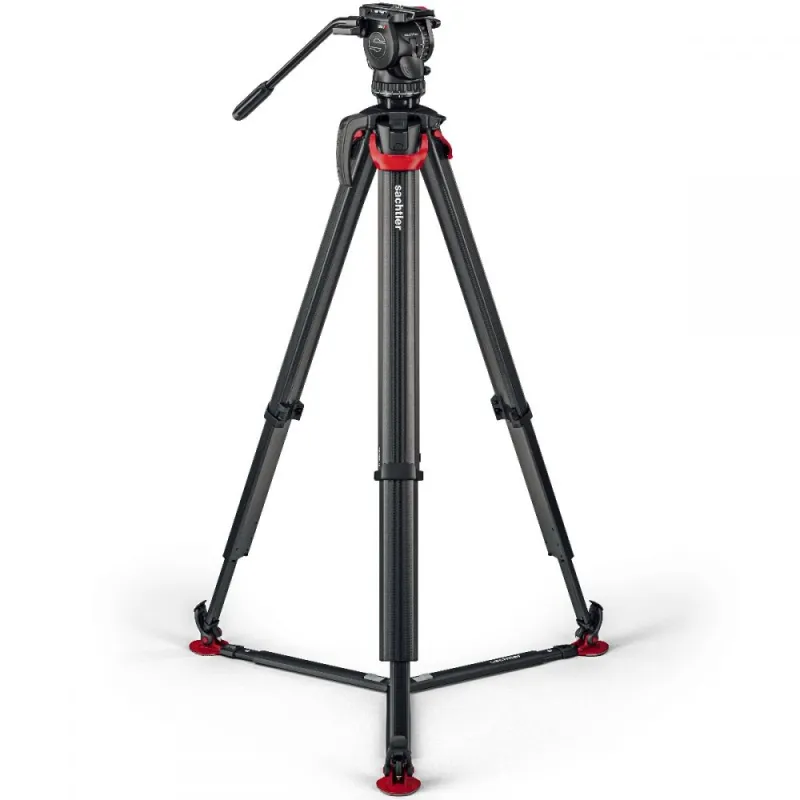

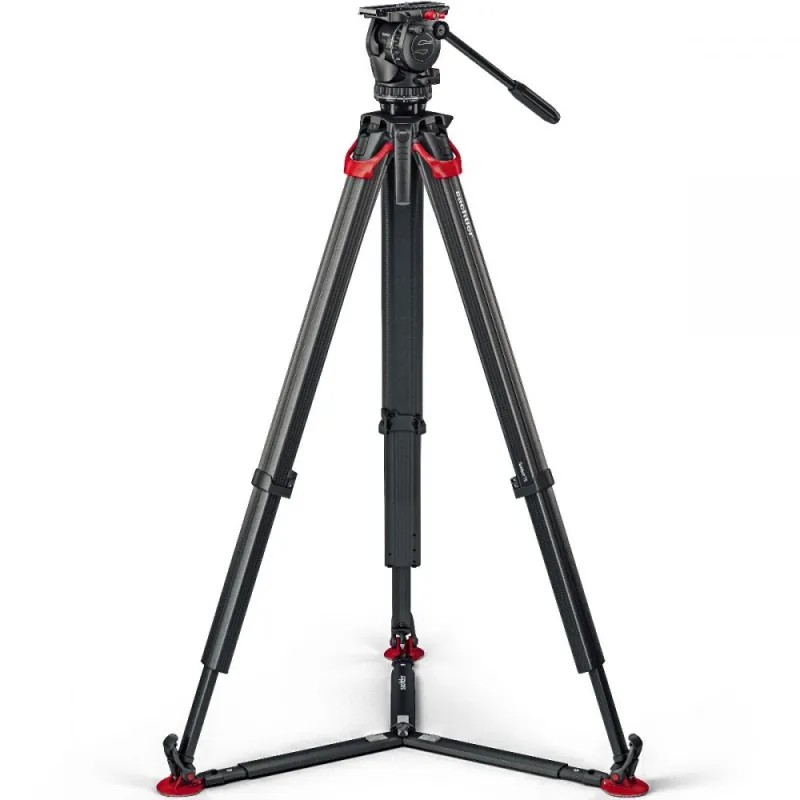

Sachtler System aktiv8 flowtech75 GS

Weighing only 6.5 kg (14.3 lbs.) the aktiv8 flowtech75 system is both lightweight and durable, designed to be a long-serving and high-performing part of your kit. This system is the perfect choice for professional medium-sized camcorders and digital cine camera set ups of up to 12 kg (26.5 lbs.). 15 counterbalance steps allow for fast and precise balancing of your camera. Its sideload mechanism with a long sliding range of 120 mm make loading and positioning the camera quick and easy. 7 drag settings provide smooth and fast options to adjust drag performance without jolts or vibrations. The illuminated PrismBubble with top or side view makes levelling easy from any height.

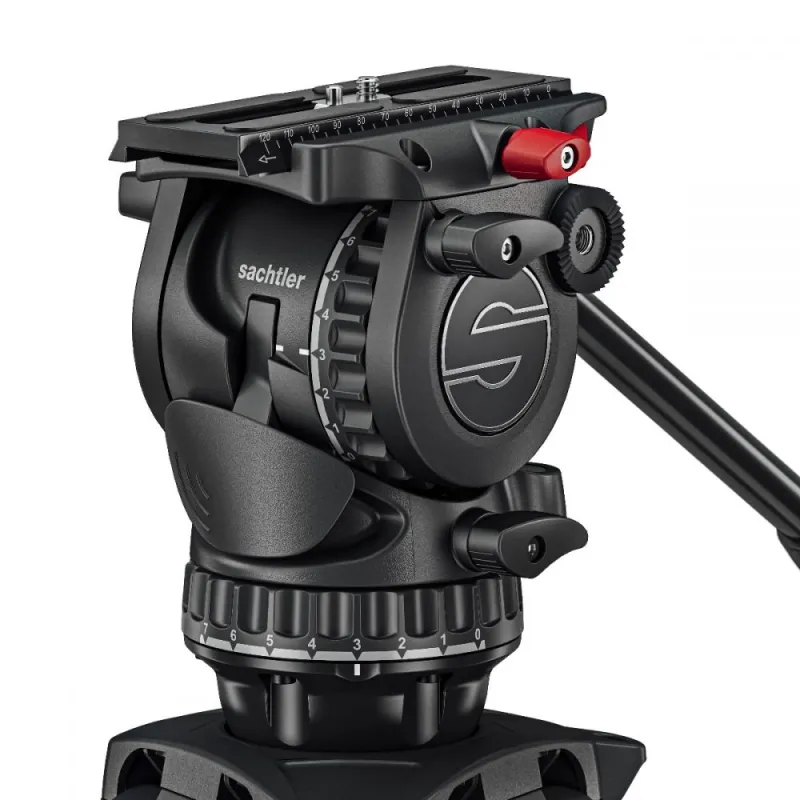

Fluid Head
The aktiv8 fluid head with the unique SpeedLevel™ technology can be levelled in seconds giving you time to get the perfect shot in documentary, corporate, or news applications. The SpeedSwap™ system delivers the fastest way to switch between tripod and slider in seconds giving you ultimate flexibility.

Tripod
Capture the widest range of shots in the shortest time with aktiv8 combined with flowtech75. With no bowl clamp required, flowtech can go flat to the ground for extreme low-angle shots – using the versatile hinge lock mechanism of flowtech. The system delivers the widest height range. The 2-stage carbon fibre flowtech tripod with high torsional stiffness has unique quick release brakes which can be deployed and adjusted in an instant. Its ergonomic design makes the tripod comfortable to carry, on shoulder or carry handle, no matter where your creativity takes you. flowtech comes with a unique ground spreader with foot controls for adjustment. When you are ready to move on, the legs are hold together by a magnetic lock for transportation.

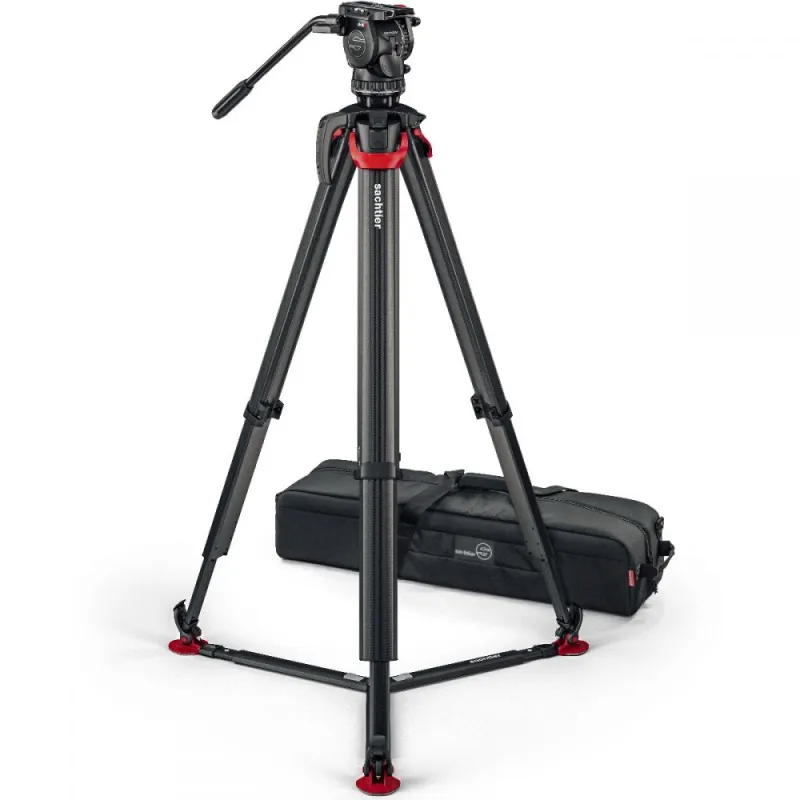

Delivery Content
• aktiv™8 head with Sideload plate S and one pan bar DV 75 right
• flowtech® tripod 75 with carry handle
• attachment mount and ground spreader
• flowtech® padded bag

Specifications

Payload

0 to 12 kg

Bowl size

75 mm

Weight

6.50 kg

Transport length

850 mm

Tripod stages

2

Height without spreader

0.23 to 1.70 m

Height With Ground Spreader

0.56 to 1.76 m

Temperature range

-40 to 60 °C

Tilt range

90° to -70°

Sliding range

120 mm

Counterbalance

15 + 0 counterbalance steps

Drag

7 + 0 drag settings
