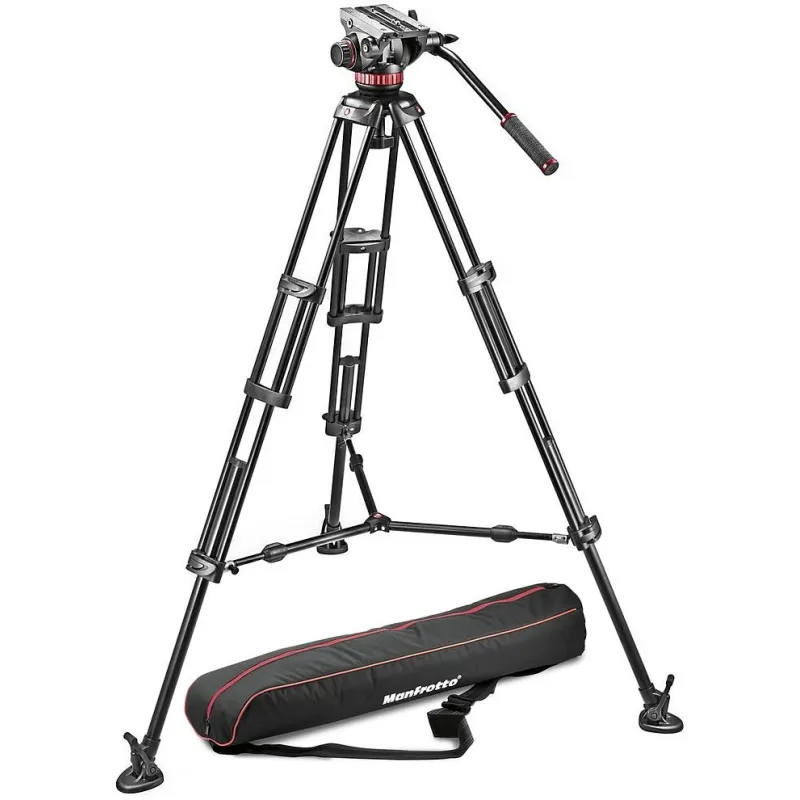

Manfrotto MVH502A,546BK-1 Tripod Set

Have total freedom to capture the perfect shot. The ingenious Professional Fluid Video System, Aluminium with Sliding Plate makes your job even easier, thanks to its long list of intuitive design features and high-functioning capabilities. This clever tripod with fluid video head gives you professional quality pan and tilt, extra easy set up, and the freedom to collapse and tidy away into a neat, compact package when you’re done.

This clever piece of kit consists of a fluid video head, and a pro video tripod with a mid-level spreader, giving you everything you need in one box. The mount features a 75mm half ball, so you’ll be able to get into the perfect position in a jiffy. Versatile and smart, this tripod with fluid video head can even support wider HDSLR and interchangeable lens cameras. The fluid drag system counterbalances loads up to 4kg, but it’s capable of holding normal loads up to 7kg, so you’ll never have to worry about wobbling from one angle to the next, whatever equipment you’re using.

Linking your photo head to accessories like external monitors, lights and microphones is a doddle too. Two easy link connectors give you the flexibility to attach whatever the job demands. And when the mount is up, it’s totally secure. It can support up to 20kg, making it super strong, all down to its die cast aluminium crown, and rigid two-stage design. The legs lock firmly in place at just a flick of a handle, spiked rubber feet and rubber overshoes keep a steady grip even on tricky terrain, and it’s versatile enough to pair with a number of different dollies.

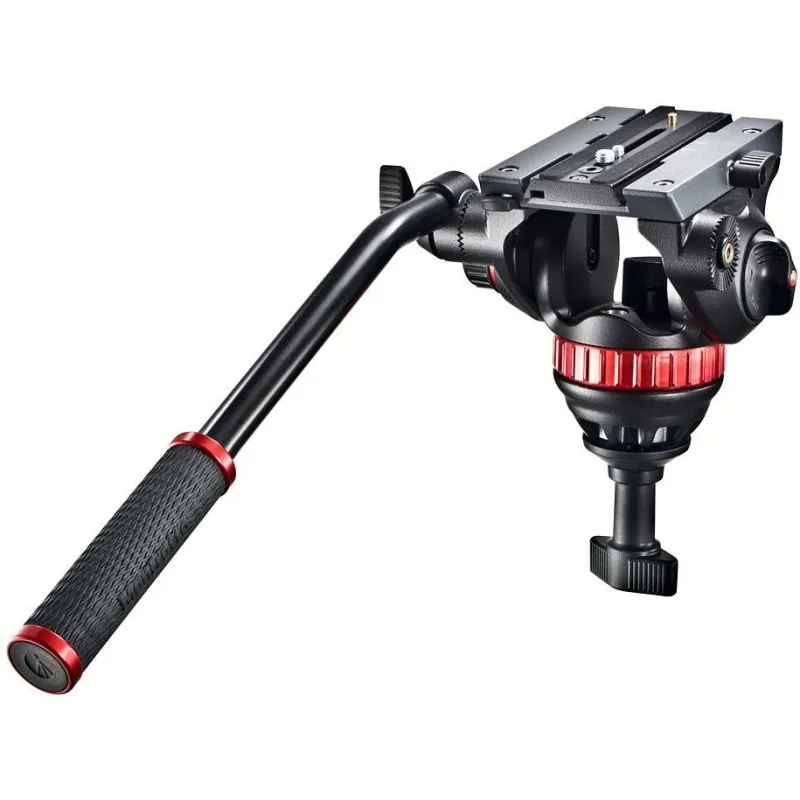

Features (fluid video head MVH502A, MVH502AH):
• Quick release plate for balancing the camcorder with secondary safety latch
• 1/4” and 3/8” camera screw and VHS pin
• 3/8” female tripod attachment (model MVH502AH)
• 75mm head ball (model MVH502A)
• PAN and TILT drag adjustment continuous from 0 to max level
• Pan bar can be fitted left or right
• Spirit level for fine levelling
• Built-in balance spring to help to support the camera weight

Features (tripod 545B/546B, 545GB/546GB):
• Three sections, two stages
• Twin spiked feet
• Mid level spreader (on model 545B - 546B)
• Spreader (on model 545GB - 546GB)
• 100 mm bowl (on model 545B - 545GB)
• 75 mm bowl (on model 546B - 546GB)


Delivery includes:
• 502A Fluid-Head
• 546BK Tripod with Mid Level Spreader
• two times expandable
• Tripod case
• Counter Balance System
• Load up to 4k

Technical Specifications

MVH502A ir profesionāla video galva, kas apgādāta ar 75 mm puslodes video statīva stiprinājumu. Paredzēta lietošanai ar HDSLR un jaunākajām maināmu objektīvu kamerām. Statīva galva piedāvā tādas profesionālas funkcijas kā augstas veiktspējas variējama plūstamība un atsvara iestatījums, kas atbilst populārāko kameru modeļu svaram un to piederumiem, piemēram, ārējiem monitoriem, gaismām vai mikrofoniem.
MVH502A ir priekšiestatīts atsvars 4 kg, taču tā spēj balstīt līdz 7 kg smagu aprīkojumu.

MVH502A galva ir aprīkota ar diviem savienotājiem Easy Link, kas ļauj tai pievienot ārējo monitoru vai jebkuru citu papildu piederumu. 546B ir divu līmeņu, ārkārtīgi izturīgs un stabils statīvs, kas spēj noturēt slodzi līdz 20 kg. Statīvam 546B ir spiedlējuma alumīnija vainags ar iebūvētu 75 mm bļodiņu. Statīva teleskopiskais vidējā līmeņa spraislis palīdz precīzi iestatīt kāju leņķus. Kāju fiksatori ir droši un uzticami, turklāt komplektā ietilpst kāju dzelkšņi ar gumijas uzgaļiem stabilai statīva izvietošanai gan uz nelīdzenas zemes virsmas, gan gludām grīdām. Statīvs var tikt izmantots ar dažādām operatoru platformām.
