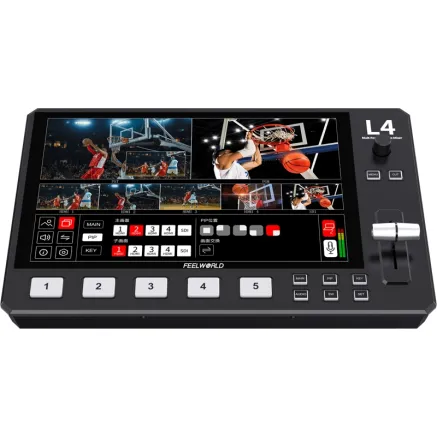

Feelworld L4 10,1 Video Switcher

FeelWorld L4 HDMI Livestream Switcher ar iebūvētu 10.1" LCD monitoru

Šis kompaktais video switcher ļauj jums pārslēgties starp pieciem ievades avotiem, izvadīt programmu un priekšskatu video caur HDMI un SDI, un straumēt līdz 1080p60 video caur USB 3.0, izmantojot trešās puses straumēšanas programmatūru.

Monitorēšana un kontrole ar skārienekrānu

• L4 switcher ļauj jums pārslēgties starp ievades avotiem, izmantojot skārienekrānu, T-bar, vai lielos LED pogas, kuras gaismo ar zaļo vai sarkano indikatoru, vai to var kontrolēt, izmantojot datoru vai viedtālruni.
• Jūs varat monitorēt visus četrus ievades avotus, izmantojot iebūvēto krāsaino TFT displeju uz ierīces vai izvadīt programmu/priekšskatu caur HDMI un SDI izvadiem.

Chroma Key un video efekti

• Izveidojiet iesaistošu video, izmantojot konfigurējamos PiP (attēls attēlā) režīmus un 13 pārejas efektus.
• Pievienojiet profesionālus efektus, izmantojot chroma key.

Ātrā USB 3.0 straumēšana

• Tas atbalsta video izvadi līdz 1080p60 caur USB 3.0, lai izmantotu ar dažādām trešās puses straumēšanas programmām vai NLE video rediģēšanas sistēmām.
• Izmantojiet ar populārām platformām kā YouTube, Facebook Live, Twitch, TikTok u.c.

Audio iespējas

• Jūs varat izmantot HDMI vai SDI iegulto audio vai iegult audio no mikrofona vai ārēja avota, izmantojot 3.5 mm stereo ievades ligzdu.
• Ir arī 3.5 mm izvades ligzda, lai atdalītu audio, izmantojot ārējos skaļruņus vai audio mikseri.
• L4 switcher atbalsta 2-kanālu audio maisīšanu.

Izturīgs dizains

• Šis plānais switcher ir aprīkots ar izturīgu alumīnija korpusu.
• Iebūvētais ventilators ieslēdzas automātiski, lai uzturētu ierīci vēsu.

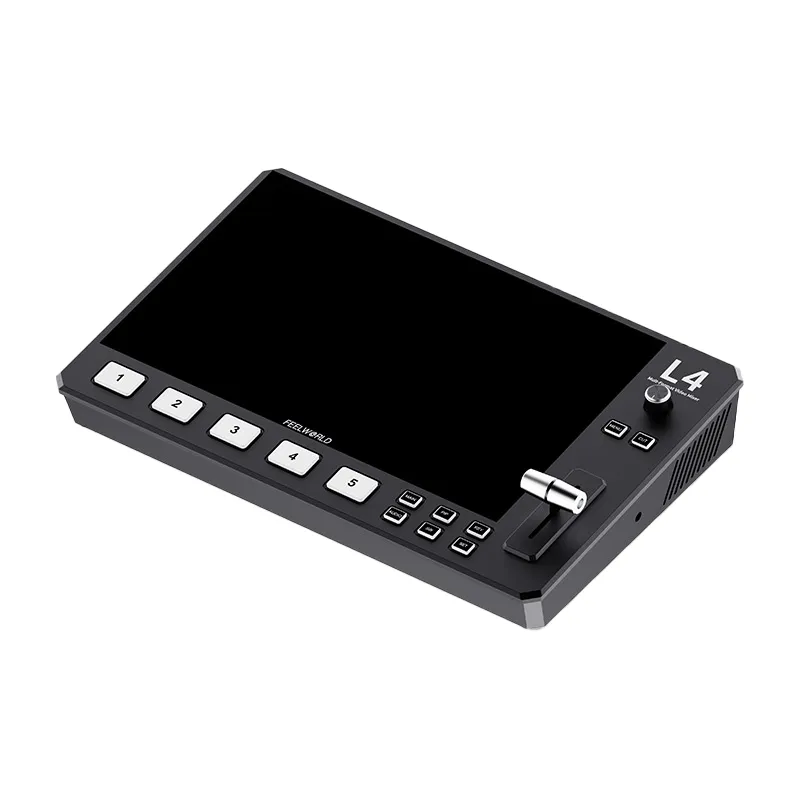

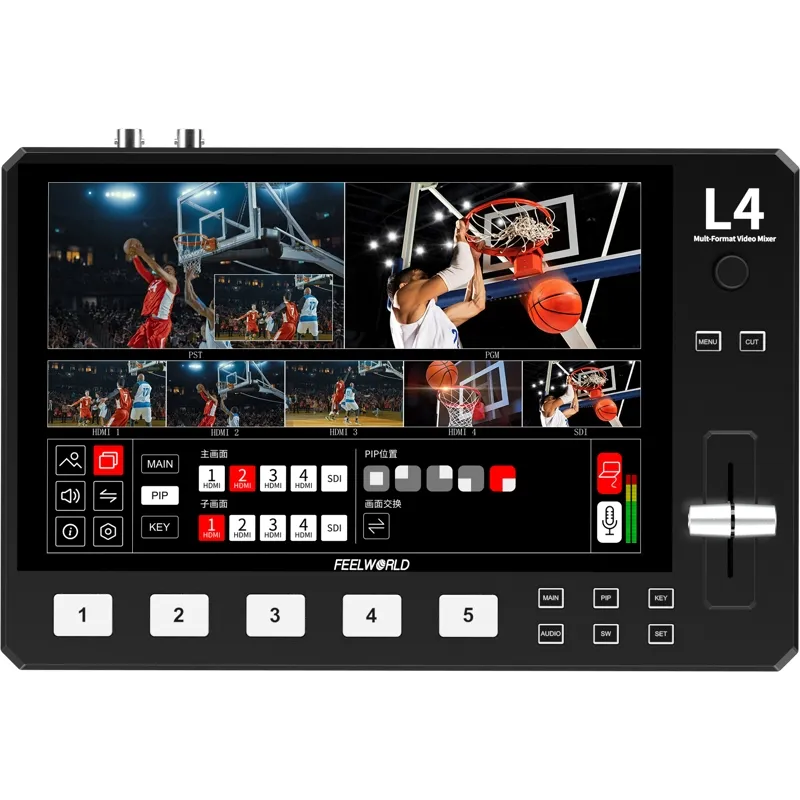

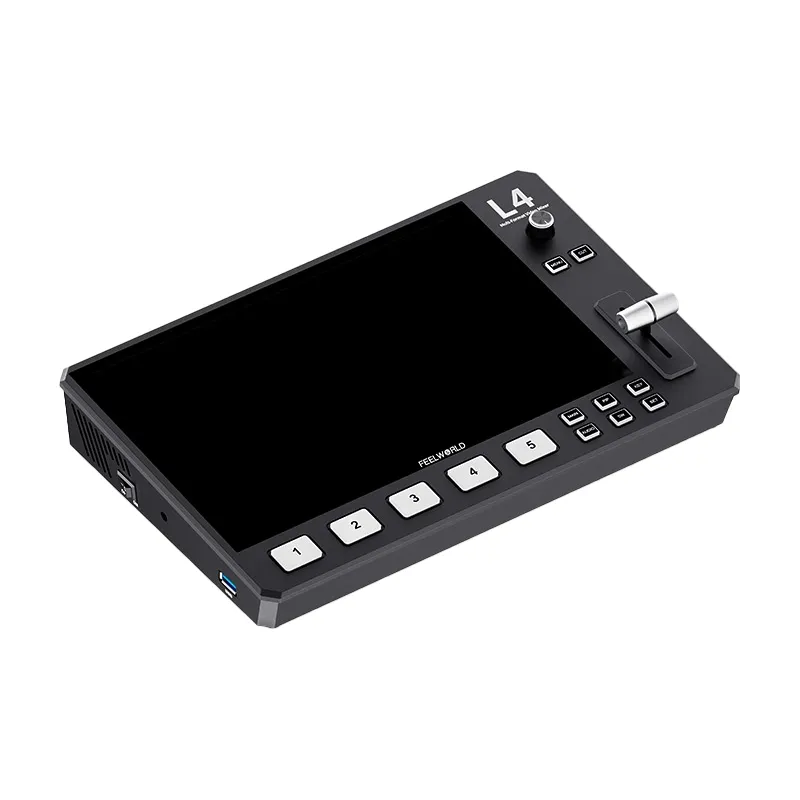

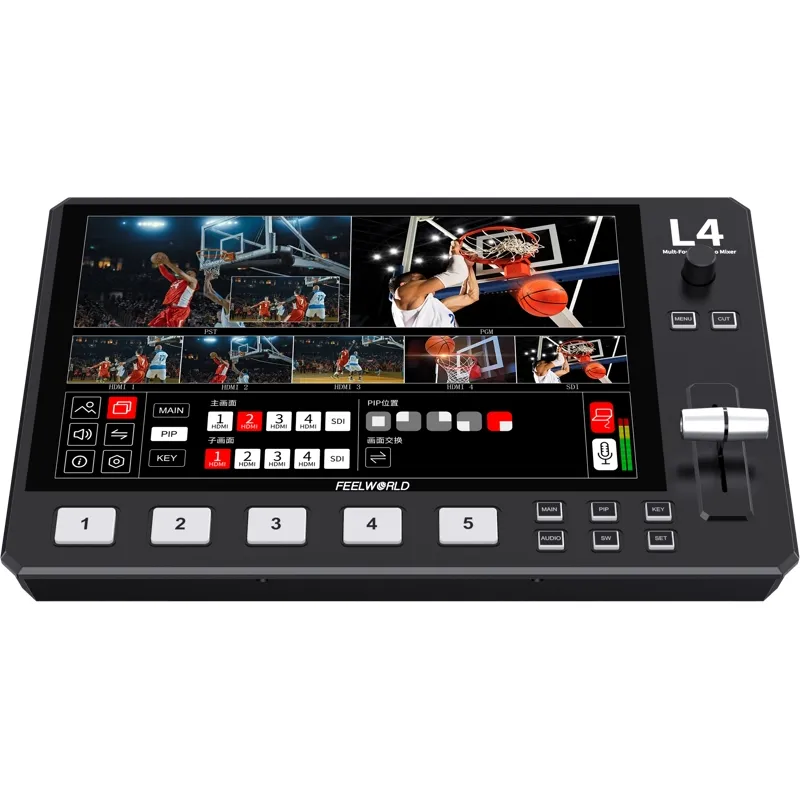

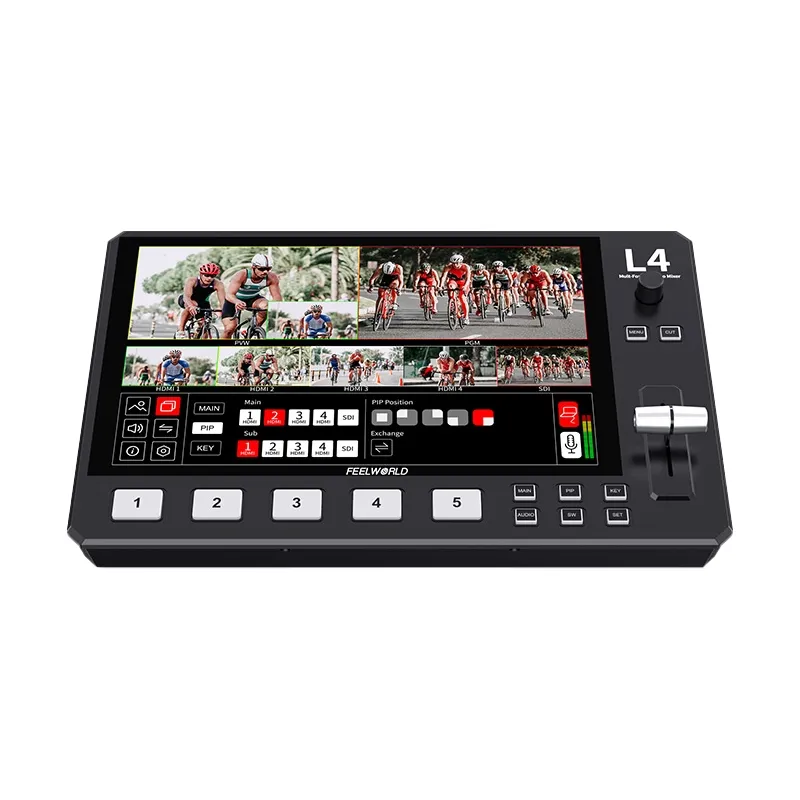

Feelworld L4 10.1 Video Switcher
With the Feelworld L4 10.1 Video Switcher switch, control and stream your video content live using an SDI and up to four HDMI video sources. The switcher has a built in 10.1 LCD monitor. This compact video switcher can switch up to five inputs, output programme and preview video via HDMI and SDI. Stream video up to 1080p via USB 3.0 using your computer and third party streaming software.


Highlights

Video production switcher with 5 inputs
Built in 10.1 inch LCD touchscreen
Supports up to 1080p60 video in/out

Touchscreen monitoring and control
With the L4 switcher, you switch between inputs via the touchscreen, the T bar or the large LED buttons that light up with green or red tally indicators. You control it via a computer or smartphone app. You can monitor all four inputs using the built in TFT colour display on the L4 or perform Program/Preview via the HDMI and SDI outputs.


Chroma keying and video effects
Create captivating videos using configurable PiP modes and 13 transition effects. Via Chroma Keying, add professional effects.


Fast USB 3.0 live streaming
The L4 supports video output up to 1080p60 via USB 3.0 for use with a variety of third party streaming software or NLE video editing systems. You can use the L4 with popular platforms such as YouTube, Facebook Live, Twitch and TikTok.


Audio options
Make use of the HDMI and SDI integrated audio or microphone audio or external source embedding using the 3.5mm stereo input. The 3.5mm input allows the audio to be de embedded for use with external speakers or an audio mixer. The switcher supports 2 channel audio mixing.


Durable design
The L4 is has a slim housing made of durable aluminium. The built in fan switches on automatically to keep the device cool.,

Video production switcher with 5 inputs
SDI (BNC) and 4 HDMI inputs
SDI and HDMI outputs, USB 3.0 to computer
Built in 10.1 inch LCD touchscreen
Live stream via computer and software
Supports up to 1080p60 video in/out
3.5mm audio in and out, 2 channel audio mixing
Chroma keying and logo overlays
Configurable PiP and 13 transition effects
Aluminium housing with built in fan
