Key Features

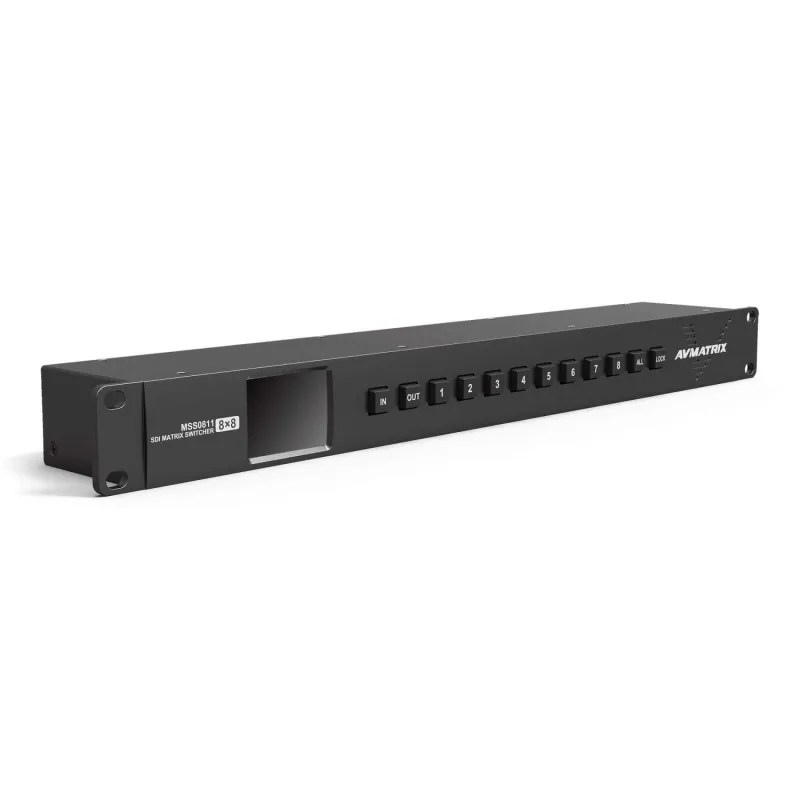

The 1 RU 8 x 8 3G-SDI Matrix Switcher from AVMATRIX accepts eight channels of input and can drive them to eight separate output feeds. It includes a multi-format technology that detects multiple video format sources of SD/HD/3G-SDI (level A&B) and DVB-ASI signals at the same time and routes the multiple video destinations in 1080, 720, SD, NTSC, and PAL. It is controlled by manual switches on the front of the device and via RJ45 and RS-232 ports for software control as well as a USB Type-A port for keyboard control. Two 12 VDC power adapters are included to provide redundant power.
