SmallRig 4608 VB99 SE mini V Mount Battery

SmallRig 4608 V-mount akumulators Mini VB99 SE

Akumulatoram ir vairākas pieslēgvietas, tostarp BP, D-Tap, 8V-OUT DC, 12V-OUT DC, USB-C un USB-A, kas ļauj vienlaicīgi barot dažādas ierīces, piemēram, kameras, monitorus, viedtālruņus un klēpjdatorus.

Aprīkots ar augstas integrācijas ātrās uzlādes protokola mikroshēmu, MCU un akumulatora vadības sistēmu (BMS), tas nodrošina aizsardzību pret pārslodzi, īssavienojumu, pārkaršanu un pārspriegumu. Tas atbalsta dažādus ātrās uzlādes protokolus, piemēram, PD, QC un PPS, un nodrošina 65 W divvirzienu PD ātro uzlādi, izmantojot USB-C.

Izgatavots no ugunsdroša PC materiāla, akumulators ir karstumizturīgs un izturīgs. OLED displejs skaidri parāda akumulatora uzlādes līmeni, atlikušo lietošanas laiku, spriegumu, jaudu un citu informāciju precīzai uzraudzībai.

Atbilst starptautiskajiem standartiem (MSDS, UN38.3, IEC 62133, UL2054, UL 62368) un sertificēts FCC, CE, RoHS, ISED, RCM, PSE un KC, tas nodrošina drošu un uzticamu darbību.

Specifikācijas

• Jauda - 14,54 V 6,8 Ah 99Wh
• Nominālā jauda - izlāde 100 W, uzlāde 100 W, uzlāde 65 W
• V-Mount/D-TAP ieeja - 6,8 A (maks.)
• V-Mount/D-TAP izeja - 14,8 V / 10 A (maks.)
• USB-A izeja - 5 V 3 A, 9 V 3 A, 12 V 2,5 A (maks.)
• USB-C ieeja/izeja - maks. ieeja 65 W / izeja 5V3A, 9V3A, 12V3A, 15V3A, 20V3,25 A (maks.)
• DC1 izeja - 8V / maks. 3A
• DC2 izeja - 12V / maks. 3A
• Papildu uzlādes metode - 16,8 V D-TAP lādētājs, USB-C lādētājs ar PD ātrās uzlādes tehnoloģiju (līdz 65 W).

Komplektācijā iekļauts

• 1x VB99 SE Mini V-Mount akumulators
• 1x lietotāja rokasgrāmata

Uninterrupted power supply

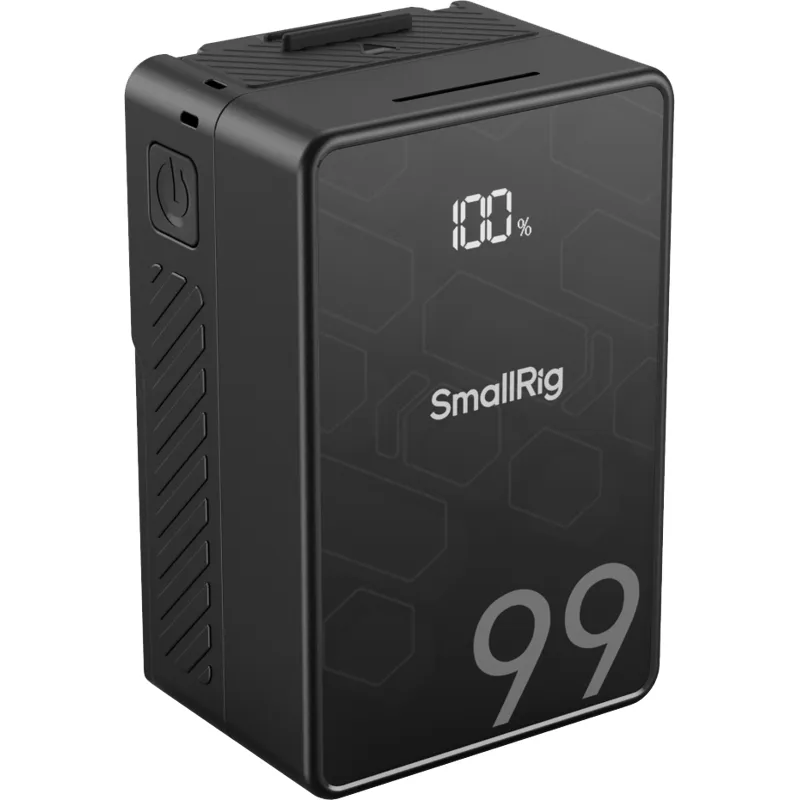

The SmallRig 4608 VB99 SE mini V Mount Battery is a compact V mount battery with a highly integrated design that effectively reduces the overall size of the battery, making it lightweight and portable.


Highlights

Integrated design for improved portability and reduced weight.
Equipped with multiple interfaces
Features an OLED screen

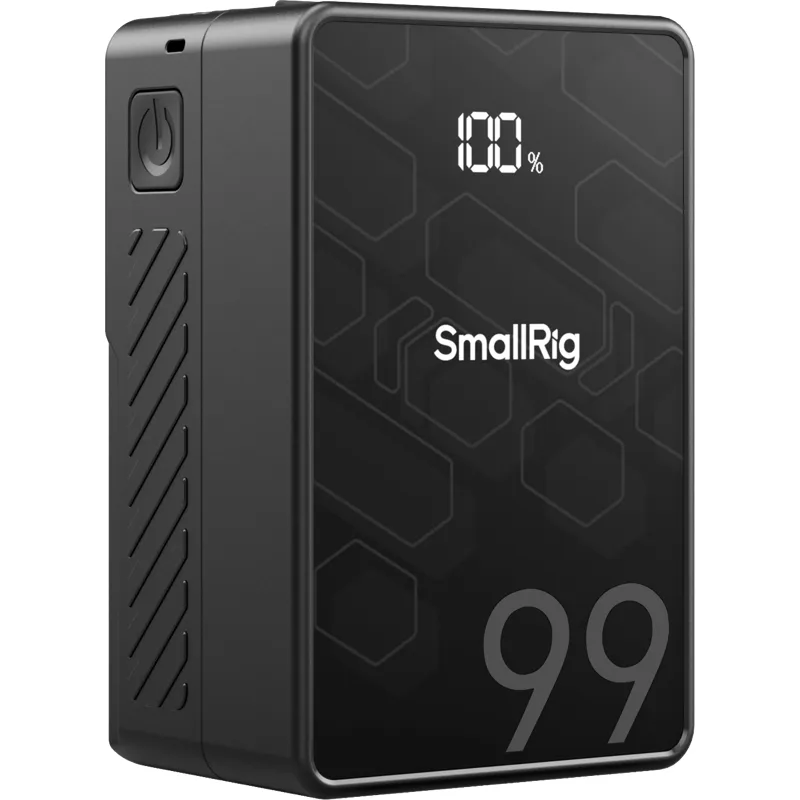

OLED screen
The OLED screen clearly displays battery level, remaining usage time, voltage, power and other information so you can accurately monitor battery status. With a range of robust safety features, this device gives you the confidence to capture every memorable moment with precision and reliability.

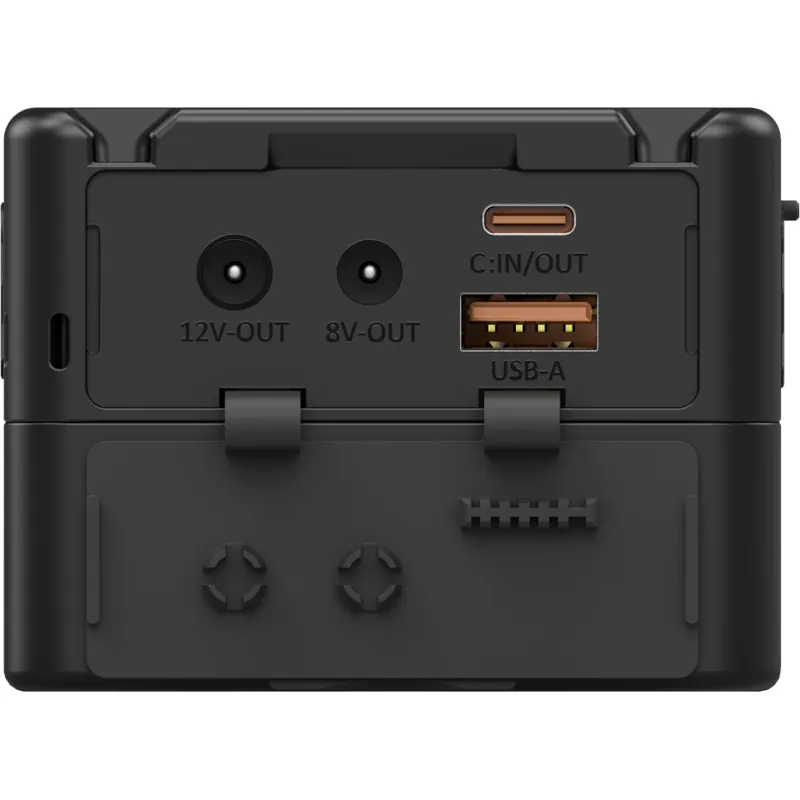

Multiple interfaces

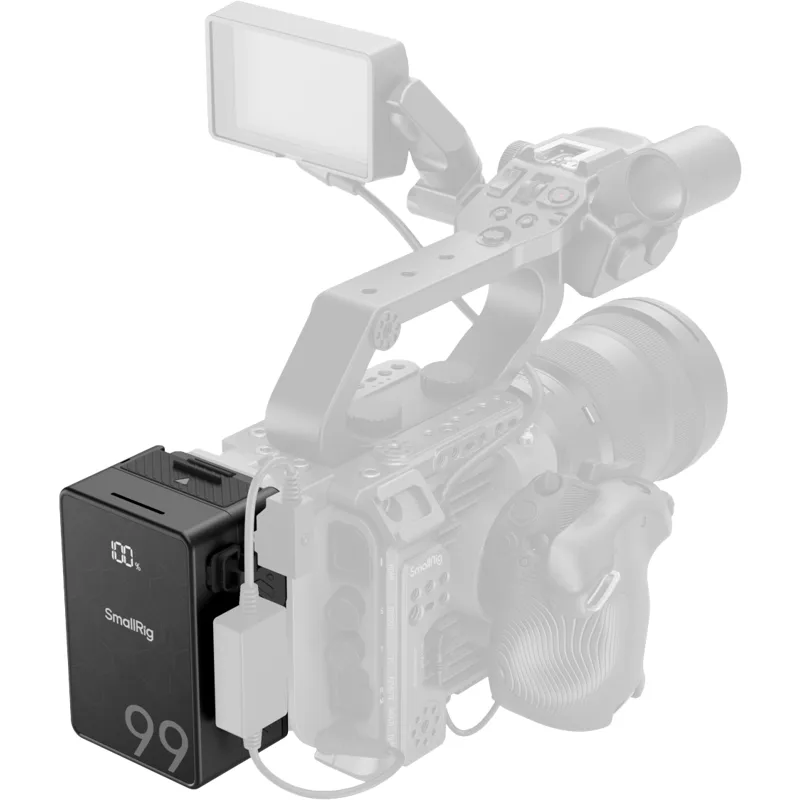

The battery is equipped with a BP, a D Tap, an 8V OUT DC, a 12V OUT DC, a USB C, and USB A ports that provide a wide range of interfaces for powering multiple devices simultaneously. This includes cameras, mirrorless cameras, monitors, transmitters, video lights, smartphones, tablets, laptops, and more, with an integrated and efficient power supply for all your needs.


Multiple protections
Featuring a highly integrated fast charge protocol chip, MCU, boost/buck control chip and Battery Management System, the battery offers multiple protections, including over current, short circuit, over temperature and over voltage. In addition, it supports various fast charging protocols such as PD, QC and PPS, and enables 65W USB C bi directional PD fast charging.


Durable and meets every standard
The exterior of the battery is made of fire resistant PC material, heat resistant and flame retardant, ensuring durability. It features LG A grade 18650 high rate cells, which ensure accurate capacity, cycle performance and exceptional stability. The battery is designed to meet international standards and has certifications, assuring users of safe and reliable operation.,

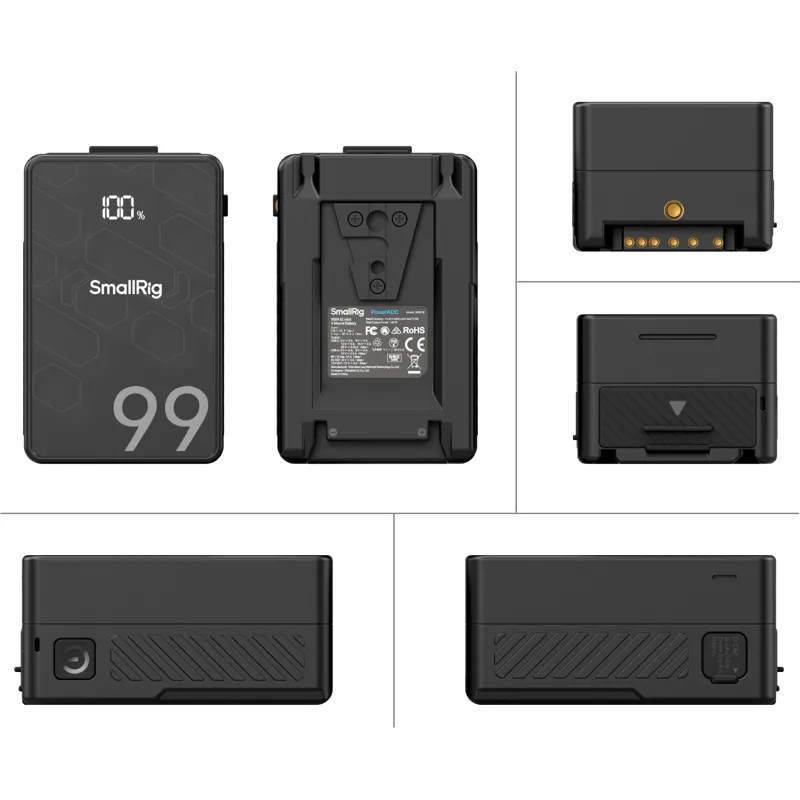

Dimensions: 112.0 x 72.0 x 53.8 mm
Weight: 595 g
Material: Fire resistant PC material
Capacity: 14.54V 6800mAh 98.872Wh
Rated discharge power: 100W
Input: USB C: 65W (max); D Tap / BP: 6.8A (max)
Output: USB C: 5V3A9V3A12V3A15V3A20V3.25AMax); USB A: 5V3A9V3A12V2.5AMax); BP/D Tap: 10AMax); 8V OUT: 8V3AMax) 12V OUT: 12V3AMax
Charging Protocols: USB C : PD3.0 / QC2.0 / QC3.0 / PPS / DCP 1.5A / APPLE 2.4A; USB A: QC2.0 / QC3.0 / DCP 1.5A / APPLE 2.4A
Cut off voltage: 11.2V
Operating temperature: 15 to 60
Charging temperature: 0 to 45
Optional charging method: BP port charger, 16.8V D Tap charger, USB C
2 years warranty
,

1 x SmallRig 4608 VB99 SE miniV Mount Battery
1 x User Guide
