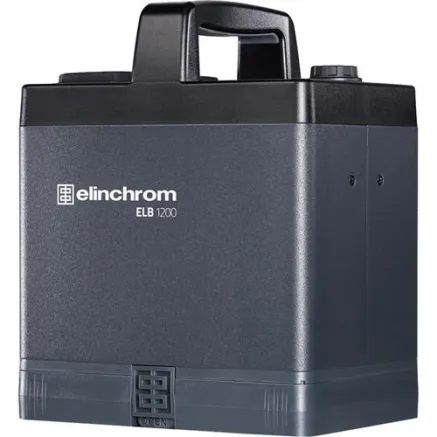

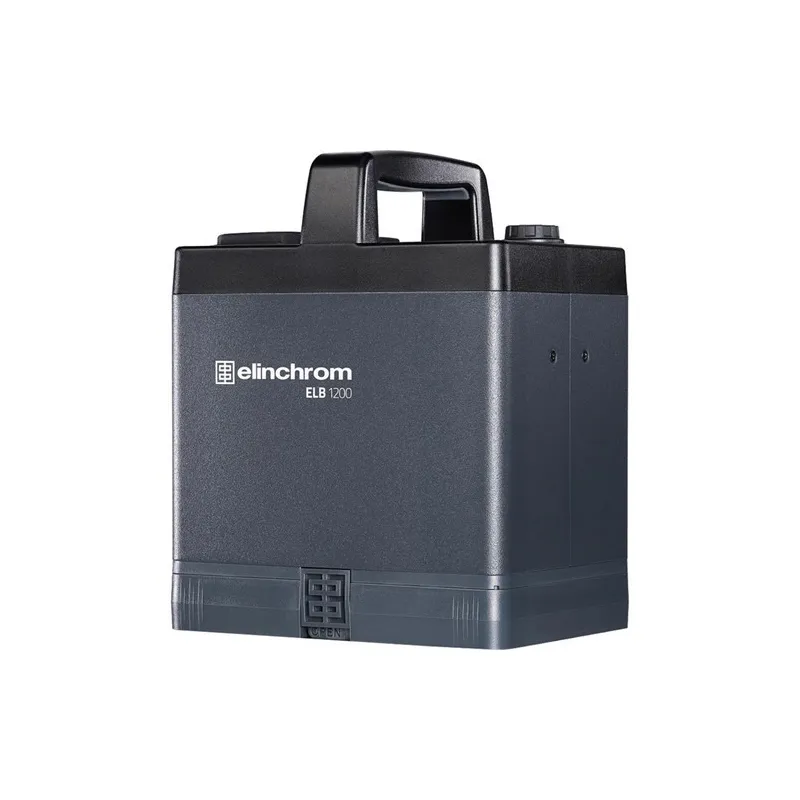

With its sleek, modernized casing and reduced form factor, Elinchrom introduces the powerful, portable ELB 1200 Power Pack (No Battery). The pack's good looks and convenience features are backed by high performance. Speed is the operative word. The pack can deliver its 1200Ws symmetrically or asymmetrically in 1/10 or 1 stop increments with 8.5 stops of power variability from 7 to 1200Ws. There are three flash modes: Eco, Default, and Fast, and the pack recycles to full power in 1.7 seconds in Fast Mode. Flash duration is an action-stopping 1/8850 second at 33% power with the optional Action Flash Head.
Elinchrom has redesigned the separately purchased Action, Hi-Sync, and Pro flash heads with use with the ELB 1200 in mind. The Hi-Sync head is optimized for HS shooting up to 1/8000 second, while the Pro head will give you 1/5050 second flash duration at 140Ws. True to its name, the Action head will give you the fastest flash duration of 1/8850, when set to 172Ws. Each fan-cooled head is outfitted with a bright LED modeling light that draws minimal power from the pack. The ELB 1200 has settings on its OLED display for On, Free (selectable level), Timer (1-60 sec), Proportional (to power level), and Dimming (from 5 to 100%).
Triggering options include a 3.5mm sync port, but the EL 1200 has a built-in EL Skyport receiver that will allow you to wirelessly fire the unit at distances up to 656' with the addition of an EL Skyport transmitter.
The EL 1200 runs on your choice of two separately purchased lithium-ion batteries. The standard Air battery will give you 215 full-power flashes and 80 minutes of run time for the LED modeling light. The more powerful HD battery provides 400 full-power flashes and 120 minutes of run time. One of these batteries and a charger are required for use of the ELB 1200.
Maximum Watt/Seconds | 1200 Ws |
Flash Variability | 8.5 stops 7 - 1200 Ws in 1 stop or 1/10 stop increments |
Distribution | Asymmetrical 2:1 or Symmetrical |
Guide Number | F-stop at 3.28' (1.0 m), 100 ISO, 48° reflector Pro 128, Action 90.6, Hi-Sync 128 |
Recycle Time | Full-Power Recycling: Fast: 1.7 sec Default: 3.0 sec Eco: 6.0 sec |
Flash Duration | 1/8850 sec at 33%, power setting 4.7 (Action Head) |
Head Outlets | 2 |
Color Temperature | 5500K with optional flash head |
Modeling Light | LED in flash head On, Free, Proportional, Timer 1-60 sec, VFC, Dimming 5-100% |
Display | OLED |
USB | Yes for firmware updates USB output for devices (5 V in Shipping mode) |
Weather Resistant | Yes |
Triggering | 3.5 mm EL-Amphenol sync cord Built-In EL Skyport Radio Receiver: 20 channels, 4 groups |
Sync Voltage | 5.0 V |
Power Stability | +/- 0.03 % |
Auto Dump | Yes |
Battery | Optional Air: Lithium-ion 36V, 2.5 Ah, 90 Wh Optional HD |
Battery Life | With Optional Air Battery 215 full-power flashes, 80-minute LED modeling light run time With Optional HD Battery 400 full-power flashes, 120-minute LED modeling light run time |
Dimensions | 7.0 x 5.0 x 11' (18 x 13 x 28 cm) with optional battery |
Weight | 7.0 lb (3.2 kg) without battery |
