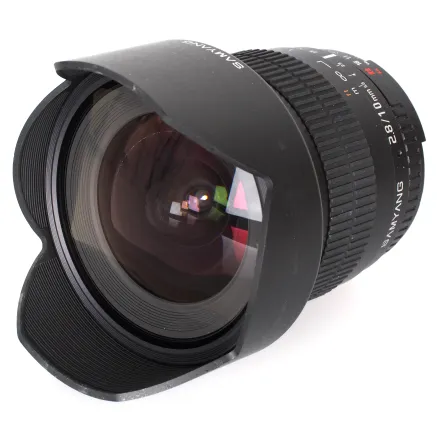

SAMYANG OBJEKTIVS 10MM F2,8 CANON EF

Prototype version of Samyang 10mm f/2.8 lens has been presented to the public on Photokina 2012 fairs. Samyang has stepped its gear and introduced a focused development program to obtain the highest possible optical parameters and reduce the product's size at the same time. These efforts resulted in the latest version of Samyang 10 1:2.8 ED AS NCS CS lens featuring parameters and capabilities comparable to the best wide-angle prime and zoom lenses on the market.

Samyang 10mm 1:2.8 ED AS NCS CS is an ideal tool for indoor, architecture and landscape shooting. It provides an exceptionally wide field of view of up to 109.5 degrees and rectilinear image mapping function. Owing to a fast f/2.8 lens speed you can also use the lens in low light conditions. This is why it turns out a useful tool for sport photography and photojournalism purposes. The product's optics comprises 14 elements divided into 10 groups, this includes 2 aspherical AS lenses and one lens made of extra-low dispersion glass. During development works on the prototype version the lens was fitted with an embedded lens hood which ensures more compact size of the lens and reduces its weight by approximately 160 grams*. * - applicable to a version with Canon E mount

NCS (Nano Coating System)

Samyang 10mm 1:2.8 ED AS NCS CS is the first Samyang Optics lens featuring a nano crystal anti-reflection coating system. This technology provides lower reflection factor than (U)MC system as the coating is now applied more evenly on the surface of the lens. Benefits brought by the nano crystal layer include better light transmission, increased resistance to reflections and higher contrast, and all of this translates into supreme optical resolution of the lens.

Specifications:

Model	10mm 1:2.8 ED AS NCS CS
Aperture range	F2.8 ~ F22
Optical construction	14 elements in 9 groups (2 ASP, 1 ED)
Minimal focusing distance	0,24 m
Image size	APS-C / CS
Filter size	None
Number of aperture blades	6
Maximum diameter	87 mm
Function	A / S / M / P mode (Nikon AE)

Mount	Canon EOS	Nikon AE	Pentax K	Sony A	Canon M	Fujifilm X	Samsung NX	Sony E	4/3	MFT
Angle of View [ ° ]	105,9	109,5	109,5	109,5	105,9	109,5	109,5	109,5	93,4	93,4
Length [ mm ]	106,1	103,6	104,6	105,6	132,0	132,4	124,6	132,1	111,4	130,9
Weight [ g ]	590	580	580	585	620	625	615	620	610	620



Prototype version of Samyang 10mm f / 2.8 lens has been presented to the public on Photokina 2012 fairs. Samyang has stepped its gear and Introduced and development program is focused Obtain the highest possible optical parameters and reduce the product's size at the same time. These efforts resulted in the latest version of Samyang 10 1: 2.8 ED AS NCS CS lens featuring parameters and capabilities comparable to the best wide-angle prime and zoom lenses on the market.
Samyang 10mm 1: 2.8 ED AS NCS CS is an ideal tool for indoor, architecture and landscape shooting. It provides an exceptionally wide field of view of up to 109.5 degrees and rectilinear image mapping function. Owing to a fast f / 2.8 lens speed you can also use the lens in low light conditions. This is why it turns out a useful tool for sports photography and photojournalism purposes. The product's optics comprises 14 elements divided into 10 groups, this includes 2 aspherical AS lenses and lens are made of extra-low dispersion glass. During development works on the prototype version of the lens was fitted with an embedded lens hood Which Ensures more compact size of the lens and reduces its weight by Approximately 160 grams *. * - applicable to a version with Canon's E mount
NCS (Nano Coating System)
Samyang 10mm 1: 2.8 ED AS NCS CS is the first Samyang Optics lens featuring a nano crystal anti-reflection coating system. This technology Provides reflection factor lower than (U) MC system as the coating is now applied more evenly on the surface of the lens. Benefits brought by the nano-crystal layer include better light transmission, Increased resistance is higher contrast and reflections, and all of this translates into supreme optical resolution of the lens.

Specifications:

Model 10mm 1: 2.8 ED AS NCS CS

Aperture Range F2.8 ~ F22 Optical construction

14 elements in Groups 9 (ASP 2, 1 ED)
Minimal Focusing distance of 0.24 m

Image size
APS-C / CS
Filter size

none Number of aperture blades
6

Maximum diameter 86 mm
Increased resistance is higher contrast and reflections, and all of this translates into supreme optical resolution of the lens.

Specifications:

Model 10mm 1: 2.8 ED AS NCS CS

Aperture Range F2.8 ~ F22 Optical construction

14 elements in Groups 9 (ASP 2, 1 ED)
Minimal Focusing distance of 0.24 m

Image size
APS-C / CS
Filter size

none Number of aperture blades
6

Maximum diameter 86 mm
Increased resistance is higher contrast and reflections, and all of this translates into supreme optical resolution of the lens.

Specifications:

Model 10mm 1: 2.8 ED AS NCS CS

Aperture Range F2.8 ~ F22 Optical construction

14 elements in Groups 9 (ASP 2, 1 ED)
Minimal Focusing distance of 0.24 m

Image size
APS-C / CS
Filter size

none Number of aperture blades
6

Maximum diameter 86 mm
and all of this translates into supreme optical resolution of the lens.

Specifications:

Model 10mm 1: 2.8 ED AS NCS CS

Aperture Range F2.8 ~ F22 Optical construction

14 elements in Groups 9 (ASP 2, 1 ED)
Minimal Focusing distance of 0.24 m

Image size
APS-C / CS
Filter size

none Number of aperture blades
6

Maximum diameter 86 mm
and all of this translates into supreme optical resolution of the lens.

Specifications:

Model 10mm 1: 2.8 ED AS NCS CS

Aperture Range F2.8 ~ F22 Optical construction

14 elements in Groups 9 (ASP 2, 1 ED)
Minimal Focusing distance of 0.24 m

Image size
APS-C / CS
Filter size

none Number of aperture blades
6

Maximum diameter 86 mm





Prototype version of Samyang 10mm f / 2.8 lens has been presented to the public on Photokina 2012 fairs. Samyang has stepped its gear and Introduced and development program is focused Obtain the highest possible optical parameters and reduce the product's size at the same time. These efforts resulted in the latest version of Samyang 10 1: 2.8 ED AS NCS CS lens featuring parameters and capabilities comparable to the best wide-angle prime and zoom lenses on the market.
Samyang 10mm 1: 2.8 ED AS NCS CS is an ideal tool for indoor, architecture and landscape shooting. It provides an exceptionally wide field of view of up to 109.5 degrees and rectilinear image mapping function. Owing to a fast f / 2.8 lens speed you can also use the lens in low light conditions. This is why it turns out a useful tool for sports photography and photojournalism purposes. The product's optics comprises 14 elements divided into 10 groups, this includes 2 aspherical AS lenses and lens are made of extra-low dispersion glass. During development works on the prototype version of the lens was fitted with an embedded lens hood Which Ensures more compact size of the lens and reduces its weight by Approximately 160 grams *. * - applicable to a version with Canon's E mount
NCS (Nano Coating System)
Samyang 10mm 1: 2.8 ED AS NCS CS is the first Samyang Optics lens featuring a nano crystal anti-reflection coating system. This technology Provides reflection factor lower than (U) MC system as the coating is now applied more evenly on the surface of the lens. Benefits brought by the nano-crystal layer include better light transmission, Increased resistance is higher contrast and reflections, and all of this translates into supreme optical resolution of the lens.

Specifications:

Model 10mm 1: 2.8 ED AS NCS CS

Aperture Range F2.8 ~ F22 Optical construction

14 elements in Groups 9 (ASP 2, 1 ED)
Minimal Focusing distance of 0.24 m

Image size
APS-C / CS
Filter size

none Number of aperture blades
6

Maximum diameter 86 mm
Increased resistance is higher contrast and reflections, and all of this translates into supreme optical resolution of the lens.

Specifications:

Model 10mm 1: 2.8 ED AS NCS CS

Aperture Range F2.8 ~ F22 Optical construction

14 elements in Groups 9 (ASP 2, 1 ED)
Minimal Focusing distance of 0.24 m

Image size
APS-C / CS
Filter size

none Number of aperture blades
6

Maximum diameter 86 mm
Increased resistance is higher contrast and reflections, and all of this translates into supreme optical resolution of the lens.

Specifications:

Model 10mm 1: 2.8 ED AS NCS CS

Aperture Range F2.8 ~ F22 Optical construction

14 elements in Groups 9 (ASP 2, 1 ED)
Minimal Focusing distance of 0.24 m

Image size
APS-C / CS
Filter size

none Number of aperture blades
6

Maximum diameter 86 mm
and all of this translates into supreme optical resolution of the lens.

Specifications:

Model 10mm 1: 2.8 ED AS NCS CS

Aperture Range F2.8 ~ F22 Optical construction

14 elements in Groups 9 (ASP 2, 1 ED)
Minimal Focusing distance of 0.24 m

Image size
APS-C / CS
Filter size

none Number of aperture blades
6

Maximum diameter 86 mm
and all of this translates into supreme optical resolution of the lens.

Specifications:

Model 10mm 1: 2.8 ED AS NCS CS

Aperture Range F2.8 ~ F22 Optical construction

14 elements in Groups 9 (ASP 2, 1 ED)
Minimal Focusing distance of 0.24 m

Image size
APS-C / CS
Filter size

none Number of aperture blades
6

Maximum diameter 86 mm
