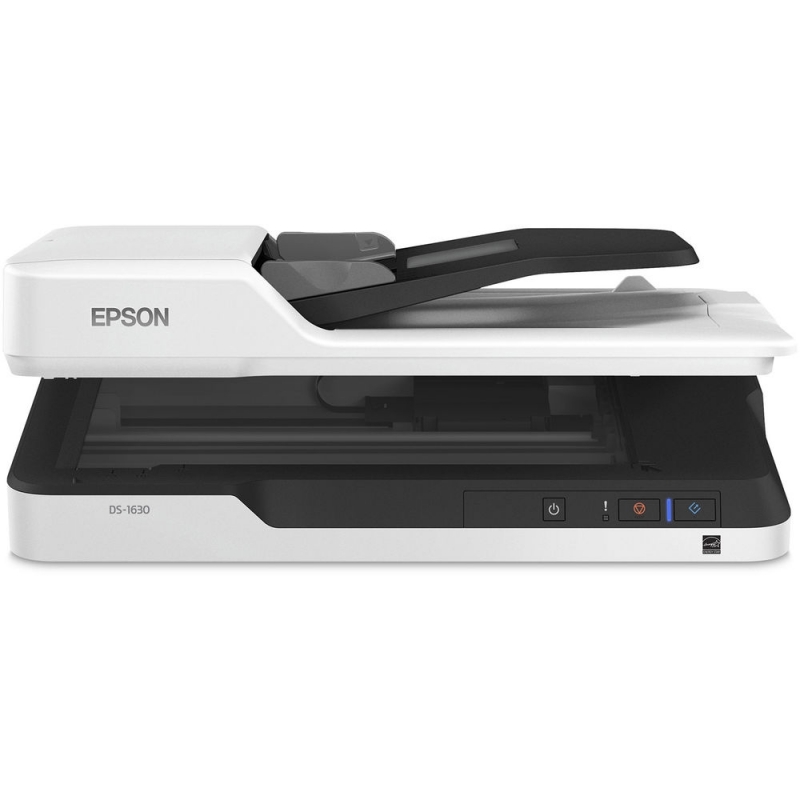

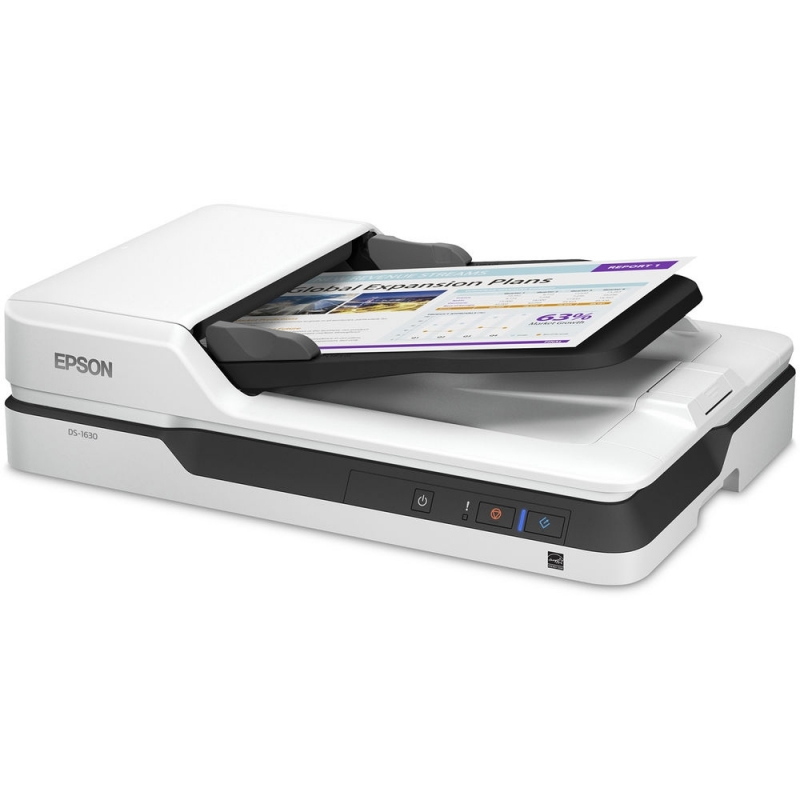

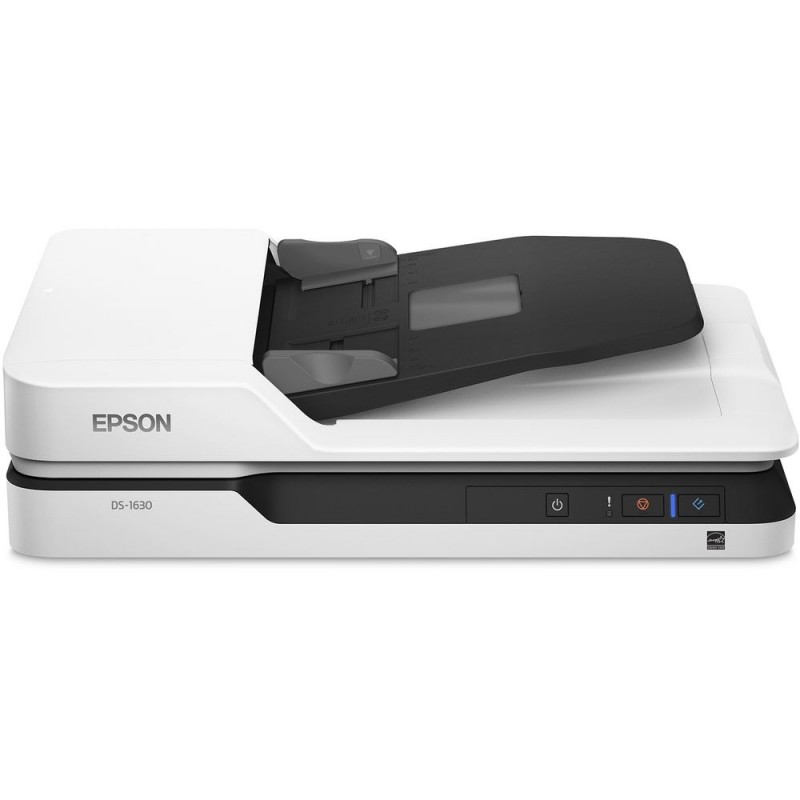

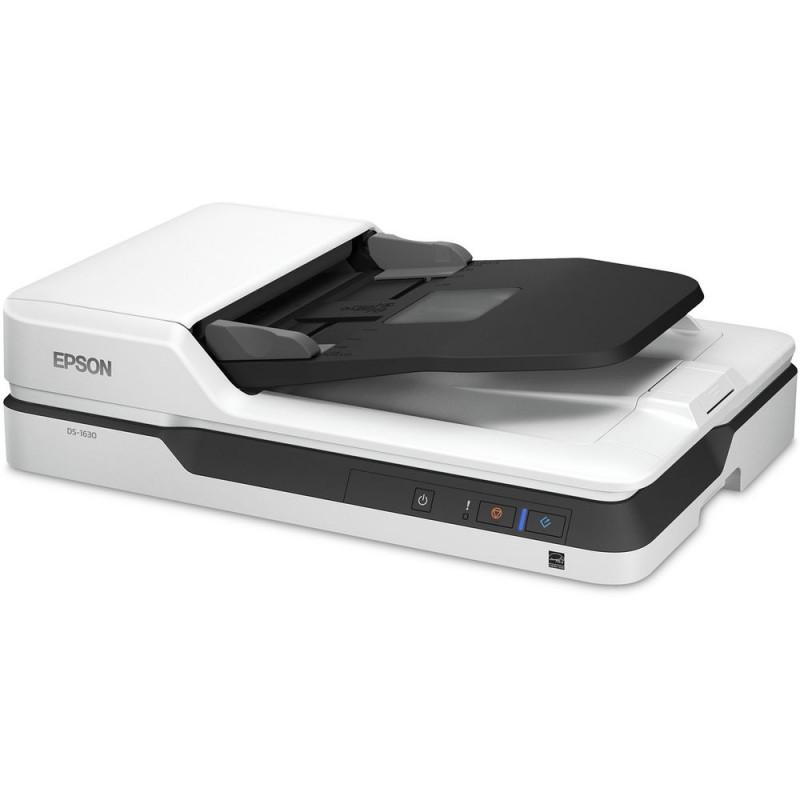

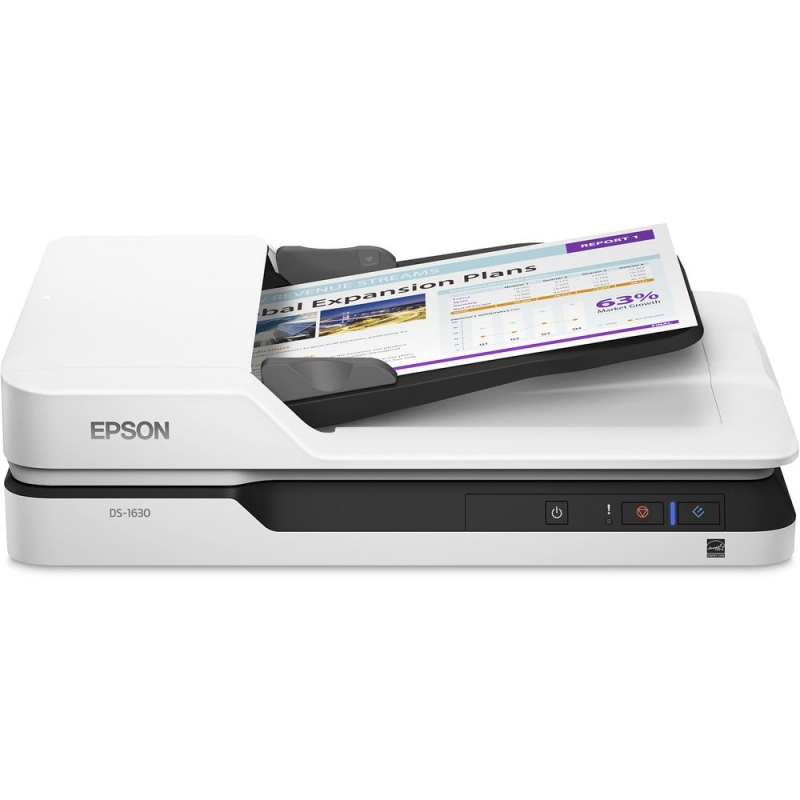

Optimize your scanning workflow with the DS-1630 Flatbed Color Document Scanner from Epson which incorporates both an 8.5 x 11.7" flatbed and a versatile 50-sheet ADF. The flatbed can work with a variety of different media types and offers a high 1200 dpi optical resolution for capturing crisp imagery. For faster or larger documents, the 600 dpi ADF offers a maximum scan size of up to 8.5 x 120" from a minimum of 3.5 x 5". Also, the ADF offers speeds of 25 ppm in simplex and 10 ipm in duplex mode.
In order to guarantee the best quality scans, the DS-1630 uses Epson's Image Processing Technology to automatically adjust color, skew, and more. Also, it comes with Epson Document Capture, ABBYY FineReader, and Presto! BizCard Reader software to help you stay organized. Additionally, it has USB 3.0 connectivity for fast data transfer.
Maximum dpi Resolution | 1200 dpi |
Optical Resolution | 1200 dpi |
Duplex Speed | 10 ipm (Color) 10 ipm (Grayscale) |
Simplex Speed | 25 ppm (Color) 25 ppm (Grayscale) |
Maximum Document Width | 8.5" / 21.6 cm |
Maximum Document Length | 120" / 304.8 cm |
Color Depth | 24-Bit (External) 30-Bit (Internal) |
Grayscale Bit-Depth | 8-Bit (Internal) |
Duplex Scanning | Yes |
Scan Modes | Color, Grayscale, Monochrome |
Document Feeding | ADF, Flatbed |
Life Expectancy | 1500 Sheets per Day |
Connectivity | USB 3.0 |
Operating System Compatibility | macOS/OS X, Windows |
Light Source | LED |
Control Panel | 3 Buttons |
Drivers | TWAIN, ISIS |
Maximum Sheet Capacity | 50 |
Automatic Image Corrections | Yes |
Environmental Compliance | ENERGY STAR, RoHS |
Operating Humidity | 20 to 80% |
Operating Temperature | 50 to 95°F / 10 to 35°C |
Maximum Power Consumption | 11 W |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Power Source | AC Adapter |
Dimensions | 12.5 x 11.7 x 4.8" / 31.8 x 29.7 x 12.2 cm |
Weight | 9.0 lb / 4.1 kg |
