| Produkta veids | Ieraksta iekārtas |
| Savienojuma spraudnis | USB |
Oriģinālais preces apraksts no ražotāja (oriģinālā valodā)

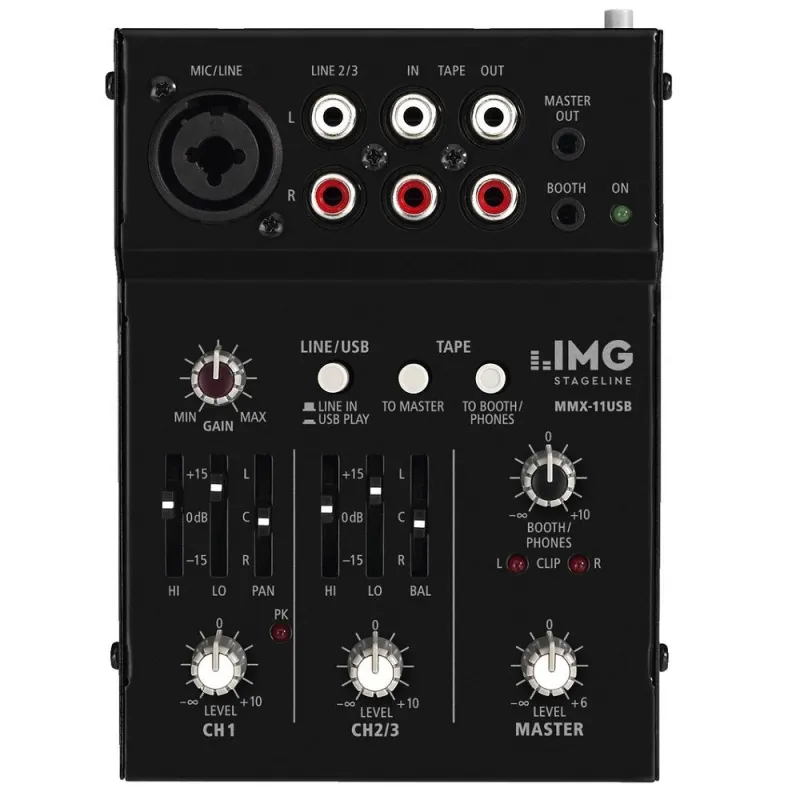

IMG-STAGELINE MMX-11USB
2-channel miniature audio mixer, with 3 inputs and USB port.
- Integrated USB audio interface (will be identified and addressed as an external sound card)
- Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
- 1 mono input channel with gain control, 2-way equalizer and pan pot, peak LED
- 1 stereo input channel with level control, 2-way equalizer and balance control
- Tape record/play connections
- 1 x 3.5 mm stereo output (master)
- Adjustable headphone output
- +20 V phantom power, permanent
- Clip LED
- Robust metal housing of compact size
Technical Specifications
| No. of channels | 2 |
| No. of inputs | 3 |
| Mic input | 0.5 mV, 1 x 3-pole XLR |
| Line input | 150 mV (stereo), 1 x RCA L/R 2 mV (mono), 6.3 mm jack |
| Tape (play) | 420 mV, 1 x RCA L/R |
| Master output | 6 V max., 1 x 3.5 mm jack |
| Booth output | 6 V max., 1 x 3.5 mm jack |
| Tape (rec) | 1 x RCA L/R |
| USB | yes |
| Frequency range | 20-20,000 Hz |
| THD | < 0.05% |
| S/N ratio | 81 dB, weighted |
| Equalizer bass | ±15 dB/80 Hz |
| Equalizer treble | ±15 dB/12 kHz |
| Phantom power | +20 V |
| Power supply | via USB interface or via encl. power supply |
| Operating voltage (possible alternative) | DC 5 V |
| Power supply (possible alternative) | DC 500 mA |
| Admiss. ambient temp. | 0-40 °C |
| Width | 102 mm |
| Height | 45 mm |
| Depth | 140 mm |
| Weight | 430 g |
| Packing dimensions (W x H x L) | 0.14 x 0.07 x 0.18 m |
| Gross weight | 0.615 kg |
| Net weight | 0.48 kg |
| Produkta veids | Ieraksta iekārtas |
| Savienojuma spraudnis | USB |
