Zoom F2 Skaņas ierakstītājs ar piespraužamo mikrofonu

Zoom F2 Field Recorder & Lavalier Mic
with 32-BIT float technology in your smallest, lightest recorder ever - perfect for Recording Interviews Anywhere

Built for Big things
For podcasters, videographers, bloggers, journalists and more, the F2 is the perfect audio solution for creators on the move.
*F2 is available with or without Bluetooth

• Light and compact audio recorder
• 32-Bit Float recording for full dynamic range and clip free recording
• No gain adjustment necessary
• Records 44.1kHz/32-bit float or 48kHz/32-bit float audio files
• Rec Hold function to avoid accidental operation of buttons
• 1/8" Mic In mini phone jack with Plug-in power (2.5V)
• Stereo ⅛" Phone/Line Output jack with dedicated volume control
• 80 Hz low cut filter
• High precision internal clock to avoid audio and video syncing issues
• Wireless timecode synchronization (F2-BT model only)*
• Records directly to micro SD and SDHC cards up to 512 GB
• USB-C for connection to F2 Editor for settings
• Built-in Bluetooth for connection to the F2 Control app for settings adjustment and remote transport control (F2-BT model only)

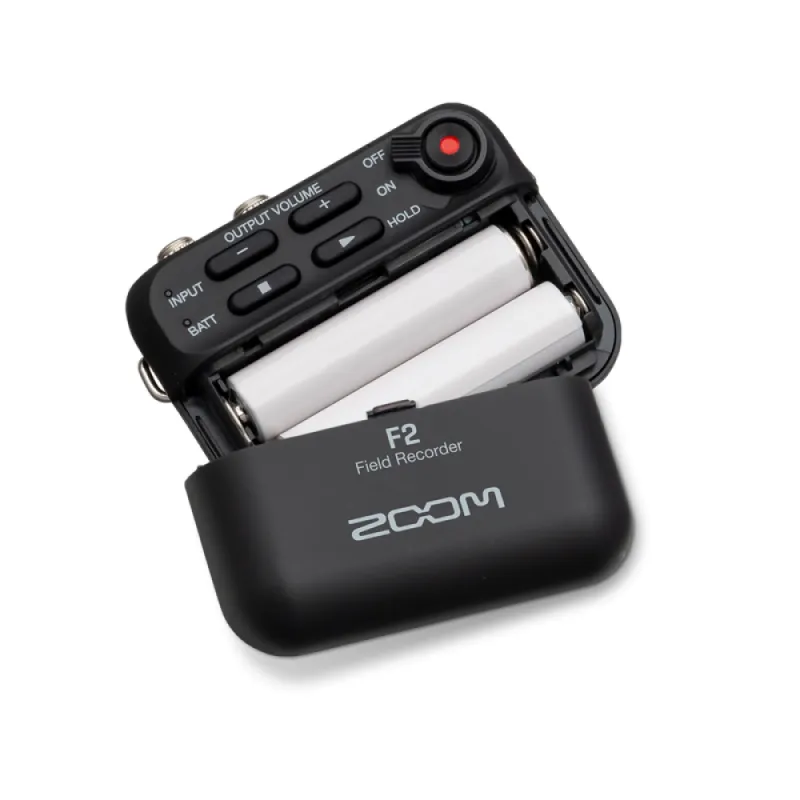

• Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
• Up to 15 hours of operation (14 hours on the F2-BT) with two AAA alkaline batteries

*F2-BT connection to UltraSync BLUE device by Timecode Systems is required.

Don't be fooled by it's size
The F2 is incredibly small, but its audio quality will amaze you.

Audio on Autopilot
The F2, also available in white, features 32-bit float recording technology, allowing you to record the loudest audio signals without worrying about clipping. It will also record the quietest signals in beautiful detail. And the best part is you don’t have to worry about setting the gain. Just plug in the lav and hit record.

Please Hold
Once you start your recording, use the F2’s HOLD switch to ensure you don’t accidentally stop recording.

Lock 'n Lav
Screw-lock connectors keep your lav plugged-in securely no matter the situation.

Also available with Bluetooth Control
The F2-BT comes with built-in Bluetooth. And with the free Zoom F2 Control app (for iOS / Android) the F2-BT can wirelessly start/stop recordings, display battery levels, adjust output volume, control lo-cut and more.

You can also pair the F2-BT with a Bluetooth timecode synchronization device to receive and write timecode to recorded files.

The F2 Editor
The F2 Editor for PC and Mac allows you to adjust settings, format SD cards and more. Simply connect your F2 or F2-BT via a USB cable and launch the editor. The USB connection also makes it easy to transfer files to your computer.

Narration and Voice Over
Whether a stroll through your garden, or the whispers and shouts of a dramatic reading, the F2 provides crystal clear recordings.

Power - The F2 can record up to 15 hours (14 hours on the F2-BT) with two AAA batteries.

Storage - Record on microSD, microSDHC, and microSDXC cards up to 512GB.

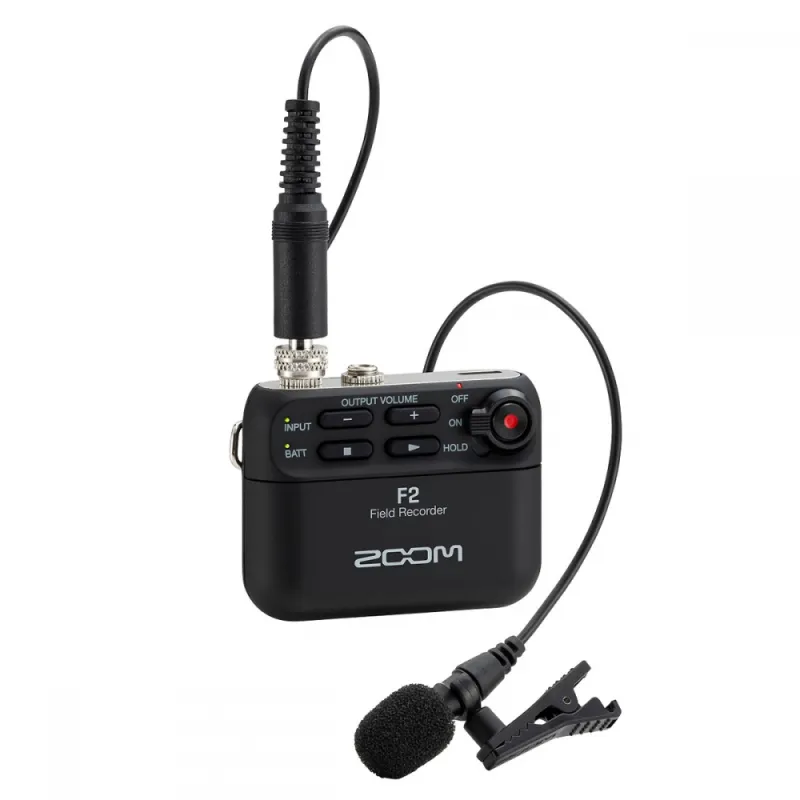

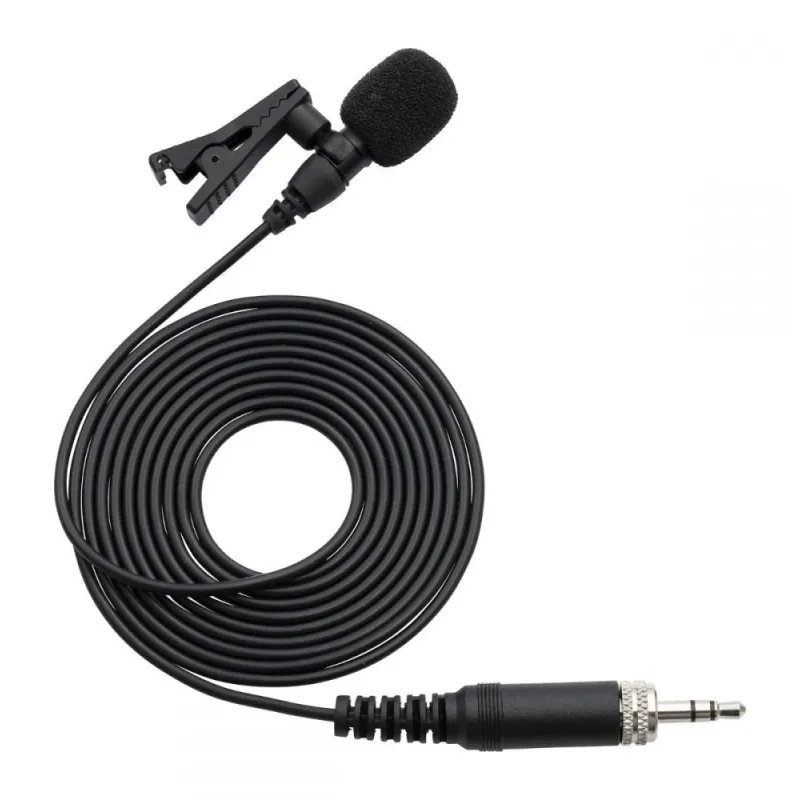

Lavalier Mic included - The LMF-2 omnidirectional lavalier microphone has a low-profiled design, captures high-quality audio, and includes a windscreen and lapel mic clip.

Recording Formats - The F2 Field Recorder gives you the option to choose the recording format that works best for your projects. Choose from 44.1 kHz/32-bit float or 48 kHz/32-bit float mono WAV files.

Free Editing Software
The Zoom F2 comes with a free download license for Steinberg’s WaveLab Cast software. WaveLab Cast helps you finalize your project with a wide range of comprehensive editing, mixing, and refinement tools.

Podcasting - WaveLab Cast connects you directly with podcast directories, such as Spreaker or Podbean. You can upload episodes quickly, plus directly create and publish RSS feeds.

Audio for Video - Import your video file and WaveLab Cast will automatically extract the audio. You can use the editing tools to lower unwanted noise, change levels and remove loud sibilants. Metering options allow you to build new tracks, fade-in your music, use EQ and compression. Re-attach the audio to the video file using WaveLab Cast’s export functions.

Field Recording - WaveLab Cast supports up to 96KHz audio quality and includes a high-end re-sampler. RestoreRig removes noise and unwanted sounds. You can assemble new files using the snap functions and crossfade options. Once you’re done, export your sound files in any popular audio format.

For information on license activation and upgrades, visit the Zomm support page for Steinberg Software.


In The Box
(1) F2 or F2-BT Field Recorder
(1) LMF-2 Lavalier Microphone
(3) WSL-1 Windscreen
(1) MCL-1 Mic Clip
(2) AAA Batteries
(1) WaveLab Cast Software
(1) F2/F2-BT Operation Manual

Specifications

Physical Interfaces

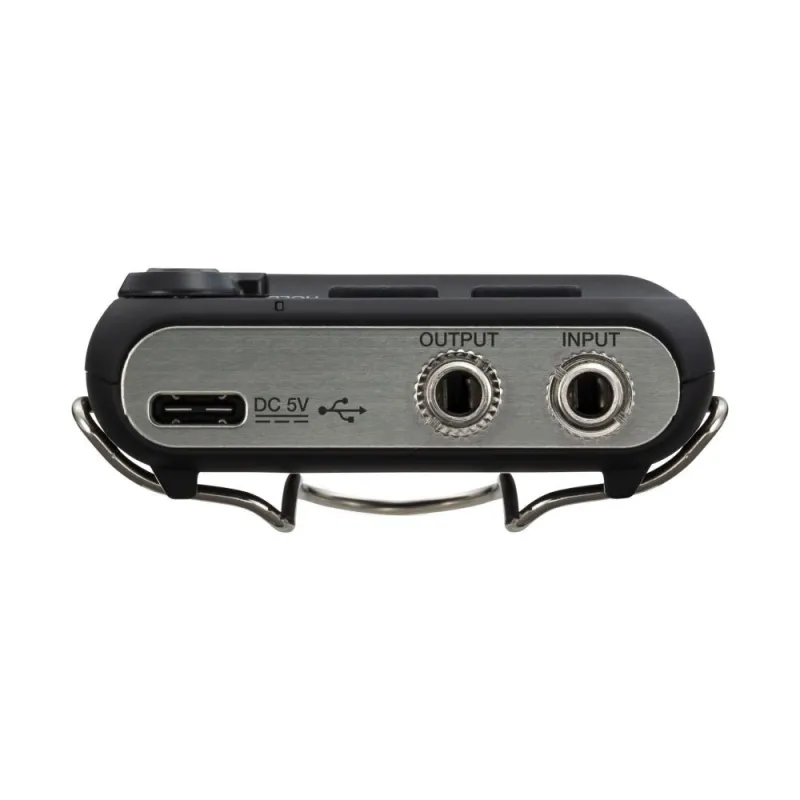

INPUT

Connector3.5mm stereo mini (with screw lock) Supports plug-in power (2.5 V)

Input gain

None (dual AD conversion system)

Input impedance

2 kΩ or more

Maximum input level

−5.5 dBu

OUTPUT

Connector

3.5mm stereo mini (with screw lock)

Maximum output level

20mW + 20mW (into 32Ω load)

USB

USB Type-C

Mass storage operation

USB 2.0 High Speed

PC app operation

USB 2.0 High Speed

Powering the device

2x AAA batteries

alkaline
lithium
rechargeable NiMH batteries

AC adapter (ZOOM AD-17)

DC 5 V/1 A

Recording Media

Form Factor

Compatible with microSDHC/SDXC

Bus Interface

UHS-I (Pin Layout: one row with 9 Pins)

Recommended Speed Class

Class 4 or higher

Compatibility

Max. Storage Capacity

up to 512 GB

Recording Format

WAV formats supported
• 44.1kHz/32-bit float
• 48kHz/32-bit float Mono
• BWF

Miscellaneous

Bluetooth

Bluetooth Ver4.2 (F2-BT only)

Continuous recording time

When using lavalier mic (48kHz/32-bit float)
• about 14 hours* (with Alkaline batteries)
• about ~ 10 hours* (with NiMH batteries (750 mAh))
• about 18 hours* (with Lithium batteries)
*The above values are approximate and may vary, due to the actual environmental and usage conditions.

External dimensions (WxHxD)

57.5 × 46.4 × 22.4 mm

Weight (main unit only)

32 g

Lavalier Mic

Connector

3.5 mm stereo mini (with screw lock)

Directionality

Omnidirectional

Sensitivity

–32 dB/Pa at 1 kHz

Maximum sound pressure input

115 dB SPL

Cable length

160 cm
