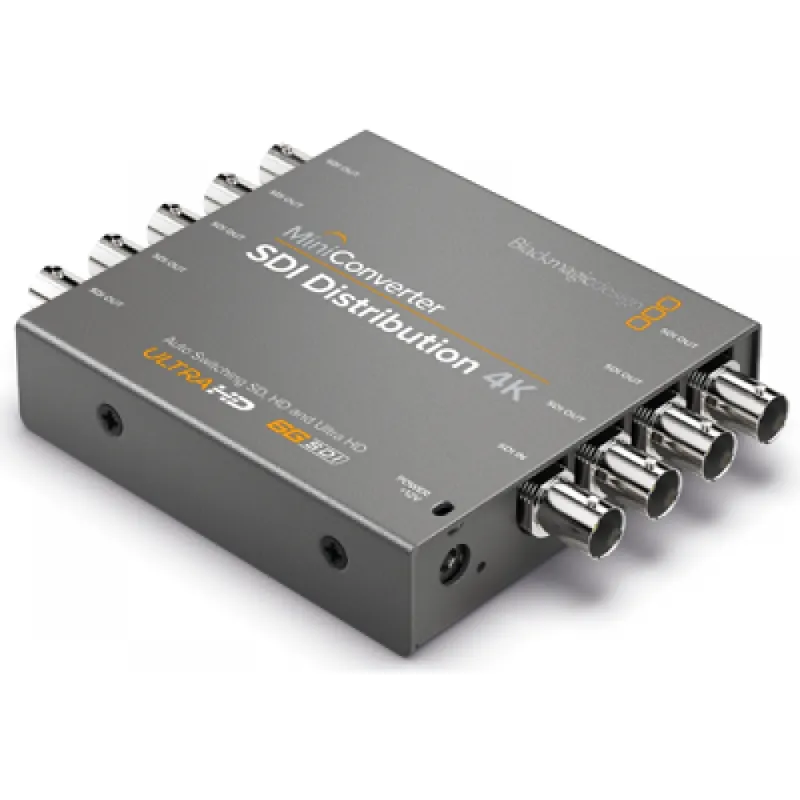

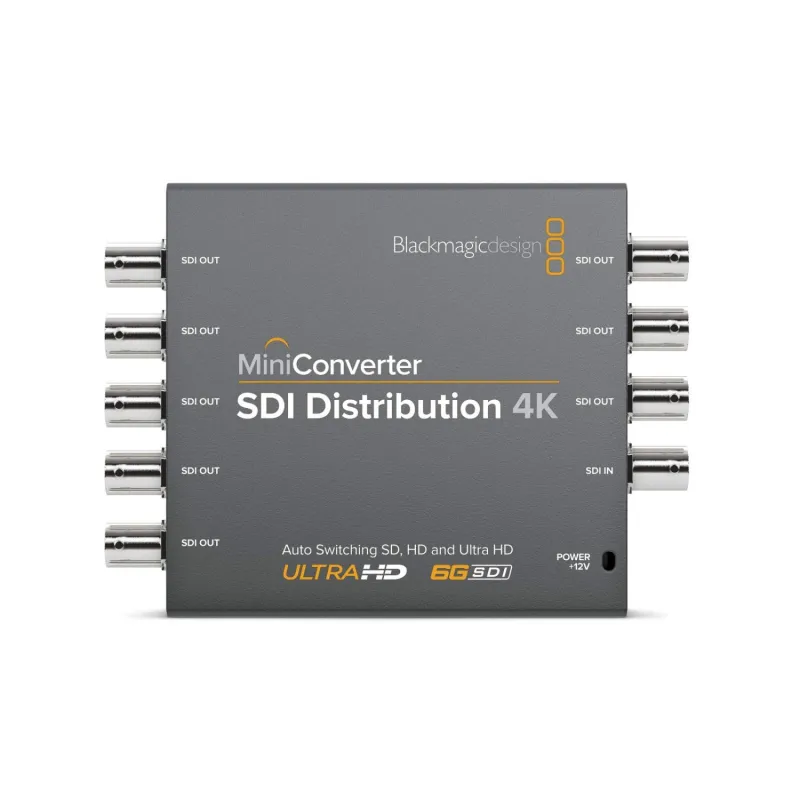

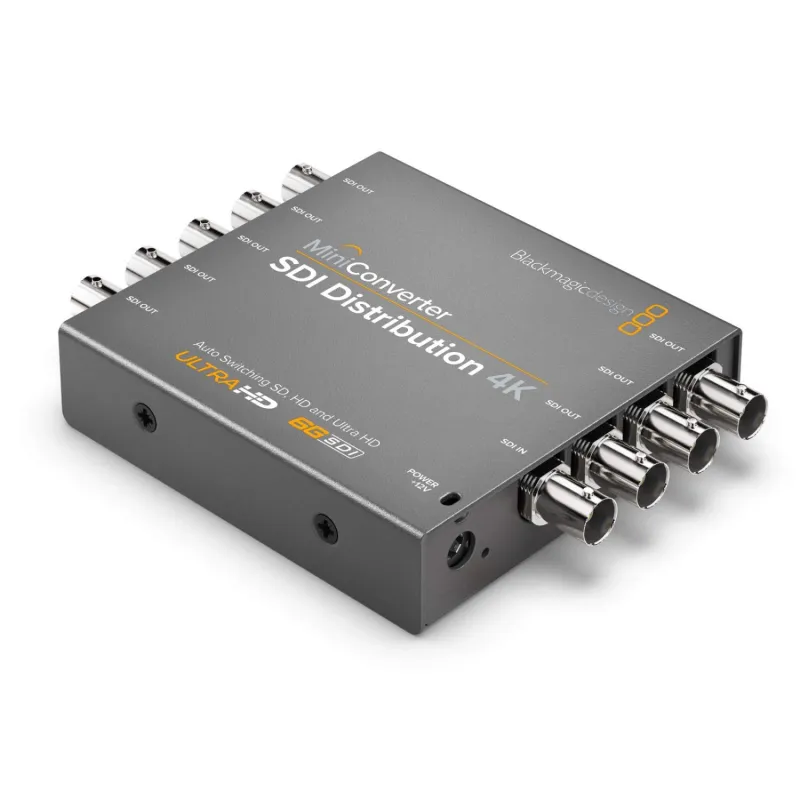

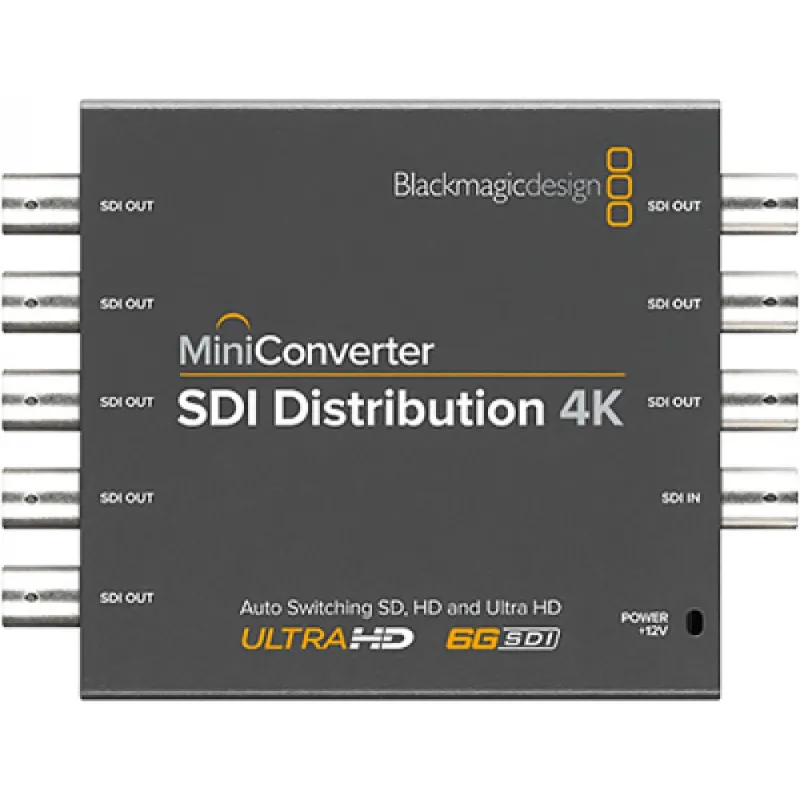

Blackmagic Mini Converter SDI Distribution 4K (BM-CONVMSDIDA4K)

When you need to connect to multiple SDI devices, then Mini Converter SDI Distribution 4K is the perfect solution! Connect a single SDI source to 8 re-clocked SDI outputs with automatic switching between all SD-SDI, HD-SDI, 3G-SDI and 6G-SDI video formats, plus all ASI, ancillary and embedded audio formats.

Make the move to Ultra HD with the world's most advanced converters!

The new Blackmagic Mini Converter range are the worlds most advanced converters because they include the latest 6G-SDI technology, plus automatically detect the input video format and instantly change between virtually all SD, HD and Ultra HD video standards! Simply plug in and Mini Converters will convert between your equipment all automatically!
You get advanced features such as redundant SDI inputs, re-clocked loop outputs and full analog and AES/EBU audio inputs and outputs so you can convert between formats as well as embed or de-embed audio all on the one converter! Choose from a range of 13 models depending on the conversion you need!

Easy To Use Features
Broadcast, post production and professional AV environments are built using SDI equipment and cabling. It’s essential when converting to and from SDI that you maintain the highest possible video and audio quality. Mini Converters are compact, affordable and easy-to-use. Settings can be changed quickly using built-in mini switches, and with a diagram showing pin settings printed on the back you never need to refer to a manual! Mini Converters use standard broadcast video and audio connections, so you get the convenience and cost savings of using your own cables!

Ultra HD and 6G-SDI Technology
Make the move to Ultra HD, the broadcast standard of the future, easy! Be prepared now by installing equipment that is fully compatible with all your SD and HD-SDI infrastructure, but will also switch over to Ultra HD via 6G-SDI when you need to run Ultra HD! This means you’re ready for the future and can build your system with full Ultra HD compatibility! Ultra HD features an incredible 4 times the resolution of regular 1080 HD video for a massive 3840 x 2160 frame size! Ultra HD is amazing! The advanced 6G-SDI design also means the new Blackmagic Mini Converters models perform better when used in SD and HD formats than simple HD only converters!

Standard Audio Connections
Mini Converters support embedded SDI and HDMI audio and several models let you separately embed or de-embed analog or digital audio. Mini Converters support 24 bit analog and AES/EBU audio and use standard 1/4" audio jacks so you don't need custom cables!

Powerful Performance
Unlike other converters that can be confusing to operate and sometimes identify, Mini Converters combine powerful performance with a simple, compact design! Built-in connections are easy to access and all use standard cables that you're already likely to own!

Optical Fiber Conversion
Mini Converter is available in a 6G-SDI to optical fiber model. You get bi-directional 6G-SDI to optical fiber conversion, with each direction independent of each other. Optical fiber cables span distances up to 28 miles without any deterioration to the signal.

Highest Quality Processing
With the highest quality video processing, Mini Converters are ideal for all broadcast, post production and professional AV applications. Multiple internal power supplies ensure incredibly low noise levels when moving between analog and digital video formats. Specific models include up/down/cross conversion that lets you move easily between PAL and NTSC SD video standards and the high number of HD formats in up to 3840 x 2160 Ultra HD resolutions.

Easy Settings Control
Changing Mini Converter's built-in mini switch settings is as easy as using a pen! This is great when you need to change settings quickly as there are no complicated menus to navigate! You can also control settings using the included Converter Utility software.

Connect a Mini Converter to any Mac OS X or Windows based laptop or desktop computer! All models can be updated via USB 2.0 by simply downloading software upgrades directly from the Blackmagic Design website.

What's Included:
- Mini Converter SDI Distribution
- Software CD
- 12V universal power supply with international socket Adapters

Connections:

SDI Video Input:

Switchable between SD, HD and 6G-SDISDI.

SDI Video Output:

8 outputs automatically match the SDI video input.

Multi Rate Support:

Auto detection of 6G-SDI, HD or standard definition inputs.

Reclocking:

Yes

Standards:

SD Format Support:

525/29.97 NTSC, 625/25 PAL

HD Format Support:

720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60

2K Format Support:

2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25

4K Format Support:

3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24

SDI Compliance:

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M

SDI Video Rates:

SDI video connections are switchable between 6G-SDI, HD and SD-SDI

SDI Video Sampling:

4:2:2 and 4:4:4

SDI Audio Sampling:

Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision:

4:2:2 and 4:4:4

SDI Color Space:

YUV and RGB

SDI Auto Switching:

Automatically selects between SD SDI, HD-SDI and 3G- SDI.

ASI Support:

Yes

Power Requirements:

Power Supply:

+12V universal power supply included with international socket adapters for all countries. Cable tie point.

Power Consumption:

4.80 Watts

Operational Voltage Range:

12V - 30V

Environmental Specifications:

Operating temperature:

0° to 40° C (32° to 104° F)

Storage temperature:

-20° to 45° C (-4° to 113° F)

Relative Humidity:

0% to 90% non-condensing

Warranty:

Warranty:

3 Year Limited Manufacturer's Warranty.

Blackmagic Mini Converter SDI Distribution 4K (BM-CONVMSDIDA4K)

When you need to connect to multiple SDI devices, then Mini Converter SDI Distribution 4K is the perfect solution! Connect a single SDI source to 8 re-clocked SDI outputs with automatic switching between all SD-SDI, HD-SDI, 3G-SDI and 6G-SDI video formats, plus all ASI, ancillary and embedded audio formats.

Make the move to Ultra HD with the world's most advanced converters!

The new Blackmagic Mini Converter range are the worlds most advanced converters because they include the latest 6G-SDI technology, plus automatically detect the input video format and instantly change between virtually all SD, HD and Ultra HD video standards! Simply plug in and Mini Converters will convert between your equipment all automatically!
You get advanced features such as redundant SDI inputs, re-clocked loop outputs and full analog and AES/EBU audio inputs and outputs so you can convert between formats as well as embed or de-embed audio all on the one converter! Choose from a range of 13 models depending on the conversion you need!

Easy To Use Features
Broadcast, post production and professional AV environments are built using SDI equipment and cabling. It’s essential when converting to and from SDI that you maintain the highest possible video and audio quality. Mini Converters are compact, affordable and easy-to-use. Settings can be changed quickly using built-in mini switches, and with a diagram showing pin settings printed on the back you never need to refer to a manual! Mini Converters use standard broadcast video and audio connections, so you get the convenience and cost savings of using your own cables!

Ultra HD and 6G-SDI Technology
Make the move to Ultra HD, the broadcast standard of the future, easy! Be prepared now by installing equipment that is fully compatible with all your SD and HD-SDI infrastructure, but will also switch over to Ultra HD via 6G-SDI when you need to run Ultra HD! This means you’re ready for the future and can build your system with full Ultra HD compatibility! Ultra HD features an incredible 4 times the resolution of regular 1080 HD video for a massive 3840 x 2160 frame size! Ultra HD is amazing! The advanced 6G-SDI design also means the new Blackmagic Mini Converters models perform better when used in SD and HD formats than simple HD only converters!

Standard Audio Connections
Mini Converters support embedded SDI and HDMI audio and several models let you separately embed or de-embed analog or digital audio. Mini Converters support 24 bit analog and AES/EBU audio and use standard 1/4" audio jacks so you don't need custom cables!

Powerful Performance
Unlike other converters that can be confusing to operate and sometimes identify, Mini Converters combine powerful performance with a simple, compact design! Built-in connections are easy to access and all use standard cables that you're already likely to own!

Optical Fiber Conversion
Mini Converter is available in a 6G-SDI to optical fiber model. You get bi-directional 6G-SDI to optical fiber conversion, with each direction independent of each other. Optical fiber cables span distances up to 28 miles without any deterioration to the signal.

Highest Quality Processing
With the highest quality video processing, Mini Converters are ideal for all broadcast, post production and professional AV applications. Multiple internal power supplies ensure incredibly low noise levels when moving between analog and digital video formats. Specific models include up/down/cross conversion that lets you move easily between PAL and NTSC SD video standards and the high number of HD formats in up to 3840 x 2160 Ultra HD resolutions.

Easy Settings Control
Changing Mini Converter's built-in mini switch settings is as easy as using a pen! This is great when you need to change settings quickly as there are no complicated menus to navigate! You can also control settings using the included Converter Utility software.

Connect a Mini Converter to any Mac OS X or Windows based laptop or desktop computer! All models can be updated via USB 2.0 by simply downloading software upgrades directly from the Blackmagic Design website.

What's Included:
- Mini Converter SDI Distribution
- Software CD
- 12V universal power supply with international socket Adapters

Specifications

Connections:

SDI Video Input:

Switchable between SD, HD and 6G-SDISDI.

SDI Video Output:

8 outputs automatically match the SDI video input.

Multi Rate Support:

Auto detection of 6G-SDI, HD or standard definition inputs.

Reclocking:

Yes

Standards:

SD Format Support:

525/29.97 NTSC, 625/25 PAL

HD Format Support:

720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60

2K Format Support:

2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25

4K Format Support:

3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24

SDI Compliance:

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M

SDI Video Rates:

SDI video connections are switchable between 6G-SDI, HD and SD-SDI

SDI Video Sampling:

4:2:2 and 4:4:4

SDI Audio Sampling:

Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision:

4:2:2 and 4:4:4

SDI Color Space:

YUV and RGB

SDI Auto Switching:

Automatically selects between SD SDI, HD-SDI and 3G- SDI.

ASI Support:

Yes

Power Requirements:

Power Supply:

+12V universal power supply included with international socket adapters for all countries. Cable tie point.

Power Consumption:

4.80 Watts

Operational Voltage Range:

12V - 30V

Environmental Specifications:

Operating temperature:

0° to 40° C (32° to 104° F)

Storage temperature:

-20° to 45° C (-4° to 113° F)

Relative Humidity:

0% to 90% non-condensing

Warranty:

Warranty:

3 Year Limited Manufacturer's Warranty.

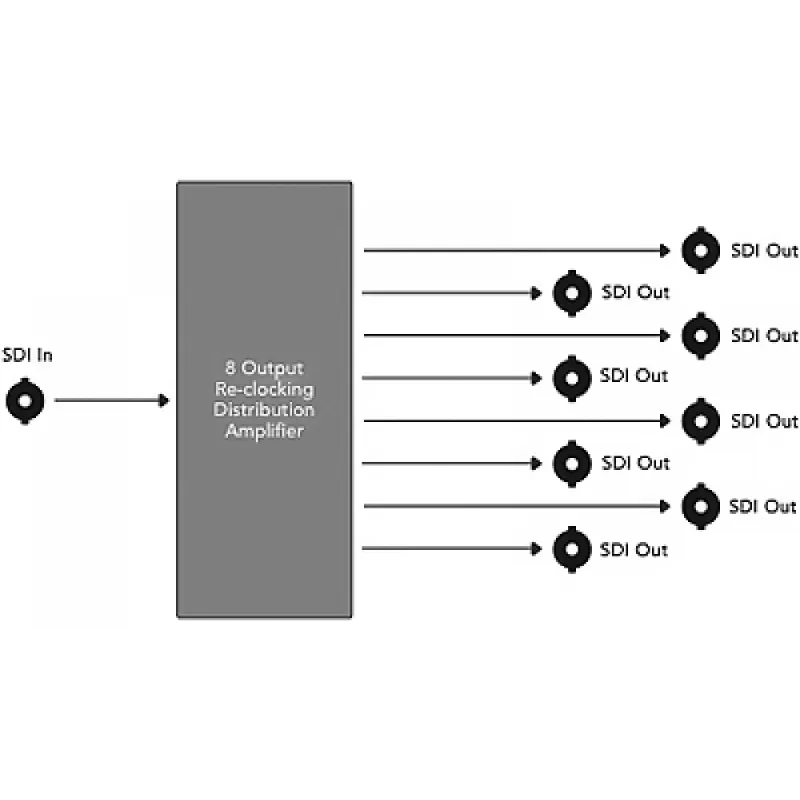

Mini Converter SDI Distribution 4K converts from a single SDI input to 8 different SDI outputs. Automatically switches between all SD, HD and Ultra HD video formats.

Worlds Most Advanced Converters
Mini Converters are the worlds most advanced and easy-to-use SDI converters. Built with the highest quality components and connectors, Mini Converters automatically switch between SD, HD, and 4K models switch up to Ultra HD resolutions with 6G-SDI video standards! Whether you want to convert to or from SDI, move between different SDI video formats or distribute SDI signals to multiple destinations, you get the highest quality broadcast technology in a compact and affordable design. Choose from a range of many different models, all featuring low SDI jitter and SDI re-clocking so you can use the longest SDI cable lengths and maintain pristine quality images.

Easy To Use Features
Broadcast, post production and professional A/V environments are built using SDI equipment and cabling. Its essential when converting to and from SDI that you maintain the highest possible video and audio quality. Mini Converters are compact, affordable and easy-to-use. Settings can be changed quickly using built-in mini switches, and with a diagram showing pin settings printed on the back you never need to refer to a manual! Mini Converters use standard connections, so you get the convenience and cost savings of using your own cables!



Latest SDI Technology
Mini Converters 4K models feature the latest 6G-SDI technology that operates at four times the data rate of normal HD-SDI. 6G-SDI is fully compatible with all SD-SDI and HD-SDI equipment, so you can connect to your existing equipment. Mini Converters detect the video input and automatically switch between formats.
