Decimator Design DMON-12S 12-Kanal-MultiViewer Converter / Decoder / Encoder

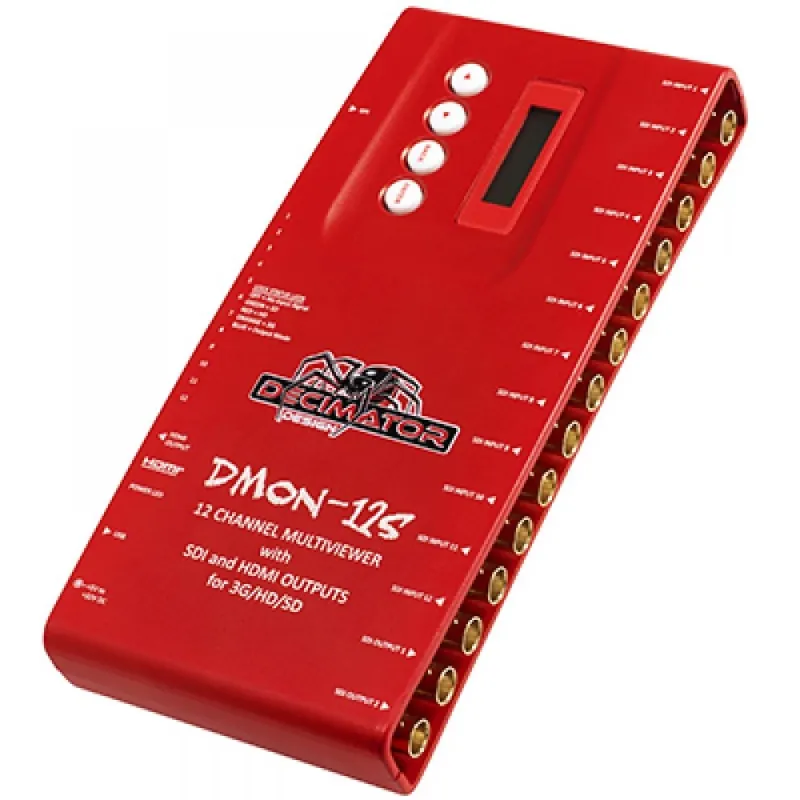

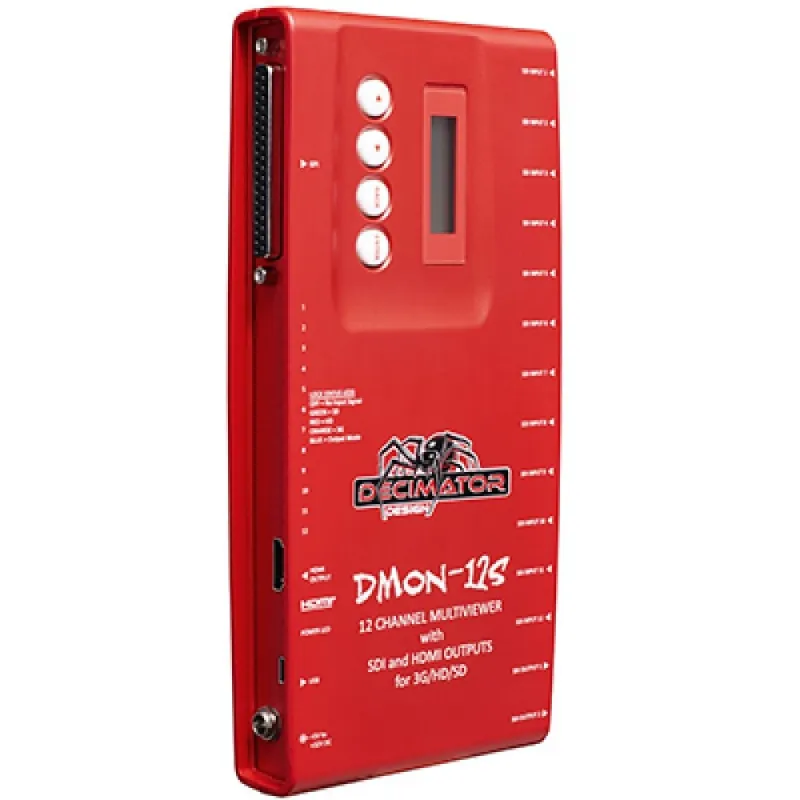

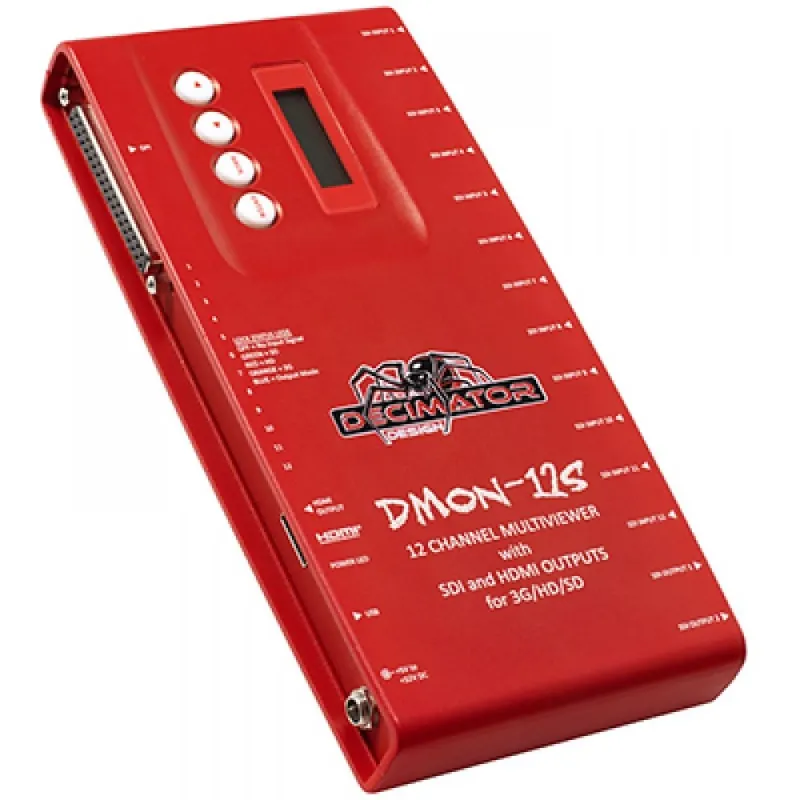

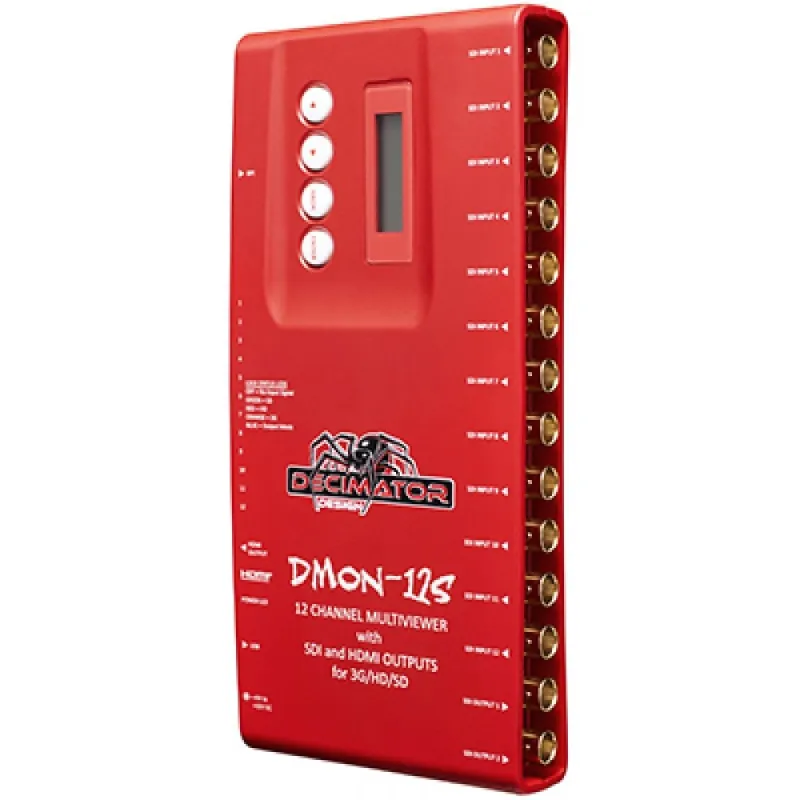

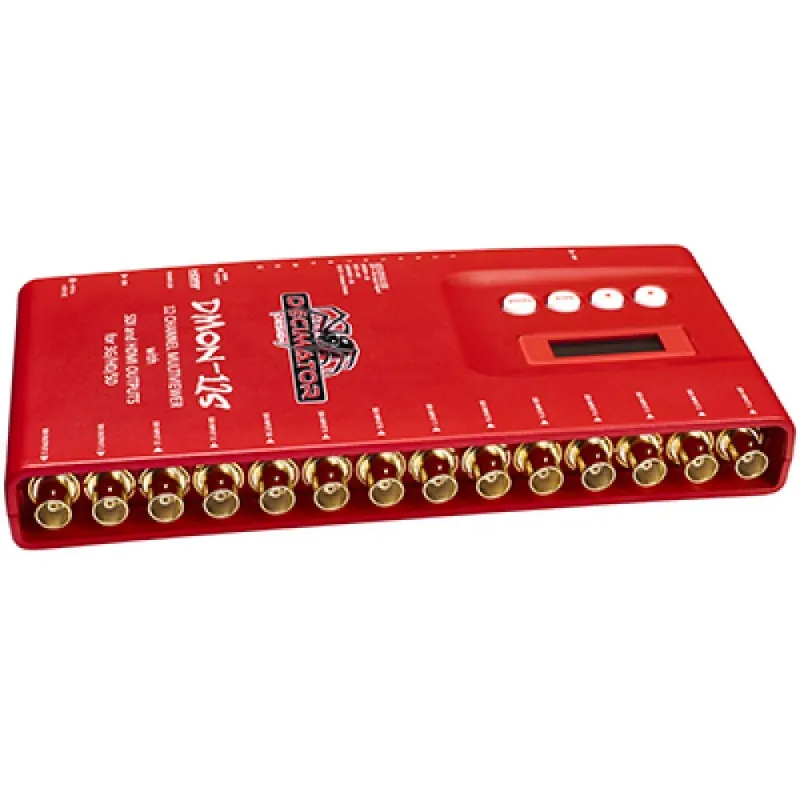

Decimator Design DMON-12S 12 Channel MultiViewer

1 to 12 Channel MultiViewer with SDI and HDMI outputs for 3G/HD/SD and Custom Layouts.

Features:
NEW: Support both 3G level A and B on the input and output. Allowing conversion between 3G level A and B.
• Low cost miniature (3G/HD/SD)-SDI 1 to 12 channel Multi-Viewer or 12 to 1 input multiplexer
• Custom Layouts with various standard layouts
• 16 Character UMD overlay per window with individual enables, custom positioning and size
• 16 Channel Audio Metering overlay per window with individual enables, custom positioning and size
• Safe Action and Safe Title overlay per window with individual enables and adjustment
• Centre Cross overlay per window with individual enable
• Audio ID overlay
• Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
• Tally boxes allows for up to 4 Tallies per window
(Green, Red, Blue and Yellow)
• Load and restore Custom Layouts
• Fast switching between inputs using Full-Screen scaling
• Selectable output format in both Full-Screen and Multi-Viewer mode
• Low latency buffering for each input allowing non-synchronous inputs
• Linked (3G/HD/SD)-SDI and HDMI outputs
• 12 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
• Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
• Variable aspect ratios per window
• Pass-Through mode allowing any of the 12 inputs to be selected and routed to both the 3G/HD/SD)-SDI and HDMI outputs
• The DMON-12S is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

Delivery Contents:
• DMON-12S
• 32 GPI on 37-pin D-SUB connector for Tallies and Remote Switching
• RS422/485 on 37-pin D-SUB connector for Dynamic UMD and Tallies via TSL protocol
• USB port for control and firmware updates
• Heavy duty metal box
• Metal Thread Locking DC Power Socket
• Power Supply, HDMI Cable and USB Cable

SDI INPUT & OUTPUT FORMATS

3G:SMPTE 424M@2.97 and 2.967Gb/s
1080p@60/59.94/50Hz
HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
1080i@60/59.94/50Hz
1080p/psf@30/29.97/25/24/23.98Hz
720p@60/59.94/50/30/29.97/25/24/23.98Hz
SD:SMPTE 259M@270Mb/s
625i50
525i59.94

HDMI OUTPUT FORMATS

1080p@60/59.94/50Hz
1080i@60/59.94/50Hz
1080p@30/29.97/25/24/23.98Hz
720p@60/59.94/50/30/29.97/25
625i50 525i59.94

LED STATUS

Power; 12 × Signal lock and rate

POWER

+5V to +32V DC
Positie Centre Pin

LCD/BUTTONMENU OPTIONS

HDMI output type
Output Select
Multi-Viwer Output Format
Multi-Viwer Number of Windows
Multi-Viwer Layout
Multi-Viwer Audio Source
Multi-Viwer Reference
Full Screen is Scaled
Input Routin
GPI mode
Setup

INPUTS

12 × (3G/HD/SD)-SDI
Input Equalization > 100M using Belden 1694
USB for control and updates

OUTPUTS

HDMI Type A
2 × SDI (3G/HD/SD)-SDI

DIMENSIONS

220mm × 103.7mm × 29.5mm (8.7” × 4.1” × 1.2”)
