SmallRig 2520 Mount Plate for Shogun 7

SMALLRIG 2520 Mount Plate for Shogun 7

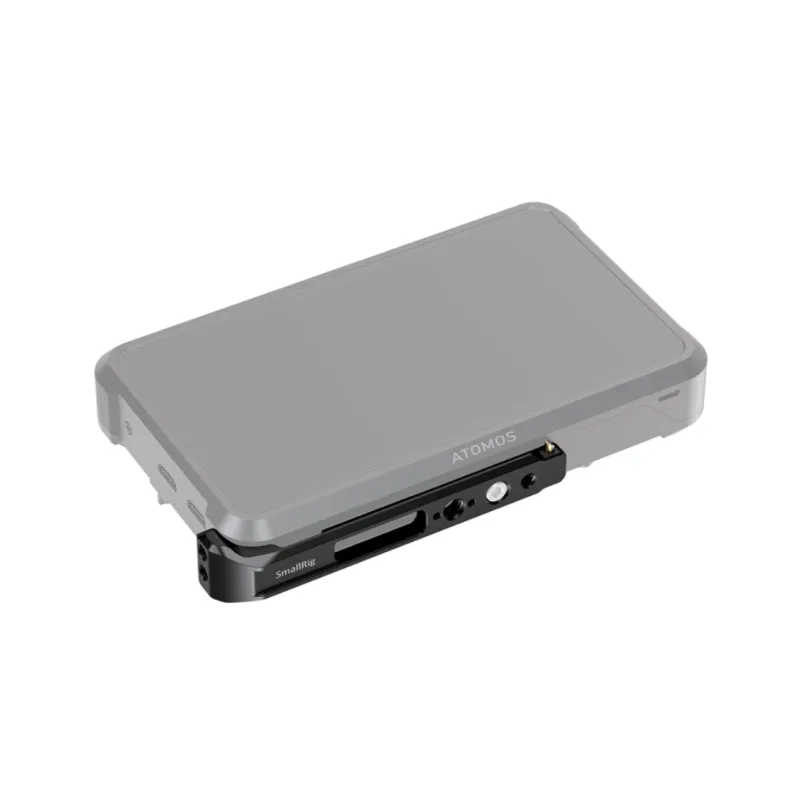

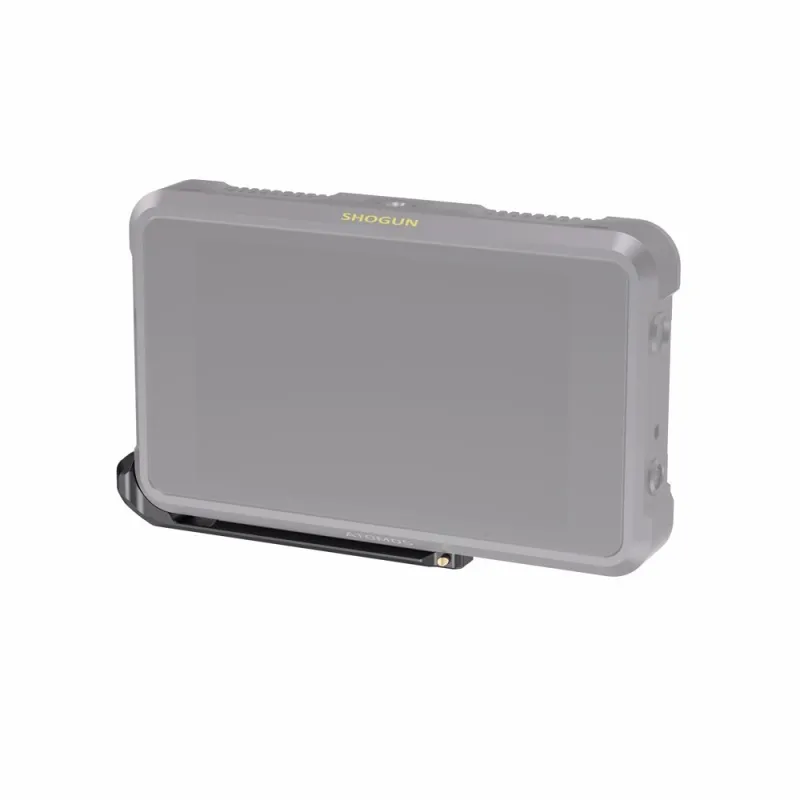

The plate serves as a top plate or bottom plate, fixed to Atomos Shogun 7 using the included 1/4"-20 screw and the locating pins on the plate interface with the monitor’s locating holes to prevent the plate from twisting.

It features a built-in NATO rail for quick attachment and release when used with NATO clamp accessories like SmallRig Ball Head Arm 2071, 2072 or SmallRig Monitor Holder 2205, 2385.

This plate is compatible with the original Atomos Sun hood.

Note:

1. This plate is COMPATIBLE with the original Atomos Shogun 7 Sun hood. The Sun hood frame needs to be fitted before fitting the unit in to the cage;
2. If the HDMI Clamp is needed, SmallRig Mounting Plate and HDMI Cable Clamp CMA2487 is available

Package Includes:
1 x Mounting Plate
1 x Hex Spanner

SmallRig Mounting Plate for Atomos Shogun 7 CMA2520 enables you to easily and safely mount the monitor to the camera rig. The plate serves as a top plate or bottom plate, fixed to Atomos Shogun 7 using the included 1/4"-20 screw and the locating pins on the plate interface with the monitor's locating holes to prevent the plate from twisting. It features a built-in NATO rail for quick attachment and release when used with NATO clamp accessories like SmallRig Ball Head Arm 2071, 2072 or SmallRig Monitor Holder 2205, BSE2385. This plate is compatible with the original Atomos Sun hood.

Key Features

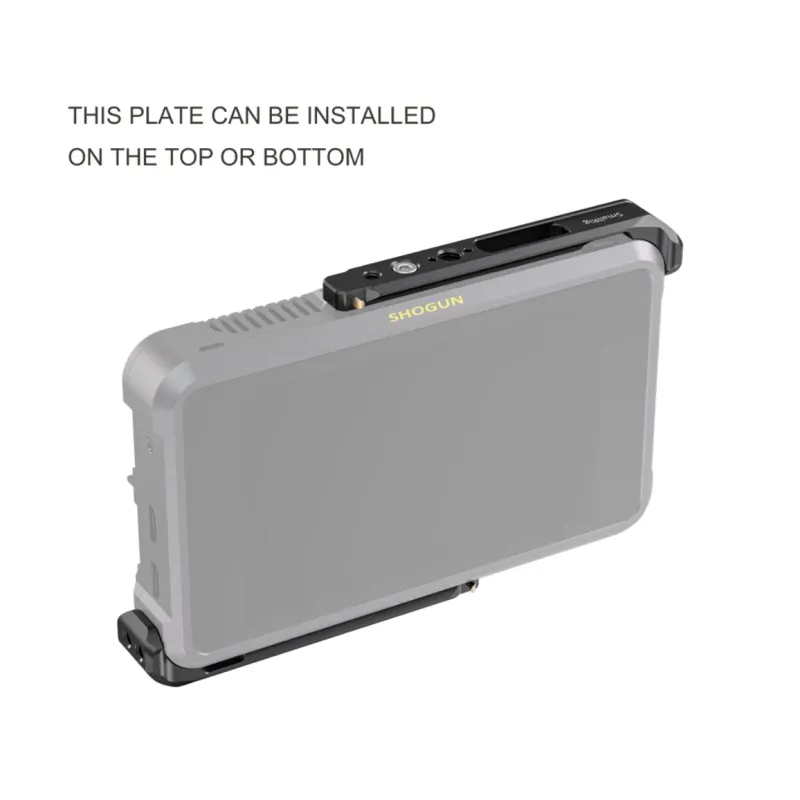

1. Mounting on the top or bottom
2. Fixed by 1/4"-20 screw and two locating pins
3. Built-in NATO rail
4. 1/4"-20 and ARRI locating hole

Note
1. This plate is COMPATIBLE with the original Atomos Shogun 7 Sun hood. The Sun hood frame needs to be fitted before fitting the unit in to the cage
2. If the HDMI Clamp is needed, SmallRig Mounting Plate and HDMI Cable Clamp CMA2487 is available.

Compatibility
Atomos Shogun 7

• 1 x Mounting Plate
• 1 x Hex Spanner

• Product Dimensions:145.5 x 28.5 x 27mm
• Package Dimensions: 185 x 55 x 55mm
• Net Weight: 52g
• Package Weight: 104g
• Material(s): Aluminum Alloy
